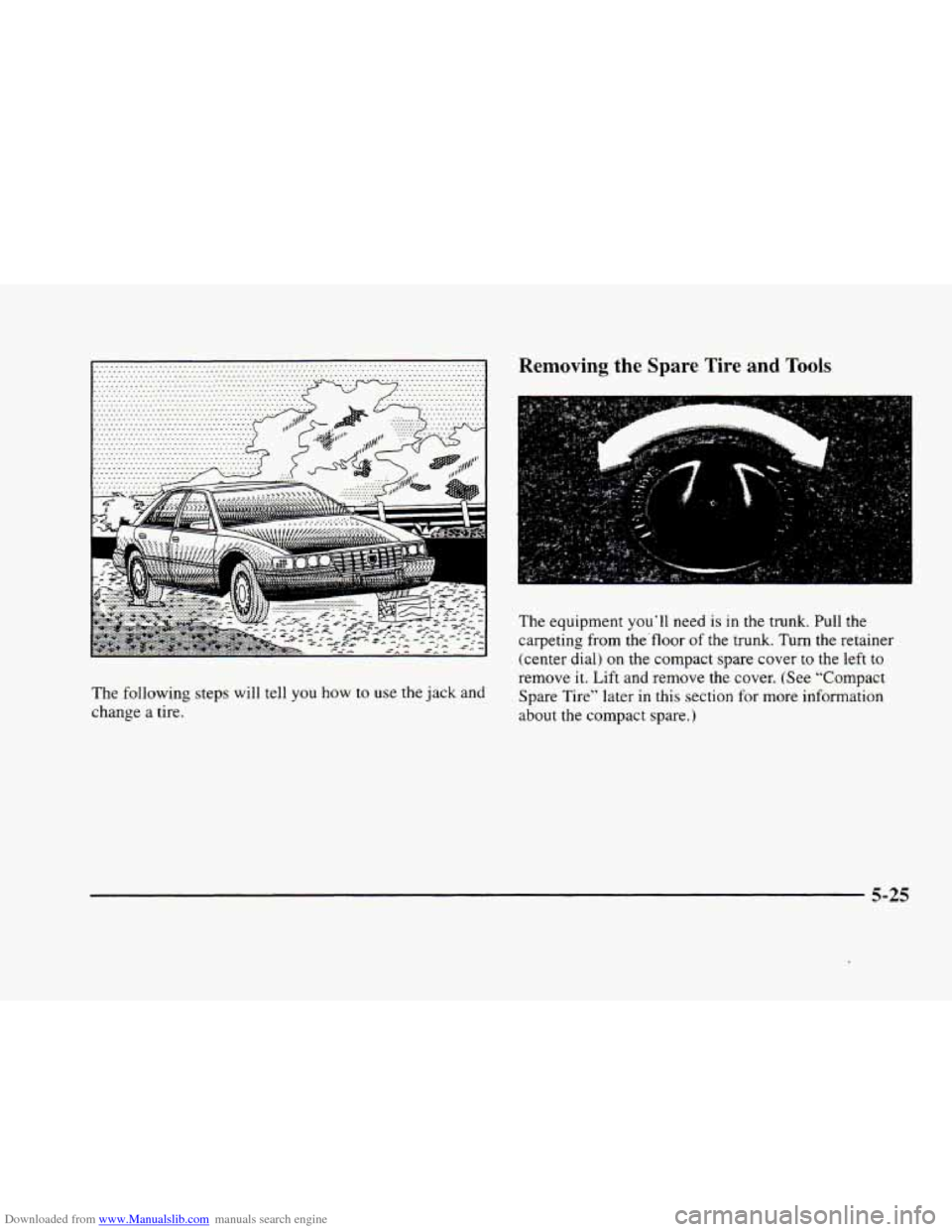

The following steps will tell you how to use the iack and
change a tire.
Removing the Spare Tire and Tools
The equipment you’ll need is in the trunk. Pull the
carpeting from the‘floor
of the trunk. Turn the retainer
(center dial)
on the compact spare cover to the left to
remove it. Lift and remove the cover. (See “Compact
Spare Tire” later in this section for more information
about the compact spare.)
5-25

Downloaded from www.Manualslib.com manuals search engine I

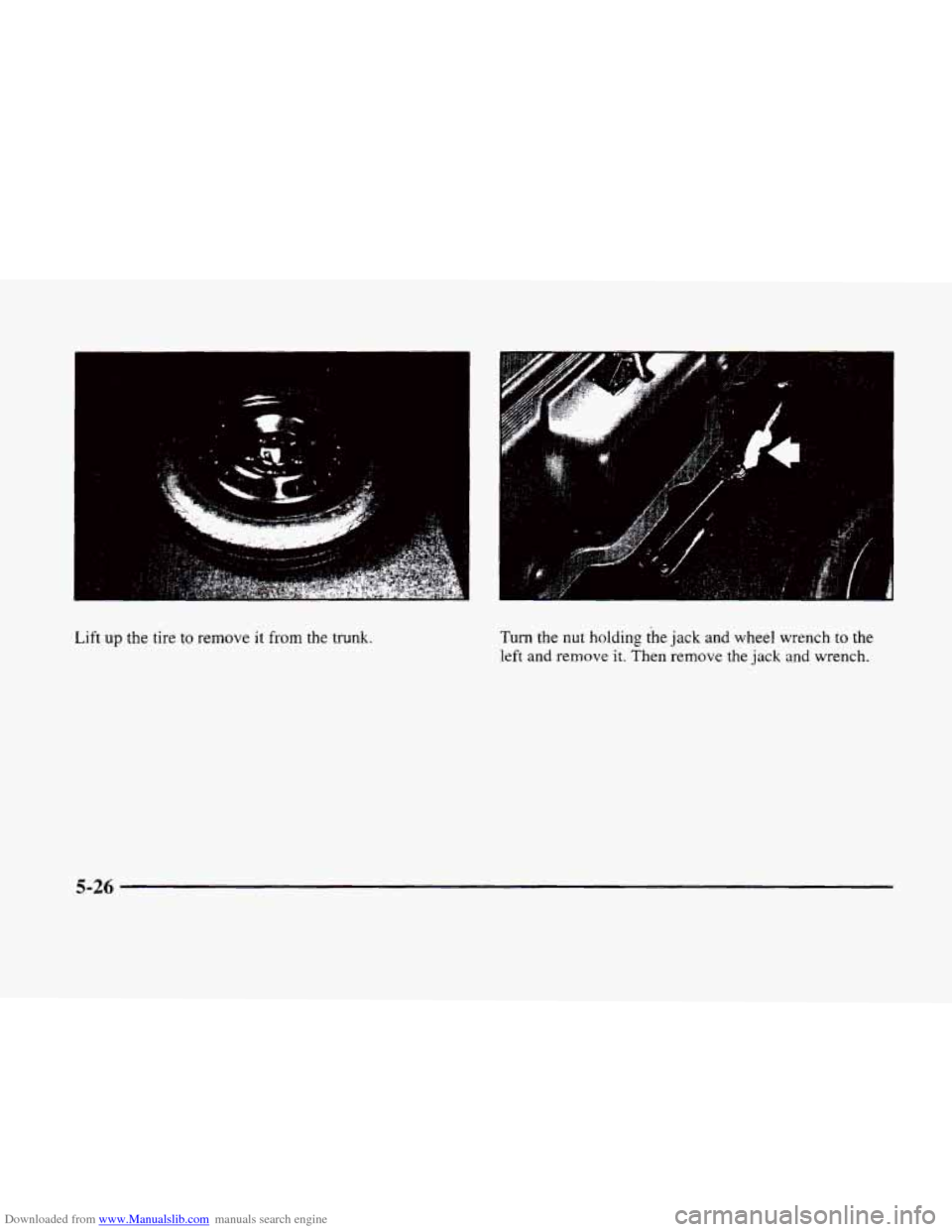

Lift up the tire to remove it from the trunk. Turn the nut holding the jack and wheel wrench to the
left and remove it. Then remove the jack and wrench.
5-26

Downloaded from www.Manualslib.com manuals search engine r,
i
r
r I
~~ ~~

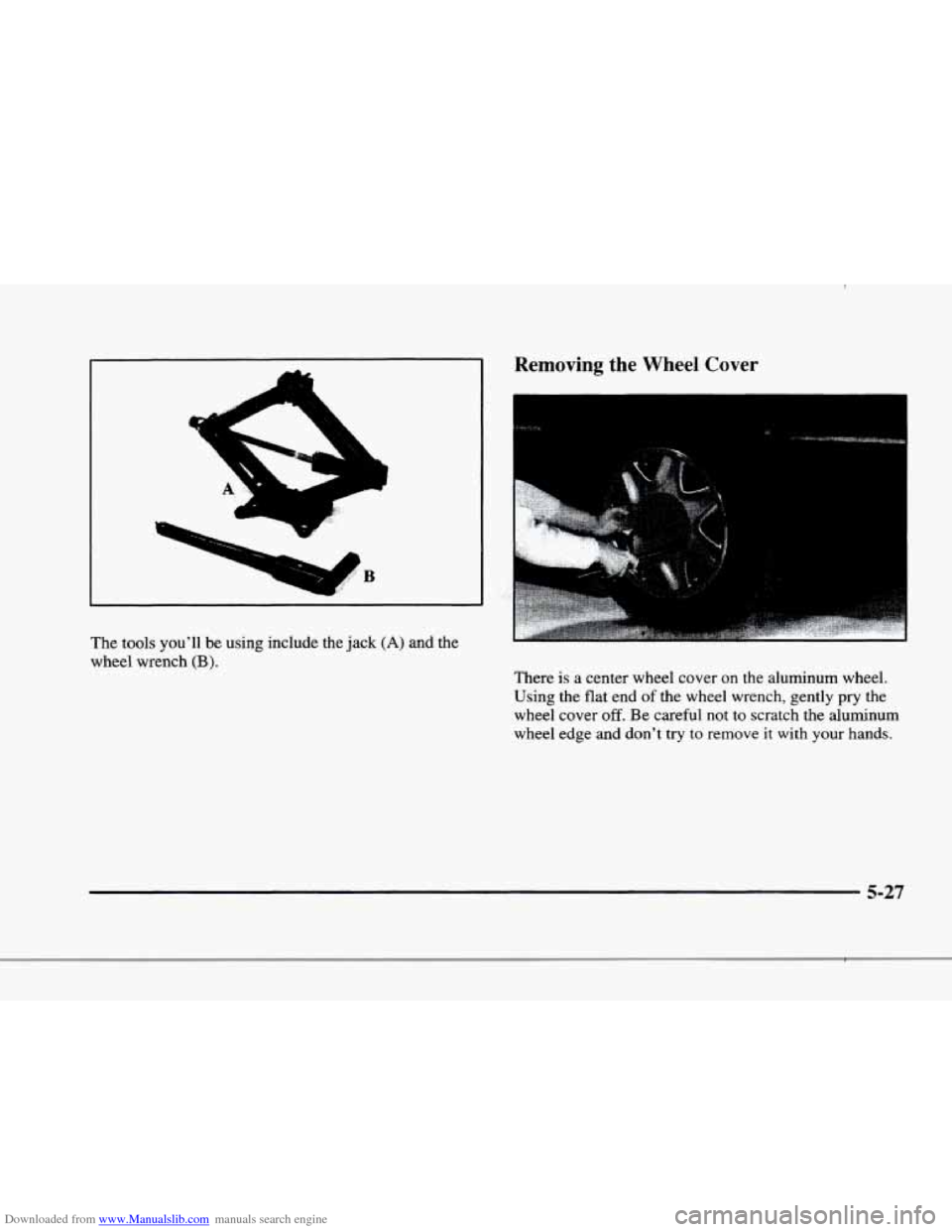

The tools you'll be using include the jack (A) and the
wheel wrench
(B).
r-
Removing the Wheel Cover
There is a center wheel cover on the aluminum wheel.
Using the
flat end of the wheel wrench, gently pry the
wheel cover
off. Be careful not to scratch the aluminum
wheel edge and don't try to remove
it with your hands.
r
I 5-27

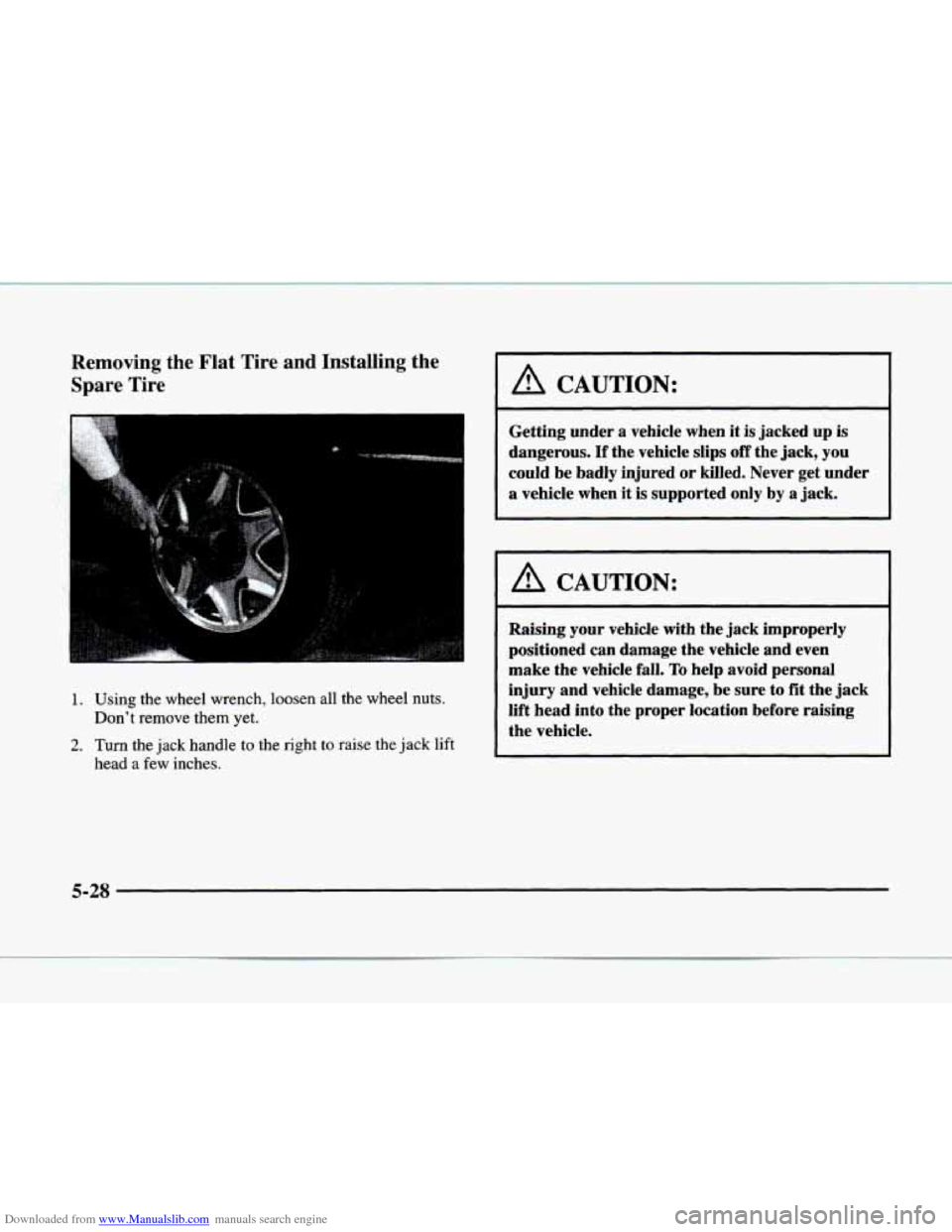

Downloaded from www.Manualslib.com manuals search engine Removing the Flat Tire and Installing the
Spare Tire
4.
1. Using the wheel wrench, loosen all the wheel nuts.
Don't remove them yet.
2. Turn the jack handle to the right to raise the jack lift
head a few inches.
/r CAUTION:
Getting under a vehicle when it is jacked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
I A CAUTION:
Raising your vehide with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall.
To help avoid personal
injury and vehicle damage, be sure to
fit the jack
lift head into the proper location before raising
the vehicle,
5-28
il
R

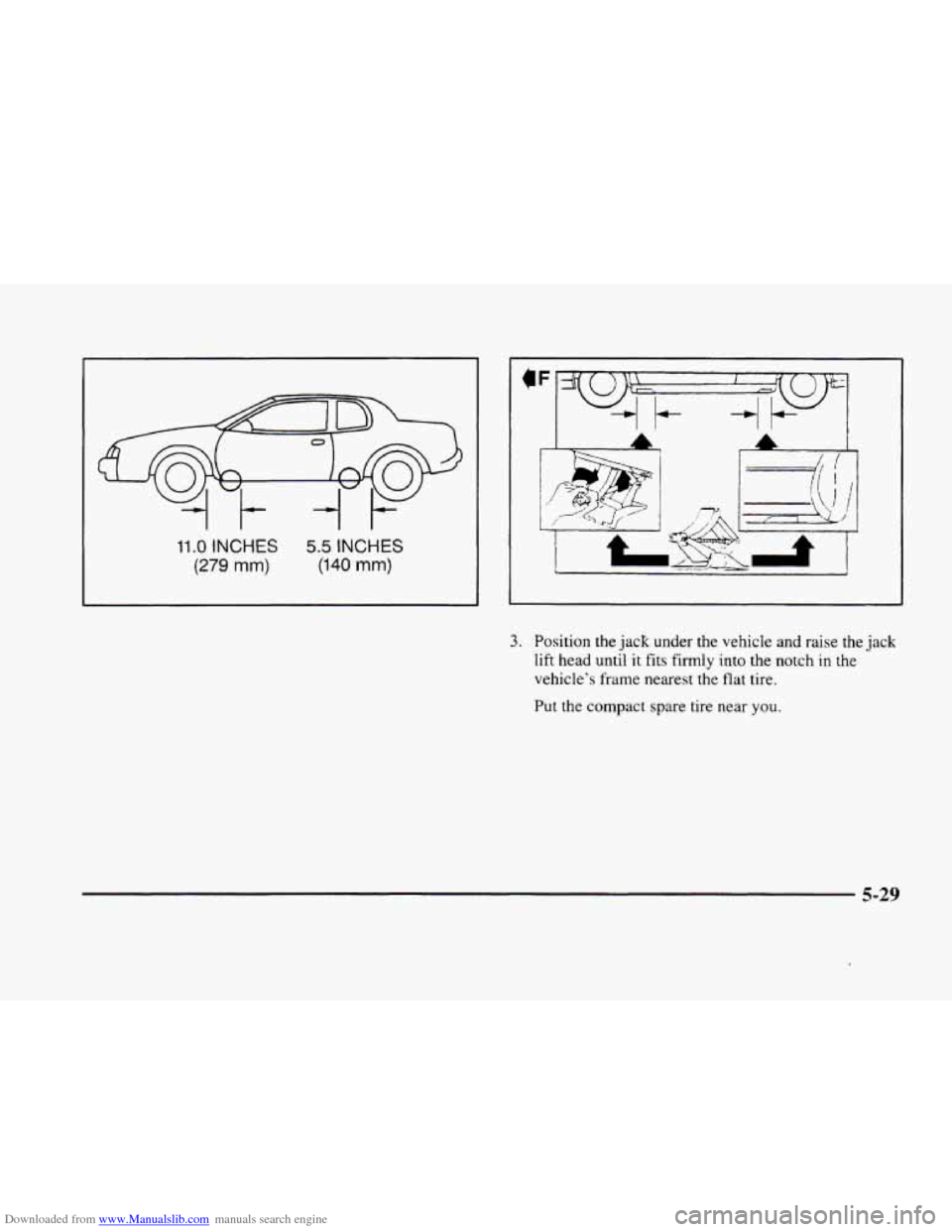

Downloaded from www.Manualslib.com manuals search engine 11 .O INCHES
(279 mm)
1t-
5.5 INCHES
(140 mm)
3. Position the jack under the vehicle and raise the jack
lift head until it fits firmly
into the notch in the
vehicle’s frame nearest the flat tire.
Put the compact spare tire near
you.
5-29

Downloaded from www.Manualslib.com manuals search engine 4. Raise the vehicle by turning the jack handle to the
right. Raise
the vehicle far enough off the ground for
the spare tire to fit
under the vehicle.
5. Remove all wheel nuts and take off the flat tire.
6. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
I A CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after
a time. The wheel could come
off and cause
an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth
or a paper towel
to do this; but be sure
to use a scraper or wire
brush later,
if you need to, to get all the rust or
dirt off.
5-30

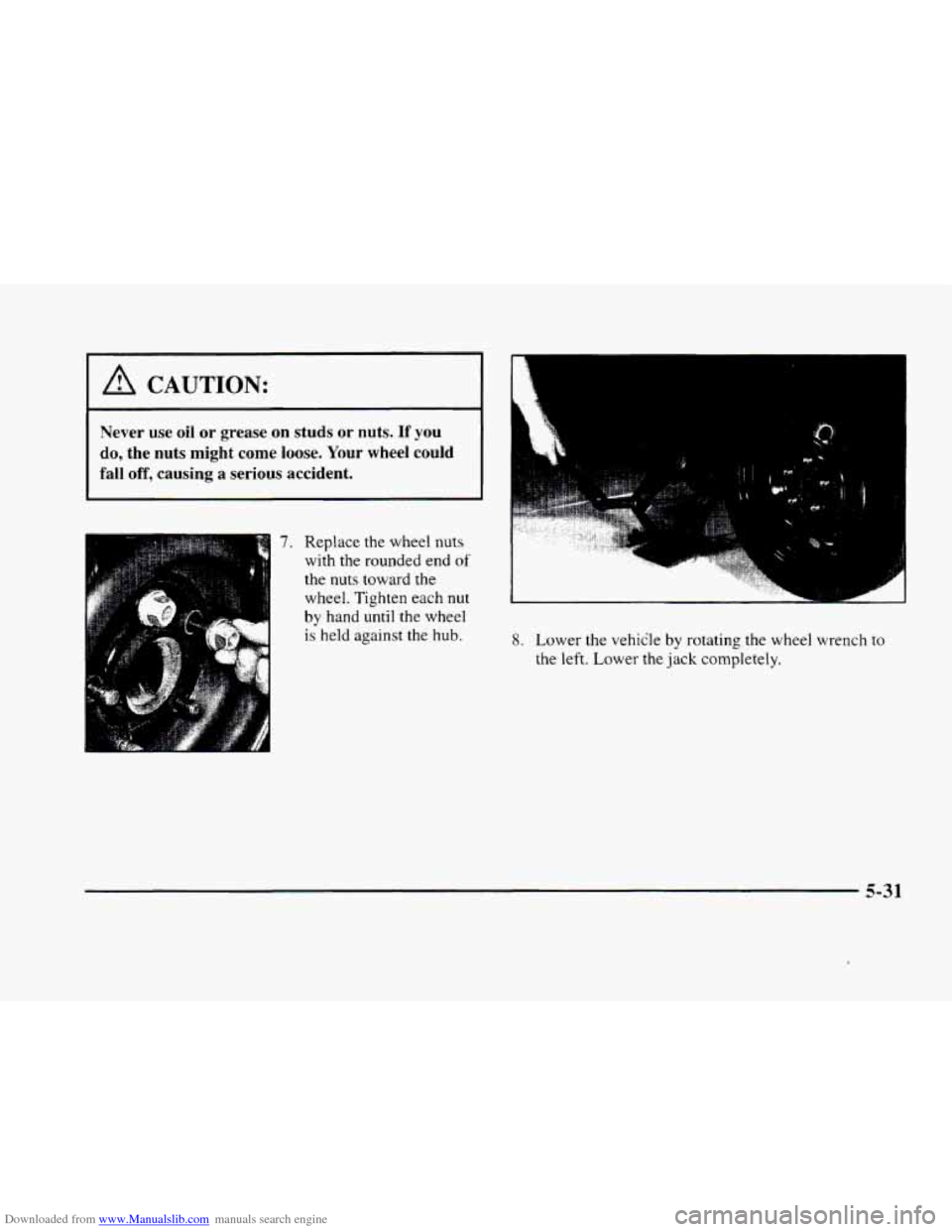

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall
off, causing a serious accident.
7. Replace the wheel nuts
with the rounded end
of
the nuts toward the
wheel. Tighten each
nut
by hand until the wheel
is held against the hub.
2. . , \I .r
8. Lower the vehide by rotating the wheel wrench to
the
left. Lower the jack completely.
5-31

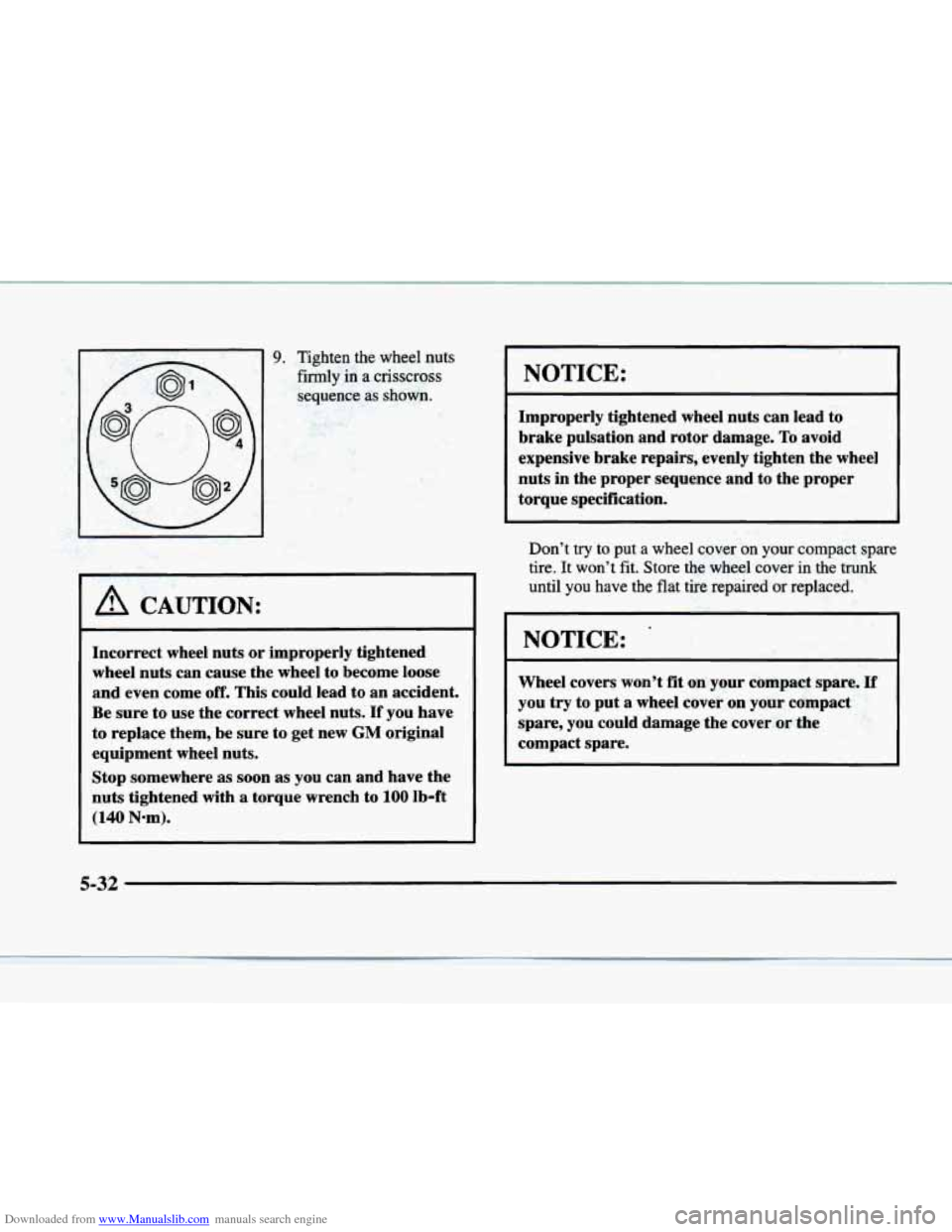

Downloaded from www.Manualslib.com manuals search engine 9. Tighten the wheel nuts
firmly
in a crisscross
sequence as shown.
A CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure to get new
GM original
equipment wheel nuts.
Stop somewhere as soon as you can and have the
nuts tightened with a torque wrench to
100 Ib-ft
(140 Nom).
NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs,
evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Don’t try to put a wheel cover on your compac’ ~ pare
tire. It won’t fit. Store the wheel cover in
the trunk
until you have the flat tire repaired or replaced.
NOTICE:
-~
Wheel covers won’t fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover.
or the
compact spare.
