1998 CADILLAC ELDORADO Owners Manual

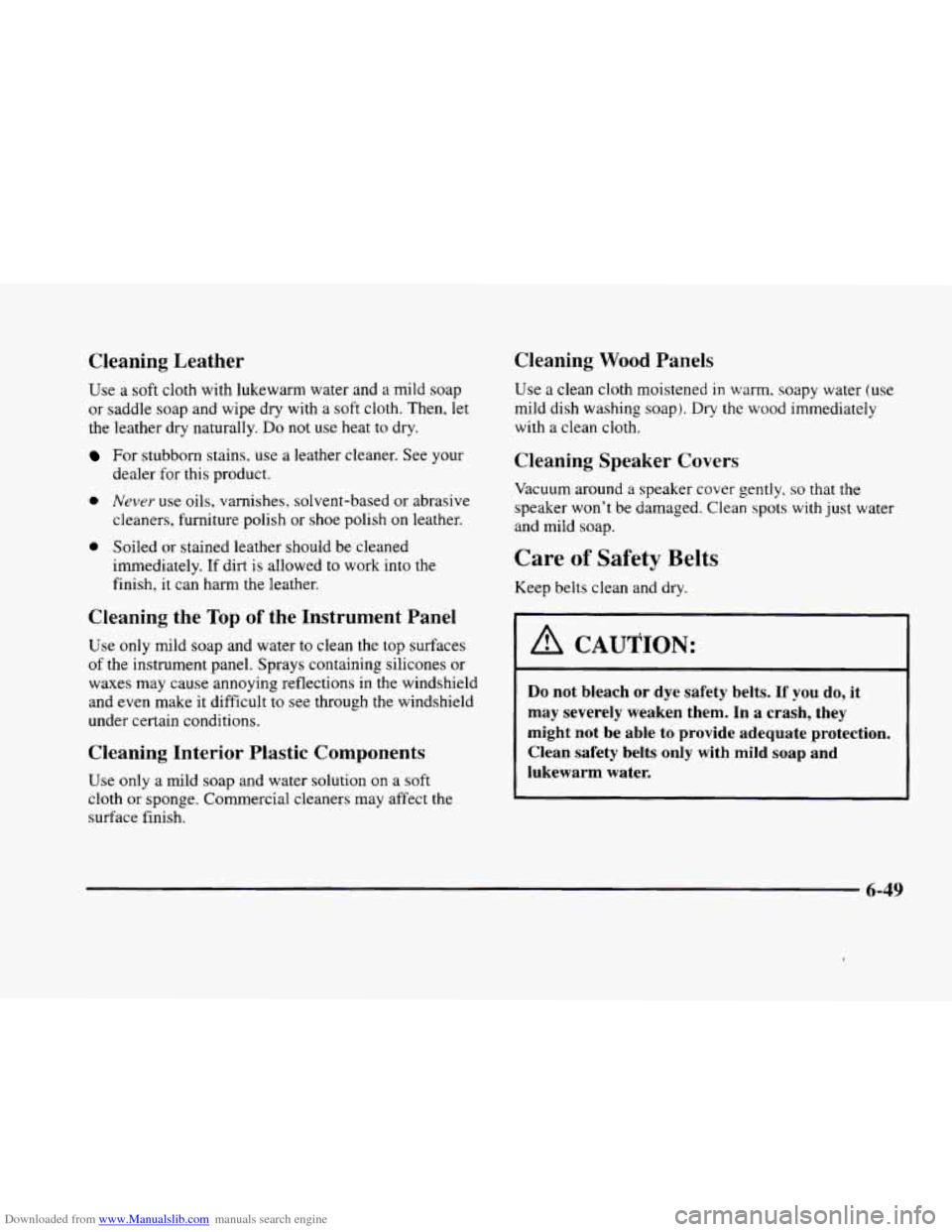

Downloaded from www.Manualslib.com manuals search engine Cleaning Leather
Use a soft cloth with lukewarm water and a mild soap
or saddle soap and wipe dry with a soft cloth. Then, let
the leather dry naturally.
Do not use heat to dry.
For stubborn stains. use a leather cleaner. See your
dealer for this product.
0 Never use oils, varnishes, solvent-based or abrasive
cleaners, furniture polish or shoe polish
on leather.
0 Soiled or stained leather should be cleaned
immediately. If dirt is allowed to work into the
finish, it can harm the leather.
Cleaning the Top of the Instrument Panel
Use only mild soap and water to clean the top surfaces
of
the instrument panel. Sprays containing silicones or
waxes may cause annoying reflections in the windshield
and
even make it difficult to see through the windshield
under certain conditions.
Cleaning Interior Plastic Components
Use only a mild soap and water solution on a soft
cloth
or sponge. Commercial cleaners may affect the
surface finish.
Cleaning Wood Panels
Use a clean cloth moistened in warm. soapy water (use
mild dish washing soap).
Dry the wood immediately
with a clean cloth.
Cleaning Speaker Covers
Vacuum around a speaker cover gently, so that the
speaker won't be damaged. Clean spots with just water
and mild soap.
Care of Safety Belts
Keep belts clean and dry.
-
Do not bleach or dye safety belts. If you do, it
may severely weaken them. In
a crash, they
might not
be able to provide adequate protection.
Clean safety belts only with mild soap
and
lukewarm water.
6-49

Downloaded from www.Manualslib.com manuals search engine Cleaning Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner (GM
Part No. 1050427) or a liquid household glass cleaner
will remove normal tobacco smoke and dust films on
interior glass.
Don’t use abrasive cleaners on glass, because they may
cause scratches. Avoid placing decals on the inside rear
window, since they may have to be scraped
off later. If
abrasive cleaners are used on the inside of the rear
window, an electric defogger element may be damaged.
Any temporary license should not be attached across the
defogger grid.
Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer,
or if the wiper blade chatters when running,
wax, sap or other material may be
on the blade
or windshield.
Clean the outside of
the windshield with GM Windshield
Cleaner, Bon
Ami@ Powder (non-scratching glass
cleaning powder),
GM Part No. 105001.1. The windshield
is clean
if beads do not form when you rinse it with water. Grime from
the windshield
will stick to the wiper blades
and atfat their performance. Clean the blade
by wiping
vigorously
with a cloth soaked in full-strength windshield
washer solvent. Then rinse the blade with water.
Check the wiper blades and clean them as necessary;
replace blades that look worn.
Weatherstrips
Silicone grease on weatherstrips will make them
last longer, seal better, and not stick or squeak.
Apply silicone grease with a clean cloth at least
every six months. During very cold, damp weather
more frequent application may be required. (See
“Recommended Fluids and Lubricants” in the
Maintenance Schedule booklet.)
Cleaning the Outside of Your Vehicle
The paint finish on your vehicle provides beauty, depth
of color, gloss retention and durability.
Washing Your Vehicle
The best way to preserve your vehicle’s finish is to
keep it clean by washing it often
with lukewarm or
cold water.
6-50
1
f

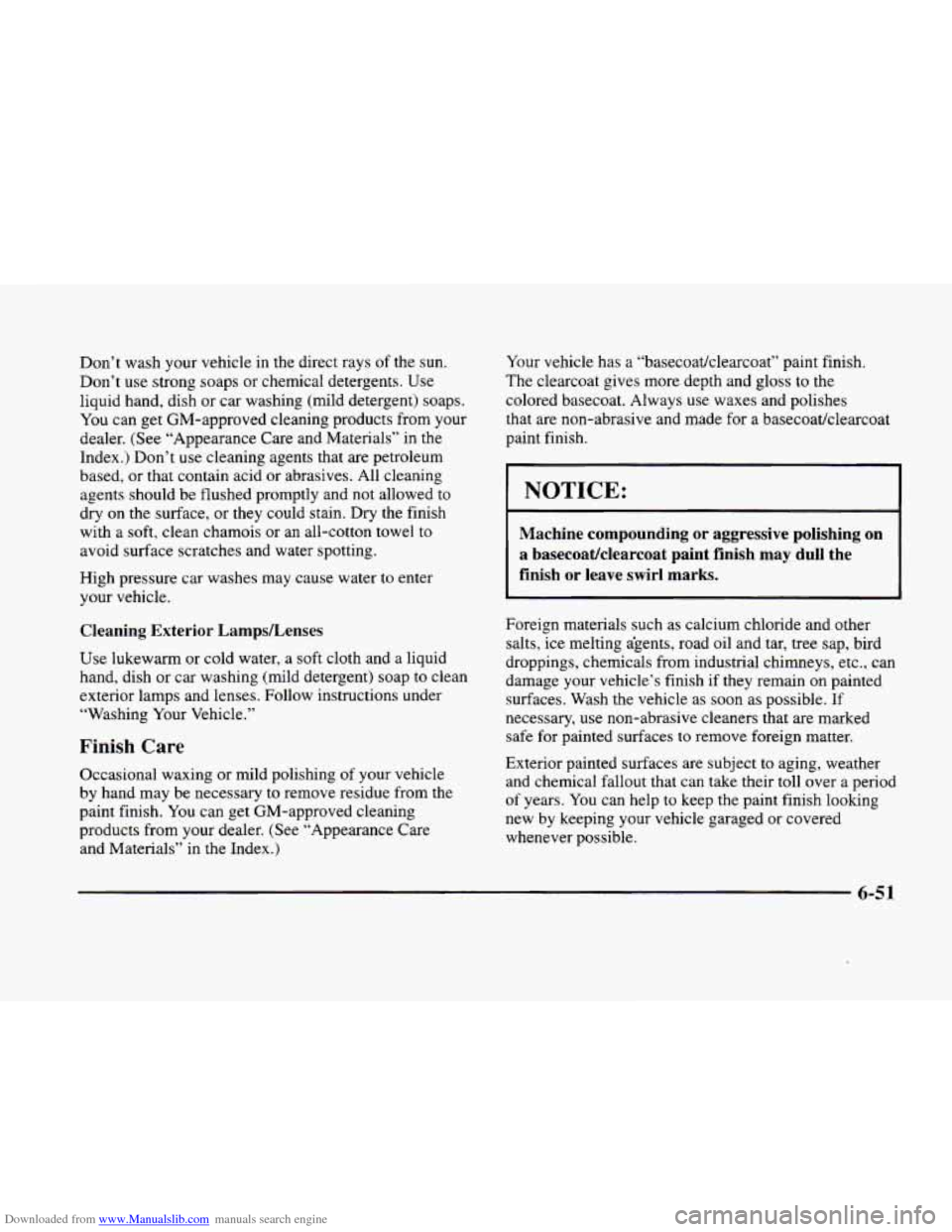

Downloaded from www.Manualslib.com manuals search engine Don’t wash your vehicle in the direct rays of the sun.
Don’t
use strong soaps or chemical detergents. Use
liquid hand, dish or car washing (mild detergent) soaps.
You can get GM-approved cleaning products from your
dealer. (See “Appearance Care and Materials” in the
Index.) Don’t use cleaning agents that
are petroleum
based, or that contain acid or abrasives. All cleaning
agents should be flushed promptly and
not allowed to
dry on the surface, or they could stain. Dry the finish
with a soft, clean chamois or an all-cotton towel
to
avoid surface scratches and water spotting.
High pressure car washes may cause water to enter
your vehicle. Your
vehicle has a “ba~ec~atlclearc~at~~ paint finish.
The clearcoat gives more depth and gloss to the
colored basecoat. Always use waxes and polishes
that are non-abrasive and made for a basecoatlclearcoat
paint finish.
NOTICE:
Machine compounding or aggressive polishing on
a basecoatlclearcoat paint finish may dull the
finish or leave swirl marks.
Cleaning Exterior LampdLenses
Use lukewarm or cold water, a soft cloth and a liquid
hand, dish or car washing (mild detergent) soap
to clean
exterior lamps and lenses. Follow instructions under
“Washing Your Vehicle.”
Finish Care
Occasional waxmg or mild polishing or your vehicle
by hand may be necessary
to remove residue from the
paint finish. You can get GM-approved cleaning
products from your dealer. (See “Appearance Care
and Materials” in the Index.) Foreign
materials such as calcium chloride and other
salts, ice melting dgents, road oil and tar, tree sap, bird
droppings, chemicals from industrial chimneys, etc., can
damage your vehicle‘s finish if they remain on painted
surfaces. Wash the vehicle as soon as possible.
If
necessary, use non-abrasive cleaners that are marked
safe for painted surfaces
to remove foreign matter.
Exterior painted surfaces are subject to aging, weather
and chemical fallout that can take their toll over a period
of years. You can help
to keep the paint finish looking
new by keeping your vehicle garaged or covered
whenever possible.
6-51

Downloaded from www.Manualslib.com manuals search engine Cleaning Aluminum or Chrome
Wheels
(If Equipped)
Keep your wheels clean using a soft clean cloth with
mild soap and water. Rinse with clean water. After
rinsing thoroughly, dry with a
soft clean towel. A
wax may then be applied.
The surface of these wheels
is similar to the painted
surface
of your vehicle. Don’t use strong soaps,
chemicals, abrasive polishes, abrasive cleaners or
abrasive cleaning brushes on them because you could
damage the surface. You may use chrome polish on
chrome wheels, but avoid any painted surface of the
wheel, and buff off immediately after application.
Don’t take your vehicle through an automatic car wash
that has silicon carbide tire cleaning brushes. These
brushes can also damage the surface of these wheels.
Cleaning Tires
To clean your tires, use a stiff brush with a tire cleaner.
I NOTICE: I
When applying a tire dressing always take care
to wipe
off any overspray or splash from all
painted surfaces on the body or wheels
of the
vehicle. Petroleum-based products may damage
the paint finish.
Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material
to the parts repaired or
replaced to restore cofrosion protection.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired with touch-up
materials available from your dealer
or other service
outlets. Larger areas
of finish damage can be corrected
in your dealer’s body and paint shop.

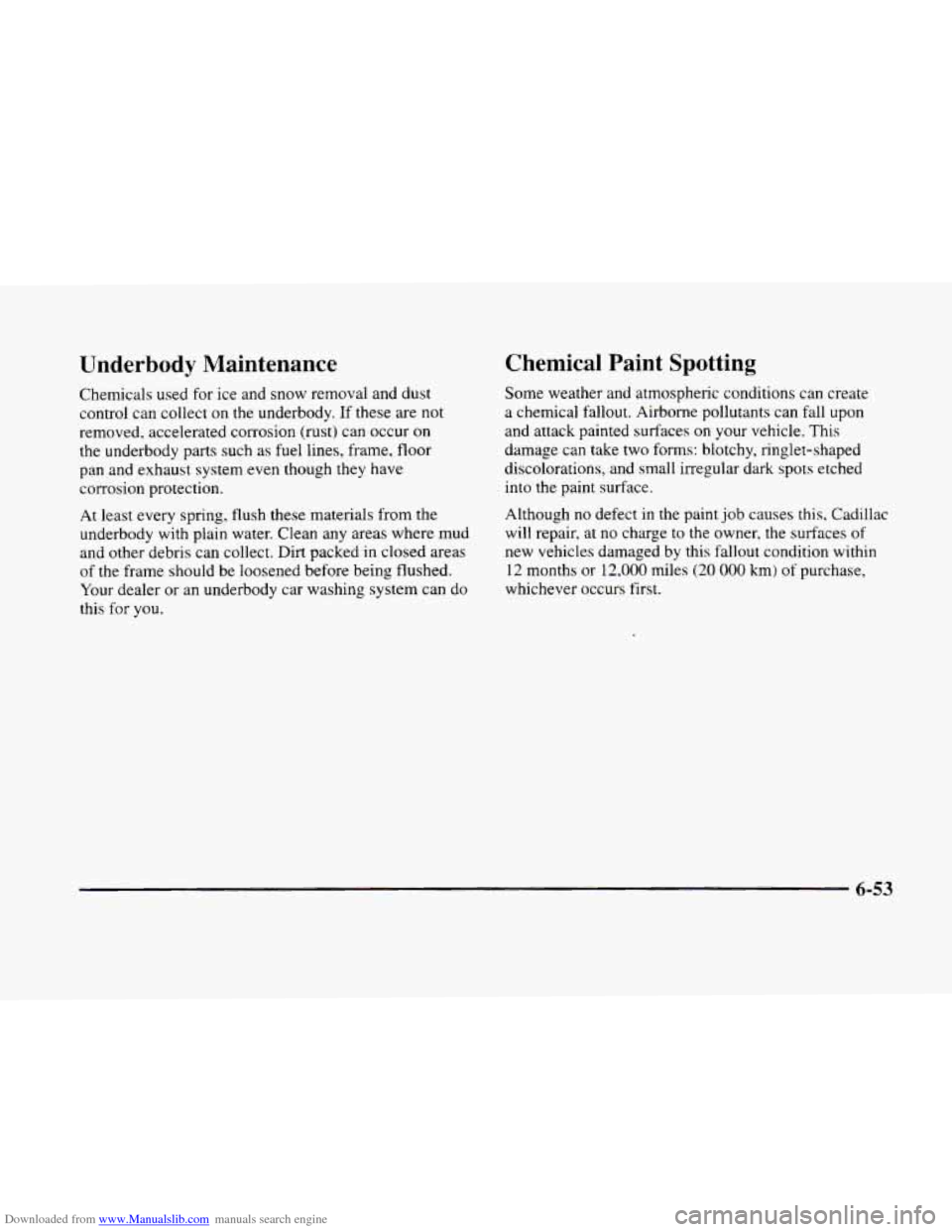

Downloaded from www.Manualslib.com manuals search engine Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect on
the underbody. If these are not
removed, accelerated corrosion (rust) can occur
on
the underbody parts such as fuel lines, frame, floor
pan and exhaust system even though they have
corrosion protection.
At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can
do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create
a chemical fallout, Airborne pollutants can fall upon
and attack painted surfaces
on your vehicle. This
damage can take two
forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched
into the paint surface.
Although
no defect in the paint job causes this, Cadillac
will repair, at
no charge to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
6-53

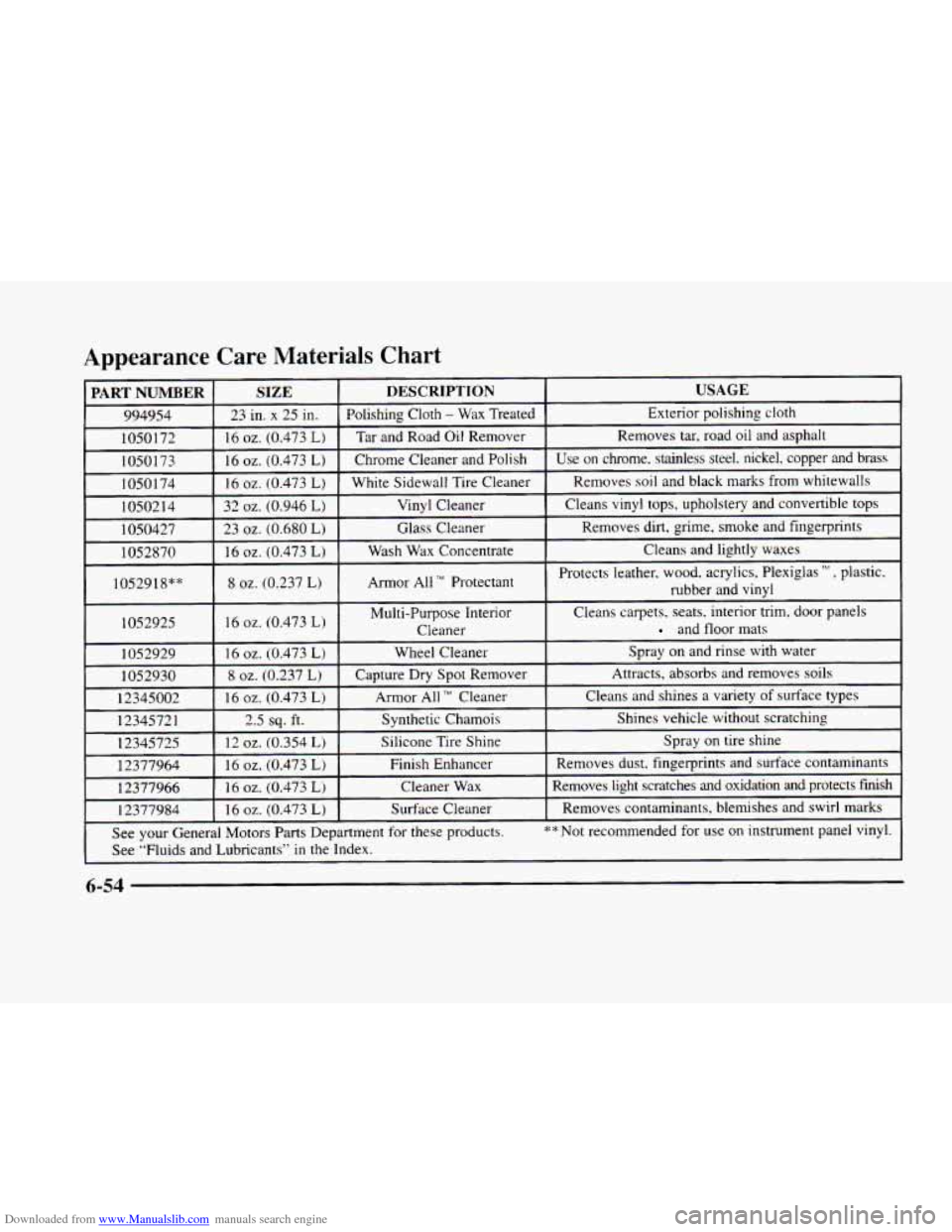

Downloaded from www.Manualslib.com manuals search engine Appearance Care Materials Chart
I PART NUMBER I SIZE I DESCRIPTION I USAGE I
994954 23 in. x 25 in. Polishing Cloth - Wax
Treated
Exterior polishing cloth
1050172 16
oz. (0.473 L) Tar and Road Oil Remover Removes tar, road oil and asphalt
1050173 16
oz. (0.473 L) Chrome Cleaner and Polish Use on chrome.
stainless steel. nickel, copper and brass
1050 174 16 oz. (,0.473 L) White Sidewall Tire Cleaner Removes soil and
black marks from whitewalls
10502 14 32
oz. (0.946 L) Vinyl Cleaner Cleans vinyl tops,
upholstery and convertible tops
1050427 23
oz. (0.680 L) Glass Cleaner Removes dirt,
grime, smoke and fingerprints
1052870 16
oz. (0.473 L) Wash Wax Concentrate Cleans
and lightly waxes
1052918""
8 02. (0.237 L) Armor All TM Protectant Protects leather.
wood. acrylics, Plexiglas lh1 , plastic.
rubber and vinyl
1052925 16
oz. (0.473 L) Multi-Purpose Interior Cleans carpets. seats, interior trim, door panels
Cleaner
and floor mats
6-54

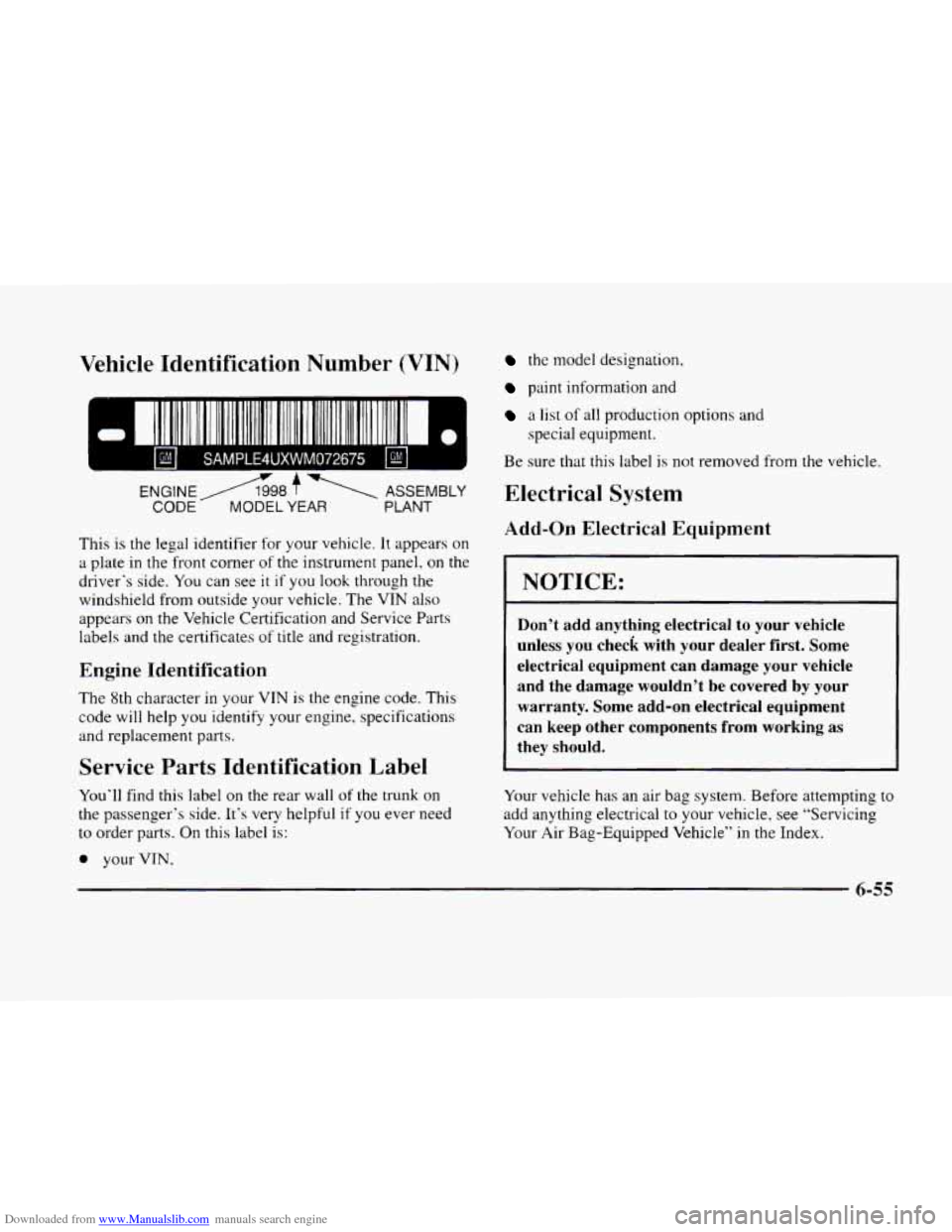

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN)
111 1 I11111111 1111 111 111111 111 111111 II 111111111111 Ill1
SAMPLE4UXWM072675
ENGINE A98 f 1 ASSEMBLY
CODE A MODEL YEAR PLANT
This is the legal identifier for your vehicle. It appears on
a plate in the front comer of the instrument panel. on the
driver‘s side. You can see
it if you look through the
windshield from outside your vehicle. The VTN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine. specifications
and replacement parts.
Service Parts Identification Label
You‘ll find this label on the rear wall of the trunk on
the passenger’s side. It’s very helpful if you ever need
to order parts.
On this label is:
0 your VIN,
the model designation,
paint information and
a list of all production options and
Be sure that this label
is not removed from
special
equipment.
Electrical System
Add-on Electrical Equipment
the vehicle.
I NOTICE:
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment
can keep other components
from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle” in the Index.
6-55

Downloaded from www.Manualslib.com manuals search engine Headlamp Wiring
The headlamp wiring has an individual fuse which is
powered by a MaxiFuse@. An electrical overload
will cause the lamps to
go on and off, or in some
cases
to remain off. If this happens, have the headlamp
wiring checked right away.
MaxiFuse is a registered trademark
of Little
Fuse Incorporated.
Windshield Wiper Fuses
The windshield wiper motor is powered by a MaxiFuse.
If the motor overheats due to heavy snow, etc., the
wipers will stop until the
motor cools. If the overload
is caused
by some electrical problem, be sure to have
it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is
too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem
is fixed or goes away.
MaxiFusesmelay Center
The MaxiFuses and relays are located next to the engine
compartment fuse block
on the driver's side of the
engine. To access the compartment fuse block, remove
the shroud, cover.
If a MaxiFuse should blow, have your
vehicle serviced by your dealer immediately.
RELAY CENTER IDENTIFICATION
(WINDOWS)
RELAY
91
