1997 SUBARU LEGACY light

10AP1
CHECK ENGINE/TRANSMISSION TYPE.
: Is engine/transmission type 2200 cc/MT?
: Check AT/MT identification circuit. [T10DD0].>
: Go to step10AP2.
B2M0566A
10AP2
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 71 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Go to next.
: Go to step10AP3.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. (However, the pos-
sibility of poor contact still remains.)
NOTE:
In this case, repair the following:

Poor contact in EGR solenoid valve connector

Poor contact in ECM connector

Poor contact in coupling connector (B21)
OBD0678A
10AP3CHECK HARNESS BETWEEN EGR
SOLENOID VALVE AND ECM CONNEC-
TOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from EGR solenoid valve and
ECM.
3) Measure resistance of harness between EGR solenoid
valve connector and engine ground.
: Connector & terminal
(E18) No. 2—Engine ground:
Is the resistance less than 10Ω?
: Repair ground short circuit in harness between
ECM and EGR solenoid valve connector.
: Go to next step 4).
238
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0570A
10AT1
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 72 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. Contact with SOA
service.
NOTE:
Inspection by DTM is required, because probable cause is
deterioration of multiple parts.
: Go to step10AT2.
OBD0680A
10AT2CHECK HARNESS BETWEEN PURGE
CONTROL SOLENOID VALVE AND ECM
CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from purge control solenoid
valve and ECM.
3) Measure resistance of harness between purge control
solenoid valve connector and engine ground.
: Connector & terminal
(E4) No. 2—Engine ground:
Is the resistance less than 10Ω?
: Repair ground short circuit in harness between
ECM and purge control solenoid valve connector.
: Go to next step 4).
B2M0571A
4) Measure resistance of harness between ECM and
purge control solenoid valve of harness connector.
: Connector & terminal
(B84) No. 72—(E4) No. 2:
Is the resistance less than 1Ω?
: Go to step10AT3.
: Repair open circuit in harness between ECM and
purge control solenoid valve connector.
249
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

H2M1370B
10AU1
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 35 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Go to next.
: Go to stepAU2.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. (However, the pos-
sibility of poor contact still remains.)
NOTE:
In this case, repair the following:

Poor contact in vent control solenoid valve connector

Poor contact in ECM connector

Poor contact in coupling connectors (B97, B98 and R57)
H2M1239C
10AU2CHECK HARNESS BETWEEN VENT
CONTROL SOLENOID VALVE AND ECM
CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from vent control solenoid valve
and ECM.
3) Measure resistance of harness between vent control
solenoid valve connector and chassis ground.
: Connector & terminal
(R69) No. 2—Chassis ground:
Is the resistance less than 10Ω?
: Repair ground short circuit in harness between
ECM and vent control solenoid valve connector.
: Go to next step 4).
H2M1371B
4) Measure resistance of harness between ECM and vent
control solenoid valve connector.
: Connector & terminal
(B84) No. 35—(R69) No. 2:
Is the voltage less than 1Ω?
: Go to step10AU3.
: Repair harness and connector.
NOTE:
In this case, repair the following:
252
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0145A
10AW1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Remove fuel filler cap.
3) Install fuel filler cap.
4) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
5) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
H2M1326
6) Read the data on Subaru Select Monitor or the OBD-II
general scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43

F43: Display shows pressure signal value sent from fuel
tank pressure sensor.
: Is the value less than2.8 kPa in function
mode F43?
: Go to step10AW2.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
B2M0535A
10AW2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 21 (+)—Chassis ground ():
Is the voltage more than 4.5 V?
: Go to next step 2).
: Go to next.
257
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

H2M1414B
10AZ3CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Turn ignition switch to ON. (Engine OFF)
2) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 27 (+)—Chassis ground ():
Is the voltage less than 0.12 V?
: Go to step10AZ4.
: Go to next.
H2M1327
: Does the value change less than 0.12 V by
shaking harness and connector of ECM
while monitoring the value with Subaru
Select Monitor?

Subaru Select Monitor
Designate mode using function key.
Function mode: F45

F45: Fuel level sensor output signal is indicated.
: Repair poor contact in ECM connector.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. A temporary poor
contact of the connector may be the cause.
NOTE:
In this case, repair the following:

Poor contact in fuel pump connector

Poor contact in combination meter connector

Poor contact in ECM connector

Poor contact in coupling connector (i3, B99, B22, B98
and R57)
G2M0340
10AZ4CHECK HARNESS BETWEEN ECM, COM-
BINATION METER AND FUEL PUMP
CONNECTOR.
1) Turn ignition switch to OFF.
2) Remove fuel pump access hole lid located on the right
rear of trunk compartment floor (Sedan) or luggage com-
partment floor (Wagon).
271
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

H2M1414B
10BA3CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Turn ignition switch to ON. (Engine OFF)
2) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 27 (+)—Chassis ground ():
Is the voltage more than 4.75 V?
: Go to step10BA4.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time. A temporary poor
contact of the connector may be the cause.
NOTE:
In this case, repair the following:

Poor contact in fuel pump connector

Poor contact in combination meter connector

Poor contact in ECM connector

Poor contact in coupling connector (i3, B99, B22, B98
and R57)
G2M0340
10BA4
CHECK FUEL LEVEL SENSOR.
1) Turn ignition switch to OFF.
2) Remove fuel pump access hole lid located on the right
rear of trunk compartment floor (Sedan) or luggage com-
partment floor (Wagon).
B2M0935
3) Disconnect connector from fuel pump.
4) Measure resistance between connector terminals of
fuel pump.
: Terminals
No. 3—No. 5:
Is the resistance less than 100Ω?
: Go to step10BA5.
: Replace fuel sending unit.
G2M0863
10BA5
CHECK FUEL SUB LEVEL SENSOR.
1) Remove service hole cover located on the left rear of
trunk compartment floor (Sedan) or luggage compartment
floor (Wagon).
277
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

10BH1
CHECK OPERATION OF BRAKE LIGHT.
: Does brake light come on when depressing
the brake pedal?
: Go to step10BH2.
: Repair or replace brake light circuit.
OBD0589A
10BH2CHECK HARNESS BETWEEN TCM AND
BRAKE LIGHT SWITCH CONNECTOR.
1) Disconnect connectors from TCM and brake light
switch.
2) Measure resistance of harness between TCM and
brake light switch connector.
: Connector & terminal
(B56) No. 7—(B64) No. 2:
(B56) No. 7—(B65) No. 3 (With cruise con-
trol):
(B56) No. 7—(B67) No. 2 (With traction
control):
Is the resistance less than 1Ω?
: Go to next step 3).
: Repair or replace harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between TCM and brake light
switch connector

Poor contact in TCM connector

Poor contact in brake light switch connector
OBD0590A
3) Measure resistance of harness between TCM and
chassis ground.
: Connector & terminal
(B56) No. 7—Chassis ground:
Is the resistance more than 1 MΩ?
: Go to step10BH3.
: Repair ground short circuit in harness between
TCM and brake light switch connector.
297
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

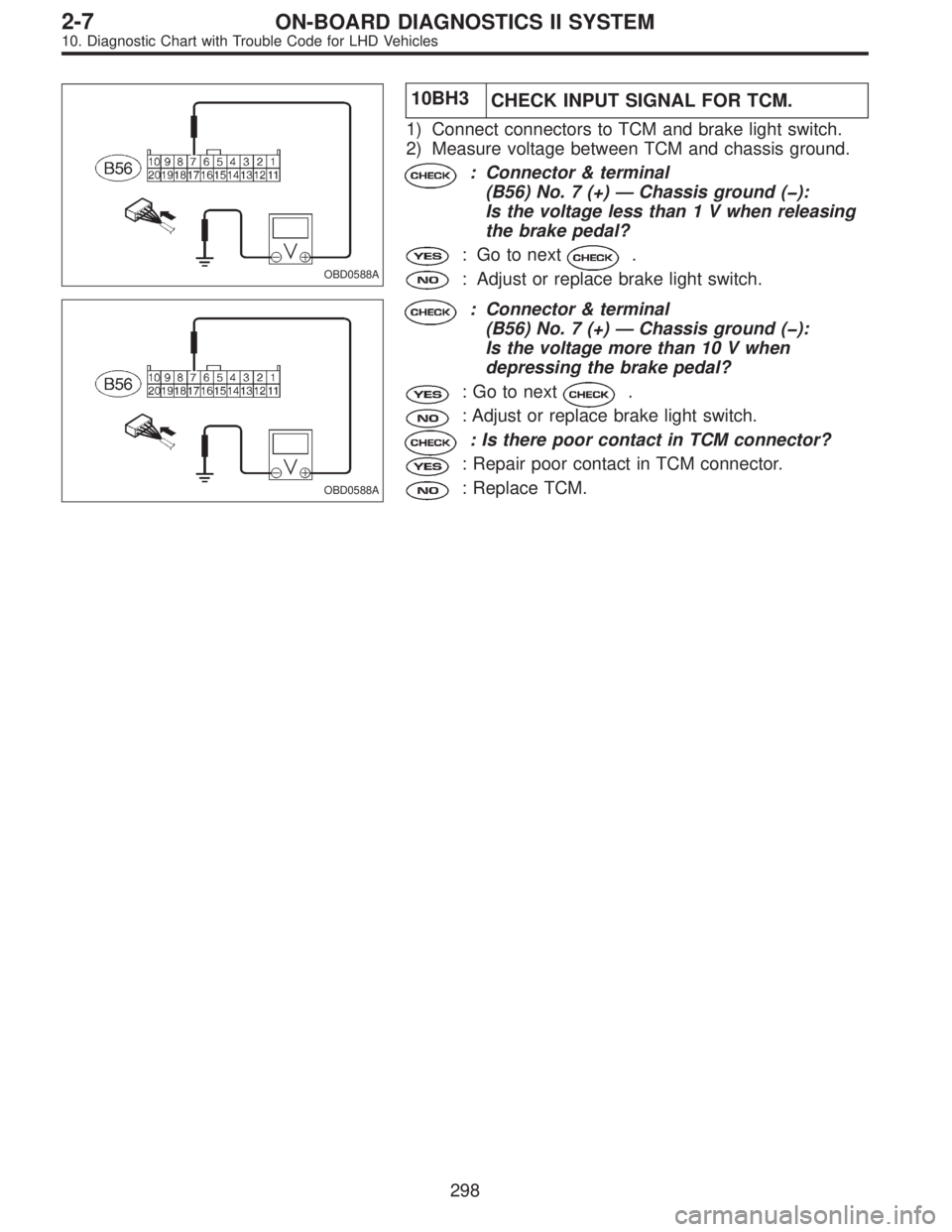

OBD0588A
10BH3
CHECK INPUT SIGNAL FOR TCM.
1) Connect connectors to TCM and brake light switch.
2) Measure voltage between TCM and chassis ground.
: Connector & terminal
(B56) No. 7 (+)—Chassis ground ():
Is the voltage less than 1 V when releasing
the brake pedal?
: Go to next.
: Adjust or replace brake light switch.
OBD0588A
: Connector & terminal
(B56) No. 7 (+)—Chassis ground ():
Is the voltage more than 10 V when
depressing the brake pedal?
: Go to next.
: Adjust or replace brake light switch.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Replace TCM.
298
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
