1997 SUBARU LEGACY sensor

G4M0444

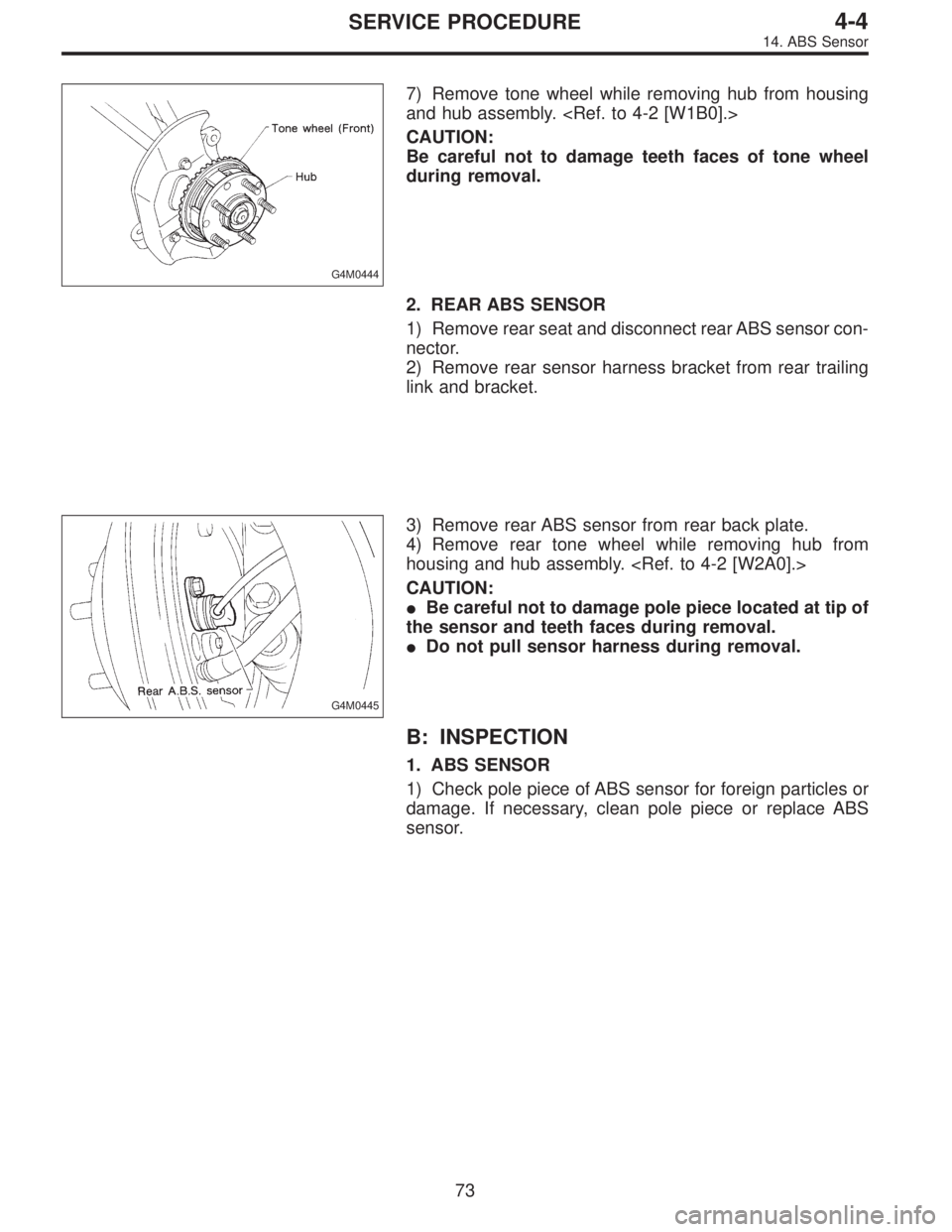

7) Remove tone wheel while removing hub from housing
and hub assembly.
CAUTION:
Be careful not to damage teeth faces of tone wheel
during removal.
2. REAR ABS SENSOR
1) Remove rear seat and disconnect rear ABS sensor con-
nector.
2) Remove rear sensor harness bracket from rear trailing
link and bracket.
G4M0445
3) Remove rear ABS sensor from rear back plate.
4) Remove rear tone wheel while removing hub from
housing and hub assembly.
CAUTION:

Be careful not to damage pole piece located at tip of
the sensor and teeth faces during removal.

Do not pull sensor harness during removal.
B: INSPECTION
1. ABS SENSOR
1) Check pole piece of ABS sensor for foreign particles or
damage. If necessary, clean pole piece or replace ABS
sensor.
73
4-4SERVICE PROCEDURE
14. ABS Sensor

B4M0248
2) Measure ABS sensor resistance.
ABS sensor Terminal No. Standard
Front - LH 1 and 2
1.0±0.2 kΩ Front - RH 1 and 2
Rear - LH 1 and 2
Rear - RH 1 and 2
CAUTION:
If resistance is outside the standard value, replace
ABS sensor with new one.
NOTE:
Check ABS sensor cable for discontinuity. If necessary,
replace with a new one.
G4M0448
2. TONE WHEEL
1) Check tone wheel’s teeth (44 pieces) for cracks or
dents. If necessary, replace tone wheel with a new one.
2) Clearances (sensor gaps) should be measured one by
one to ensure tone wheel and speed sensor are installed
correctly.
ABS sensor clearance:
Front
0.9—1.4 mm (0.035—0.055 in)
Rear
0.7—1.2 mm (0.028—0.047 in)
NOTE:

If clearance is narrow, adjust by using spacer (Part No.
26755AA000).

If clearance is wide, check the outputted voltage then
replace ABS sensor or tone wheel if the outputted voltage
is outside the specification.
74
4-4SERVICE PROCEDURE
14. ABS Sensor

B4M0118B

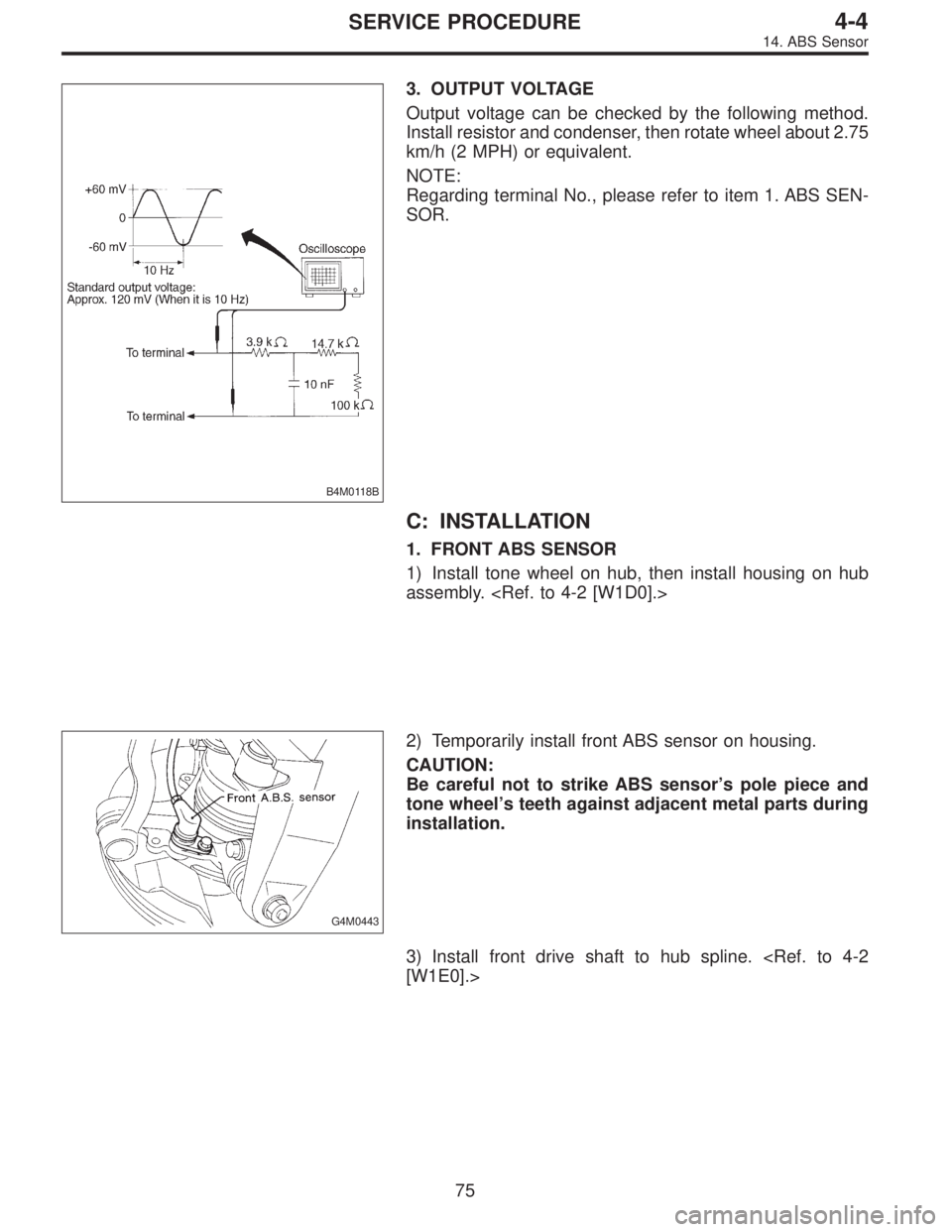

3. OUTPUT VOLTAGE
Output voltage can be checked by the following method.
Install resistor and condenser, then rotate wheel about 2.75
km/h (2 MPH) or equivalent.
NOTE:
Regarding terminal No., please refer to item 1. ABS SEN-
SOR.
C: INSTALLATION
1. FRONT ABS SENSOR
1) Install tone wheel on hub, then install housing on hub
assembly.
G4M0443
2) Temporarily install front ABS sensor on housing.
CAUTION:
Be careful not to strike ABS sensor’s pole piece and
tone wheel’s teeth against adjacent metal parts during
installation.
3) Install front drive shaft to hub spline. [W1E0].>
75
4-4SERVICE PROCEDURE
14. ABS Sensor

G4M0451

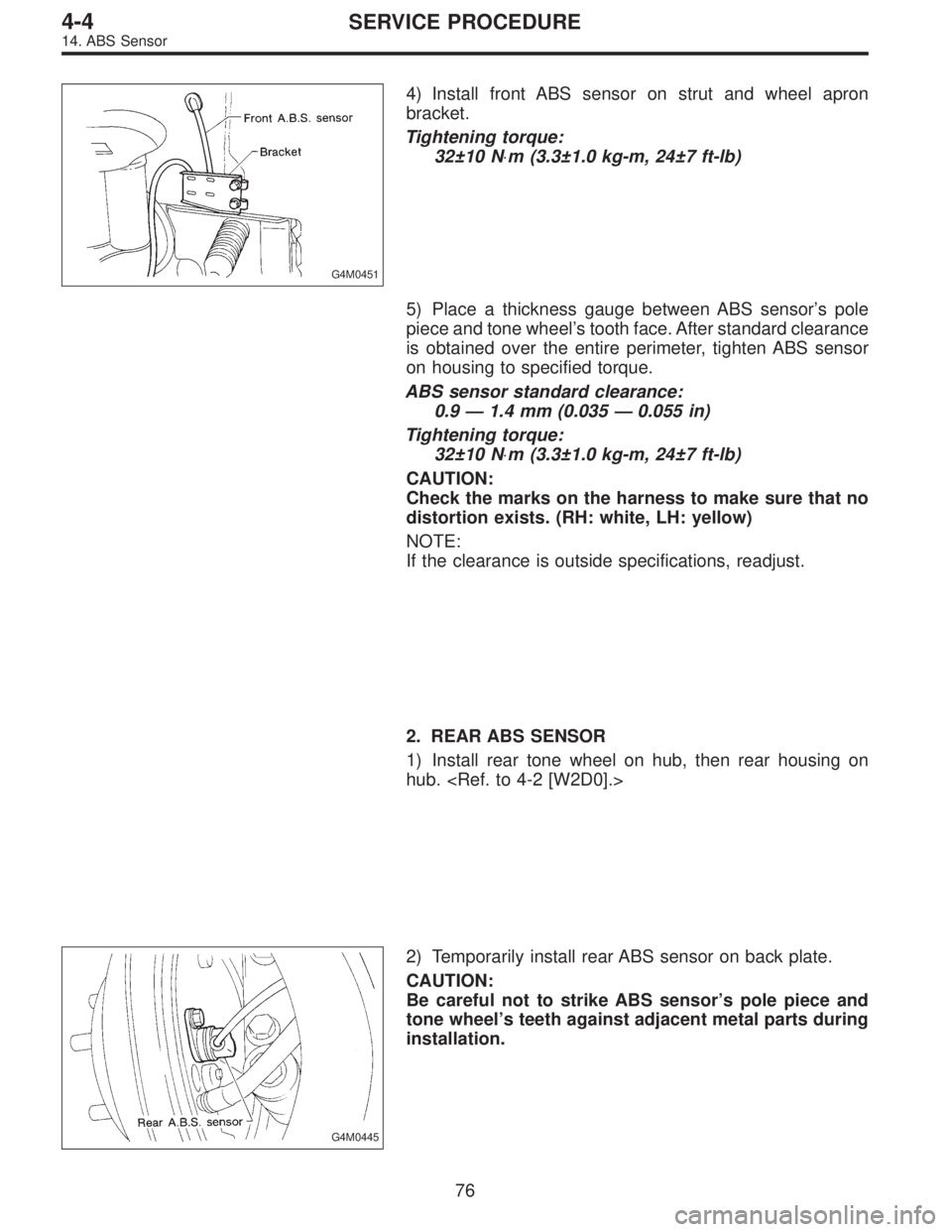

4) Install front ABS sensor on strut and wheel apron
bracket.
Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
5) Place a thickness gauge between ABS sensor’s pole
piece and tone wheel’s tooth face. After standard clearance
is obtained over the entire perimeter, tighten ABS sensor
on housing to specified torque.
ABS sensor standard clearance:
0.9—1.4 mm (0.035—0.055 in)
Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
CAUTION:
Check the marks on the harness to make sure that no
distortion exists. (RH: white, LH: yellow)
NOTE:
If the clearance is outside specifications, readjust.
2. REAR ABS SENSOR
1) Install rear tone wheel on hub, then rear housing on
hub.
G4M0445
2) Temporarily install rear ABS sensor on back plate.
CAUTION:
Be careful not to strike ABS sensor’s pole piece and
tone wheel’s teeth against adjacent metal parts during
installation.
76
4-4SERVICE PROCEDURE
14. ABS Sensor

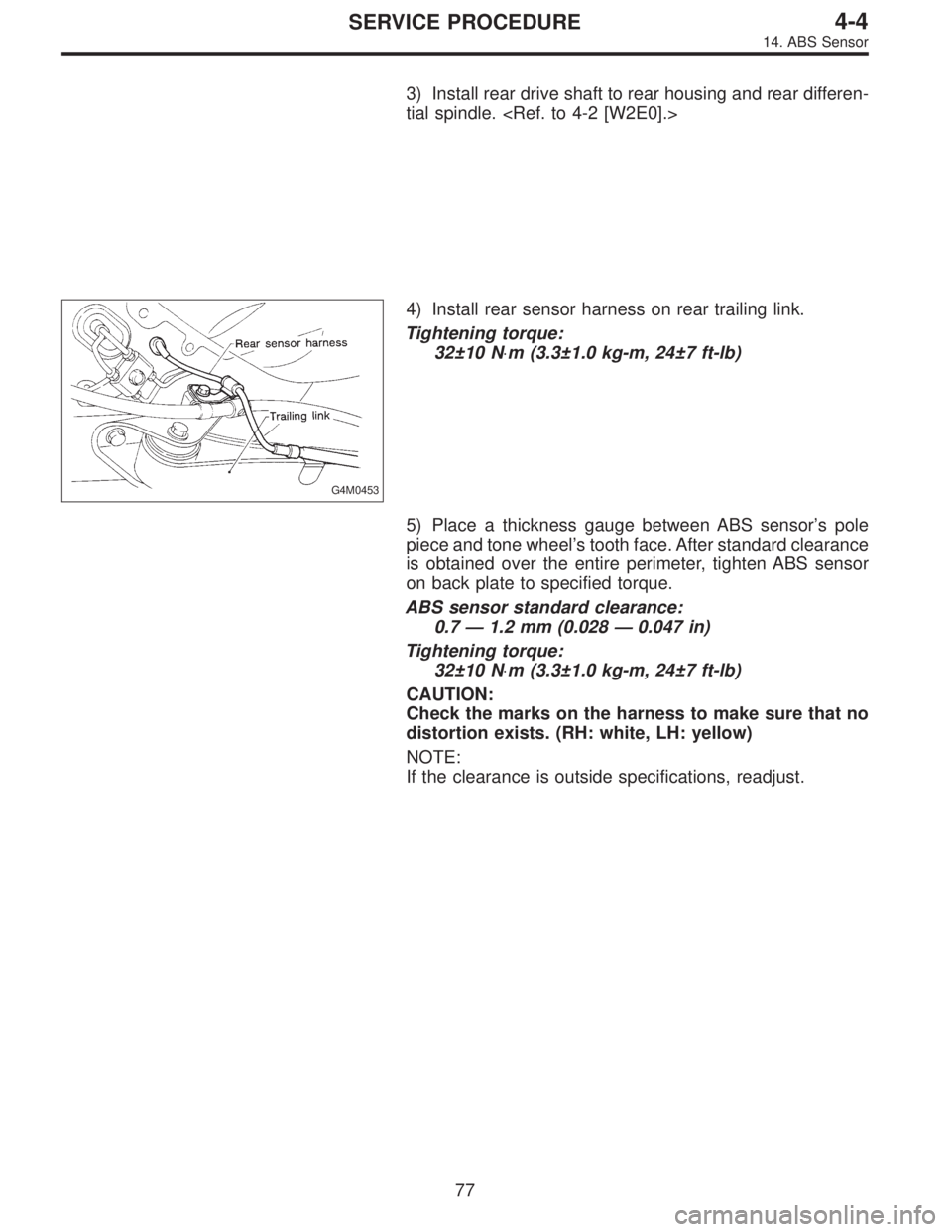

3) Install rear drive shaft to rear housing and rear differen-
tial spindle.
G4M0453
4) Install rear sensor harness on rear trailing link.
Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
5) Place a thickness gauge between ABS sensor’s pole
piece and tone wheel’s tooth face. After standard clearance
is obtained over the entire perimeter, tighten ABS sensor
on back plate to specified torque.
ABS sensor standard clearance:
0.7—1.2 mm (0.028—0.047 in)
Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
CAUTION:
Check the marks on the harness to make sure that no
distortion exists. (RH: white, LH: yellow)
NOTE:
If the clearance is outside specifications, readjust.
77
4-4SERVICE PROCEDURE
14. ABS Sensor

B: INSPECTION
Check that connector is connected correctly and that con-
nector terminal sliding resistance is correct.
C: INSTALLATION
To install, reverse the removal procedure.

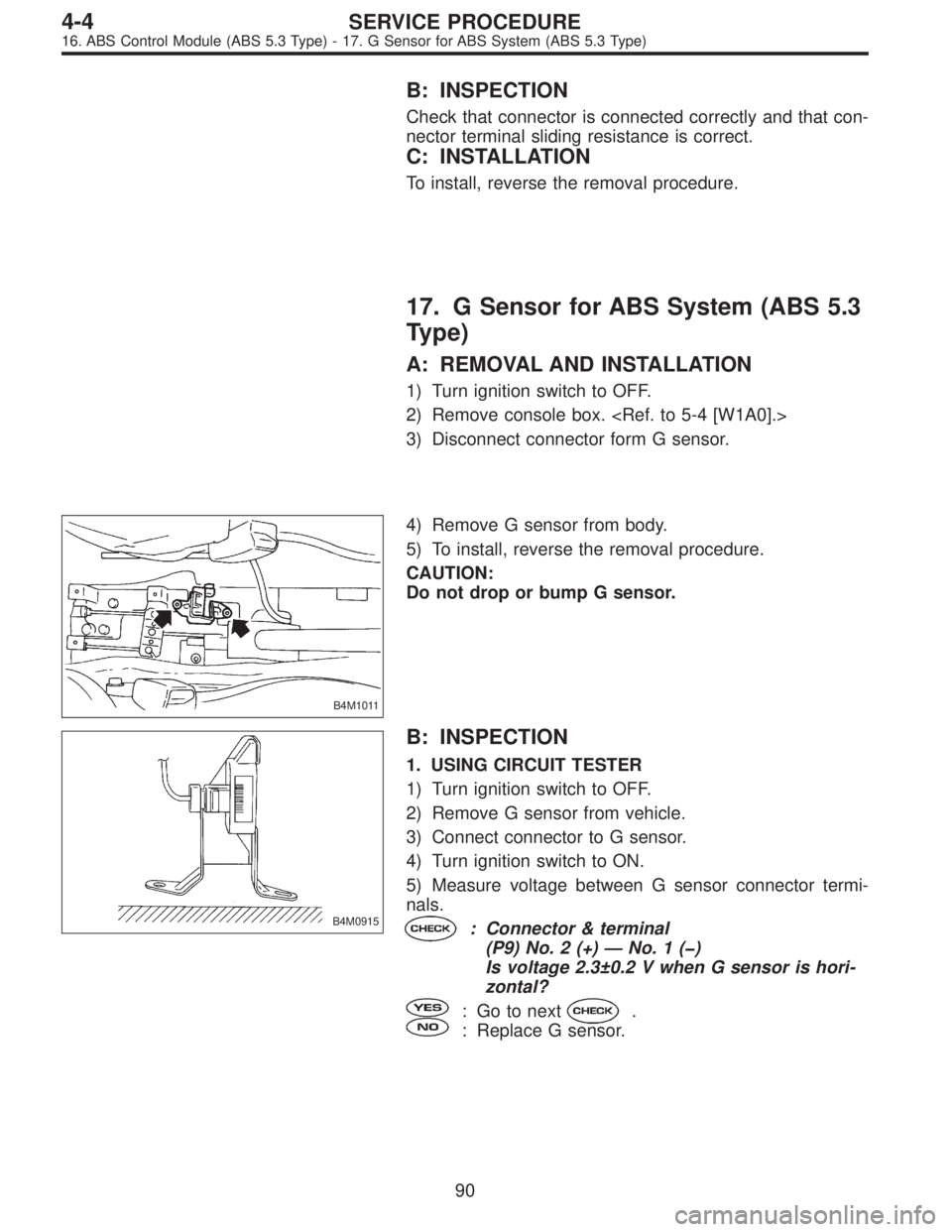

17. G Sensor for ABS System (ABS 5.3
Type)
A: REMOVAL AND INSTALLATION
1) Turn ignition switch to OFF.
2) Remove console box.
3) Disconnect connector form G sensor.
B4M1011
4) Remove G sensor from body.
5) To install, reverse the removal procedure.
CAUTION:
Do not drop or bump G sensor.
B4M0915
B: INSPECTION
1. USING CIRCUIT TESTER
1) Turn ignition switch to OFF.
2) Remove G sensor from vehicle.
3) Connect connector to G sensor.
4) Turn ignition switch to ON.
5) Measure voltage between G sensor connector termi-
nals.
: Connector & terminal
(P9) No. 2 (+)—No.1()
Is voltage 2.3±0.2 V when G sensor is hori-
zontal?
: Go to next.
: Replace G sensor.
90
4-4SERVICE PROCEDURE
16. ABS Control Module (ABS 5.3 Type) - 17. G Sensor for ABS System (ABS 5.3 Type)

B: INSPECTION
Check that connector is connected correctly and that con-
nector terminal sliding resistance is correct.
C: INSTALLATION
To install, reverse the removal procedure.
17. G Sensor for ABS System (ABS 5.3
Type)
A: REMOVAL AND INSTALLATION
1) Turn ignition switch to OFF.
2) Remove console box.
3) Disconnect connector form G sensor.
B4M1011
4) Remove G sensor from body.
5) To install, reverse the removal procedure.
CAUTION:
Do not drop or bump G sensor.
B4M0915
B: INSPECTION
1. USING CIRCUIT TESTER
1) Turn ignition switch to OFF.
2) Remove G sensor from vehicle.
3) Connect connector to G sensor.
4) Turn ignition switch to ON.
5) Measure voltage between G sensor connector termi-
nals.
: Connector & terminal
(P9) No. 2 (+)—No.1()
Is voltage 2.3±0.2 V when G sensor is hori-
zontal?
: Go to next.
: Replace G sensor.
90
4-4SERVICE PROCEDURE
16. ABS Control Module (ABS 5.3 Type) - 17. G Sensor for ABS System (ABS 5.3 Type)

B4M0917A

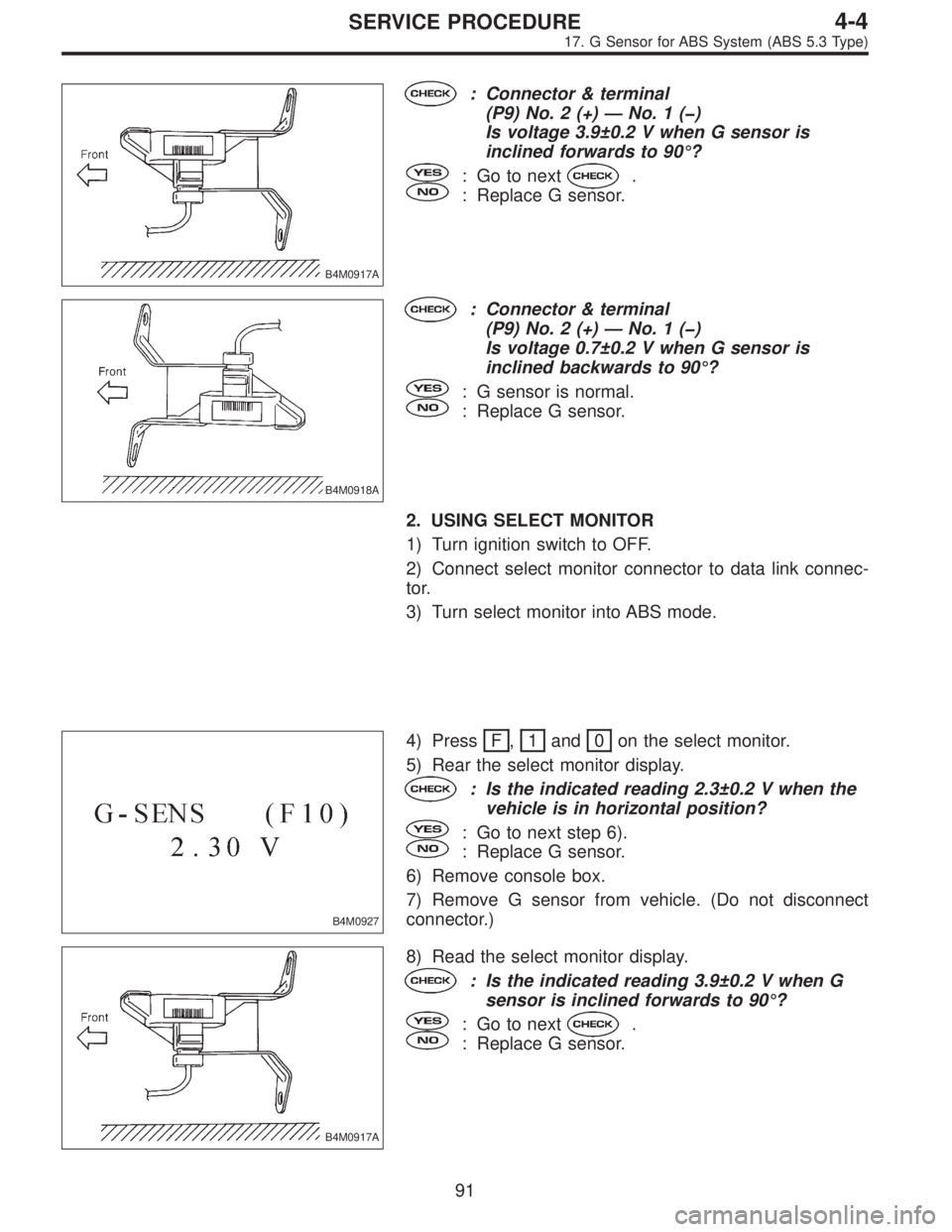

: Connector & terminal
(P9) No. 2 (+)—No.1()
Is voltage 3.9±0.2 V when G sensor is
inclined forwards to 90°?
: Go to next.
: Replace G sensor.
B4M0918A
: Connector & terminal
(P9) No. 2 (+)—No.1()
Is voltage 0.7±0.2 V when G sensor is
inclined backwards to 90°?
: G sensor is normal.
: Replace G sensor.
2. USING SELECT MONITOR
1) Turn ignition switch to OFF.
2) Connect select monitor connector to data link connec-
tor.
3) Turn select monitor into ABS mode.
B4M0927
4) Press F,1and 0on the select monitor.
5) Rear the select monitor display.
: Is the indicated reading 2.3±0.2 V when the
vehicle is in horizontal position?
: Go to next step 6).
: Replace G sensor.
6) Remove console box.
7) Remove G sensor from vehicle. (Do not disconnect
connector.)
B4M0917A
8) Read the select monitor display.
: Is the indicated reading 3.9±0.2 V when G
sensor is inclined forwards to 90°?
: Go to next.
: Replace G sensor.
91
4-4SERVICE PROCEDURE
