1997 SUBARU LEGACY engine coolant

G2M0628

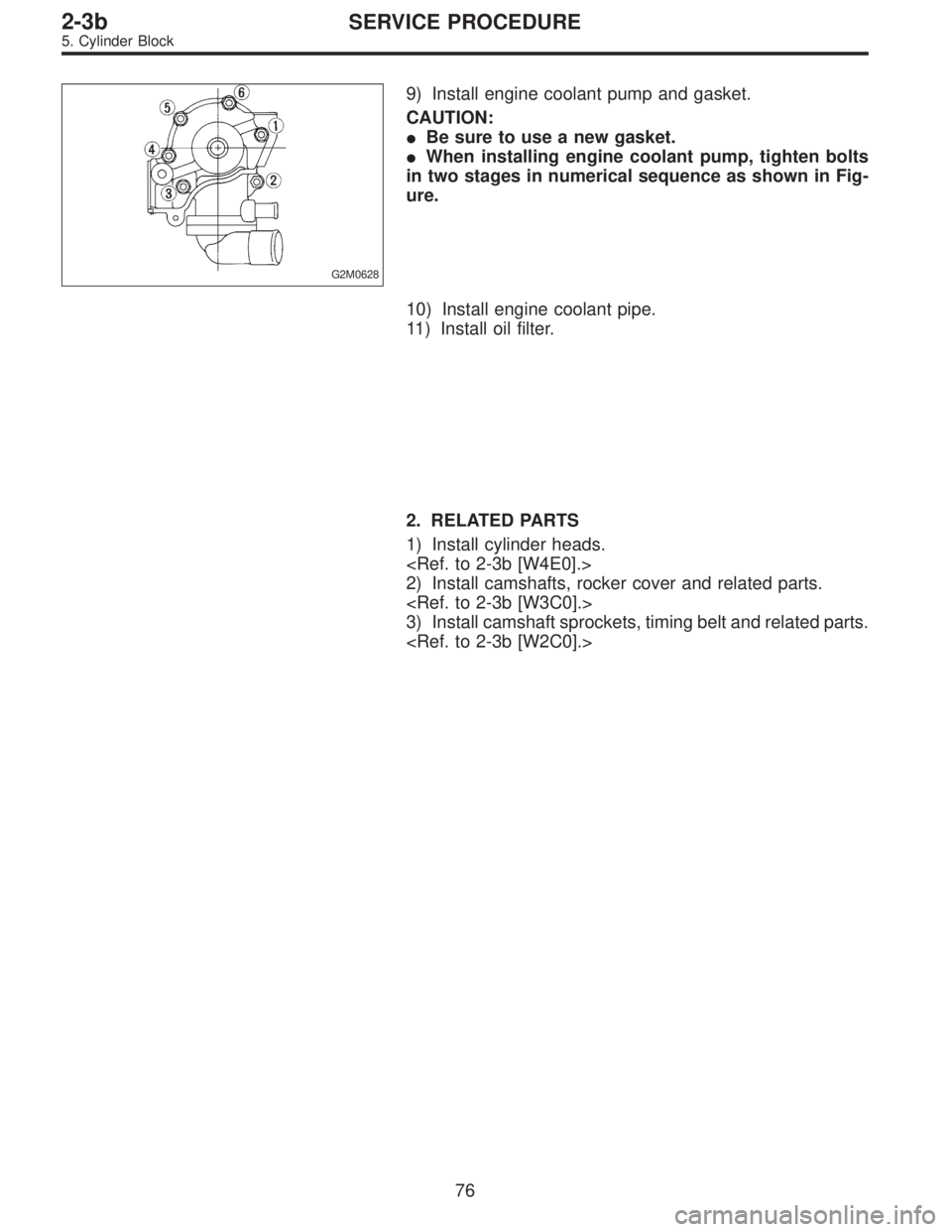

9) Install engine coolant pump and gasket.
CAUTION:
Be sure to use a new gasket.
When installing engine coolant pump, tighten bolts
in two stages in numerical sequence as shown in Fig-
ure.
10) Install engine coolant pipe.
11) Install oil filter.
2. RELATED PARTS
1) Install cylinder heads.

2) Install camshafts, rocker cover and related parts.

3) Install camshaft sprockets, timing belt and related parts.

76
2-3bSERVICE PROCEDURE
5. Cylinder Block

2. Engine Noise
Type of sound Condition Possible cause
Regular clicking soundSound increases as engine
speed increases.Valve mechanism is defective.
Incorrect valve clearance
Worn camshaft
Broken valve spring
Heavy and dull clankOil pressure is low.Worn crankshaft main bearing
Worn connecting rod bearing (big end)
Oil pressure is normal.Loose flywheel mounting bolts
Damaged engine mounting
High-pitched clank
(Spark knock)Sound is noticeable when
accelerating with an overload.Ignition timing advanced
Accumulation of carbon inside combustion chamber
Wrong spark plug
Improper gasoline
Clank when engine speed is
medium (1,000 to 2,000 rpm).Sound is reduced when fuel
injector connector of noisy
cylinder is disconnected.
(NOTE*)Worn crankshaft main bearing
Worn bearing at crankshaft end of connecting rod
Knocking sound when engine
is operating under idling speed
and engine is warm.Sound is reduced when fuel
injector connector of noisy
cylinder is disconnected.
(NOTE*)Worn cylinder liner and piston ring
Broken or stuck piston ring
Worn piston pin and hole at piston end of connecting rod
Sound is not reduced if each
fuel injector connector is
disconnected in turn. (NOTE*)Unusually worn valve lifter
Worn camshaft journal bore in crankcase
Squeaky sound—Insufficient generator lubrication
Rubbing sound—Defective generator brush and rotor contact
Gear scream when starting
engine—Defective ignition starter switch
Worn gear and starter pinion
Sound like polishing glass with
a dry cloth—Loose drive belt
Defective engine coolant pump shaft
Hissing sound—Loss of compression
Air leakage in air intake system, hoses, connections or
manifolds
Timing belt noise—Loose timing belt
Belt contacting case/adjacent part
Valve tappet noise—Incorrect valve clearance
NOTE*:
When disconnecting fuel injector connector, Malfunction Indicator Light (CHECK ENGINE light) illuminates and trouble code is stored in
ECM memory.
Therefore, carry out the CLEAR MEMORY MODE and INSPECTION MODE after connecting fuel injector connector. (Ref. to 2-7 On-Board
Diagnostics II System.)
80
2-3bDIAGNOSTICS
2. Engine Noise

G2M0066

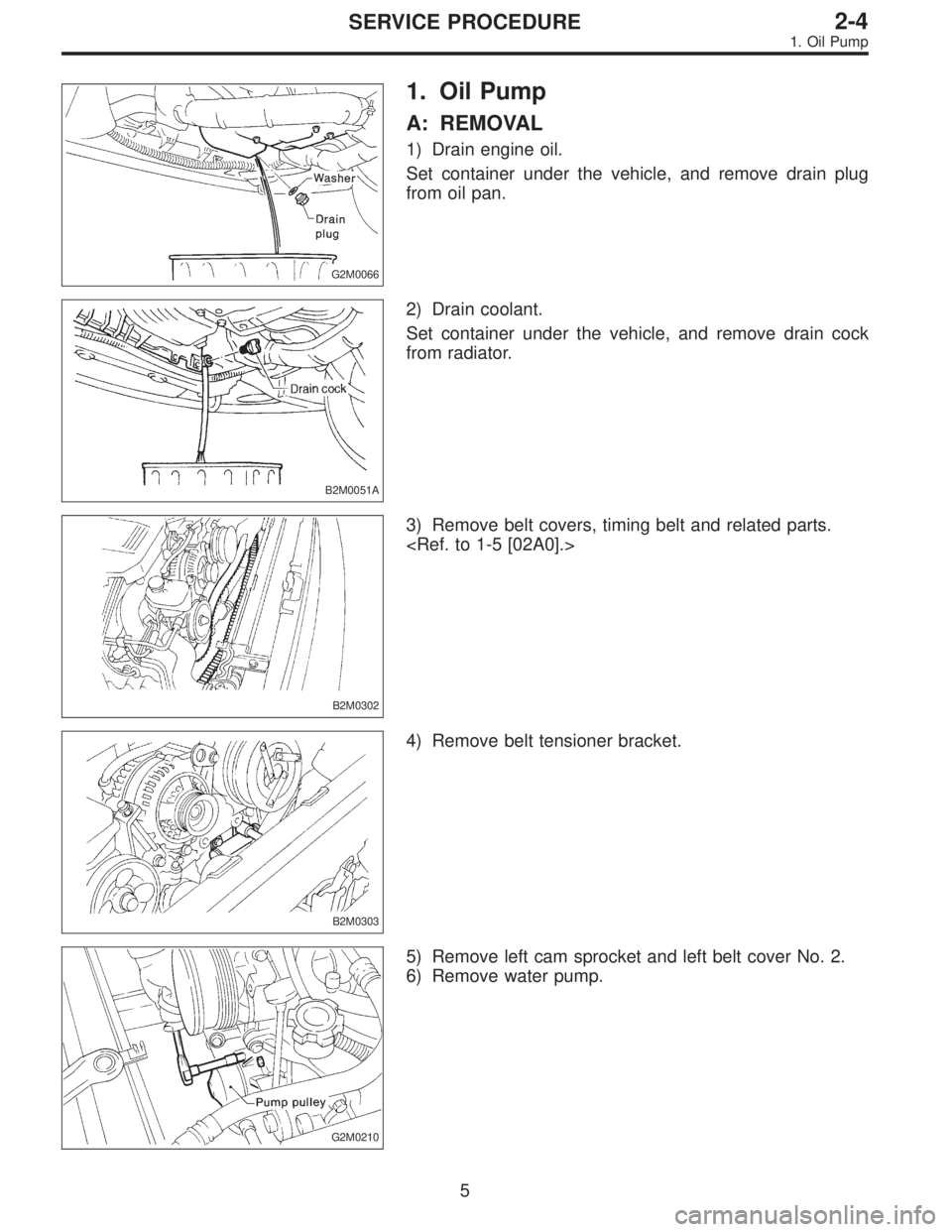

1. Oil Pump
A: REMOVAL
1) Drain engine oil.
Set container under the vehicle, and remove drain plug
from oil pan.
B2M0051A
2) Drain coolant.
Set container under the vehicle, and remove drain cock
from radiator.
B2M0302
3) Remove belt covers, timing belt and related parts.

B2M0303
4) Remove belt tensioner bracket.
G2M0210
5) Remove left cam sprocket and left belt cover No. 2.
6) Remove water pump.
5
2-4SERVICE PROCEDURE
1. Oil Pump

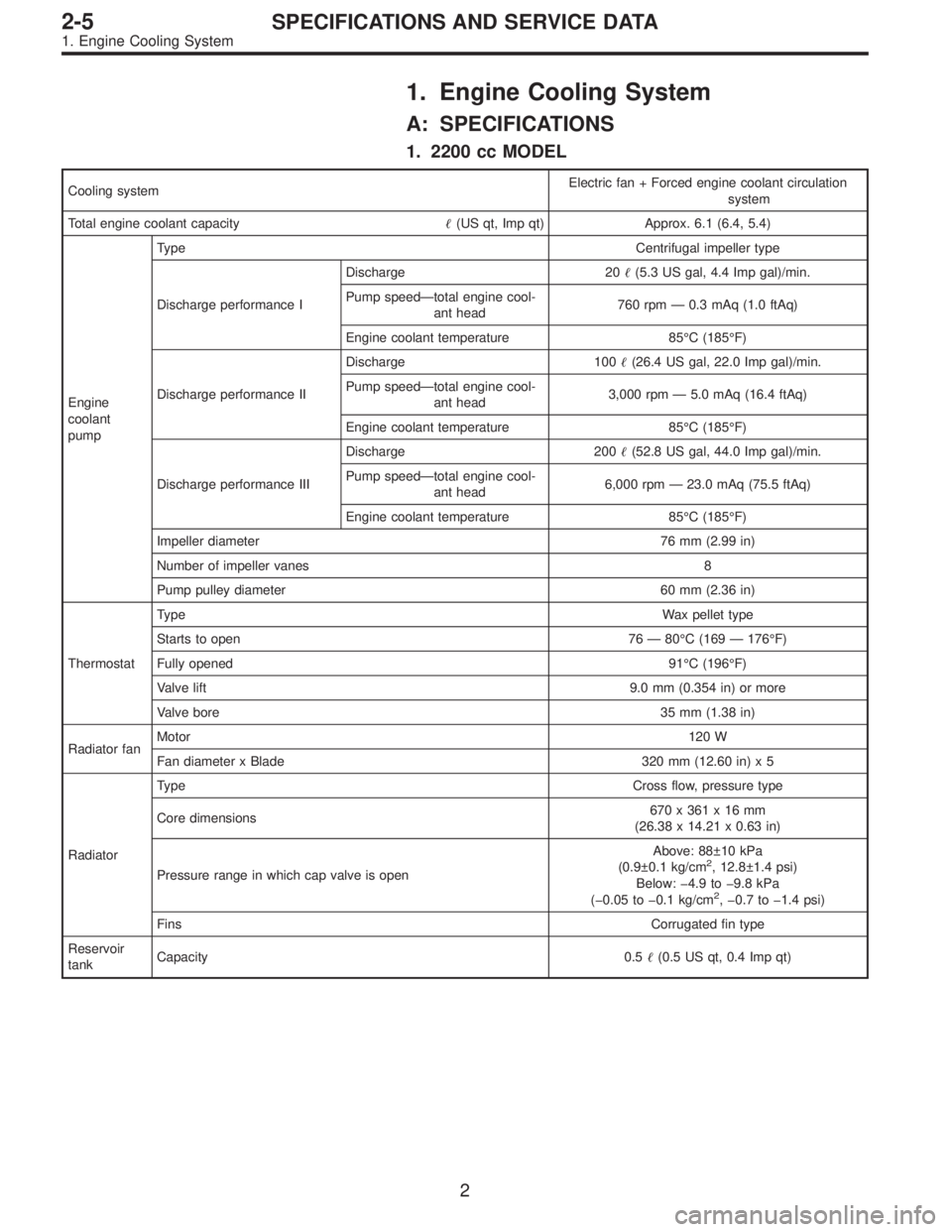

1. Engine Cooling System
A: SPECIFICATIONS
1. 2200 cc MODEL
Cooling systemElectric fan + Forced engine coolant circulation
system
Total engine coolant capacity
(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Engine
coolant
pumpTypeCentrifugal impeller type
Discharge performance IDischarge 20
(5.3 US gal, 4.4 Imp gal)/min.
Pump speed—total engine cool-
ant head760 rpm — 0.3 mAq (1.0 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIDischarge 100
(26.4 US gal, 22.0 Imp gal)/min.
Pump speed—total engine cool-
ant head3,000 rpm — 5.0 mAq (16.4 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIIDischarge 200
(52.8 US gal, 44.0 Imp gal)/min.
Pump speed—total engine cool-
ant head6,000 rpm — 23.0 mAq (75.5 ftAq)
Engine coolant temperature 85°C (185°F)
Impeller diameter 76 mm (2.99 in)
Number of impeller vanes 8
Pump pulley diameter 60 mm (2.36 in)
ThermostatTypeWax pellet type
Starts to open 76 — 80°C (169 — 176°F)
Fully opened91°C (196°F)
Valve lift9.0 mm (0.354 in) or more
Valve bore35 mm (1.38 in)
Radiator fanMotor120 W
Fan diameter x Blade 320 mm (12.60 in) x 5
RadiatorTypeCross flow, pressure type
Core dimensions670x361x16mm
(26.38 x 14.21 x 0.63 in)
Pressure range in which cap valve is openAbove: 88±10 kPa
(0.9±0.1 kg/cm
2, 12.8±1.4 psi)
Below: 4.9 to 9.8 kPa
(0.05 to 0.1 kg/cm
2, 0.7 to 1.4 psi)
FinsCorrugated fin type
Reservoir
tankCapacity 0.5
(0.5 US qt, 0.4 Imp qt)
2
2-5SPECIFICATIONS AND SERVICE DATA
1. Engine Cooling System

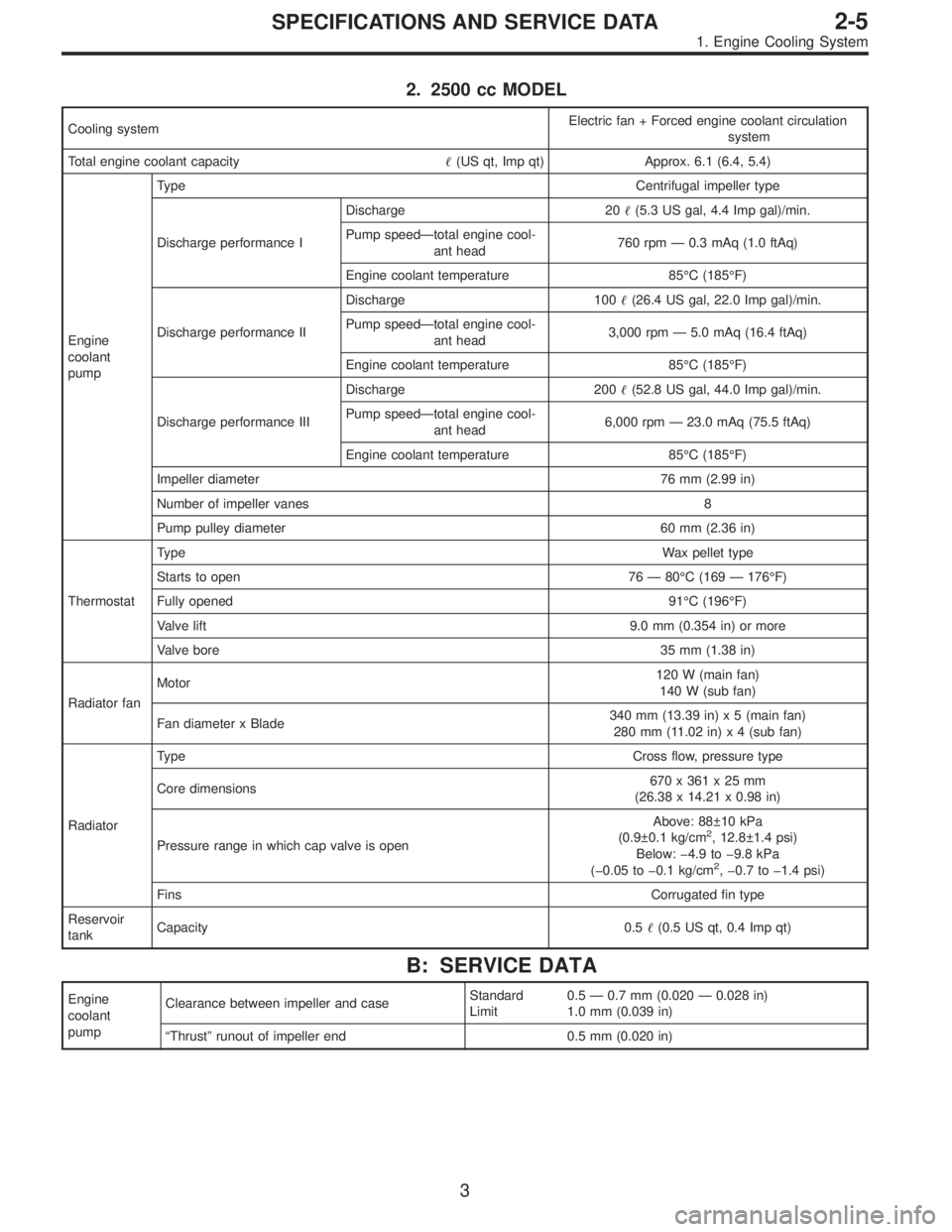

2. 2500 cc MODEL
Cooling systemElectric fan + Forced engine coolant circulation
system
Total engine coolant capacity
(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Engine
coolant
pumpTypeCentrifugal impeller type
Discharge performance IDischarge 20
(5.3 US gal, 4.4 Imp gal)/min.
Pump speed—total engine cool-
ant head760 rpm—0.3 mAq (1.0 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIDischarge 100
(26.4 US gal, 22.0 Imp gal)/min.
Pump speed—total engine cool-
ant head3,000 rpm—5.0 mAq (16.4 ftAq)
Engine coolant temperature 85°C (185°F)
Discharge performance IIIDischarge 200
(52.8 US gal, 44.0 Imp gal)/min.
Pump speed—total engine cool-
ant head6,000 rpm—23.0 mAq (75.5 ftAq)
Engine coolant temperature 85°C (185°F)
Impeller diameter 76 mm (2.99 in)
Number of impeller vanes 8
Pump pulley diameter 60 mm (2.36 in)
ThermostatTypeWax pellet type
Starts to open 76—80°C (169—176°F)
Fully opened91°C (196°F)
Valve lift9.0 mm (0.354 in) or more
Valve bore35 mm (1.38 in)
Radiator fanMotor120 W (main fan)
140 W (sub fan)
Fan diameter x Blade340 mm (13.39 in) x 5 (main fan)
280 mm (11.02 in) x 4 (sub fan)
RadiatorTypeCross flow, pressure type
Core dimensions670x361x25mm
(26.38 x 14.21 x 0.98 in)
Pressure range in which cap valve is openAbove: 88±10 kPa
(0.9±0.1 kg/cm
2, 12.8±1.4 psi)
Below:4.9 to9.8 kPa
(0.05 to0.1 kg/cm
2,0.7 to1.4 psi)
FinsCorrugated fin type
Reservoir
tankCapacity 0.5
(0.5 US qt, 0.4 Imp qt)
B: SERVICE DATA
Engine
coolant
pumpClearance between impeller and caseStandard
Limit0.5—0.7 mm (0.020—0.028 in)
1.0 mm (0.039 in)
“Thrust”runout of impeller end 0.5 mm (0.020 in)
3
2-5SPECIFICATIONS AND SERVICE DATA
1. Engine Cooling System

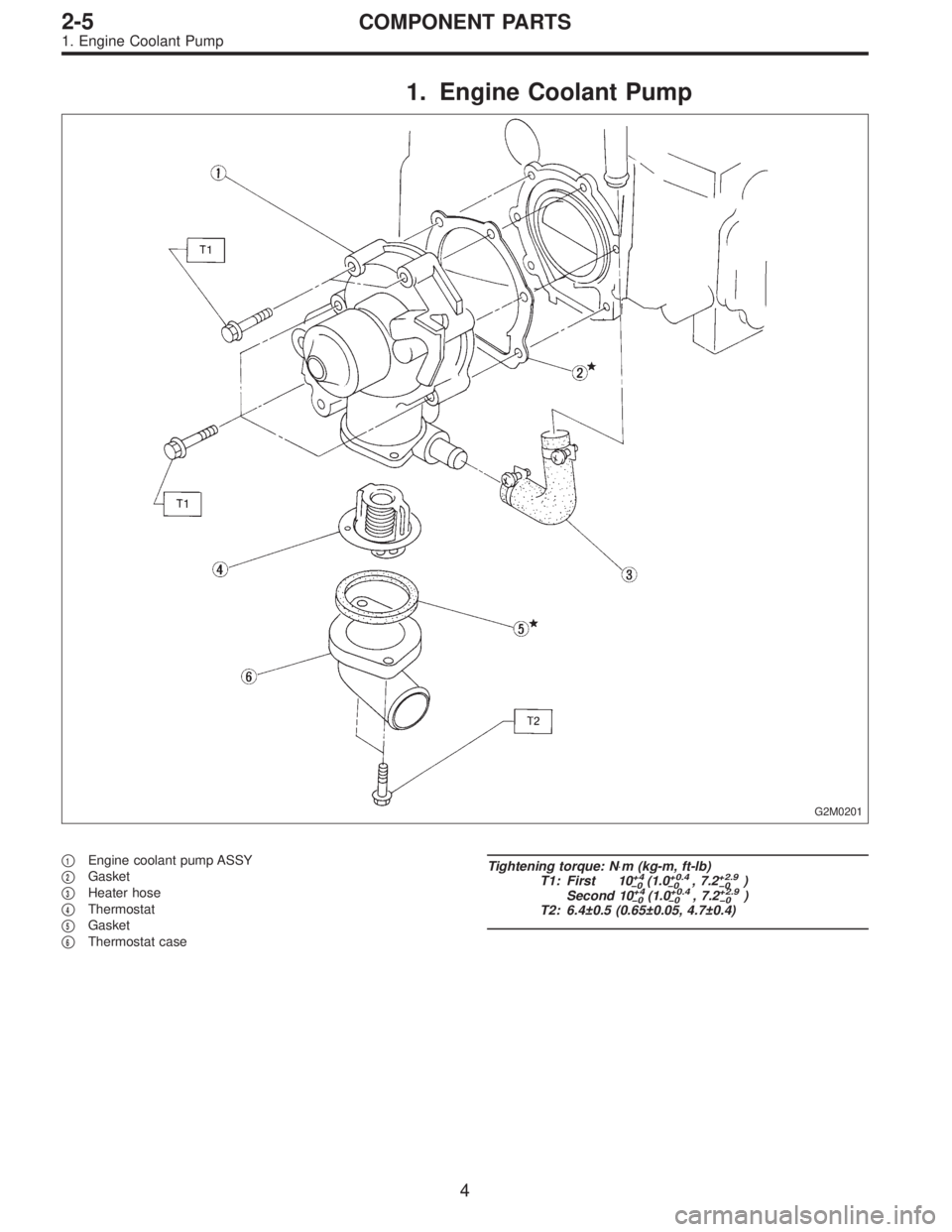

1. Engine Coolant Pump
G2M0201

1Engine coolant pump ASSY


2Gasket


3Heater hose


4Thermostat


5Gasket


6Thermostat case
Tightening torque: N⋅m (kg-m, ft-lb)
T1: First 10+4
0(1.0+0.4
0, 7.2+2.9
0)
Second 10+4
0(1.0+0.4
0, 7.2+2.9
0)
T2: 6.4±0.5 (0.65±0.05, 4.7±0.4)
4
2-5COMPONENT PARTS
1. Engine Coolant Pump

2. Radiator and Radiator Fan
B2M0300A

1Radiator lower cushion


2Radiator


3O-ring


4Air vent plug


5Radiator upper cushion


6Radiator upper bracket


7Clamp


8Radiator inlet hose


9Engine coolant reservoir tank cap


10Over flow hose


11Engine coolant reservoir tank


12Shroud


13Radiator main fan motor ASSY


14Radiator outlet hose

15Radiator drain pipe


16Gasket


17Radiator drain plug


18ATF hose clamp


19ATF inlet hose A


20ATF outlet hose A


21ATF pipe


22ATF outlet hose B


23ATF inlet hose B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 6.9±1.5 (0.7±0.15, 5.1±1.1)
T2: 12±3 (1.2±0.3, 8.7±2.2)
5
2-5COMPONENT PARTS
2. Radiator and Radiator Fan

3. Engine Coolant Pipe
G2M0203

1Engine coolant temperature sensor


2Engine coolant temperature gauge


3Engine coolant pipe


4O-ring


5By-pass hose
Tightening torque: N⋅m (kg-m, ft-lb)
T: 6.4±0.5 (0.65±0.05, 4.7±0.4)
6
2-5COMPONENT PARTS
3. Engine Coolant Pipe
