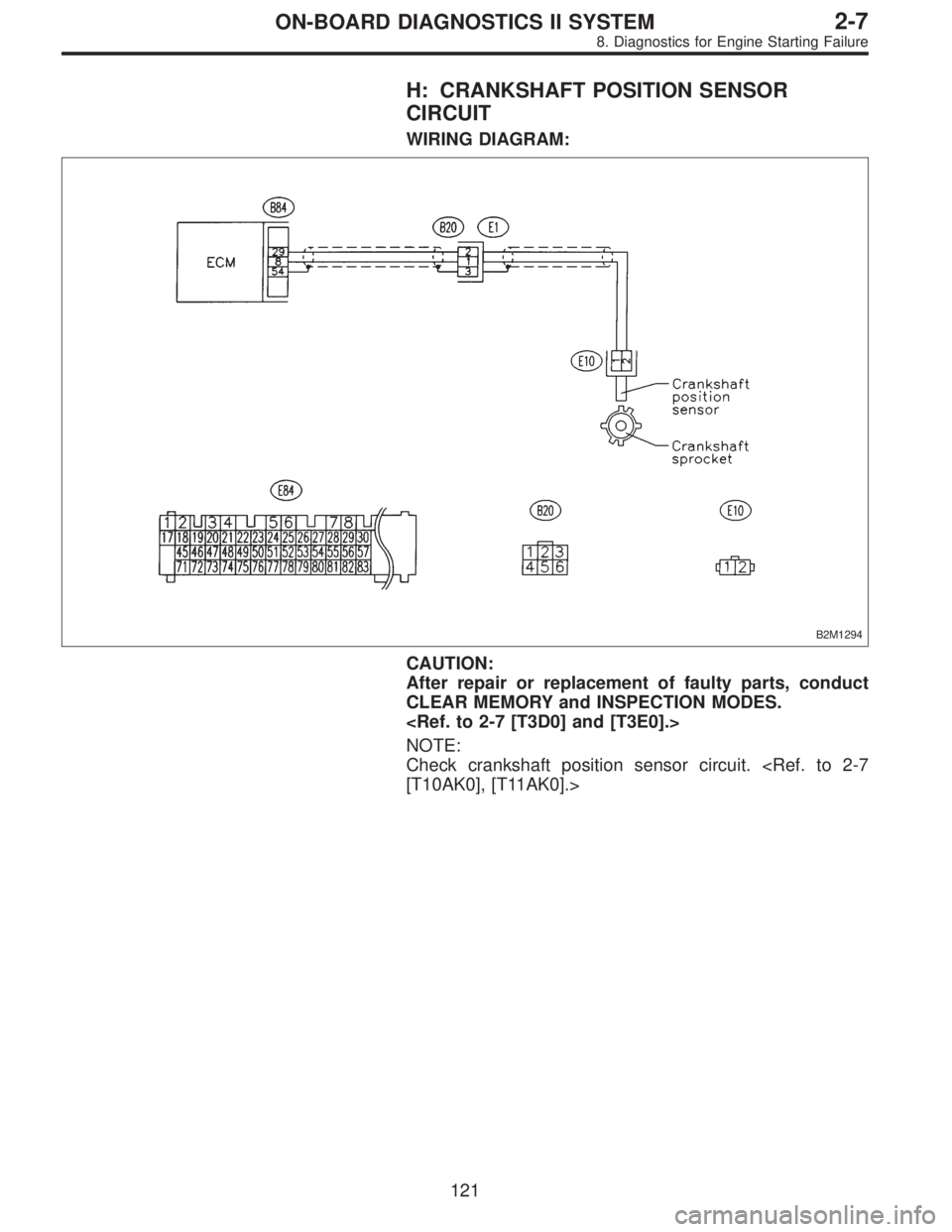

H: CRANKSHAFT POSITION SENSOR
CIRCUIT
WIRING DIAGRAM:
B2M1294
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

NOTE:
Check crankshaft position sensor circuit. [T10AK0], [T11AK0].>
121
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure

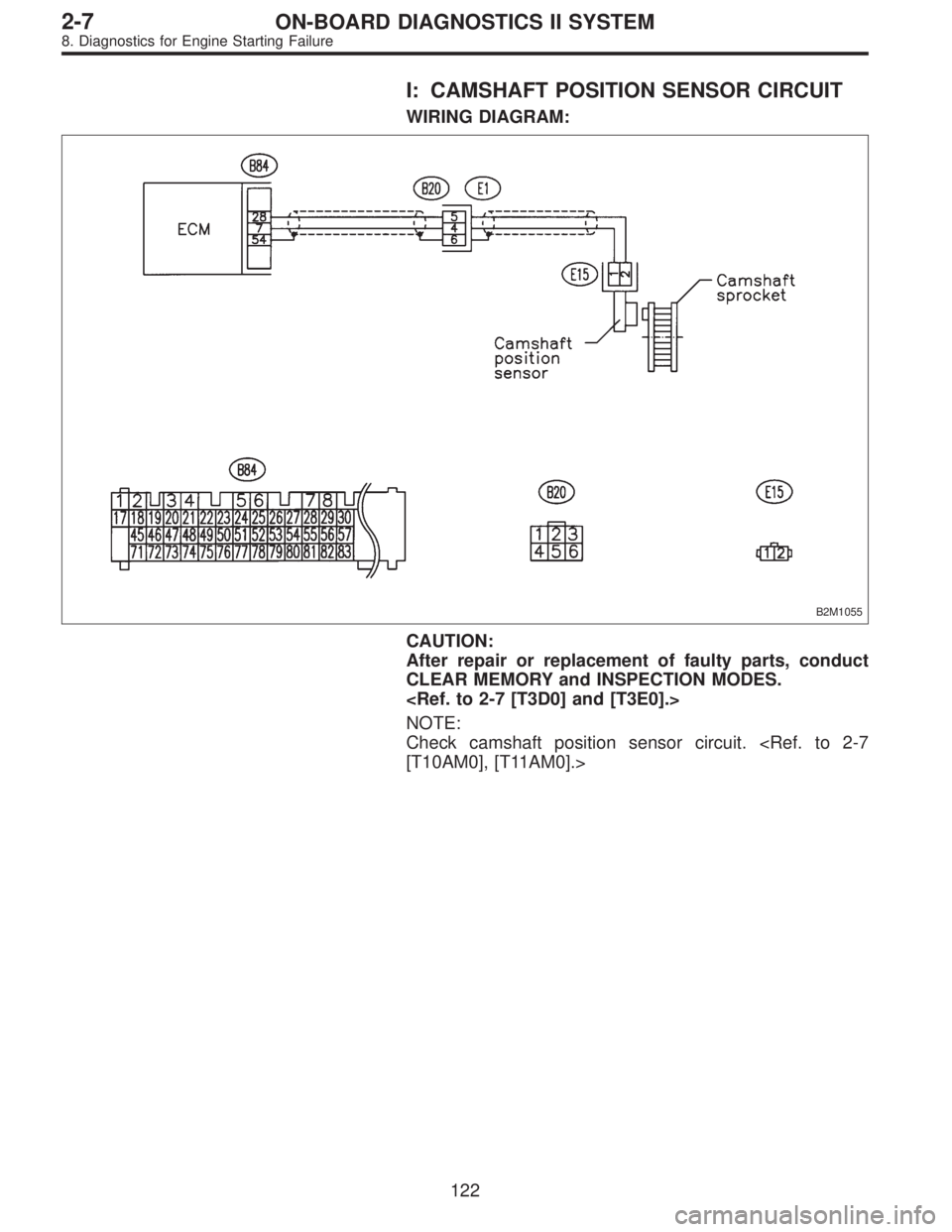

I: CAMSHAFT POSITION SENSOR CIRCUIT
WIRING DIAGRAM:
B2M1055
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

NOTE:
Check camshaft position sensor circuit. [T10AM0], [T11AM0].>
122
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure

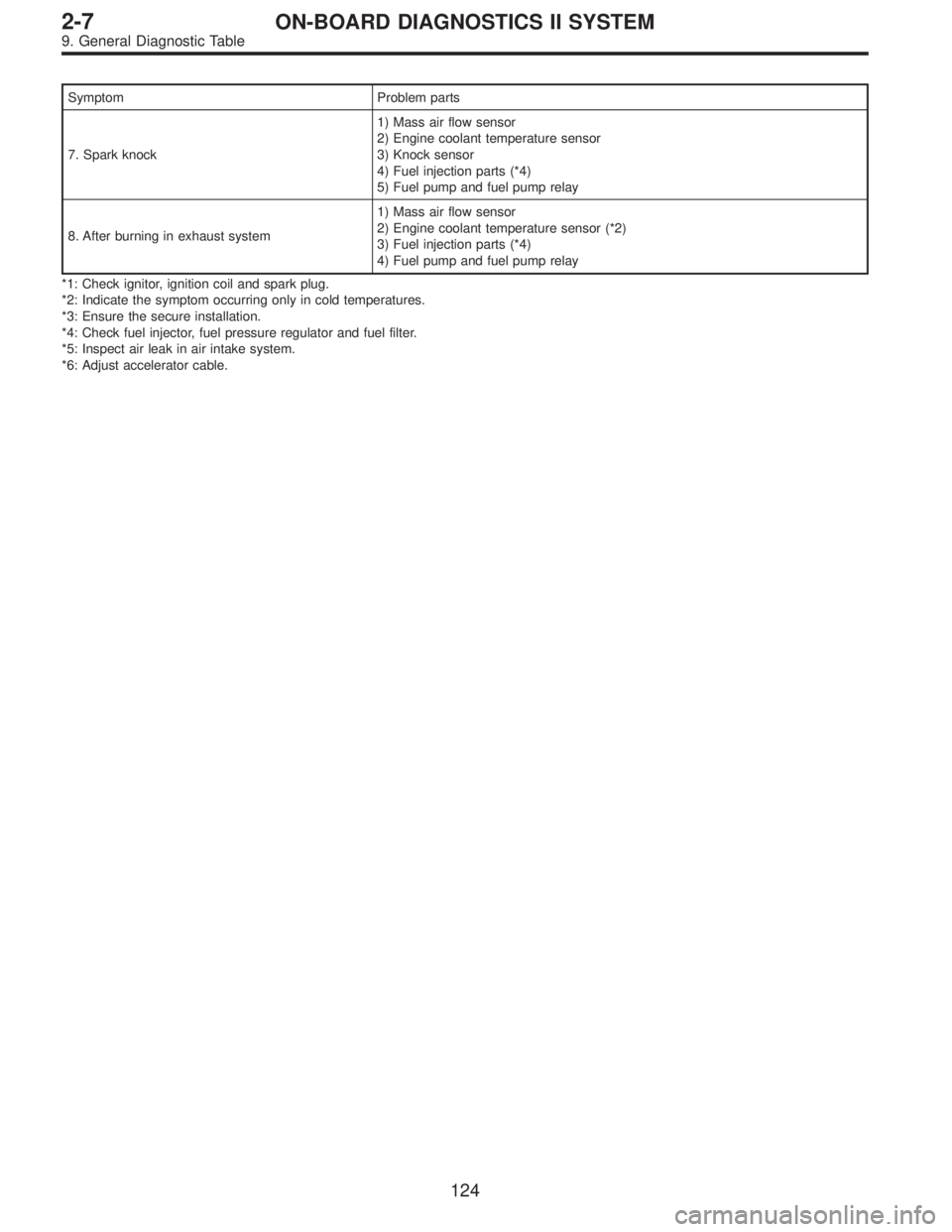

Symptom Problem parts
7. Spark knock1) Mass air flow sensor
2) Engine coolant temperature sensor
3) Knock sensor
4) Fuel injection parts (*4)
5) Fuel pump and fuel pump relay
8. After burning in exhaust system1) Mass air flow sensor
2) Engine coolant temperature sensor (*2)
3) Fuel injection parts (*4)
4) Fuel pump and fuel pump relay
*1: Check ignitor, ignition coil and spark plug.
*2: Indicate the symptom occurring only in cold temperatures.
*3: Ensure the secure installation.
*4: Check fuel injector, fuel pressure regulator and fuel filter.
*5: Inspect air leak in air intake system.
*6: Adjust accelerator cable.
124
2-7ON-BOARD DIAGNOSTICS II SYSTEM
9. General Diagnostic Table

DTC
No.Abbreviation
(Subaru Select Monitor)Item Page
P0341 CAM
—R Camshaft position sensor circuit range/performance problem 230
P0400 EGR Exhaust gas recirculation flow malfunction 232
P0403 EGRSOL Exhaust gas recirculation circuit low input 237
P0420 CAT Catalyst system efficiency below threshold 240
P0440 EVAP Evaporative emission control system malfunction 242
P0441 CPC
—F Evaporative emission control system incorrect purge flow 246
P0443 CPC Evaporative emission control system purge control valve circuit low input 248
P0446 VCMSOL
—LO Evaporative emission control system vent control low input 251
P0451 TNKP
—F Evaporative emission control system pressure sensor range/performance problem 254
P0452 TNKP
—LOW Evaporative emission control system pressure sensor low input 256
P0453 TNKP
—HI Evaporative emission control system pressure sensor high input 261
P0461 FLVL
—R Fuel level sensor circuit range/performance problem 267
P0462 FLVL
—LOW Fuel level sensor circuit low input 269
P0463 FLVL
—HI Fuel level sensor circuit high input 275
P0500 VSP Vehicle speed sensor malfunction 281
P0505 ISC Idle control system malfunction 283
P0506 ISC
—RLOW Idle control system RPM lower than expected 289
P0507 ISC
—RHI Idle control system RPM higher than expected 291
P0600—Serial communication link malfunction 293
P0601 RAM Internal control module memory check sum error 295
P0703 ATBRK Brake switch input malfunction 296
P0705 ATRNG Transmission range sensor circuit malfunction 299
P0710 ATF Transmission fluid temperature sensor circuit malfunction 311
P0720 ATVSP Output speed sensor (vehicle speed sensor 1) circuit malfunction 312
P0725 ATNE Engine speed input circuit malfunction 313
P0731 ATGR1 Gear 1 incorrect ratio 314
P0732 ATGR2 Gear 2 incorrect ratio 314
P0733 ATGR3 Gear 3 incorrect ratio 314
P0734 ATGR4 Gear 4 incorrect ratio 314
P0740 ATLU
—F Torque converter clutch system malfunction 317
P0743 ATLU Torque converter clutch system electrical 321
P0748 ATPL Pressure control solenoid electrical 322
P0753 ATSFT1 Shift solenoid A electrical 323
P0758 ATSFT2 Shift solenoid B electrical 324
P0760 ATOVR
—F Shift solenoid C malfunction 325
P0763 ATOVR Shift solenoid C electrical 328
P1100 ST
—SWOFF Starter switch circuit low input 329
P1101 N
—SW Neutral position switch circuit malfunction [MT vehicles] 331
P1101 N
—SWOFF Neutral position switch circuit high input [AT vehicles] 335
P1102 BR Pressure sources switching solenoid valve circuit low input 340
P1103 TRQ Engine torque control signal circuit malfunction 343
P1104 TCS
—LOW TCS signal circuit low input 346
130
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0532A

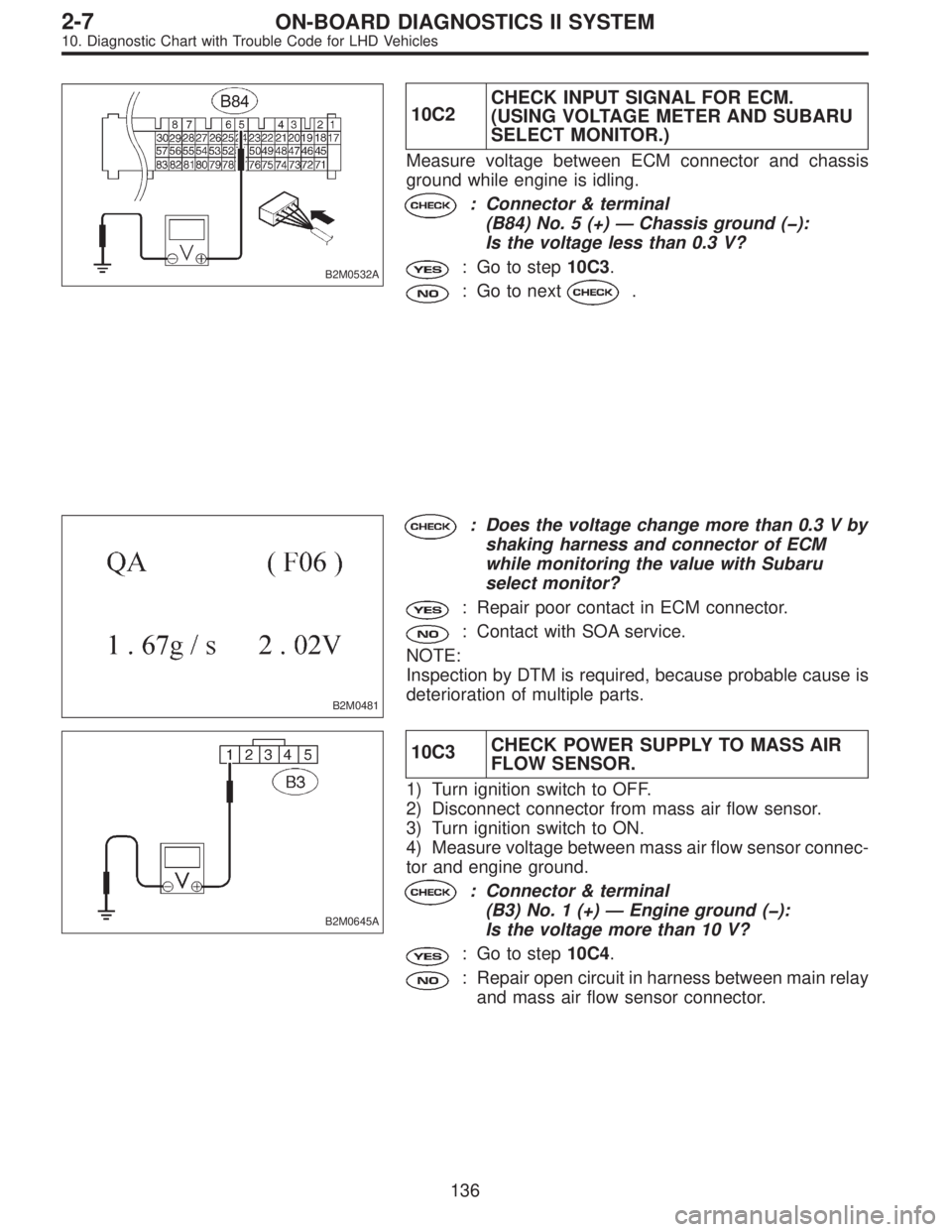

10C2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
Measure voltage between ECM connector and chassis
ground while engine is idling.
: Connector & terminal
(B84) No. 5 (+)—Chassis ground ():
Is the voltage less than 0.3 V?
: Go to step10C3.
: Go to next.
B2M0481
: Does the voltage change more than 0.3 V by
shaking harness and connector of ECM
while monitoring the value with Subaru
select monitor?
: Repair poor contact in ECM connector.
: Contact with SOA service.
NOTE:
Inspection by DTM is required, because probable cause is
deterioration of multiple parts.
B2M0645A
10C3CHECK POWER SUPPLY TO MASS AIR
FLOW SENSOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from mass air flow sensor.
3) Turn ignition switch to ON.
4) Measure voltage between mass air flow sensor connec-
tor and engine ground.
: Connector & terminal
(B3) No. 1 (+)—Engine ground ():
Is the voltage more than 10 V?
: Go to step10C4.
: Repair open circuit in harness between main relay
and mass air flow sensor connector.
136
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

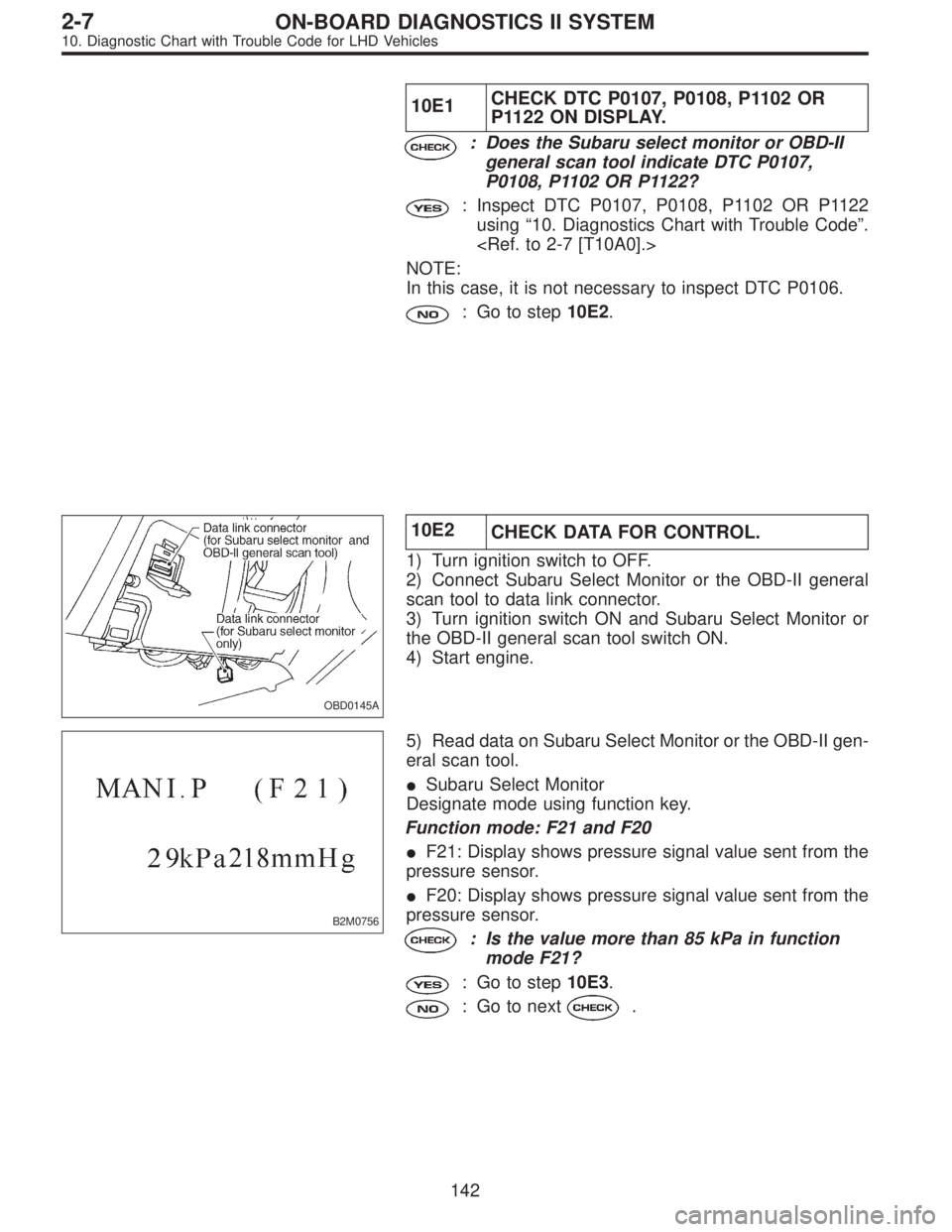

10E1CHECK DTC P0107, P0108, P1102 OR
P1122 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0107,
P0108, P1102 OR P1122?
: Inspect DTC P0107, P0108, P1102 OR P1122
using“10. Diagnostics Chart with Trouble Code”.

NOTE:
In this case, it is not necessary to inspect DTC P0106.
: Go to step10E2.
OBD0145A
10E2
CHECK DATA FOR CONTROL.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch ON and Subaru Select Monitor or
the OBD-II general scan tool switch ON.
4) Start engine.
B2M0756
5) Read data on Subaru Select Monitor or the OBD-II gen-
eral scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F21 and F20

F21: Display shows pressure signal value sent from the
pressure sensor.

F20: Display shows pressure signal value sent from the
pressure sensor.
: Is the value more than 85 kPa in function
mode F21?
: Go to step10E3.
: Go to next.
142
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0145A

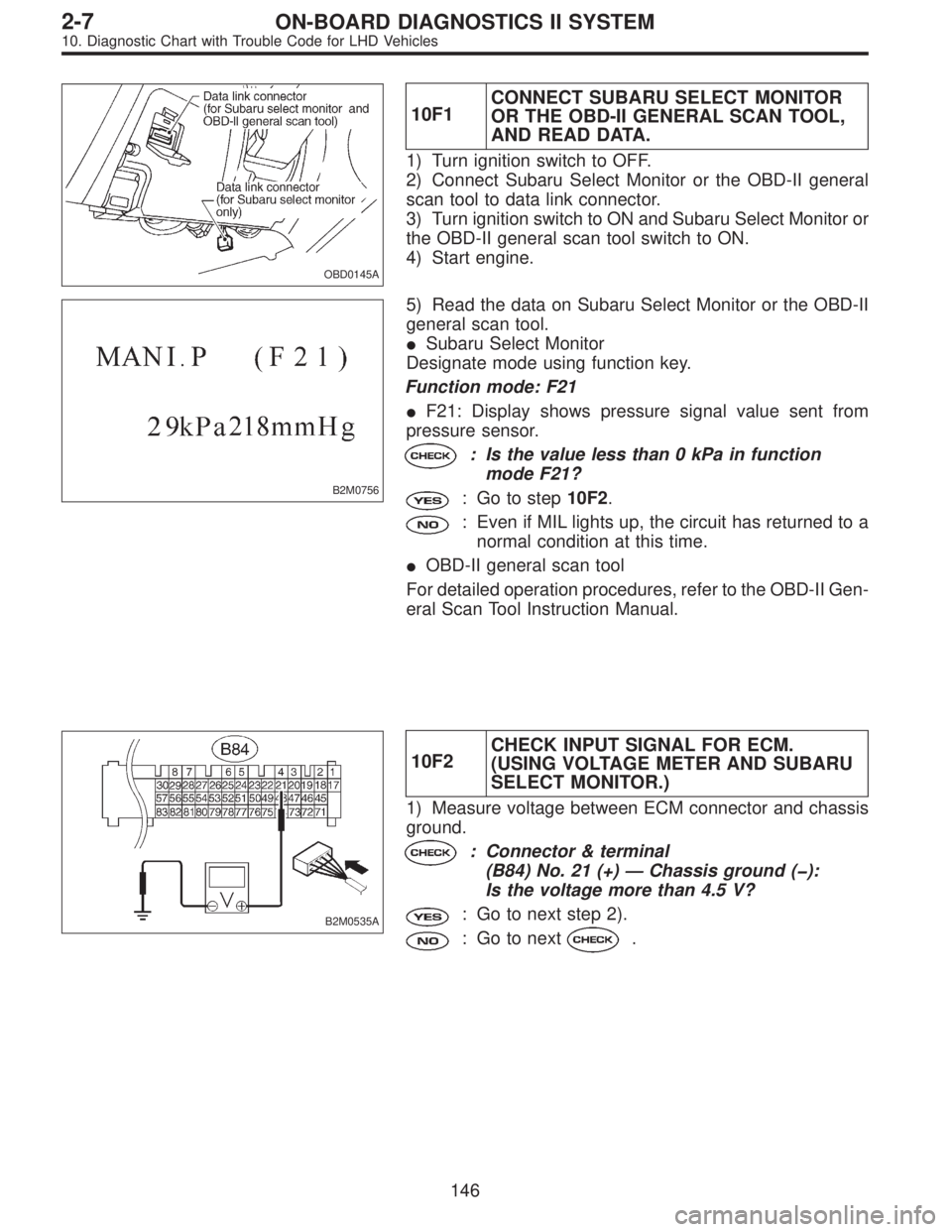

10F1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
4) Start engine.
B2M0756
5) Read the data on Subaru Select Monitor or the OBD-II
general scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F21

F21: Display shows pressure signal value sent from
pressure sensor.
: Is the value less than 0 kPa in function
mode F21?
: Go to step10F2.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
B2M0535A
10F2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 21 (+)—Chassis ground ():
Is the voltage more than 4.5 V?
: Go to next step 2).
: Go to next.
146
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0535A

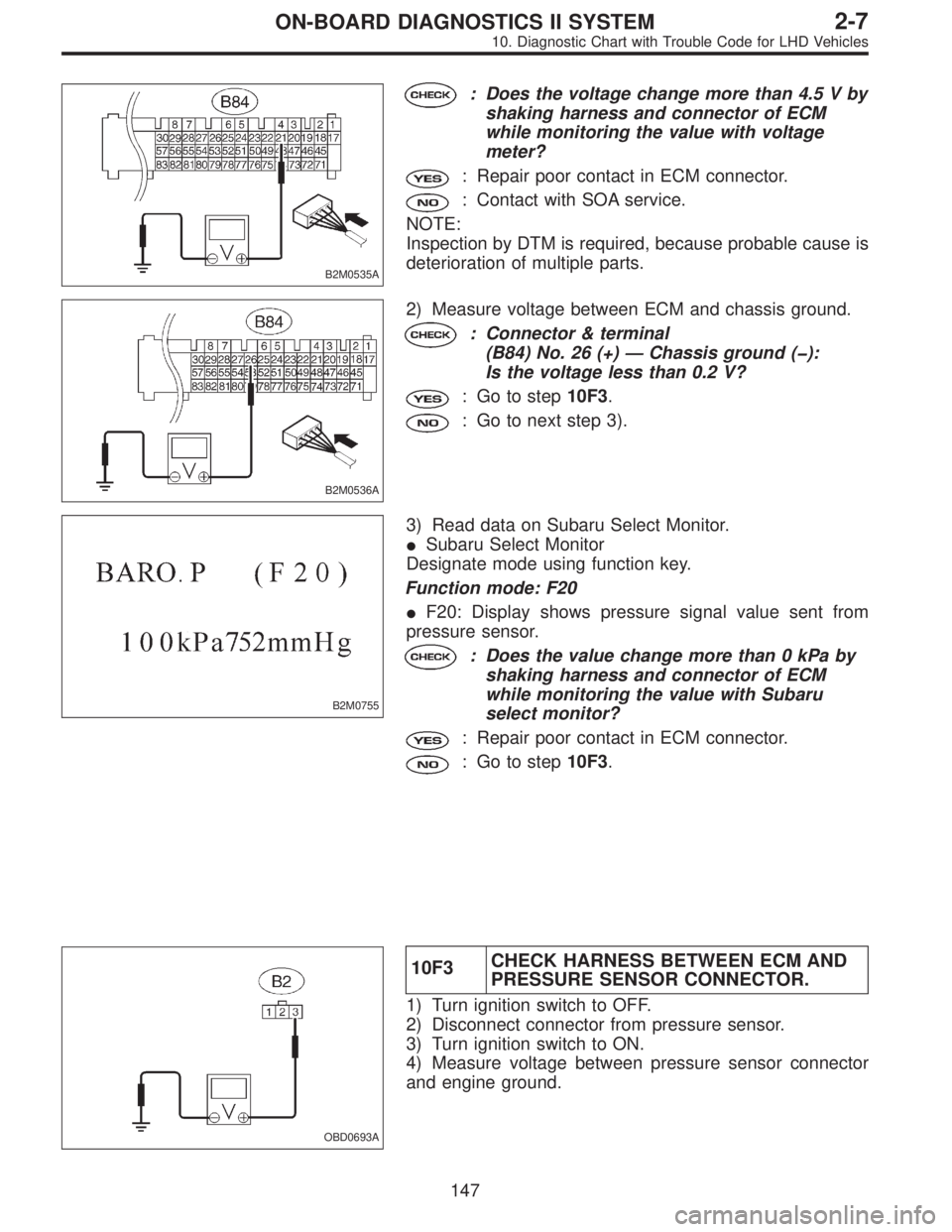

: Does the voltage change more than 4.5 V by
shaking harness and connector of ECM
while monitoring the value with voltage
meter?
: Repair poor contact in ECM connector.
: Contact with SOA service.
NOTE:
Inspection by DTM is required, because probable cause is
deterioration of multiple parts.
B2M0536A
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 26 (+)—Chassis ground ():
Is the voltage less than 0.2 V?
: Go to step10F3.
: Go to next step 3).
B2M0755
3) Read data on Subaru Select Monitor.

Subaru Select Monitor
Designate mode using function key.
Function mode: F20

F20: Display shows pressure signal value sent from
pressure sensor.
: Does the value change more than 0 kPa by
shaking harness and connector of ECM
while monitoring the value with Subaru
select monitor?
: Repair poor contact in ECM connector.
: Go to step10F3.
OBD0693A
10F3CHECK HARNESS BETWEEN ECM AND
PRESSURE SENSOR CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from pressure sensor.
3) Turn ignition switch to ON.
4) Measure voltage between pressure sensor connector
and engine ground.
147
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
