M161 ENGINE CONTROLS 1F2 -- 103
D AEW OO M Y_2000
KAA1F410
PEDAL POSITION SENSOR
Removal and installation Procedure
1. Disconnect the negative battery cable.
2. Disconnect the pedal position sensor connector.
3. Unscrew the bolts and nut.
Installation Notice
Tightening Torque
6NSm (53 lb-in)
4. Remove the pedal and sensor assembly.
5. Installation should follow the removal procedure in
the reverse order.
YAA1F820
OXYGEN SENSOR
Removal and Installation Procedure
1. Disconnect the negative battery cable.
Notice:The oxygen sensor uses a permanently at-
tached pigtail and connector. This pigtail should not be
removed from the oxygen sensor. Damage or removal
of the pigtail or the connector could affect proper opera-
tion of the oxygen sensor. Do not drop the oxygen sen-
sor.
2. Disconnect the electrical connector.
3. Carefully remove the oxygen sensor from the exhaust
pipe.
Installation Notice
Tightening Torque
55 NSm (41 Ib-ft)
Important:A special anti-seize compound is used on
the oxygen sensor threads. This compound consists of
a liquid graphite and glass beads. The graphitewill burn
away, but the glass beadswill remain, making the sen-
sor easier to remove. New or serviced sensors will al-
ready have the compound applied to the threads. If a
sensor is removed from any engine and is to be rein-
stalled, the threads must have an anti-seize compound
applied before reinstallation.
4. Coat the threads of the oxygen sensor with an anti-
seize compound, if needed.
5. Installation should follow the removal procedure in
the reverse order.

1F2 -- 104 M161 ENGINE CONTROLS
D AEW OO M Y_2000
KAB1F400
PURGE CONTROL VALVE
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Disconnect the purge control valve connector.
3. Disconnect the throttle body-to-purge control valve
hose from the purge control valve.
4. Disconnect the canister-to-purge control valve hose
from the purge control valve.
5. Remove the purge control valve.
6. Installation should follow the removal provedure in
the reverse order.
KAB1F410
CANISTER
Removal and Installation Procedure
Caution: Canister and vacuum hoses contain fuel
vapors. Do not smoke in the area or permit an open
flame.
1. Disconnect the fuel tank-to-canister hose form the
canister.
2. Disconnect the canister-to-purge control valve hose
form the canister.
KAB1F400
3. Remove the canister mounting bolts.
Installation Notice
Tightening Torque
6NSm (53 lb-in)
4. Remove the canister.
5. Installation should follow the removal procedure in
the reverse order.
YAA1F810
CAMSHAFT POSITION SENSOR
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Disconnect the electrical connector from the cam-
shaft position sensor.
3. Remove the camshaft position sensor retaining bolt.
Installation Notice
Tightening Torque
10 NSm (89 Ib-in)

M161 ENGINE CONTROLS 1F2 -- 105
D AEW OO M Y_2000
4. Check the O-ring for damage and replace it if neces-
sary.
5. Installation should follow the removal procedure in
the reverse order.
KAA1F160
CRANKSHAFT POSITION SENSOR
Removal and installation Procedure
1. Disconnect the negative battery cable.
2. Disconnect the electrical connector at the crankshaft
position sensor.
3. Remove the crankshaft position sensor retaining bolt.
Installation Notice
Tightening Torque
10 NSm (89 lb-in)
4. Installation should follow the removal procedure in
the reverse order.
KAA1F200
ENGINE CONTROL MODULE
Removal and installation Procedure
1. Disconnect the negative battery cable.
2. Remove the cowl side trim form passenger side. Re-
fer toSection 9G, Interior trim.
3. Remove the four securing nuts for the Engine Control
Module (ECM) from the mounting bracket.
Installation Notice
Tightening Torque
10 NSm (89 lb-in)
4. Pull out the ECM from the bracket.
5. Disconnect the vehicle side coupling.
6. Installation should follow the removal procedure in
the reverse order.

1G2 -- 2 M161 ENGINE INTAKE & EXHAUST
D AEW OO M Y_2000
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
ApplicationNSmLb-FtLb-In
Air Cleaner Mounting Bolt22.5 -- 27.516.6 -- 20.3--
Intake Manifold Mounting Bolts22.5 -- 27.516.6 -- 20.3--
Idle Regulator and Intermediate Flange Bolts22.5 -- 27.516.6 -- 20.3--
Supporting Assembly Bolts22.5 -- 27.516.6 -- 20.3--
Oxygen Sensor5541--
Connection Piece36 -- 4427 -- 33--
Exhaust Pipe Flange Bolts3022--
Exhaust Manifold Nuts31.5 -- 38.523.2 -- 28.4--
Exhaust Pipe-- to-- Catalytic Converter Flange Nuts28 -- 4721 -- 35--
Front Muffler Pipe -- to -- Catalytic Converter Flange Nuts28 -- 4721 -- 35--
Rear Muffler Pipe Flange -- to -- Front Muffler Pipe Flange
Nuts28 -- 4721 -- 35--

1G2 -- 4 M161 ENGINE INTAKE & EXHAUST
D AEW OO M Y_2000

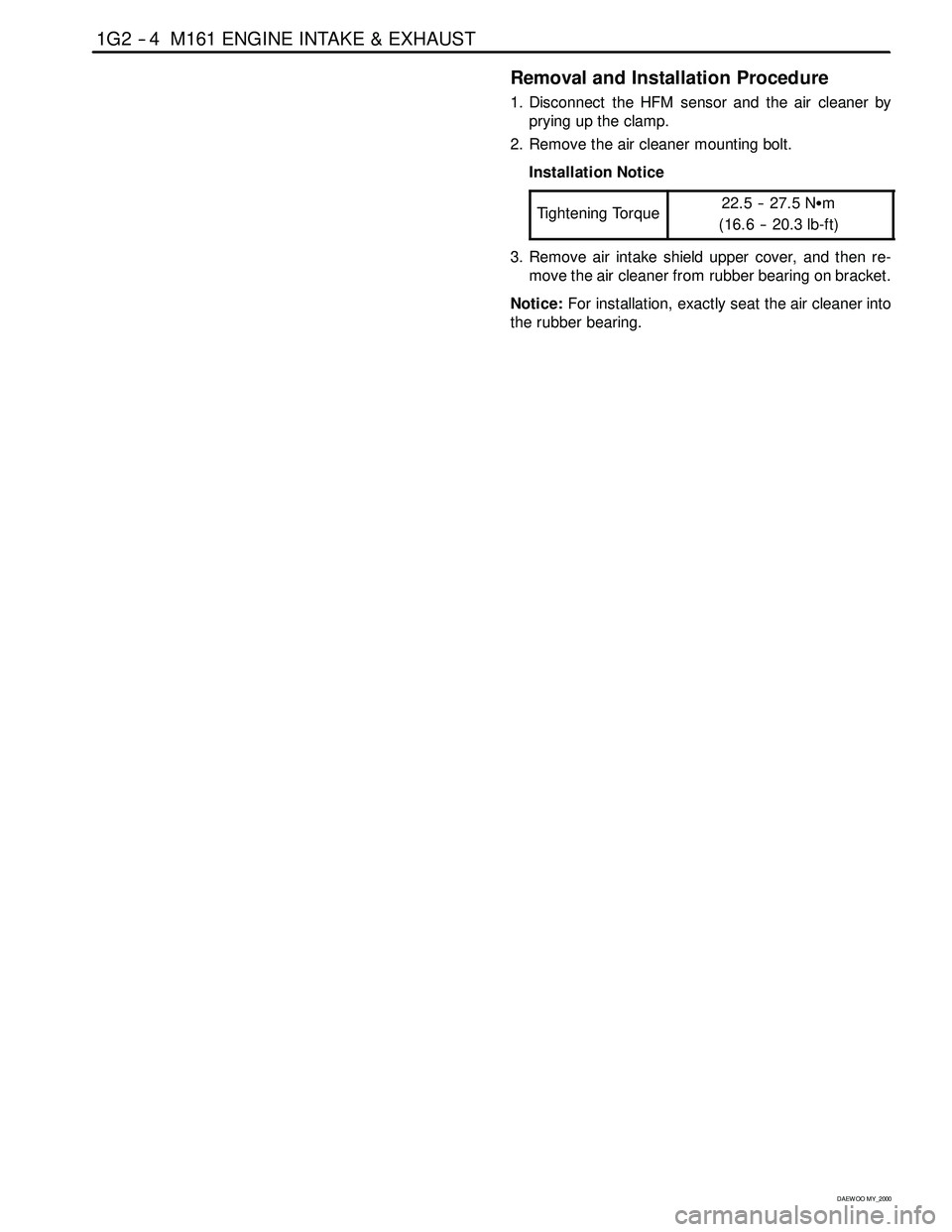

Removal and Installation Procedure
1. Disconnect the HFM sensor and the air cleaner by
prying up the clamp.
2. Remove the air cleaner mounting bolt.
Installation Notice
Tightening Torque
22.5 -- 27.5 NSm
(16.6 -- 20.3 lb-ft)
3. Remove air intake shield upper cover, and then re-
move the air cleaner from rubber bearing on bracket.
Notice:For installation, exactly seat the air cleaner into
the rubber bearing.

1G2 -- 6 M161 ENGINE INTAKE & EXHAUST
D AEW OO M Y_2000
INTAKE AIR DUCT
1 Clamp
2 Sleeve
3 HFM Sensor
4 Intake Air Duct5Blow--byHose
7 Clamp(2 pieces)
8 Intake Air Duct Mounting Bracket

1G2 -- 10 M161 ENGINE INTAKE & EXHAUST
D AEW OO M Y_2000
EXHAUST MANIFOLD
1 Oxygen Sensor 55 NSm (41 lb-ft) ............
2 Bolt (4 pieces) 9-- 11 NSm (80-- 97 lb-in) ........
3 Upper Cover
4 Nut (11 pieces)
31.5-- 38.5 NSm (23.2-- 28.4 lb-ft) .............5 Exhaust Manifold
6 Flange Bolt & Exhaust Pipe
Mounting Nut 30 NSm (22 lb-ft) ..............
7 Gasket Replace...........................

M161 ENGINE INTAKE & EXHAUST 1G2 -- 11
D AEW OO M Y_2000
Removal & Installation Procedure
1. Remove the oxygen sensor if necessary.
Installation Notice
Tightening Torque
55 NSm (41 lb-ft)
2. Unscrew the bolt (2) and remove the exhaust man-
ifold upper cover (3).
3. Unscrew the flange bolt (6) of front exhaust pipe and
separate the front exhaust pipe.
Installation Notice
Tightening Torque
30 NSm (22 lb-ft)
Notice:Check the exhaust pipe mounting nut, and re-
place it with new one if necessary.
4. Unscrew the eleven nuts (4) and remove the exhaust
manifold (5) and gasket (7).
Installation Notice
Tightening Torque
31.5 -- 38.5 NSm
(23.2 -- 28.4 lb-ft)
5. Replace the gasket (7) with new one.
6. Installation should follow the removal procedure in
the reverse order.
