OM600 ENGINE CONTROLS 1F3 -- 39
D AEW OO M Y_2000
(Connection Diagram for Testers With Adapter)
1 Fuel Injection Pump
2 Rl Sensor
3 Digital Tester4 TDC Pulse Sender Unit
5 Battery
6 Rl Pulse Generator
Service Data
Start of Delivery (RIV)AT DC 1 4_-- 1 6_
Idle SpeedOM661LA : 720 -- 820 rpm, OM662LA : 750 -- 850 rpm

1F3 -- 40 OM600 ENGINE CONTROLS
D AEW OO M Y_2000
Tools Required
617 589 09 21 00 Rl Sensor
617589102100 TimingTester
667589002100 TDCPulseGenerator
Commercial Tools
ItemTools
Digigal TesterWith Pulse GeneratorBosch, MOT 001.03gg
Hartmann & Braun, EOMT3
Without Pulse GeneratorBosch, ETD 019.00
Sun, DIT 9000
ALV, Diesel -- Tester 875
Test Procedure
1. Remove the screw plug (7) and seal (8) collect oil in
a suitable vessel.
2. Install the Rl sensor into the governor housing of in-
jection pump (1).
Rl Sensor 617 589 10 21 00
3. Connect the digital tester and TDC pulse sender unit
according to connection diagram.
4. Run the engine at idle speed and check the Rl value
on the digital tester
Rl valueAT DC 1 4_-- 1 6_
Notice
If out of standard, adjust the start of delivery.
5. Stop the engine.
6. Remove the Rl sensor, digital tester and TDC pulse
sender unit.
7. Replace the seal and tighten the plug.
8. Check engine oil level and adjust if necessary.
Tightening Torque30 N∙m (22 lb-ft)

OM600 ENGINE CONTROLS 1F3 -- 41
D AEW OO M Y_2000
After Testing
Preceding Work : Start of delivery test
Position Sensor (RIV method)
1 Adjusting Screw
2 Bolt 23N∙m (17 lb-ft) ......................
3 Fuel Injection Pump4 Bolt 23N∙m (17 lb-ft) ......................
5 Scale Rl start of delivery = 14_-- 1 6_AT DC ..

1F3 -- 42 OM600 ENGINE CONTROLS
D AEW OO M Y_2000
Tools Required
617 589 08 21 00 Position Sensor
Adjustment Procedure
1. Position the No. 1 cylinder at ATDC 15_
Notice
Do not rotate the engine in opposite direction of en-
gine rotation.
2. Remove the bolt (2) at the supporting bracket.
3. Remove the bolt (4).
4. Turn the adjusting screw (1) until both lamps ’A’ + ’B’
on the position sensor light up.
To t h e r i g h tStart of delivery retarded
To t h e l e f tStart of delivery advanced
Notice
If the adjustment range is not adequate, remove the
injection pump and reinstall.
Position Sensor 617 589 08 21 00
5. After adjusting, retighten all the bolt to the specified
torque.

OM600 ENGINE CONTROLS 1F3 -- 43
D AEW OO M Y_2000
Digital tester (RIV Method)
1 Bolt 23N∙m (17 lb-ft) ......................
2 Adjusting
Screw To the right : start of delivery retarded
To the left : start of delivery advanced3 Bolt 23N∙m (17 lb-ft) ......................
Service Data
Start of Delivery (RIV)AT DC 1 4_-- 1 6_
Ldling SpeedOM661LA : 720 -- 820 rpm, OM662LA : 750 -- 850 rpm
Tools Required
617 589 09 21 00 Rl Sensor
617 589 10 21 00 Timing Tester
667 589 00 21 00 TDC Pulse Generator
Commercial Tools
ItemTools
Digital TesterWith Pulse GeneratorBosch, MOT 001.03g
Hartmann & Braun, EOMT3
Without Pulse GeneratorBosch, ETD 019.00
Sun, DIT 9000
ALV, Diesel -- Tester 875

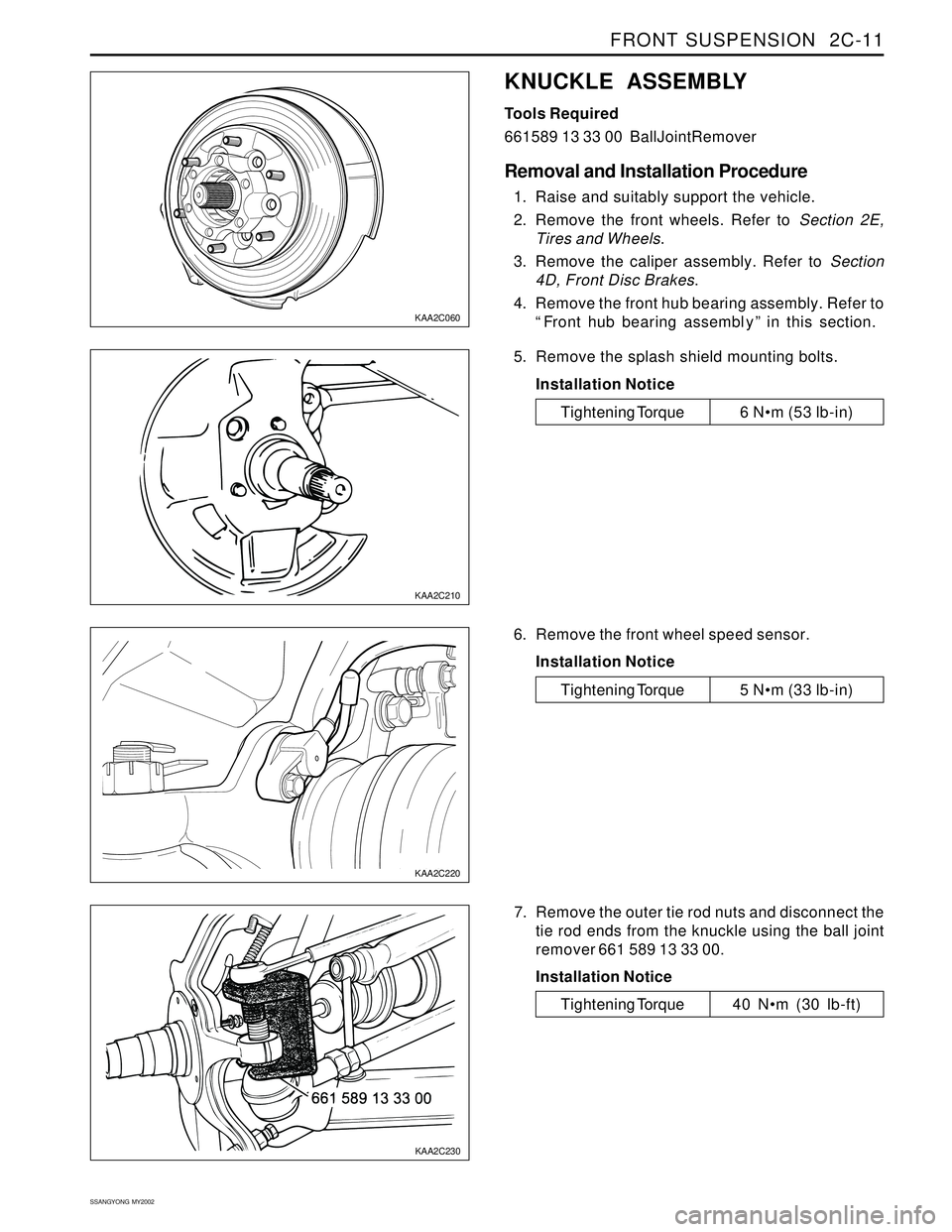

FRONT SUSPENSION 2C-11
SSANGYONG MY2002
KNUCKLE ASSEMBLY
Tools Required
661589 13 33 00 BallJointRemover
Removal and Installation Procedure
1. Raise and suitably support the vehicle.
2. Remove the front wheels. Refer to Section 2E,
Tires and Wheels.
3. Remove the caliper assembly. Refer to Section
4D, Front Disc Brakes.
4. Remove the front hub bearing assembly. Refer to
“ Front hub bearing assembl y ” in this section.
KAA2C060
KAA2C210
KAA2C220
5. Remove the splash shield mounting bolts.
Installation Notice
6. Remove the front wheel speed sensor.
Installation Notice
KAA2C230
7. Remove the outer tie rod nuts and disconnect the
tie rod ends from the knuckle using the ball joint
remover 661 589 13 33 00.
Installation Notice
Tightening Torque 6 Nm (53 lb-in)
Tightening Torque 5 Nm (33 lb-in)
Tightening Torque 40 Nm (30 lb-ft)

SSANGYONG MY2002
2C-16 FRONT SUSPENSION
58
87
52
28
52
96
-
41
11
26
85
52
89
30
-
14
37/52
85
96 Crossmember Mounting Bolts
Front Axle Housing Mounting Nuts
Front Stabilizer-to-Stabilizer Link Nuts
Front Stabilizer Mounting Bolts
Front Shock Absorber Lower Mounting Nut
Fulcrum Pin Mounting Bolts and Nuts
Front Wheel Speed Sensor Bolt
Hub Flange Bolts
Hub Adjusting Nut
Lower Cover Bolts
Lower Ball Joint Nut
Lower Ball Joint Mounting Bolts
Lower Control Arm Mounting Bolts
Outer Tie Rod Nuts
Splash shield Mounting Bolts
Stabilizer Link-to-Lower Control Arm Nuts
Torsion Bar Fixing Nuts
Upper Ball Joint Nut and Bolts
Upper Ball Joint Mounting BoltsN

m ApplicationLb-In
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Lb-Ft
78
118
70
38
70
130
5
55
15
35
150
70
120
40
6
19
50/70
115
130-
-
-
-
-
-
35
-
-
-
-
-
-
-
53
-
-
-
-

SSAMGYONG MY2002
3A-2 FRONT AXLE
M/T
A/T
M/T
A/T
M/T
A/T
M/T
A/T
SPECIFICATIONS
GENERAL SPECIFICATIONS
Application
Drive Shaft Type
Axle Housing Type
Differential Type
Differential GearCV Joint
Build - up
Conventional
Hypoid Gear
4.56
5.38
4.27
4.89
4.55
5.86
3.73
4.89
1.3 L
SEA 80W/90, API GL - 5Description
661LA
662LA
E23
E32 Reduction Ratio
Oil Capacity
Oil Specification
FASTENER TIGHTENING SPECIFICATIONS
Steering Knuckle and Drive Shaft
36.8 - 44.2
18.4 - 25.8
51.6 - 66.3
11.0
-
62.7 - 77.4 Drive Shaft Cover Bolt
Drive Shaft to Front Axle Inner Shaft
Hub Flange Bolt
Hub Nut
Locking Hub Washer Screw
Wheel Speed SensorN
z zz z
zm ApplicationLb-InLb-Ft
50 - 60
25 - 35
70 - 90
15
2 - 4
85 - 105-
-
-
-
17.7 - 35.4
-
