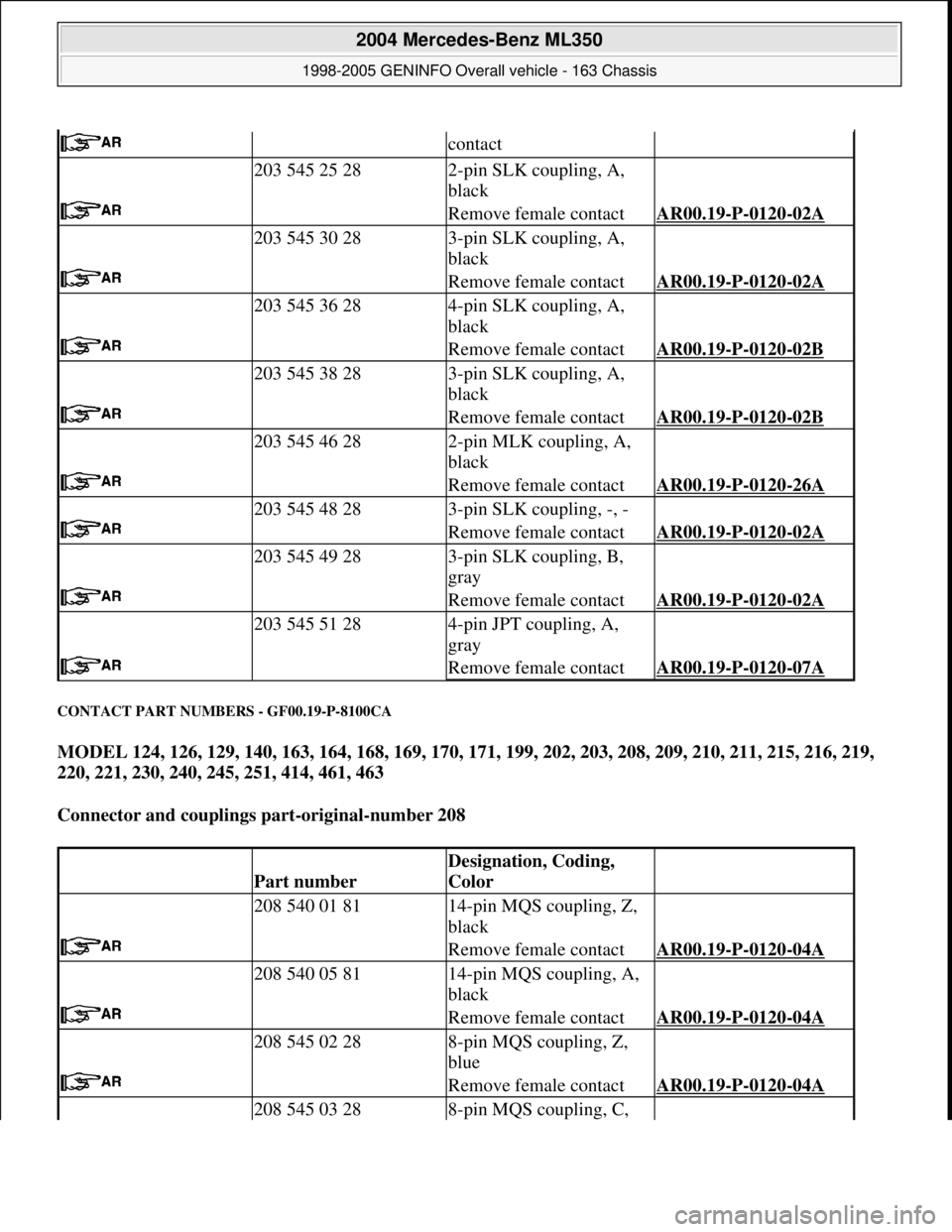

CONTACT PART NUMBERS - GF00.19-P-8100CA
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 208
contact

203 545 25 282-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

203 545 30 283-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

203 545 36 284-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02B

203 545 38 283-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02B

203 545 46 282-pin MLK coupling, A,
black
Remove female contactAR00.19-P-0120-26A

203 545 48 283-pin SLK coupling, -, -
Remove female contactAR00.19-P-0120-02A

203 545 49 283-pin SLK coupling, B,
gray
Remove female contactAR00.19-P-0120-02A

203 545 51 284-pin JPT coupling, A,
gray
Remove female contactAR00.19-P-0120-07A
Part number
Designation, Coding,
Color


208 540 01 8114-pin MQS coupling, Z,
black
Remove female contactAR00.19-P-0120-04A

208 540 05 8114-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

208 545 02 288-pin MQS coupling, Z,
blue
Remove female contactAR00.19-P-0120-04A
208 545 03 288-pin MQS coupling, C,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 83 © 2006 Mitchell Repair Information Company, LLC.

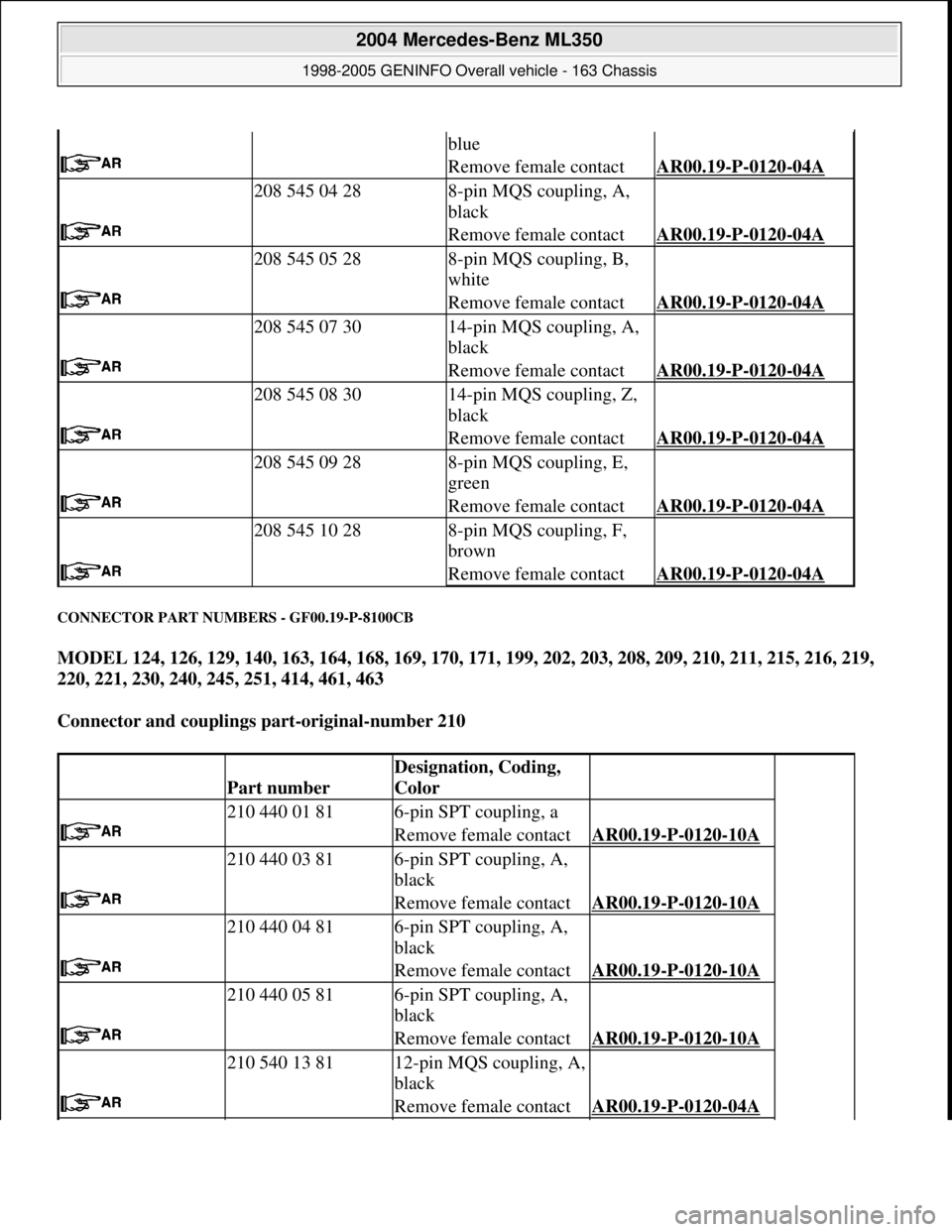

CONNECTOR PART NUMBERS - GF00.19-P-8100CB
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 210

blue
Remove female contactAR00.19-P-0120-04A

208 545 04 288-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

208 545 05 288-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

208 545 07 3014-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

208 545 08 3014-pin MQS coupling, Z,
black
Remove female contactAR00.19-P-0120-04A

208 545 09 288-pin MQS coupling, E,
green
Remove female contactAR00.19-P-0120-04A

208 545 10 288-pin MQS coupling, F,
brown
Remove female contactAR00.19-P-0120-04A
Part number
Designation, Coding,
Color


210 440 01 816-pin SPT coupling, a
Remove female contactAR00.19-P-0120-10A

210 440 03 816-pin SPT coupling, A,
black
Remove female contactAR00.19-P-0120-10A

210 440 04 816-pin SPT coupling, A,
black
Remove female contactAR00.19-P-0120-10A

210 440 05 816-pin SPT coupling, A,
black
Remove female contactAR00.19-P-0120-10A

210 540 13 8112-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 84 © 2006 Mitchell Repair Information Company, LLC.

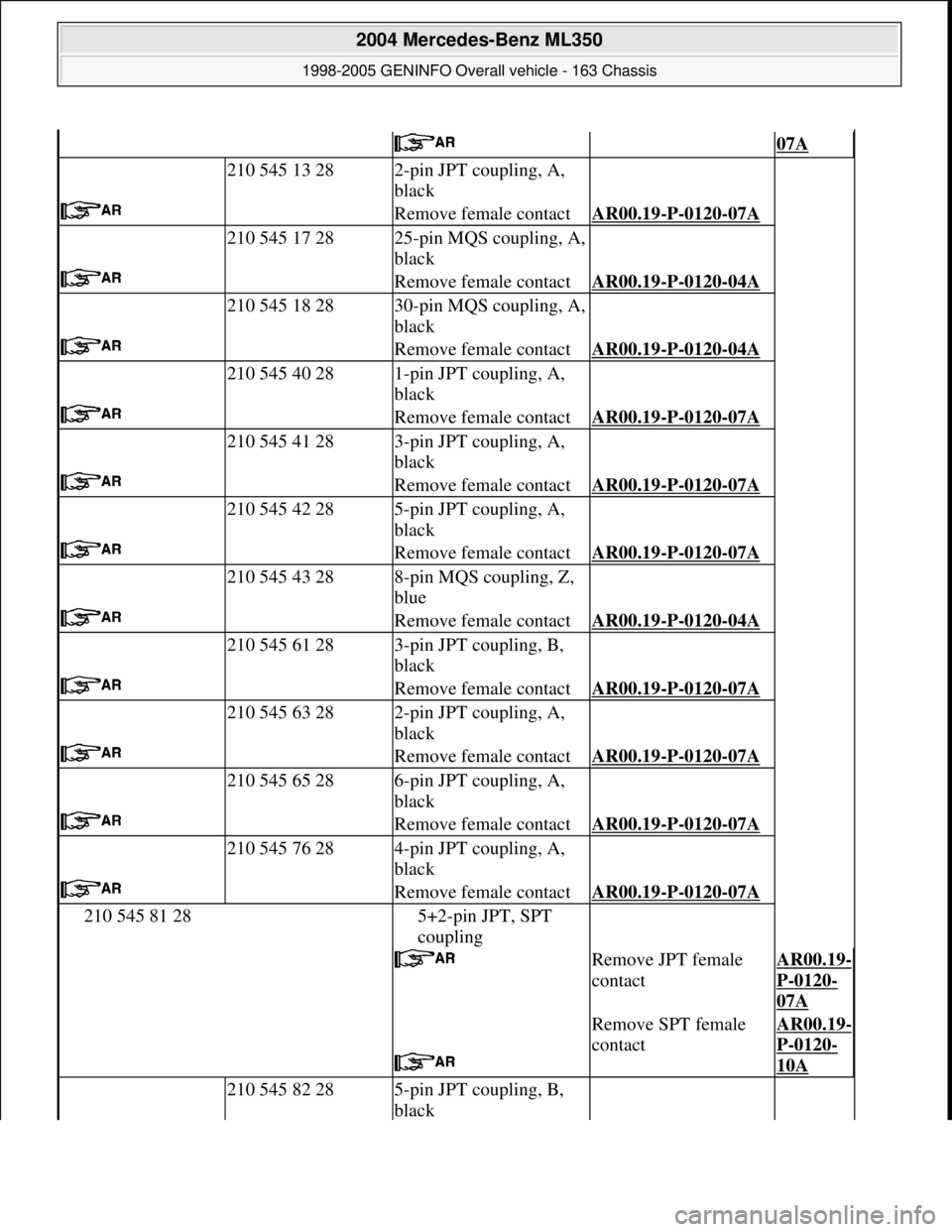

07A

210 545 13 282-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

210 545 17 2825-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

210 545 18 2830-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

210 545 40 281-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

210 545 41 283-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

210 545 42 285-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

210 545 43 288-pin MQS coupling, Z,
blue
Remove female contactAR00.19-P-0120-04A

210 545 61 283-pin JPT coupling, B,
black
Remove female contactAR00.19-P-0120-07A

210 545 63 282-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

210 545 65 286-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

210 545 76 284-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A
210 545 81 285+2-pin JPT, SPT
coupling
Remove JPT female
contactAR00.19-
P-0120-
07A

Remove SPT female
contactAR00.19-
P-0120-
10A
210 545 82 285-pin JPT coupling, B,
black

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 87 © 2006 Mitchell Repair Information Company, LLC.

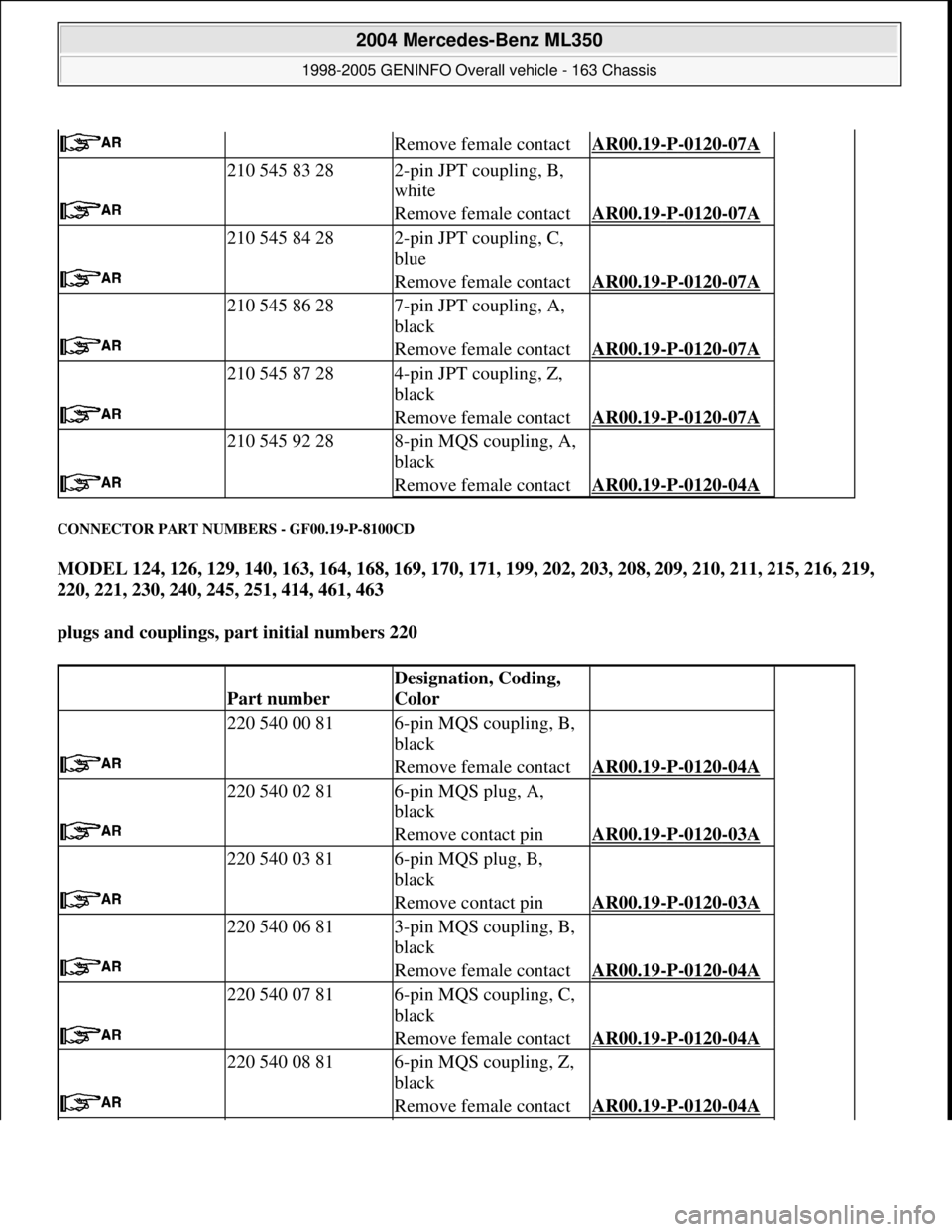

CONNECTOR PART NUMBERS - GF00.19-P-8100CD
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 220
Remove female contactAR00.19-P-0120-07A

210 545 83 282-pin JPT coupling, B,
white
Remove female contactAR00.19-P-0120-07A

210 545 84 282-pin JPT coupling, C,
blue
Remove female contactAR00.19-P-0120-07A

210 545 86 287-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

210 545 87 284-pin JPT coupling, Z,
black
Remove female contactAR00.19-P-0120-07A

210 545 92 288-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A
Part number
Designation, Coding,
Color


220 540 00 816-pin MQS coupling, B,
black
Remove female contactAR00.19-P-0120-04A

220 540 02 816-pin MQS plug, A,
black
Remove contact pinAR00.19-P-0120-03A

220 540 03 816-pin MQS plug, B,
black
Remove contact pinAR00.19-P-0120-03A

220 540 06 813-pin MQS coupling, B,
black
Remove female contactAR00.19-P-0120-04A

220 540 07 816-pin MQS coupling, C,
black
Remove female contactAR00.19-P-0120-04A

220 540 08 816-pin MQS coupling, Z,
black
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 88 © 2006 Mitchell Repair Information Company, LLC.

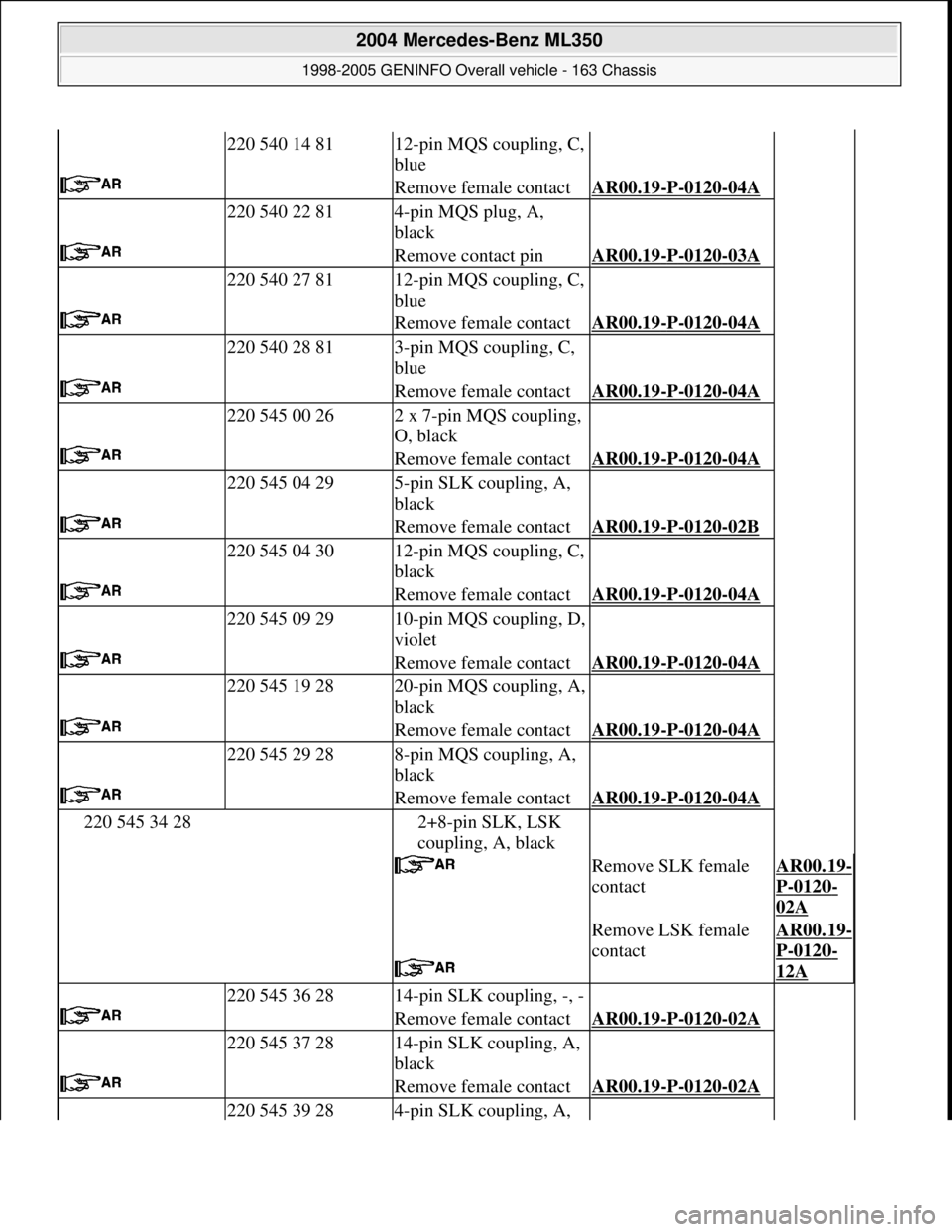

220 540 14 8112-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

220 540 22 814-pin MQS plug, A,
black
Remove contact pinAR00.19-P-0120-03A

220 540 27 8112-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

220 540 28 813-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

220 545 00 262 x 7-pin MQS coupling,
O, black
Remove female contactAR00.19-P-0120-04A

220 545 04 295-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02B

220 545 04 3012-pin MQS coupling, C,
black
Remove female contactAR00.19-P-0120-04A

220 545 09 2910-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

220 545 19 2820-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

220 545 29 288-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A
220 545 34 282+8-pin SLK, LSK
coupling, A, black
Remove SLK female
contactAR00.19-
P-0120-
02A

Remove LSK female
contactAR00.19-
P-0120-
12A

220 545 36 2814-pin SLK coupling, -, -
Remove female contactAR00.19-P-0120-02A

220 545 37 2814-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A
220 545 39 284-pin SLK coupling, A,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 89 © 2006 Mitchell Repair Information Company, LLC.

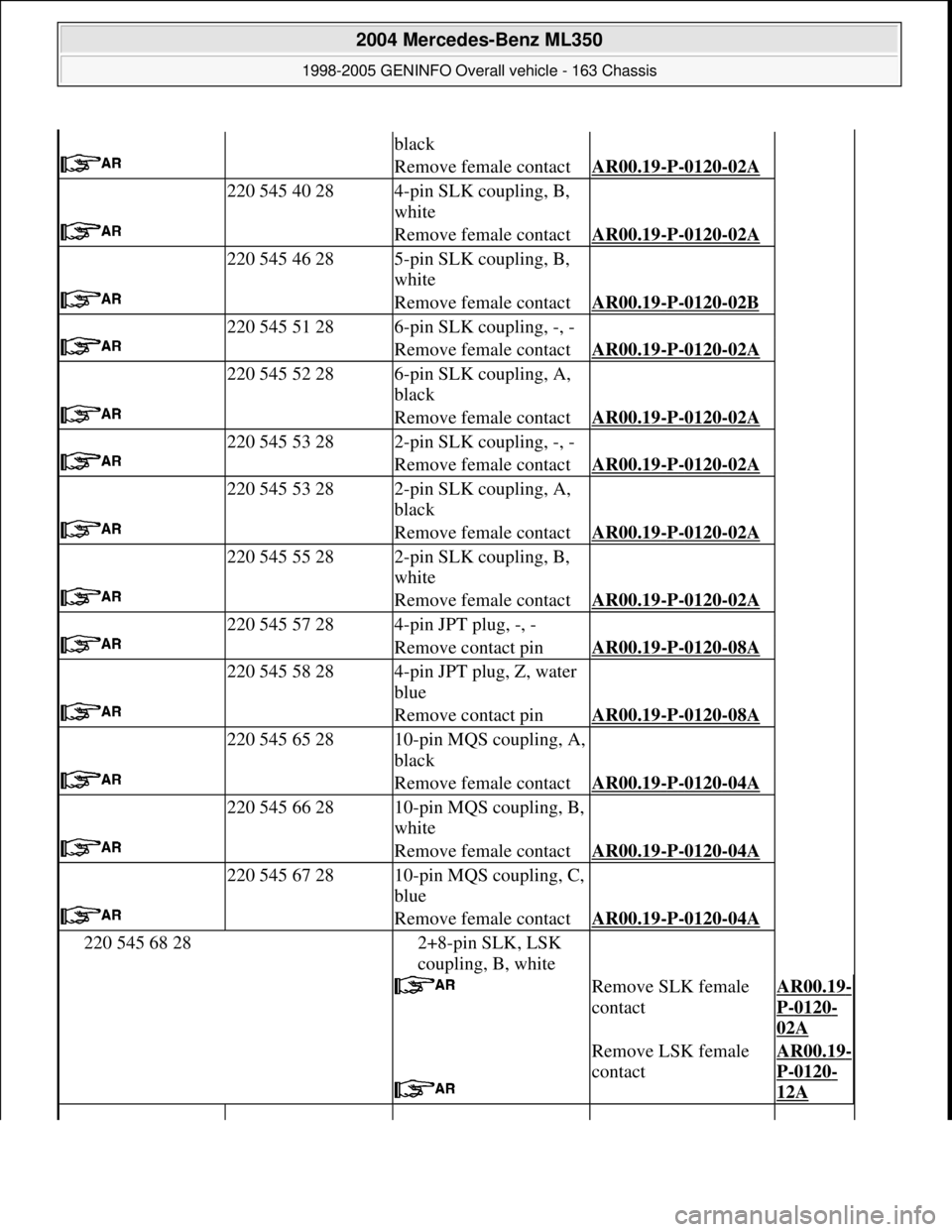

black
Remove female contactAR00.19-P-0120-02A

220 545 40 284-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

220 545 46 285-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02B

220 545 51 286-pin SLK coupling, -, -
Remove female contactAR00.19-P-0120-02A

220 545 52 286-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

220 545 53 282-pin SLK coupling, -, -
Remove female contactAR00.19-P-0120-02A

220 545 53 282-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

220 545 55 282-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

220 545 57 284-pin JPT plug, -, -
Remove contact pinAR00.19-P-0120-08A

220 545 58 284-pin JPT plug, Z, water
blue
Remove contact pinAR00.19-P-0120-08A

220 545 65 2810-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

220 545 66 2810-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

220 545 67 2810-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A
220 545 68 282+8-pin SLK, LSK
coupling, B, white
Remove SLK female
contactAR00.19-
P-0120-
02A

Remove LSK female
contactAR00.19-
P-0120-
12A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 90 © 2006 Mitchell Repair Information Company, LLC.

A maximum of seven individual cables maybe inserted into each solder connection.
5. Insert the cables into the corresponding solder connections (Z) according to the total cable cross-section.
6. Ensure that solder connection (Z) is fully rotated onto cables.
Approx. 5 mm (A) of the stripped line ends should be visible.
Fig. 404: Rotating Solder Connection Onto Cables

7. Heat solder connector using a heat gun (approx. 400°C).
Start at tapered end until soldering ring has dissolved and sleeve has correctly wrapped itself around
the line.
Fig. 405: Heating Solder Connector Using Heat Gun
Selection table for solder connector
Total copper cross-
section A
tot.
Overall diameter with
insulationLength stripped of
insulationColor code
0.7 to 2.4 mm2 3.3 mm15 mmgreen
2.0 to 4.0 mm2 4.5 mm15 mmred
3.5 to 8.0 mm2 7.0 mm15 mmblue
7.5 to 12 mm 2 9.0 mm15 mmYellow

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:49 PMPage 279 © 2006 Mitchell Repair Information Company, LLC.

Valmax Ultra X Morris & Co. Ltd.,
Shrewsbury, England
Valvoline All Fleet
Extra X X XThe Valvoline Company,
Lexington, KY/USA
Valvoline All-Fleet
ExtremeX The Valvoline Company,
Lexington, KY/USA
Valvoline Premium
Blue E X The Valvoline Company,
Lexington, KY/USA
Vanguard Super
Performance X Compagnia Italiana
Lubrificanti. SpA, Milan,
Italy
Vanguard Super
Performance 15W-40 X Compagnia Italiana
Lubrificanti. SpA, Milan,
Italy
Veco Challenger SHPD X Przedsiebiorstwo Modex-
Oil, Kwidzyn, Poland
Vector SHPD X S.C. Lubrifin S.A.,
Brasov, Rumania
Veritas Super HDC-N X Oelwerke Julius Schindler
GmbH, Hamburg,
Germany
Verkol Turboplus LD X Verkol, S.A.,
Bera/Navarra, Spain
Verkoplus-SHPD X Verkol, S.A.,
Bera/Navarra, Spain
Wintershall Multi-
Rekord top X SRS Schmierstoff Vertrieb
GmbH, Salzbergen,
Germany
Wintershall TFX X SRS Schmierstoff Vertrieb
GmbH, Salzbergen,
Germany
Wintershall Turbo-
Rekord X SRS Schmierstoff Vertrieb
GmbH, Salzbergen,
Germany
Wisura Multi TS X Wisura Mineralolwerk,
Bremen, Germany
Wisura Premium MC X Wisura Mineralolwerk,
Bremen, Germany
Wolf Masterlube
Ecomiles X Wolf Oil Corporation
N.V., Hemiksem, Belgium
Wolf Masterlube LDT
SHPD 15W40 X Wolf Oil Corporation
N.V., Hemiksem, Belgium
Wunsch TLM X Wunsch ole GmbH,
Ratingen, Germany
