CONNECTOR PART NUMBERS - GF00.19-P-8100AC
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 002

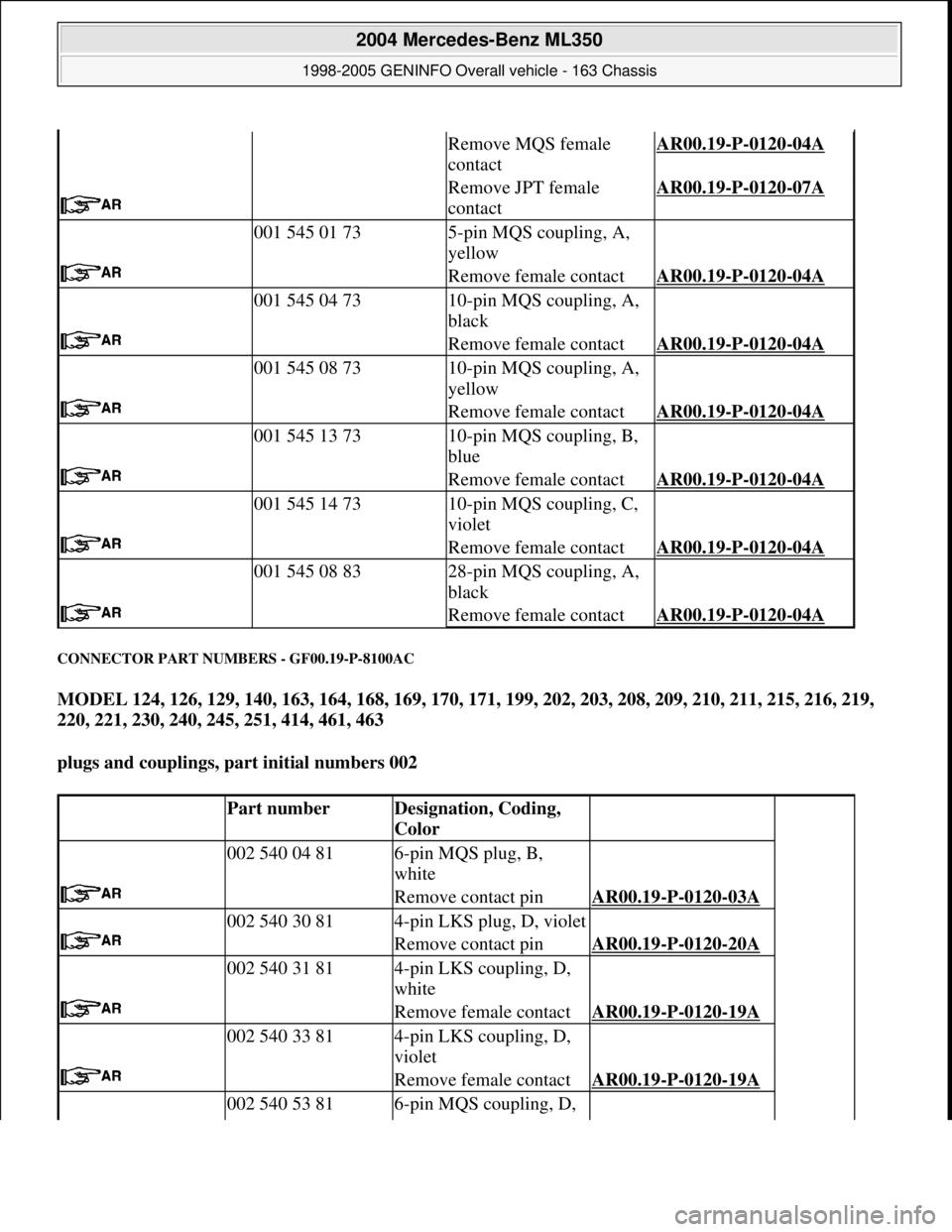

Remove MQS female
contactAR00.19-P-0120-04A
Remove JPT female
contactAR00.19-P-0120-07A

001 545 01 735-pin MQS coupling, A,
yellow
Remove female contactAR00.19-P-0120-04A

001 545 04 7310-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

001 545 08 7310-pin MQS coupling, A,
yellow
Remove female contactAR00.19-P-0120-04A

001 545 13 7310-pin MQS coupling, B,
blue
Remove female contactAR00.19-P-0120-04A

001 545 14 7310-pin MQS coupling, C,
violet
Remove female contactAR00.19-P-0120-04A

001 545 08 8328-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

Part numberDesignation, Coding,
Color

002 540 04 816-pin MQS plug, B,
white
Remove contact pinAR00.19-P-0120-03A

002 540 30 814-pin LKS plug, D, violet
Remove contact pinAR00.19-P-0120-20A

002 540 31 814-pin LKS coupling, D,
white
Remove female contactAR00.19-P-0120-19A

002 540 33 814-pin LKS coupling, D,
violet
Remove female contactAR00.19-P-0120-19A
002 540 53 816-pin MQS coupling, D,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 57 © 2006 Mitchell Repair Information Company, LLC.

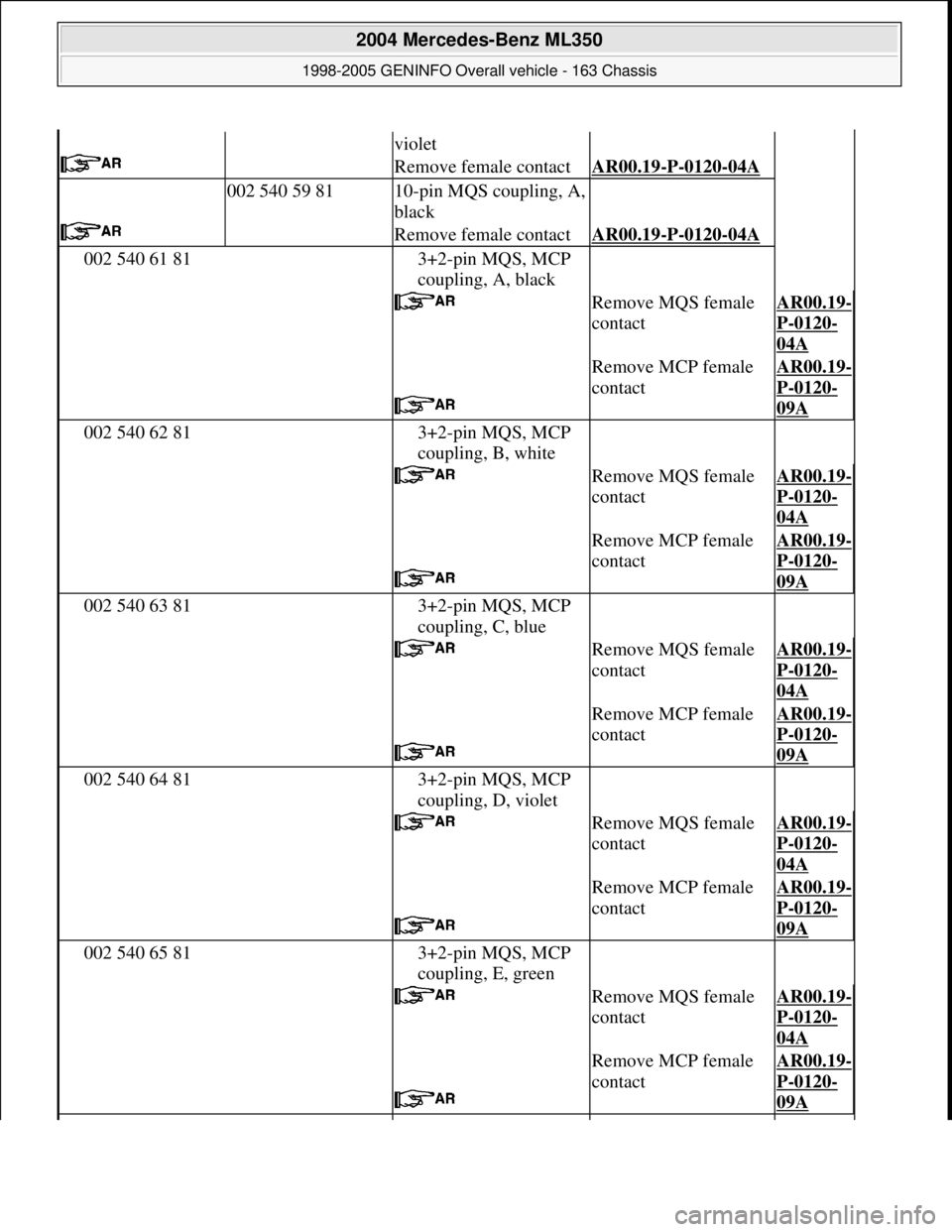

violet
Remove female contactAR00.19-P-0120-04A

002 540 59 8110-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A
002 540 61 813+2-pin MQS, MCP
coupling, A, black
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 62 813+2-pin MQS, MCP
coupling, B, white
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 63 813+2-pin MQS, MCP
coupling, C, blue
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 64 813+2-pin MQS, MCP
coupling, D, violet
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A
002 540 65 813+2-pin MQS, MCP
coupling, E, green
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 58 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100AD
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463

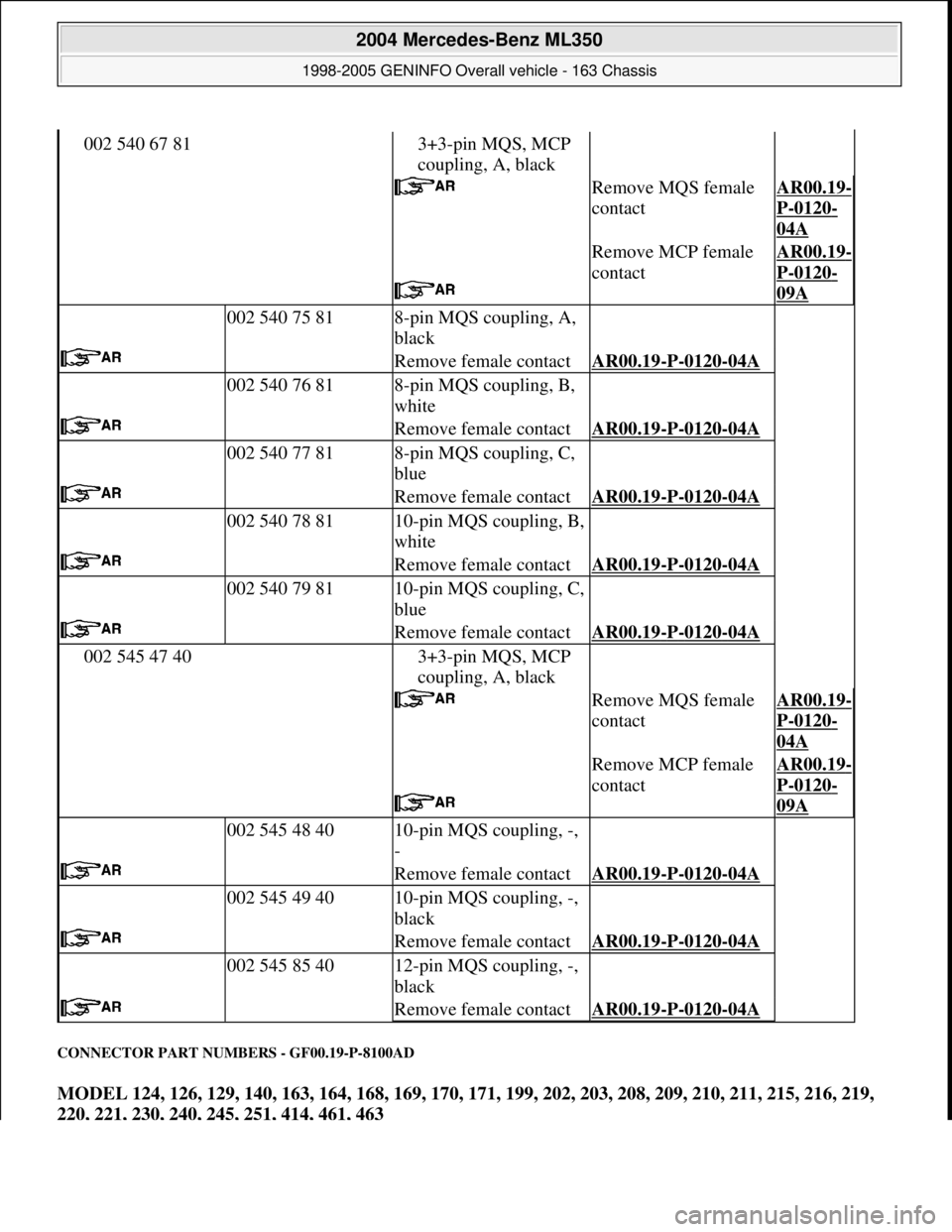

002 540 67 813+3-pin MQS, MCP
coupling, A, black
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A

002 540 75 818-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

002 540 76 818-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

002 540 77 818-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

002 540 78 8110-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

002 540 79 8110-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A
002 545 47 403+3-pin MQS, MCP
coupling, A, black
Remove MQS female
contactAR00.19-
P-0120-
04A

Remove MCP female
contactAR00.19-
P-0120-
09A

002 545 48 4010-pin MQS coupling, -,
-
Remove female contactAR00.19-P-0120-04A

002 545 49 4010-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

002 545 85 4012-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 59 © 2006 Mitchell Repair Information Company, LLC.

plugs and couplings, part initial numbers 003
CONNECTOR PART NUMBERS - GF00.19-P-8100AF

Part numberDesignation, Coding,
Color

003 540 27 818-pin MQS coupling, -, -
Remove female contactAR00.19-P-0120-04A

003 540 28 818-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

003 540 45 8112-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

003 540 47 8120-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

003 540 81 8110-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

003 540 82 8114-pin MQS plug, -,
yellow
Remove contact pinAR00.19-P-0120-03A

003 545 01 4012-pin MQS coupling, -, -
Remove female contactAR00.19-P-0120-04A

003 545 79 4010-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

003 545 80 4010-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

003 545 81 4010-pin MQS coupling, B,
transparent
Remove female contactAR00.19-P-0120-04A

003 545 82 4010-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

003 546 01 4012-pin MQS coupling, -,
black
Remove female contactAR00.19-P-0120-04A

003 546 20 4010-pin SLK coupling, -,
black (voltage distributor)
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 60 © 2006 Mitchell Repair Information Company, LLC.

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 005
CONTACT PART NUMBERS - GF00.19-P-8100AM
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 012
CONTACT PART NUMBERS - GF00.19-P-8100AO

Part numberDesignation, Coding,
Color

005 540 19 8114-pin MQS connector, -, -
Remove contact pinAR00.19-P-0120-03A

005 545 25 3018-pin MQS coupling, C,
black
Remove female contactAR00.19-P-0120-04A

005 545 28 3032-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

005 545 29 3010-pin MQS coupling, B,
black
Remove female contactAR00.19-P-0120-04A

005 545 34 3029-pin E 95 coupling, B,
black
Remove female contactAR00.19-P-0120-05A

005 545 44 3018-pin MQS coupling, D,
black
Remove female contactAR00.19-P-0120-04A

Part numberDesignation, coding,
color

012 545 70 263-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

012 545 71 263-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

012 545 72 263-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 61 © 2006 Mitchell Repair Information Company, LLC.

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 014
CONNECTOR PART NUMBERS - GF00.19-P-8100AR
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 017
CONNECTOR PART NUMBERS - GF00.19-P-8100AT
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 019

Part numberDesignation, coding,
color

014 545 29 262-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

014 545 30 262-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

014 545 31 262-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

Part numberDesignation, Coding,
Color

017 545 06 284-pin RK 2.5 solder
contact connector, -, black
Remove contact pinAR00.19-P-0120-18A

017 545 17 284-pin RK 2.5 solder
contact coupling, -, black
Remove female contactAR00.19-P-0120-17A

017 545 19 286-pin RK 2.5 solder
contact coupling, -, black
Remove female contactAR00.19-P-0120-17A

Part numberDesignation, Coding,
Color

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 62 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BG
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 031

030 545 76 283-pin MQS coupling, A,
yellow
Remove female contactAR00.19-P-0120-04A

030 545 77 283-pin RK 2.5 solder
contact coupling, -, orange
Remove female contactAR00.19-P-0120-17A

030 545 78 283-pin RK 2.5 solder
contact plug, -, orange
Remove contact pinAR00.19-P-0120-18A

Part numberDesignation, Coding,
Color

031 545 00 286-pin E95 coupling, -, red
Remove female contactAR00.19-P-0120-05A

031 545 55 282-pin LSK coupling, A,
black
Remove female contactAR00.19-P-0120-12A

031 545 56 283+4-pin JPT, LSK
coupling, A, black
Remove JPT female
contactAR00.19-P-0120-07A
Remove LSK female
contactAR00.19-P-0120-12A

031 545 57 282-pin LSK plug, A, black
Remove contact pinAR00.19-P-0120-13A

031 545 58 282-pin RK 2.5 variant 1
plug, -, -
Remove contact pinAR00.19-P-0120-16A

031 545 59 282-pin RK 2.5 variant 1
plug, C, blue
Remove contact pinAR00.19-P-0120-16A

031 545 60 282-pin RK 2.5 variant 1
plug, D, yellow
Remove contact pinAR00.19-P-0120-16A

031 545 62 282-pin RK 2.5 variant 1
coupling, C, blue
Remove female contactAR00.19-P-0120-15A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 66 © 2006 Mitchell Repair Information Company, LLC.

031 545 63 282-pin RK 2.5 variant 1
coupling, D, yellow
Remove female contactAR00.19-P-0120-15A

031 545 64 284-pin RK 2.5 variant 1
plug, B, white
Remove contact pinAR00.19-P-0120-16A

031 545 65 284-pin RK 2.5 variant 1
plug, C, blue
Remove contact pinAR00.19-P-0120-16A

031 545 66 288-pin RK 2.5 variant 1
coupling, B, orange
Remove female contactAR00.19-P-0120-15A

031 545 67 288-pin RK 2.5 variant 1
coupling, C, blue
Remove female contactAR00.19-P-0120-15A

031 545 68 288-pin RK 2.5 variant 1
coupling, D, yellow
Remove female contactAR00.19-P-0120-15A

031 545 69 288-pin RK 2.5 variant 1
plug, B, orange
Remove contact pinAR00.19-P-0120-16A

031 545 70 288-pin RK 2.5 variant 1
plug, C, blue
Remove contact pinAR00.19-P-0120-16A

031 545 71 288-pin RK 2.5 variant 1
plug, D, yellow
Remove contact pinAR00.19-P-0120-16A

031 545 72 284-pin RK 2.5 variant 1
coupling, B, white
Remove female contactAR00.19-P-0120-15A

031 545 73 284-pin RK 2.5 variant 1
coupling, C, blue
Remove female contactAR00.19-P-0120-15A

031 545 75 2818-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

031 545 78 282-pin RK 2.5 variant 1
coupling, A, black
Remove female contactAR00.19-P-0120-15A

031 545 79 282-pin RK 2.5 variant 1
plug, -, -
Remove contact pinAR00.19-P-0120-16A
031 545 80 282-pin RK 2.5 variant 1
plug, A, black
