1997 MERCEDES-BENZ ML500 ad blue

T VN2 KOMFORTPAKET NAFTA II
T VP1 AUSSTATTUNGSLINIE TREND
P VP1 AUSSTATTUNGSLINIE "TREND"
T VP2 V-KLASSE AUSSTATTUNGSLINIE FASHION
T VP3 AUSSTATTUNGSLINIE AMBIENTE
T VP4 AUSSTATTUNGSLINIE FAMILY
T VP8 AUSSTATTUNGSLINIE BASIC
P VP8 AUSSTATTUNGSLINIE "BASIC"
T VP9 AUSSTATTUNGSLINIE FUN
P VR VORDERACHSHAELFTE RECHTS
T VR VORDERACHSHAELFTE RECHTS
T VS0 STOFF "CORTEZ" , ORIONGRAU DUNKEL
T VS1 **** CODE FREI VERPLANBAR ****
T VS2 STOFF "CARA", SKYBLUE
T VS3 STOFF "CARA", ROYALROT
T VS4 **** CODE FREI VERPLANBAR ****
T VS5 STOFF "CARA", ANTHRAZIT
T VS6 STOFF "SATURN", SKYBLUE
T VS7 STOFF "SATURN", ROYALROT
T VS8 **** CODE FREI VERPLANBAR ****
T VS9 STOFF "SATURN", ANTHRAZIT
T VT0 STOFF FLACHGEWEBE "LEGO" ANTHRAZIT
T VT1 STOFF FLACHGEWEBE "SAMBA" BLAU
T VT2 STOFF FLACHGEWEBE "SAMBA" GELB
T VT3 STOFF FLACHGEWEBE "SAMBA" ROT
T VT4 STOFF FLACHGEWEBE "SAMBA" ANTHRAZIT
T VT5 STOFF VELOUR "CASCA" ORIONGRAU
T VT6 STOFF VELOUR "CASCA" STONE
T VT7 LEDER "CATANIA" ORIONGRAU
T VT8 LEDER "CATANIA" STONE
T VT9 KUNSTLEDER ANTHRAZIT
T VV1 C-SCHIENE AN DER SEITENWAND, NACHRUESTBAR
T VV2 LASTENVERANKERUNGSSCHIENENSYSTEM
T VV9 BEFESTIGUNGSPUNKTE IM DACHRAHMEN
T VW3 WEGF.INNENVERKLEID.U.GUMMIBODEN I.LADEFAHRGASTRAUM
P W00 ZIERTEILE HOLZAUSFUEHRUNG DESIGNO MAGIC EYES
T W02 KASTENWAGEN MIT RUNDUMVERGLASUNG
P W02 HOLZAUSFUEHRUNG MAGIC EYES DESIGNO-ULTRAMARIN
P W03 HOLZAUSFUEHRUNG MAGIC EYES DESIGNO-BLAU
T W04 OMNIBUSRUECKWAND FUER KASTENWAGEN
P W04 HOLZAUSFUEHRUNG MAGIC-EYES DESIGNO-ROT
P W05 HOLZAUSFUEHRUNG MAGIC EYES DESIGNO-ORANGE
P W07 HOLZAUSFUEHRUNG MAGIC EYES DESIGNO-PURPUR
P W08 HOLZAUSFUEHRUNG MAGIC EYES DESIGNO-GRUEN
T W09 SCHIEBEFENSTER F.3.EINSTIEGSTUER DOKA
P W10 HOLZAUSFUEHRUNG CURLY AHORN DESIGNO-NATUR
P W11 HOLZAUSFUEHRUNG MAGIC EYES DESIGNO-SCHWARZ
P W12 HOLZAUSFUEHRUNG CURLY AHORN DESIGNO-ANTHRAZIT
P W13 HOLZAUSFUEHRUNG CURLY AHORN DESIGNO-ROTBRAUN MATT
T W16 FENSTER VO LI FEST IN SEITENW./LADER.SCHIEBETUER
T W17 FENSTER VO RE FEST IN SEITENW./LADER.SCHIEBETUER
T W18 FENSTER VO LI SCHIEBBAR SEITENW./LADER.SCHIEBETUER
T W19 FENSTER VO RE SCHIEBBAR SEITENW./LADER.SCHIEBETUER
P W20 ZIERTEILE HOLZAUSFUEHRUNG DESIGNO CURLY AHORN
T W22 FENSTER MITTE LINKS FEST
T W23 FENSTER MITTE RECHTS FEST
T W24 FENSTER SCHIEBBAR MITTE LINKS
T W25 FENSTER SCHIEBBAR MITTE RECHTS
T W27 FENSTER HINTEN LINKS FEST
T W28 FENSTER HINTEN RECHTS FEST
T W29 FENSTER FEST HINTEN
P W30 ZIERTEILE HOLZAUSFUEHRUNG DESIGNO-RUESTER
P W31 HOLZAUSFUEHRUNG RUESTER DESIGNO-NATUR
T W31 AUSSTELLFENSTER FAHRGASTRAUM MITTE ELEKTRISCH
T W32 AUSSTELLFENSTER FAHRGASTRAUM ELEKTRISCH

T W34 SCHIEBEFENSTER HINTEN LINKS
T W35 SCHIEBEFENSTER HINTEN RECHTS
T W39 AUSSTELLFENSTER FAHRGASTRAUM MECHANISCH
P W40 ZIERTEILE CARBON DESIGNO
T W41 RUECKWANDTUER EINFLUEGELIG MIT FENSTER
P W42 ZIERTEILE CARBON DESIGNO-SCHWARZ
P W43 ZIERTEILE CARBON DESIGNO-GRUEN
P W44 ZIERTEILE CARBON DESIGNO-ROT
P W45 ZIERTEILE CARBON DESIGNO-BLAU
P W47 AUSSTELLFENSTER FAHRGASTRAUM HINTEN ELEKTR.LI U.RE
T W47 AUSSTELLFENSTER FAHRGASTRAUM HINTEN ELEKTR.LI U.RE
T W48 AUSSTELLFENSTER FAHRGASTRAUM MITTE MECHANISCH
T W49 AUSSTELLFENSTER FAHRGASTRAUM HINTEN MECHANISCH
P W50 ZIERTEILE CINNAMORRA DESIGNO
T W50 RUECKWANDTUER ZWEIFLUEGELIG 180 OHNE VERGLASUNG
T W51 RUECKWANDTUER ZWEIFLUEGELIG 180 GRAD M.VERGLASUNG
P W51 ZIERTEILE CINNAMORRA DESIGNO-NATUR
T W52 RUECKWANDTUER ZWEIFLUEGELIG 180 GRAD M.SCHIEBEFENS
P W52 ZIERTEILE CINNAMORRA DESIGNO-ANTHRAZIT
T W54 RUECKWANDTUER ZWEIFLUEGELIG 270 GRAD
T W55 RUECKWANDTUER ZWEIFLUEGELIG 270 GRAD MIT FENSTER
T W56 RUECKWANDTUER ZWEIFLUEGELIG 270 GRAD M.SCHIEBEFENS
T W57 HECKDREHTUEREN ASYM. 170 GRAD MIT FENSTER
P W57 RUECKWANDTUER ASYM. ZWEIFL. 170 GRAD MIT FENSTER
T W58 HECKDREHTUEREN ASYM. 170 GR. UNDURCHS. FENSTER
T W59 HECKKLAPPE MIT UNDURCHSICHTIGEM FENSTER
T W60 EINBAU LADELIFT
P W61 ZIERTEILE PAPPEL DESIGNO-NATUR
T W61 FENSTER IN HECKKLAPPE/HECKDREHTUEREN
T W62 RUECKWANDKLAPPE MIT FENSTER/HECKKLAPPE MIT FENSTER
P W62 ZIERTEILE PAPPEL DESIGNO-ANTHRAZIT
P W63 ZIERTEILE PAPPEL DESIGNO-BORDEAUX
P W64 ZIERTEILE AHORN MASER DESIGNO NATUR
T W64 RUECKWANDTUER ZWEIFLUEGELIG 95 GRAD
T W65 HECKKLAPPE
P W65 RUECKWANDKLAPPE OHNE FENSTER
P W66 ZIERTEILE AHORN MASER DESIGNO UMBRA
T W66 ELEKTR. ZUZIEHHILFE HECKKLAPPE
P W67 HOLZAUSFUEHRUNG CINNAMORA DESIGNO ROTBRAUN MATT
P W68 HOLZAUSFUEHRUNG PAPPEL DESINGO BRAUN
P W69 ZIERTEILE KLAVIERLACK DESIGNO SCHWARZ
T W70 COLORVERGLASUNG IN FOND, SCHWARZGLAS
P W71 ZIERTEILE STEIN DESIGNO VIKING GREEN
P W72 ZIERTEILE STEIN DESIGNO LABRADOR BLUE PEARL
T W73 AUFTRITT RUECKWANDTUER
T W75 AUFTRITT BREIT AM HECK
T W78 FENSTER IN HECKKL./HECKDREHT. M. WISCH/WASCHANL.
T W79 AUFTRITT BREIT AM HECK, HOEHER GESETZT
T W81 TUERHALTER FUER RUECKWANDTUER
T W90 WEGFALL RUECKWANDTUEREN
T W92 WEGFALL AUFTRITT SCHMAL AM HECK
T WA0 STEUERCODE WERK 157
T WA1 STEUERCODE WERK 157
T WA2 STEUERCODE WERK 157
T WA3 STEUERCODE WERK 157
T WA4 STEUERCODE WERK 157
T WA5 STEUERCODE WERK 157
T WA6 STEUERCODE WERK 157
T WA7 STEUERCODE WERK 157
T WA8 STEUERCODE WERK 157
T WA9 STEUERCODE WERK 157
T WB0 STEUERCODE WERK 157
T WB1 STEUERCODE WERK 157
T WB2 STEUERCODE WERK 157
T WB3 STEUERCODE WERK 157

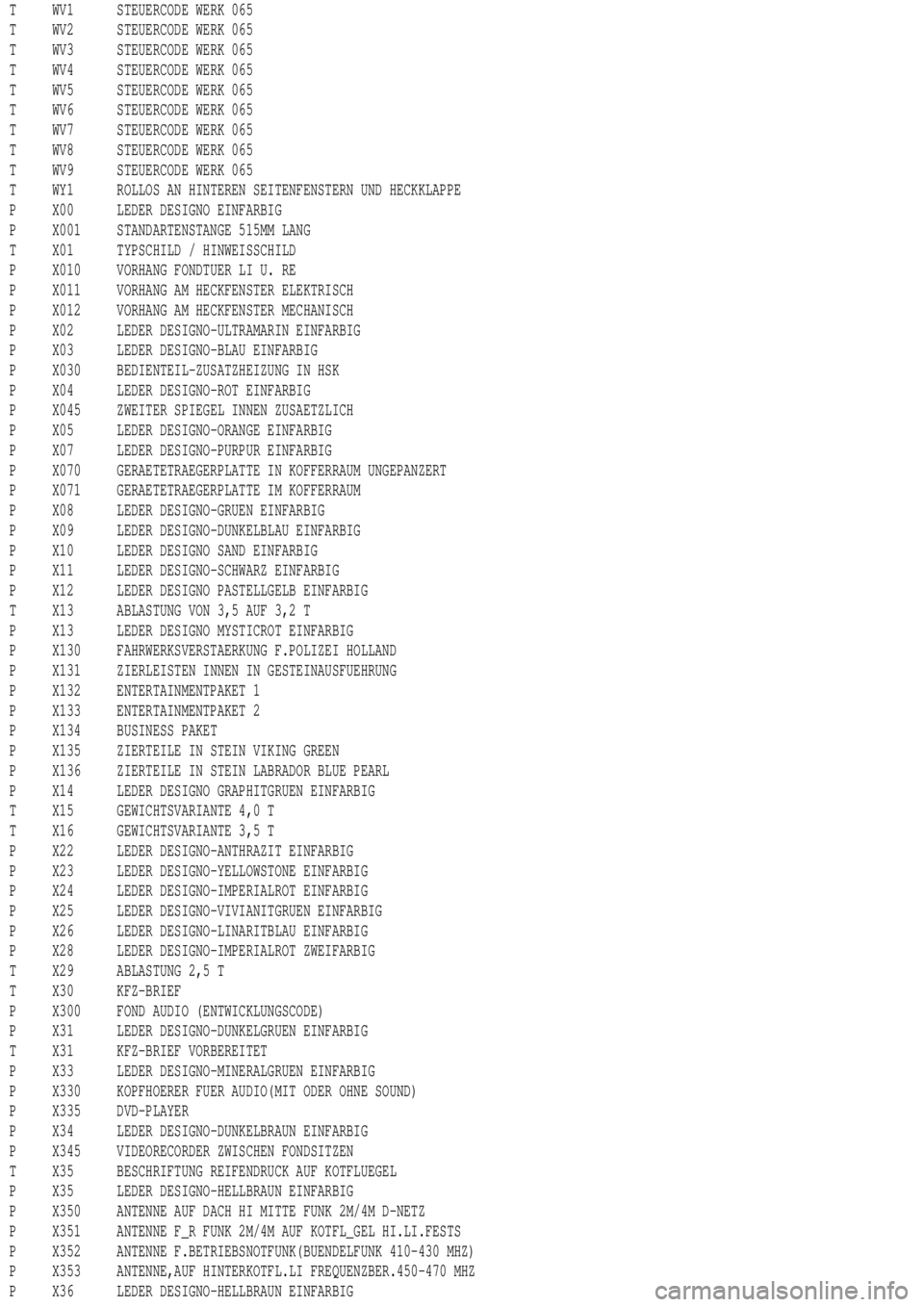

T WV1 STEUERCODE WERK 065
T WV2 STEUERCODE WERK 065
T WV3 STEUERCODE WERK 065
T WV4 STEUERCODE WERK 065
T WV5 STEUERCODE WERK 065
T WV6 STEUERCODE WERK 065
T WV7 STEUERCODE WERK 065
T WV8 STEUERCODE WERK 065
T WV9 STEUERCODE WERK 065
T WY1 ROLLOS AN HINTEREN SEITENFENSTERN UND HECKKLAPPE
P X00 LEDER DESIGNO EINFARBIG
P X001 STANDARTENSTANGE 515MM LANG
T X01 TYPSCHILD / HINWEISSCHILD
P X010 VORHANG FONDTUER LI U. RE
P X011 VORHANG AM HECKFENSTER ELEKTRISCH
P X012 VORHANG AM HECKFENSTER MECHANISCH
P X02 LEDER DESIGNO-ULTRAMARIN EINFARBIG
P X03 LEDER DESIGNO-BLAU EINFARBIG
P X030 BEDIENTEIL-ZUSATZHEIZUNG IN HSK
P X04 LEDER DESIGNO-ROT EINFARBIG
P X045 ZWEITER SPIEGEL INNEN ZUSAETZLICH
P X05 LEDER DESIGNO-ORANGE EINFARBIG
P X07 LEDER DESIGNO-PURPUR EINFARBIG
P X070 GERAETETRAEGERPLATTE IN KOFFERRAUM UNGEPANZERT
P X071 GERAETETRAEGERPLATTE IM KOFFERRAUM
P X08 LEDER DESIGNO-GRUEN EINFARBIG
P X09 LEDER DESIGNO-DUNKELBLAU EINFARBIG
P X10 LEDER DESIGNO SAND EINFARBIG
P X11 LEDER DESIGNO-SCHWARZ EINFARBIG
P X12 LEDER DESIGNO PASTELLGELB EINFARBIG
T X13 ABLASTUNG VON 3,5 AUF 3,2 T
P X13 LEDER DESIGNO MYSTICROT EINFARBIG
P X130 FAHRWERKSVERSTAERKUNG F.POLIZEI HOLLAND
P X131 ZIERLEISTEN INNEN IN GESTEINAUSFUEHRUNG
P X132 ENTERTAINMENTPAKET 1
P X133 ENTERTAINMENTPAKET 2
P X134 BUSINESS PAKET
P X135 ZIERTEILE IN STEIN VIKING GREEN
P X136 ZIERTEILE IN STEIN LABRADOR BLUE PEARL
P X14 LEDER DESIGNO GRAPHITGRUEN EINFARBIG
T X15 GEWICHTSVARIANTE 4,0 T
T X16 GEWICHTSVARIANTE 3,5 T
P X22 LEDER DESIGNO-ANTHRAZIT EINFARBIG
P X23 LEDER DESIGNO-YELLOWSTONE EINFARBIG
P X24 LEDER DESIGNO-IMPERIALROT EINFARBIG
P X25 LEDER DESIGNO-VIVIANITGRUEN EINFARBIG
P X26 LEDER DESIGNO-LINARITBLAU EINFARBIG
P X28 LEDER DESIGNO-IMPERIALROT ZWEIFARBIG
T X29 ABLASTUNG 2,5 T
T X30 KFZ-BRIEF
P X300 FOND AUDIO (ENTWICKLUNGSCODE)
P X31 LEDER DESIGNO-DUNKELGRUEN EINFARBIG
T X31 KFZ-BRIEF VORBEREITET
P X33 LEDER DESIGNO-MINERALGRUEN EINFARBIG
P X330 KOPFHOERER FUER AUDIO(MIT ODER OHNE SOUND)
P X335 DVD-PLAYER
P X34 LEDER DESIGNO-DUNKELBRAUN EINFARBIG
P X345 VIDEORECORDER ZWISCHEN FONDSITZEN
T X35 BESCHRIFTUNG REIFENDRUCK AUF KOTFLUEGEL
P X35 LEDER DESIGNO-HELLBRAUN EINFARBIG
P X350 ANTENNE AUF DACH HI MITTE FUNK 2M/4M D-NETZ
P X351 ANTENNE F_R FUNK 2M/4M AUF KOTFL_GEL HI.LI.FESTS
P X352 ANTENNE F.BETRIEBSNOTFUNK(BUENDELFUNK 410-430 MHZ)
P X353 ANTENNE,AUF HINTERKOTFL.LI FREQUENZBER.450-470 MHZ
P X36 LEDER DESIGNO-HELLBRAUN EINFARBIG

4 Place fender flare (3) into position on fender
 Align fender flare properly on fender: Flare
should match contours of body.
5 Mark alignment position of fender flare on fender
surface and fender flare
6 Mark attachment clip (2) positions on outer lip of
 Use marks on fender flare for reference.
fender inside wheelhouse
7 Remove adhesive cover from provided anti-
 4 anti- corrosion plates (6) for each fender
corrosion plates (6) and adhere plates to inner lip
flare. Align center of plates to clip position
of fender
marks on outer lip of fender.
8 Peel back 50 mm of cover from adhesive strip
on inside of fender flare (3)
9 Place fender flare (3) into proper position on
 Align fender flare with marks.
fender
10 Peel remaining cover from adhesive strip on

Ensure fender flare remains in proper
inside of fender flare and press fender flare
position.
firmly onto fender
11 Secure fender flare (3) to fender with provided
 4 attachment clips (2). Ensure correct
attachment clips (2)
positioning of clips: align with marks. Ensure
clips attach to pocket on inside of fender flare
and anti- corrosion plate (6) on inner lip of fender.
Clip should NOT touch vehicle paint.
12 Repeat for each fender flare (3)
 Worksteps 3 - 11.
13 Place rear bumper adapter (4) into position on
 Align adapter properly on bumper: Adapter
rear bumper
should match contours of bumper.
14 Mark attachment clip (2) positions on outer lip of
 Use marks on adapter for reference.
rear bumper
15 Remove adhesive cover from provided anti-
 2 anti- corrosion plates (6) for each bumper
corrosion plates (6) and adhere plates to inner lip
adapter. Align center of plates to clip position
of bumper
marks on outer lip of bumper.
16 Peel back 20 mm of cover from adhesive strip
on inside of rear bumper adapter (4)
17 Place rear bumper adapter (4) into proper
position on rear bumper
18 Peel remaining cover from adhesive strip on

Ensure bumper adapter remains in proper
inside of rear bumper adapter (4) and press
position.
adapter firmly onto bumper
19 Secure rear bumper adapter (4) to rear bumper
 2 attachment clips. Ensure clips attach to
with provided attachment clips (2)
pocket on inside of bumper adapter and anti-
corrosion plate (6) on inner lip of bumper.
20 Repeat for other rear bumper adapter (4)
 Worksteps 13 - 19.
21 Place rocker panel adapter (5) into position on
 Align adapter properly on rocker panel
rocker panel cover
cover: Adapter should match contours of cover
and align with bottom edge of fender flare.
22 Mark attachment clip (2) positions on outer lip of
rear
Only for rocker panel adapters. Use
rocker panel cover
marks on adapter for reference.
23 Remove adhesive cover from provided anti-
 Only for rear rocker panel adapters.
corrosion plate (6) and adhere plate to inner lip of
1 anti- corrosion plate (6) for each rocker panel
rocker panel cover
adapter. Align center of plate to clip position
mark on outer lip of rocker panel cover.
24 Peel back 20 mm of cover from each adhesive
strip on inside of rocker panel adapter (5)
25 Place rocker panel adapter (5) into proper
position on rocker panel cover
26 Peel remaining cover from each adhesive strip
 Ensure rocker panel adapter remains in
on inside of rocker panel adapter and press
proper position.
adapter firmly onto rocker panel cover
27 Secure rocker panel adapter (5) to rocker panel
 Only for rear rocker panel adapters. Use
cover with provided attachment clip (2)
mark on adapter for proper placement of
attachment clip in pocket on inside of adapter.
Front rocker panel adapters are NOT secured
with a clip.
28 Repeat for each rocker panel adapter (5)
 Worksteps 21 - 27.
Parts ordering notes
Part no. DesignationQuantity
B6 688 0800 Fender flares, primed1B6 688 0801 Fender flares, black1B6 688 0802 Fender flares, brilliant silver1B6 688 0803 Fender flares, bordeaux red1B6 688 0804 Fender flares, alabaster white1
B6 688 0805 Fender flares, black opal1B6 688 0806 Fender flares, tansanite blue1B6 688 0807 Fender flares, jaspis blue1
B6 688 0808 Fender flares, desert silver1B6 688 0809 Fender flares, andradite green1B6 688 0816 Adapter kit for fender flares, primed1B6 688 0817 Adapter kit for fender flares, black1B6 688 0818 Adapter kit for fender flares, brilliant silver1
az8830p0007ghRetrofit fender flares Page 2 of 3

B6 688 0819 Adapter kit for fender flares, bordeaux red1B6 688 0820 Adapter kit for fender flares, alabaster white1B6 688 0821 Adapter kit for fender flares, black opal1
B6 688 0822 Adapter kit for fender flares, tansanite blue1B6 688 0823 Adapter kit for fender flares, jaspis blue1
B6 688 0824 Adapter kit for fender flares, desert silver1B6 688 0825 Adapter kit for fender flares, andradite green1
az8830p0007ghRetrofit fender flares Page 3 of 3

SI18.00-P-0010A
Service Information: oil sludge
26.3.01

ENGINE
111 in MODELS 124, 163, 170, 202, 203, 208, 210

ENGINE
112 in MODELS 129, 163, 170, 202, 203, 208, 210, 220

ENGINE
112, 113 in MODEL 463

ENGINE
113 in MODELS 129, 163, 202, 208, 210, 215, 220

ENGINE
137 in MODEL 215, 220

ENGINE
166 in MODEL 168

Oil sludging in gasoline engines with ASSYST maintenance

system

Recently we have determined that time and time again oil

sludging occurs in gasoline engines with an ASSYST maintenance

system.

Oil sludging can lead to the following complaints:
D
engine oil consumption

D
engine smoke (white/blue)

D
influencing of oil level indicator

D
clogged oil filter, engine oil thickened like jelly

D
Check engine lamp illuminated

D
oil sludge visible during assembly job, e.g. in oil filter, in cylinder

head covers, condensation sludging
(engine 166) etc.

-----------------------------------------------------------------------------------------
The following list of causes may lead individually or as a combination
to engine oil sludging:

D
Crankcase ventilation inoperable, function orifices, bores,

passages in cylinder head cover, cylinder head, crankcase etc.

are mechanically sealed. A nonfunctioning crankcase

ventilation boosts loads on the engine oil through organic

nitrates. The risk of oil sludging increases.

The mechanical condition of the engine is always to be

checked, i.e. all engine oil drain orifices on the cylinder head

and crankcase and all crankcase ventilation ducts must be free

of obstacles. Crankcase breather lines may not be kinked.
Check the ventilation bores in the cylinder head covers.

-----------------------------------------------------------------------------------------

D
The engine oil used does not comply with the specifications in

Sheet 229.1 or 229.3 of the Specifications for Service Products.

The additive process, e.g. dirt-carrying capability, neutralization

capability and oxidation resistance as well as the quality of the

base stock influence sludging time.

Use of engine oils with best possible resistance to formation of

sludge, i.e. use only tested and approved engine oils (from

Sheet 229.1 or 229.3). The best protection is afforded by the

engine oils on Sheet 229.3, which fulfill more stringent

specifications with regard to preventing sludge and deposits
(see Sheet 221.0, page 11). These oils have a distinctly better

anti-sludge characteristic than other engine oils.

D
Sludging after adding a fuel or engine oil special additive.

Do not use fuel or engine oil special additives. More information

hereto is available on Sheet 219.0 of the Specifications for

Service products. Reference to customer not to use special

additives.

D
Engine oil change not performed according to ASSYST

specifications. At driven distances

exceeding > approx. 3000 km, engine oil sludging may occur.

-----------------------------------------------------------------------------------------
Comply with engine oil and filter change as under ASSYST

specifications. Observe remaining distance.

D
Fuel grade lies outside standard (regionally contingent). If

contaminated, deficient fuel is used, then engine oil sludging

may occur even where approved engine oil is used.

Operation with fuel, e.g. as under DIN EN 228. Clarify refueling

behavior of customer. If engine operation regional, is

temporarily possible with deficient oil only, then the startup

distance has to be individually reduced, i.e. the oil change

temporarily performed at an interval of, e.g. 10,000 km.

D
Radiator antifreeze penetration into engine oil, e.g. through an

internal engine leak (cylinder head gasket, casting porosity).

The engine oil sludges within a short period. The crankcase

ventilation clogs up and stops functioning. Condensation

sludging clogs up the oil separator cells

(engine 166).
Rectify coolant leakage. Clean all sludged engine parts, in

particular the crankcase ventilation parts. If the occurrence

repeats, and casting porosity is suspected, e.g. replace

crankcase.

-----------------------------------------------------------------------------------------

Copyright DaimlerChrysler AG 20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR46.40-P-0200-02C
Pressing out and attaching track rod joint at

steering knuckle

k

Surface protection on track rod screw

connection to steering knuckle modified
BT46.40-P-0001-01A

Modification notes

24.3.99

Surface protection on track rod screw connection to

steering knuckle modified
Model 210

BT46.40-P-0001-01A

New tightening torques incorporated

*BA46.40-P-1002-01A


Track rod

Number

Designation
Model 210

BA46.40-P-1002-01A
Self-locking nut, track rod to steering

knuckle
yellow
Nm
60

silver or blue
Nm
70


Track rod

Number

Designation
Model 163

BA46.40-P-1001-01C
Self-locking nut, track rod to steering knuckle
Nm
55

140 589 00 63 00

Thrust piece

Puller

202 589 02 33 00

P46.40-0240-01

Pushing off

1
Remove self-locking nut of track rod joint.

2
Fit thrust piece (045).

3
Use puller (044) to press off track rod joint (10a).

4
Remove puller and thrust piece.

Install
5
Clean conical joint.

6
Install new self-locking nut and tighten

. Counter ball head with an Allen wrench if

necessary.

Copyright DaimlerChrysler AG 06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
