CONTACT PART NUMBERS - GF00.19-P-8100BI
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 033

blue
Remove female contactAR00.19-P-0120-04A

032 545 21 282-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

032 545 24 282-pin MQS coupling, Z,
blue
Remove female contactAR00.19-P-0120-04A

032 545 52 288-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

032 545 53 288-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

032 545 68 284-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

032 545 70 284-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

032 545 83 2812-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

032 545 84 2812-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

032 545 85 2812-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

032 545 86 2812-pin MQS coupling, D,
yellow
Remove female contactAR00.19-P-0120-04A

032 545 98 284-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

032 545 99 284-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 69 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BJ
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 034

Part numberDesignation, Coding,
Color

033 545 00 284-pin MQS coupling, D,
yellow
Remove female contactAR00.19-P-0120-04A

033 545 09 283-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

033 545 10 283-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

033 545 50 284-pin MQS plug, D,
yellow
Remove contact pinAR00.19-P-0120-03A

033 545 57 286-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

033 545 58 286-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

033 545 59 286-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

033 545 60 286-pin MQS coupling, D,
yellow
Remove female contactAR00.19-P-0120-04A

033 545 61 286-pin MQS coupling, E,
green
Remove female contactAR00.19-P-0120-04A

033 545 67 282-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A
Part numberDesignation, Coding,
Color

034 545 40 285-pin JPT coupling, -, -
Remove female contactAR00.19-P-0120-07A
034 545 41 285-pin JPT coupling, A,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 70 © 2006 Mitchell Repair Information Company, LLC.

black
Remove female contactAR00.19-P-0120-07A

034 545 42 285-pin JPT coupling, B,
white
Remove female contactAR00.19-P-0120-07A

034 545 61 284-pin RK 2.5 solder
contact plug, A, yellow
Remove contact pinAR00.19-P-0120-18A

034 545 63 284-pin RK 2.5 solder
contact coupling, A,
yellow
Remove female contactAR00.19-P-0120-17A

034 545 72 282-pin RK 2.5 variant 1
coupling, D, violet
Remove female contactAR00.19-P-0120-15A

034 545 73 282-pin RK 2.5 variant 1
plug, D, violet
Remove contact pinAR00.19-P-0120-16A

034 545 75 288-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

034 545 76 288-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

034 545 77 288-pin MQS coupling, C,
blue
Remove female contactAR00.19-P-0120-04A

034 545 78 288-pin MQS coupling, E,
green
Remove female contactAR00.19-P-0120-04A

034 545 80 288-pin MQS coupling, Z,
water blue
Remove female contactAR00.19-P-0120-04A
034 545 93 283+4-pin JPT, LSK
coupling, B, white
Remove JPT female
contactAR00.19-
P-0120-
07A

Remove LSK female
contactAR00.19-
P-0120-
12A
034 545 94 283+4-pin JPT, LSK
coupling, C, blue
Remove JPT female AR00.19-

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 71 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BL
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
Connector and couplings part-original-number 036
Remove female contactAR00.19-P-0120-04A

035 545 89 282-pin MQS connector, B,
white
Remove contact pinAR00.19-P-0120-03A

035 545 90 282-pin MQS plug, C, blue
Remove contact pinAR00.19-P-0120-03A
Part number
Designation, Coding,
Color


036 545 10 282-pin JPT coupling, -, -
Remove female contactAR00.19-P-0120-07A

036 545 11 282-pin JPT coupling, A,
black
Remove female contactAR00.19-P-0120-07A

036 545 12 282-pin JPT coupling, B,
transparent
Remove female contactAR00.19-P-0120-07A

036 545 13 282-pin JPT coupling, C,
blue
Remove female contactAR00.19-P-0120-07A

036 545 21 2820-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

036 545 23 283-pin RK 2.5 solder
contact connector, 3, red
Remove contact pinAR00.19-P-0120-18A

036 545 55 285-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

036 545 56 285-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

036 545 67 283-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

036 545 68 284-pin MQS coupling, D,
violet
Remove female contactAR00.19-P-0120-04A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 73 © 2006 Mitchell Repair Information Company, LLC.

CONNECTOR PART NUMBERS - GF00.19-P-8100BM
MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 209, 210, 211, 215, 216, 219,
220, 221, 230, 240, 245, 251, 414, 461, 463
plugs and couplings, part initial numbers 037

036 545 73 282-pin MQS plug, A, black
Remove contact pinAR00.19-P-0120-03A

036 545 87 2814-pin SLK plug, B, white
Remove contact pinAR00.19-P-0120-01A
Part number
Designation, Coding,
Color


037 545 05 282 x 2-pin SLK plug, A,
black
Remove contact pinAR00.19-P-0120-01A

037 545 06 282 x 2-pin SLK plug, B,
transparent
Remove contact pinAR00.19-P-0120-01A

037 545 07 282 x 2-pin SLK plug, C,
blue
Remove contact pinAR00.19-P-0120-01A

037 545 08 282 x 2-pin SLK plug, D,
violet
Remove contact pinAR00.19-P-0120-01A

037 545 09 284-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

037 545 10 284-pin SLK coupling, D,
violet
Remove female contactAR00.19-P-0120-02A

037 545 11 282-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

037 545 12 282-pin SLK coupling, D,
yellow
Remove female contactAR00.19-P-0120-02A

037 545 13 282-pin SLK plug, A, black
Remove contact pinAR00.19-P-0120-01A

037 545 14 282-pin SLK plug, B, white
Remove contact pinAR00.19-P-0120-01A

037 545 15 282-pin SLK plug, C, blue
Remove contact pinAR00.19-P-0120-01A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 74 © 2006 Mitchell Repair Information Company, LLC.

037 545 16 282-pin SLK plug, D,
yellow
Remove contact pinAR00.19-P-0120-01A

037 545 19 282-pin SLK plug, -, -
Remove contact pinAR00.19-P-0120-01A

037 545 20 286-pin SLK plug, B, white
Remove contact pinAR00.19-P-0120-01A

037 545 25 282-pin MCP coupling, A,
black
Remove female contactAR00.19-P-0120-09A

037 545 26 282-pin MCP coupling, B,
white
Remove female contactAR00.19-P-0120-09A

037 545 27 282-pin MCP coupling, C,
blue
Remove female contactAR00.19-P-0120-09A

037 545 28 282-pin MCP coupling, D,
violet
Remove female contactAR00.19-P-0120-09A

037 545 29 282-pin MCP coupling, E,
green
Remove female contactAR00.19-P-0120-09A

037 545 30 284-pin MCP coupling, -, -
Remove female contactAR00.19-P-0120-09A

037 545 31 284-pin MCP coupling, A,
black
Remove female contactAR00.19-P-0120-09A

037 545 32 284-pin MCP coupling, C,
blue
Remove female contactAR00.19-P-0120-09A

037 545 33 284-pin MCP coupling, D,
violet
Remove female contactAR00.19-P-0120-09A

037 545 34 286-pin MCP coupling, -, -
Remove female contactAR00.19-P-0120-09A

037 545 35 286-pin MCP coupling, A,
black
Remove female contactAR00.19-P-0120-09A

037 545 36 286-pin MCP coupling, C,
blue
Remove female contactAR00.19-P-0120-09A
037 545 37 286-pin MCP coupling, D,
violet

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 75 © 2006 Mitchell Repair Information Company, LLC.

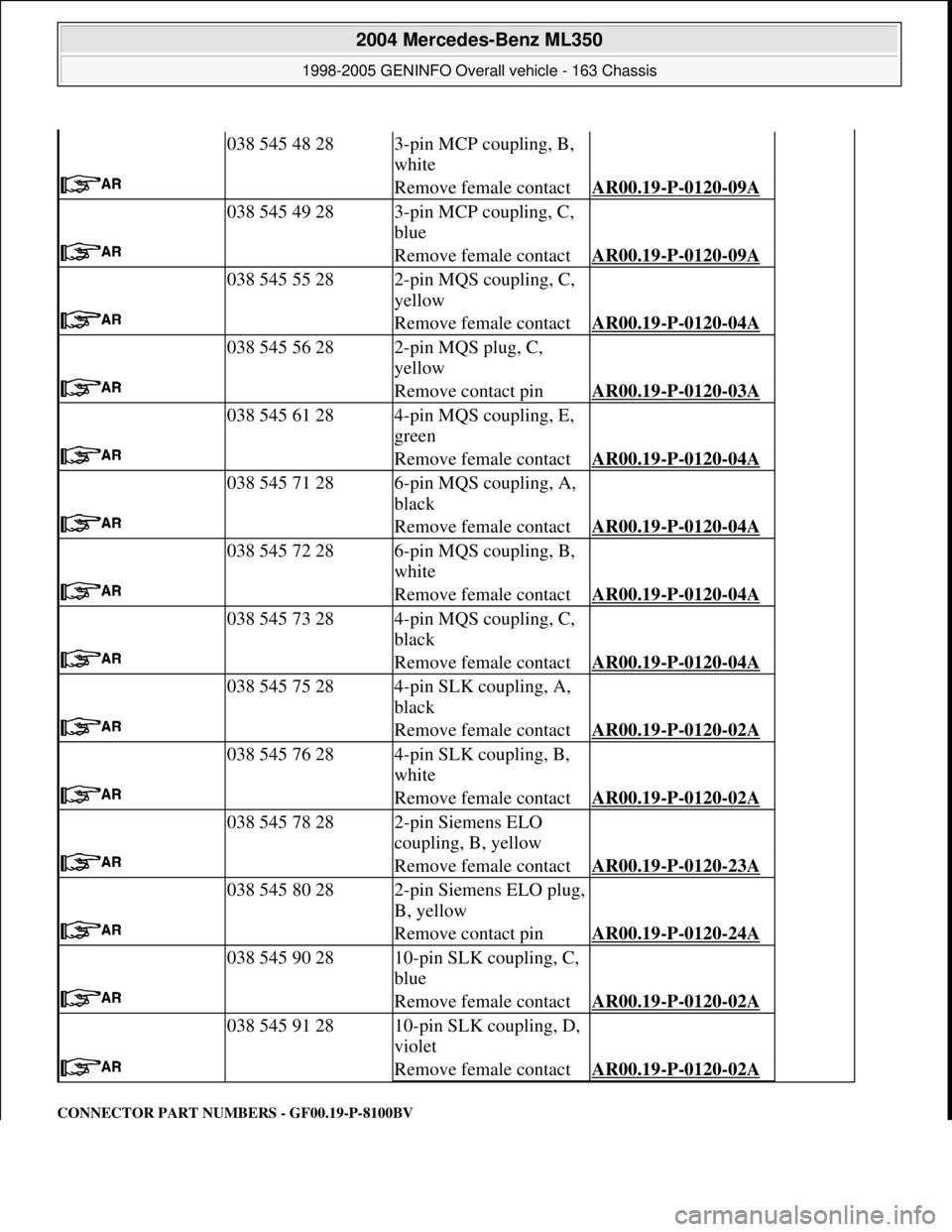

CONNECTOR PART NUMBERS - GF00.19-P-8100BV

038 545 48 283-pin MCP coupling, B,
white
Remove female contactAR00.19-P-0120-09A

038 545 49 283-pin MCP coupling, C,
blue
Remove female contactAR00.19-P-0120-09A

038 545 55 282-pin MQS coupling, C,
yellow
Remove female contactAR00.19-P-0120-04A

038 545 56 282-pin MQS plug, C,
yellow
Remove contact pinAR00.19-P-0120-03A

038 545 61 284-pin MQS coupling, E,
green
Remove female contactAR00.19-P-0120-04A

038 545 71 286-pin MQS coupling, A,
black
Remove female contactAR00.19-P-0120-04A

038 545 72 286-pin MQS coupling, B,
white
Remove female contactAR00.19-P-0120-04A

038 545 73 284-pin MQS coupling, C,
black
Remove female contactAR00.19-P-0120-04A

038 545 75 284-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02A

038 545 76 284-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02A

038 545 78 282-pin Siemens ELO
coupling, B, yellow
Remove female contactAR00.19-P-0120-23A

038 545 80 282-pin Siemens ELO plug,
B, yellow
Remove contact pinAR00.19-P-0120-24A

038 545 90 2810-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02A

038 545 91 2810-pin SLK coupling, D,
violet
Remove female contactAR00.19-P-0120-02A

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 78 © 2006 Mitchell Repair Information Company, LLC.

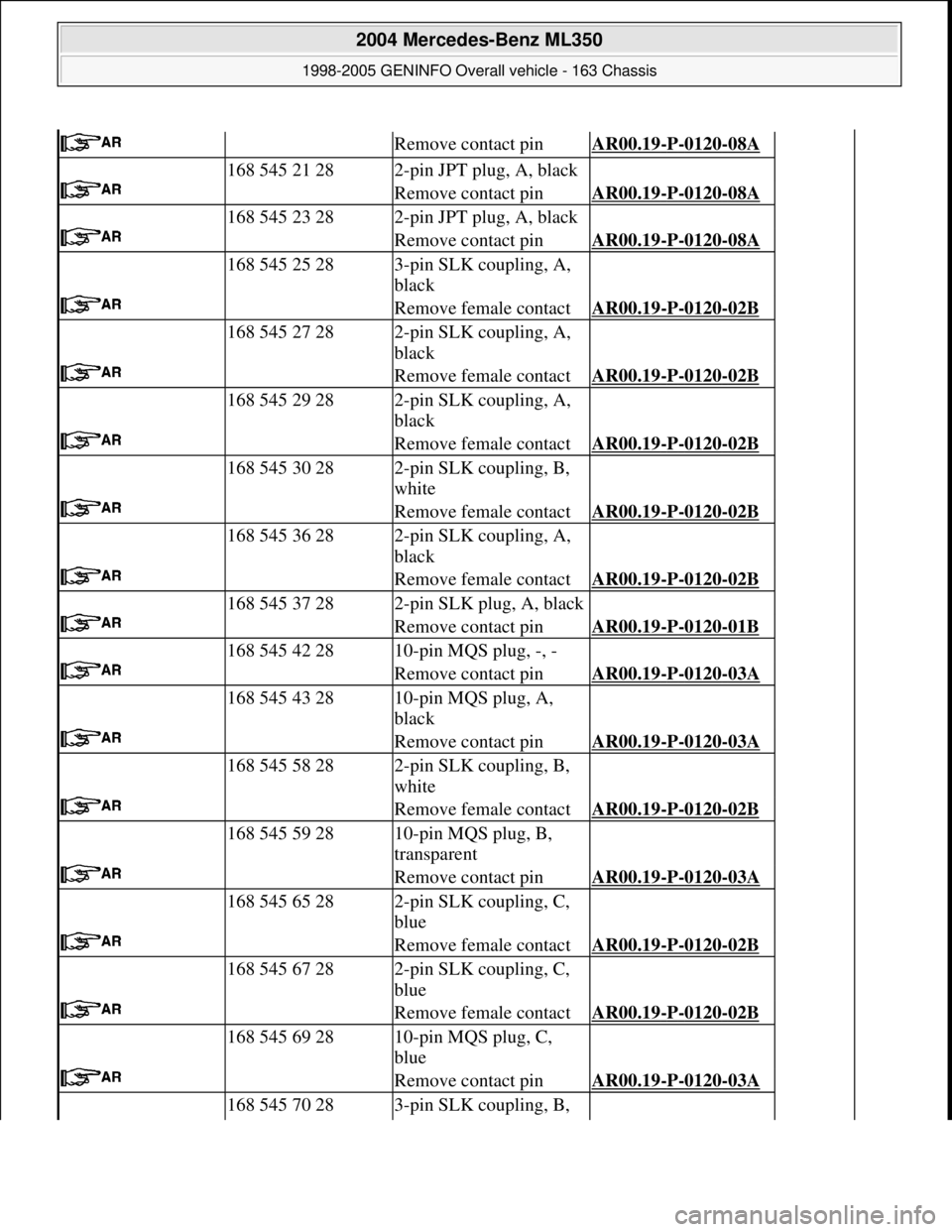

Remove contact pinAR00.19-P-0120-08A

168 545 21 282-pin JPT plug, A, black
Remove contact pinAR00.19-P-0120-08A

168 545 23 282-pin JPT plug, A, black
Remove contact pinAR00.19-P-0120-08A

168 545 25 283-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02B

168 545 27 282-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02B

168 545 29 282-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02B

168 545 30 282-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02B

168 545 36 282-pin SLK coupling, A,
black
Remove female contactAR00.19-P-0120-02B

168 545 37 282-pin SLK plug, A, black
Remove contact pinAR00.19-P-0120-01B

168 545 42 2810-pin MQS plug, -, -
Remove contact pinAR00.19-P-0120-03A

168 545 43 2810-pin MQS plug, A,
black
Remove contact pinAR00.19-P-0120-03A

168 545 58 282-pin SLK coupling, B,
white
Remove female contactAR00.19-P-0120-02B

168 545 59 2810-pin MQS plug, B,
transparent
Remove contact pinAR00.19-P-0120-03A

168 545 65 282-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02B

168 545 67 282-pin SLK coupling, C,
blue
Remove female contactAR00.19-P-0120-02B

168 545 69 2810-pin MQS plug, C,
blue
Remove contact pinAR00.19-P-0120-03A
168 545 70 283-pin SLK coupling, B,

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:45 PMPage 80 © 2006 Mitchell Repair Information Company, LLC.
