1998-2005 ACCESSORIES & BODY, CAB
Electrical System - Body - 163 Chassis
GENERAL INFORMATION

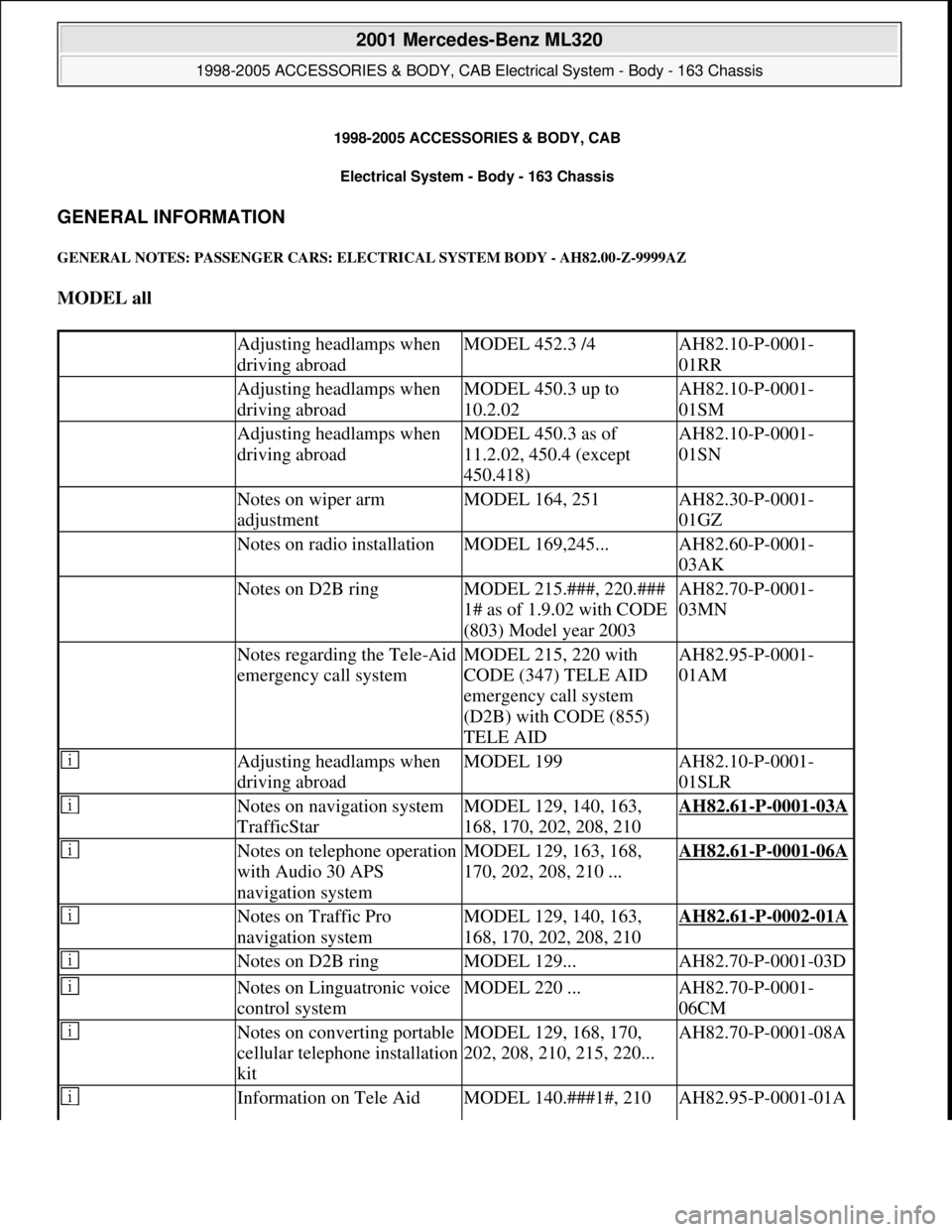

GENERAL NOTES: PASSENGER CARS: ELECTRICAL SYSTEM BODY - AH82.00-Z-9999AZ
MODEL all
Adjusting headlamps when
driving abroadMODEL 452.3 /4AH82.10-P-0001-
01RR
Adjusting headlamps when
driving abroadMODEL 450.3 up to
10.2.02AH82.10-P-0001-
01SM
Adjusting headlamps when
driving abroadMODEL 450.3 as of
11.2.02, 450.4 (except
450.418)AH82.10-P-0001-
01SN
Notes on wiper arm
adjustmentMODEL 164, 251AH82.30-P-0001-
01GZ
Notes on radio installationMODEL 169,245...AH82.60-P-0001-
03AK
Notes on D2B ringMODEL 215.###, 220.###
1# as of 1.9.02 with CODE
(803) Model year 2003AH82.70-P-0001-
03MN
Notes regarding the Tele-Aid
emergency call systemMODEL 215, 220 with
CODE (347) TELE AID
emergency call system
(D2B) with CODE (855)
TELE AIDAH82.95-P-0001-
01AM
Adjusting headlamps when
driving abroadMODEL 199AH82.10-P-0001-
01SLR
Notes on navigation system
TrafficStarMODEL 129, 140, 163,
168, 170, 202, 208, 210AH82.61-P-0001-03A
Notes on telephone operation
with Audio 30 APS
navigation systemMODEL 129, 163, 168,
170, 202, 208, 210 ...AH82.61-P-0001-06A
Notes on Traffic Pro
navigation systemMODEL 129, 140, 163,
168, 170, 202, 208, 210AH82.61-P-0002-01A
Notes on D2B ringMODEL 129...AH82.70-P-0001-03D
Notes on Linguatronic voice
control systemMODEL 220 ...AH82.70-P-0001-
06CM
Notes on converting portable
cellular telephone installation
kitMODEL 129, 168, 170,
202, 208, 210, 215, 220...AH82.70-P-0001-08A
Information on Tele Aid MODEL 140.###1#, 210 AH82.95-P-0001-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:03 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:30:18 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.

emergency call systemwith CODE (348) TELE
AID emergency call system
Notes regarding the taxi
emergency call systemMODEL 140,202,210,220...AH82.95-P-0002-01A
Adjusting headlamps when
driving abroadMODEL 164, 169, 171,
203, 209, 211, 215, 216,
219, 220, 221, 230, 245,
251 ...AH82.10-P-0001-01A
Adjust headlamps when
driving abroadMODEL 454.0AH82.10-P-0001-
01FF
Adjusting headlamps when
driving abroadMODEL 451.3/4AH82.10-P-0001-
01MCC
Retrofitting xenon headlampsMODEL 129, 140, 202,
210, 220 ...AH82.10-P-1003-01A
Retrofitting xenon headlampsMODEL 210.###1# as of
1.7.99AH82.10-P-1003-01F
Notes on retrofitting xenon
headlampsMODEL 203AH82.10-P-1003-01P
Notes on installing taxi/rental
vehicle equipmentMODEL 245 ...AH82.25-P-0001-
01BK
Notes on installing rental
vehicle equipmentMODEL 221.0##/1##1#
except CODE (498) Japan
version except CODE (494)
USA versionAH82.25-P-0001-
02SX
Notes on mirror taximeterMODEL 202, 203.0, 210,
220 with CODE (450) Taxi
versionAH82.25-P-1000-02P
Notes on wiper arm
adjustmentMODEL 171.4, 203, 209,
211, 215, 220, 230, 240AH82.30-P-0001-01A
Notes on wiper arm
adjustmentMODEL 129,202,208,210AH82.30-P-0001-01B
Notes on wiper arm
adjustmentMODEL 219.3AH82.30-P-0001-
01TX
Notes on COMAND
software statusMODEL 215, 220 with
CODE (352a) COMAND
operating and display
system bei APS der 3.
GerategenerationAH82.60-P-0001-01A
Notes on radio installationMODEL 203 ...AH82.60-P-0001-03P
Notes on removal/installation
of the fiber optical cable for
the Media Oriented System
Transport (MOST)MODEL 211.0/2AH82.60-P-0001-06T
Notes on auto-pilot systemMODEL 170AH82.61-P-0001-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 2 © 2006 Mitchell Repair Information Company, LLC.

HEADLAMP RANGE ADJUSTMENT (HRA), LOCATION OF COMPONENTS - GF82.10-P-0001-01GH
Fig. 8: Identifying Headlamp Range Adjustment (HRA) Components
HEADLAMP RANGE ADJUSTMENT (HRA), LOCATION OF COMPONENTS - GF82.10-P-0001-01GHA
location/task/function
Table of contents, function
description of digital data bus
(D2B) GF82.00-P-0999ZZ

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 16 © 2006 Mitchell Repair Information Company, LLC.

Fig. 9: Identifying Headlamp Range Adjustment (HRA) Components
HEADLAMP RANGE ADJUSTMENT (HRA), FUNCTION - GF82.10-P-0001GH
MODELS 163.113 /136 /154 /172 /174 up to 31.8.01 with CODE (612b) Xenon headlamp unit with CODE
(U47) Conversion package
Function
The electrical headlamp range adjustment operates dynamically. Every change in the vehicle level is determined
and signaled to the headlamp range adjustment control module (N71) by the rear axle sensor and the front axle
sensor (A51, A52). The control module (N71) compares the vehicle level and the headlamp position. If
necessary, the headlamp setting is corrected by the control module (N71) via the headlamp range adjustment
motors (E1m1, E2m2). The headlamp position is only corrected if a modified vehicle level is signaled to the
control module (N71) by the front and rear axle sensors (A51, A52) for a specific time span.
Headlamp range adjustment control module (N71)
The headlamp range adjustment control module (N71) processes the signals from the front and rear axle sensors
(A51, A52) as well as the position of the headlamp range adjustment motors (E1m1, E2m1). After evaluating
these signals, commands are sent to the headlamp range adjustment motors (E1m1, E2m1).
Front and rear axle sensors (A51, A52)

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 17 © 2006 Mitchell Repair Information Company, LLC.

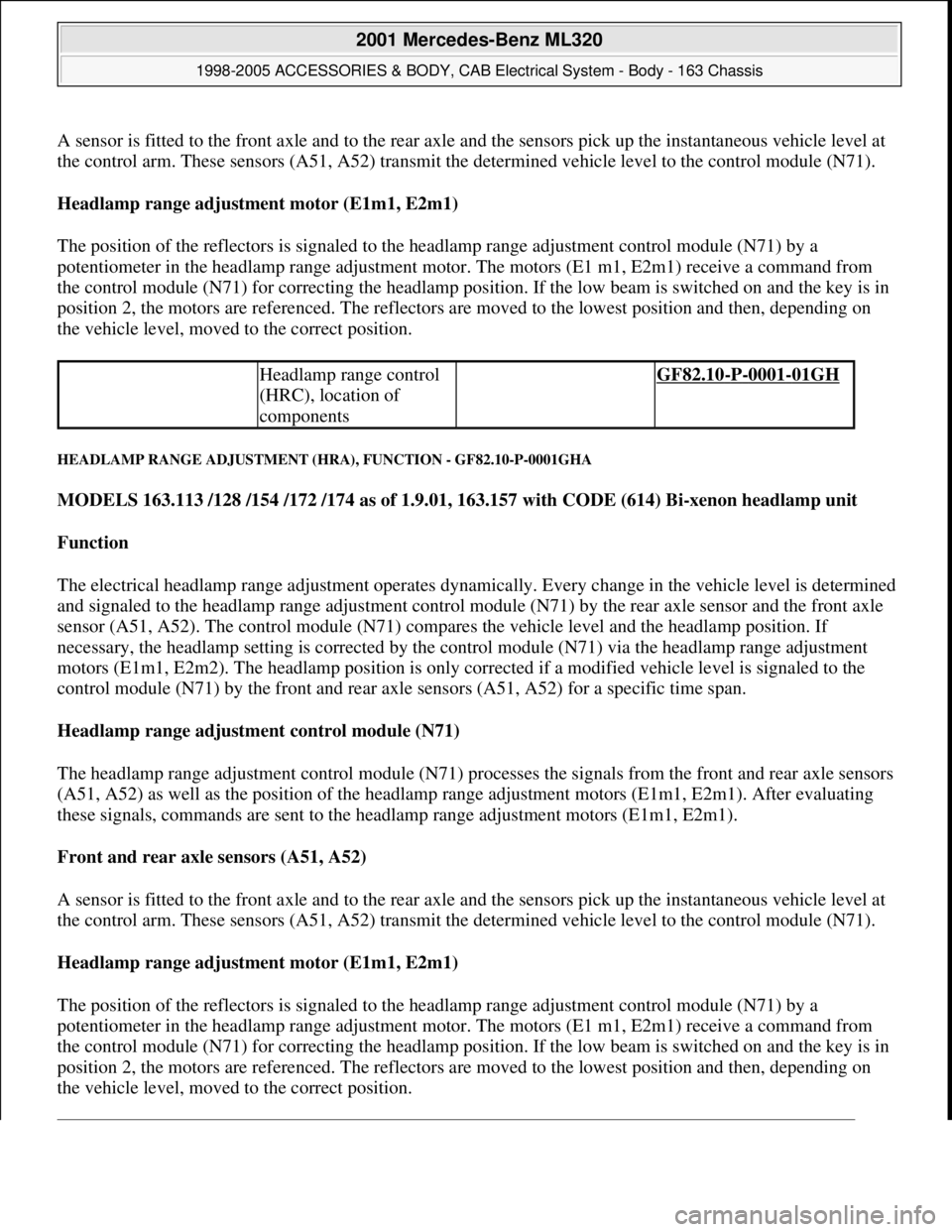

A sensor is fitted to the front axle and to the rear axle and the sensors pick up the instantaneous vehicle level at
the control arm. These sensors (A51, A52) transmit the determined vehicle level to the control module (N71).
Headlamp range adjustment motor (E1m1, E2m1)
The position of the reflectors is signaled to the headlamp range adjustment control module (N71) by a
potentiometer in the headlamp range adjustment motor. The motors (E1 m1, E2m1) receive a command from
the control module (N71) for correcting the headlamp position. If the low beam is switched on and the key is in
position 2, the motors are referenced. The reflectors are moved to the lowest position and then, depending on
the vehicle level, moved to the correct position.
HEADLAMP RANGE ADJUSTMENT (HRA), FUNCTION - GF82.10-P-0001GHA
MODELS 163.113 /128 /154 /172 /174 as of 1.9.01, 163.157 with CODE (614) Bi-xenon headlamp unit
Function
The electrical headlamp range adjustment operates dynamically. Every change in the vehicle level is determined
and signaled to the headlamp range adjustment control module (N71) by the rear axle sensor and the front axle
sensor (A51, A52). The control module (N71) compares the vehicle level and the headlamp position. If
necessary, the headlamp setting is corrected by the control module (N71) via the headlamp range adjustment
motors (E1m1, E2m2). The headlamp position is only corrected if a modified vehicle level is signaled to the
control module (N71) by the front and rear axle sensors (A51, A52) for a specific time span.
Headlamp range adjustment control module (N71)
The headlamp range adjustment control module (N71) processes the signals from the front and rear axle sensors
(A51, A52) as well as the position of the headlamp range adjustment motors (E1m1, E2m1). After evaluating
these signals, commands are sent to the headlamp range adjustment motors (E1m1, E2m1).
Front and rear axle sensors (A51, A52)
A sensor is fitted to the front axle and to the rear axle and the sensors pick up the instantaneous vehicle level at
the control arm. These sensors (A51, A52) transmit the determined vehicle level to the control module (N71).
Headlamp range adjustment motor (E1m1, E2m1)
The position of the reflectors is signaled to the headlamp range adjustment control module (N71) by a
potentiometer in the headlamp range adjustment motor. The motors (E1 m1, E2m1) receive a command from
the control module (N71) for correcting the headlamp position. If the low beam is switched on and the key is in
position 2, the motors are referenced. The reflectors are moved to the lowest position and then, depending on
the vehicle level, moved to the correct position.
Headlamp range control
(HRC), location of
components GF82.10-P-0001-01GH

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 18 © 2006 Mitchell Repair Information Company, LLC.

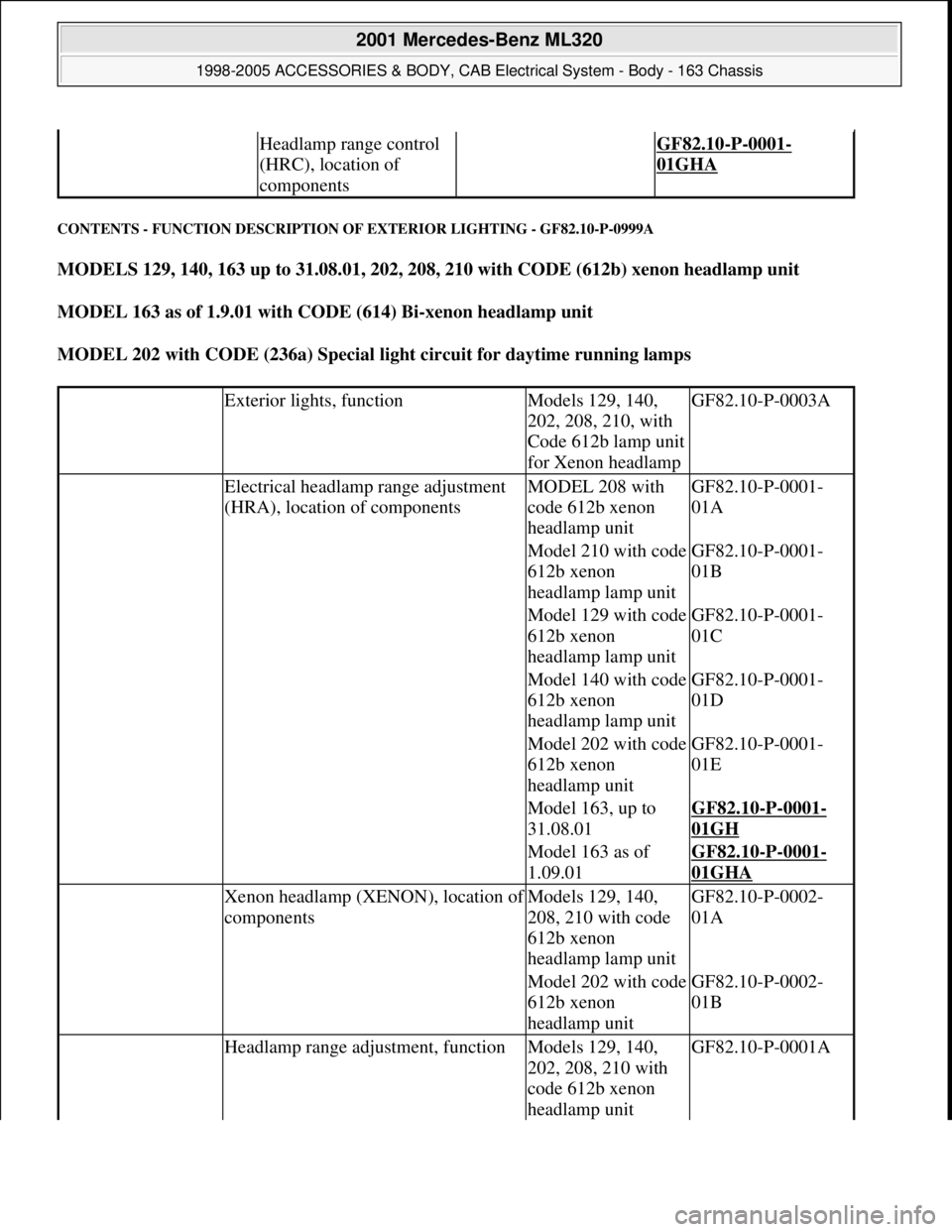

CONTENTS - FUNCTION DESCRIPTION OF EXTERIOR LIGHTING - GF82.10-P-0999A
MODELS 129, 140, 163 up to 31.08.01, 202, 208, 210 with CODE (612b) xenon headlamp unit
MODEL 163 as of 1.9.01 with CODE (614) Bi-xenon headlamp unit
MODEL 202 with CODE (236a) Special light circuit for daytime running lamps
Headlamp range control
(HRC), location of
components GF82.10-P-0001-
01GHA
Exterior lights, functionModels 129, 140,
202, 208, 210, with
Code 612b lamp unit
for Xenon headlampGF82.10-P-0003A
Electrical headlamp range adjustment
(HRA), location of componentsMODEL 208 with
code 612b xenon
headlamp unitGF82.10-P-0001-
01A
Model 210 with code
612b xenon
headlamp lamp unitGF82.10-P-0001-
01B
Model 129 with code
612b xenon
headlamp lamp unitGF82.10-P-0001-
01C
Model 140 with code
612b xenon
headlamp lamp unitGF82.10-P-0001-
01D
Model 202 with code
612b xenon
headlamp unitGF82.10-P-0001-
01E
Model 163, up to
31.08.01GF82.10-P-0001-
01GH
Model 163 as of
1.09.01GF82.10-P-0001-
01GHA
Xenon headlamp (XENON), location of
componentsModels 129, 140,
208, 210 with code
612b xenon
headlamp lamp unitGF82.10-P-0002-
01A
Model 202 with code
612b xenon
headlamp unitGF82.10-P-0002-
01B
Headlamp range adjustment, functionModels 129, 140,
202, 208, 210 with
code 612b xenon
headlamp unitGF82.10-P-0001A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 19 © 2006 Mitchell Repair Information Company, LLC.

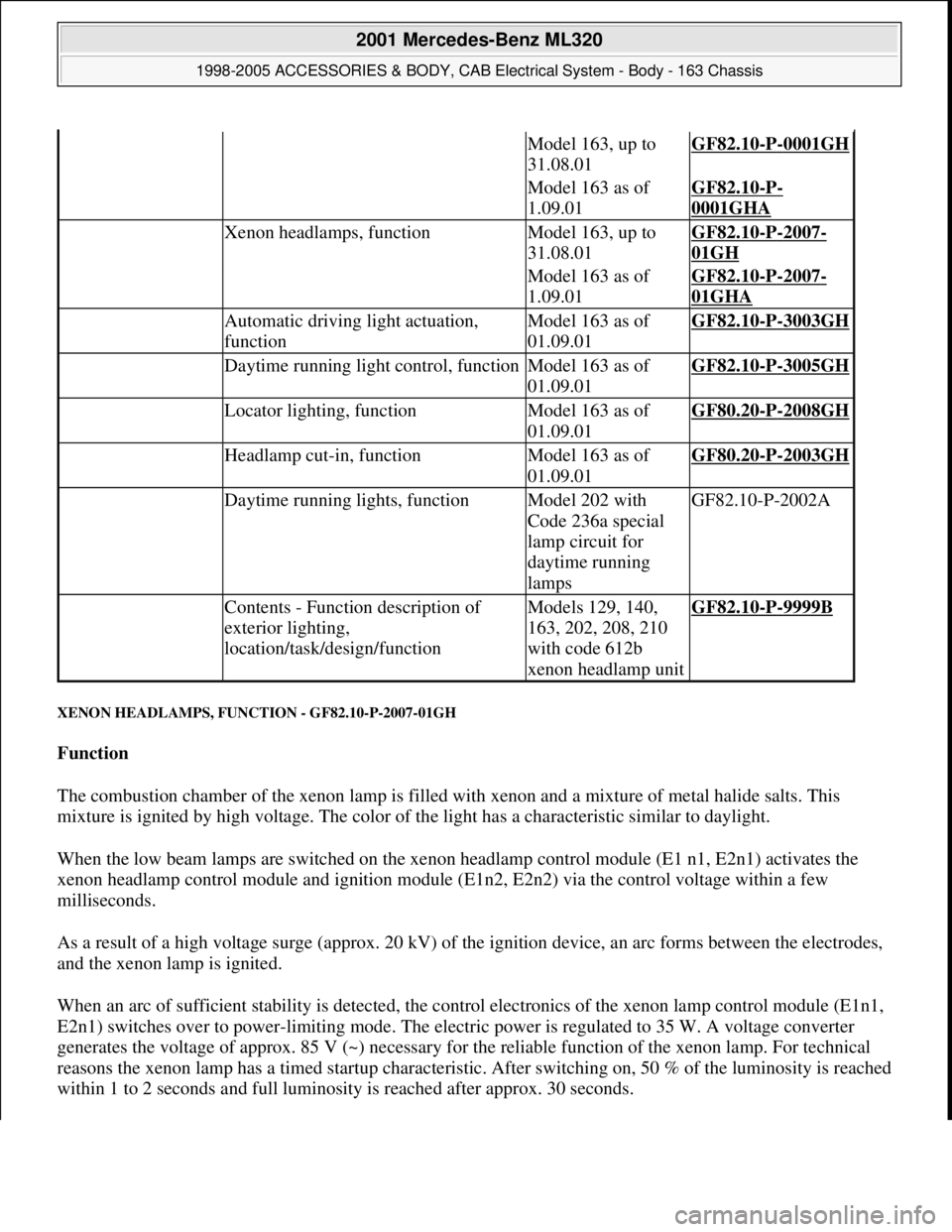

XENON HEADLAMPS, FUNCTION - GF82.10-P-2007-01GH
Function
The combustion chamber of the xenon lamp is filled with xenon and a mixture of metal halide salts. This
mixture is ignited by high voltage. The color of the light has a characteristic similar to daylight.
When the low beam lamps are switched on the xenon headlamp control module (E1 n1, E2n1) activates the
xenon headlamp control module and ignition module (E1n2, E2n2) via the control voltage within a few
milliseconds.
As a result of a high voltage surge (approx. 20 kV) of the ignition device, an arc forms between the electrodes,
and the xenon lamp is ignited.
When an arc of sufficient stability is detected, the control electronics of the xenon lamp control module (E1n1,
E2n1) switches over to power-limiting mode. The electric power is regulated to 35 W. A voltage converter
generates the voltage of approx. 85 V (~) necessary for the reliable function of the xenon lamp. For technical
reasons the xenon lamp has a timed startup characteristic. After switching on, 50 % of the luminosity is reached
within 1 to 2 seconds and full luminosity is reached after approx. 30 seconds.
Model 163, up to
31.08.01GF82.10-P-0001GH
Model 163 as of
1.09.01GF82.10-P-
0001GHA
Xenon headlamps, functionModel 163, up to
31.08.01GF82.10-P-2007-
01GH
Model 163 as of
1.09.01GF82.10-P-2007-
01GHA
Automatic driving light actuation,
functionModel 163 as of
01.09.01GF82.10-P-3003GH
Daytime running light control, functionModel 163 as of
01.09.01GF82.10-P-3005GH
Locator lighting, functionModel 163 as of
01.09.01GF80.20-P-2008GH
Headlamp cut-in, functionModel 163 as of
01.09.01GF80.20-P-2003GH
Daytime running lights, functionModel 202 with
Code 236a special
lamp circuit for
daytime running
lampsGF82.10-P-2002A
Contents - Function description of
exterior lighting,
location/task/design/functionModels 129, 140,
163, 202, 208, 210
with code 612b
xenon headlamp unitGF82.10-P-9999B

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 20 © 2006 Mitchell Repair Information Company, LLC.
