1997 MAZDA MX-5 Factory Repair Manual

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.

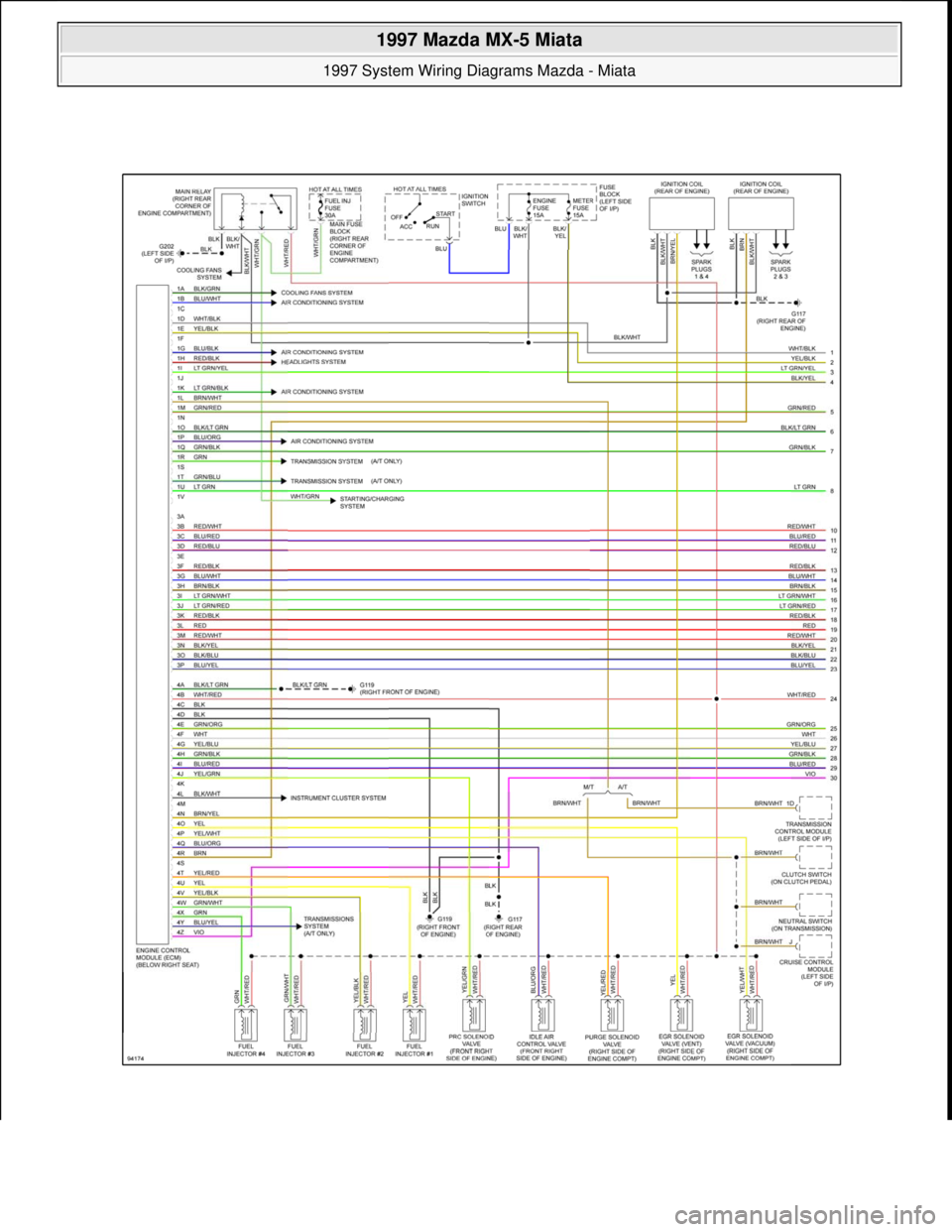

Fig. 8: 1.8L, Engine Performance Circuits (1 of 2)

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 17 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 18 © 2005 Mitchell Repair Information Company, LLC.

Fig. 9: 1.8L, Engine Performance Circuits (2 of 2)
EXTERIOR LIGHTS

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.

Fig. 10: Back-up Lamps Circuit

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 22 © 2005 Mitchell Repair Information Company, LLC.

Fig. 11: Exterior Lamps Circuit, W/ DRL

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 23 © 2005 Mitchell Repair Information Company, LLC.
