1997 MAZDA MX-5 Factory Repair Manual

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 24 © 2005 Mitchell Repair Information Company, LLC.

Fig. 12: Exterior Lamps Circuit, W/O DRL
GROUND DISTRIBUTION

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 25 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 26 © 2005 Mitchell Repair Information Company, LLC.

Fig. 13: Ground Distribution Circuit
HEADLIGHTS

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 27 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 28 © 2005 Mitchell Repair Information Company, LLC.

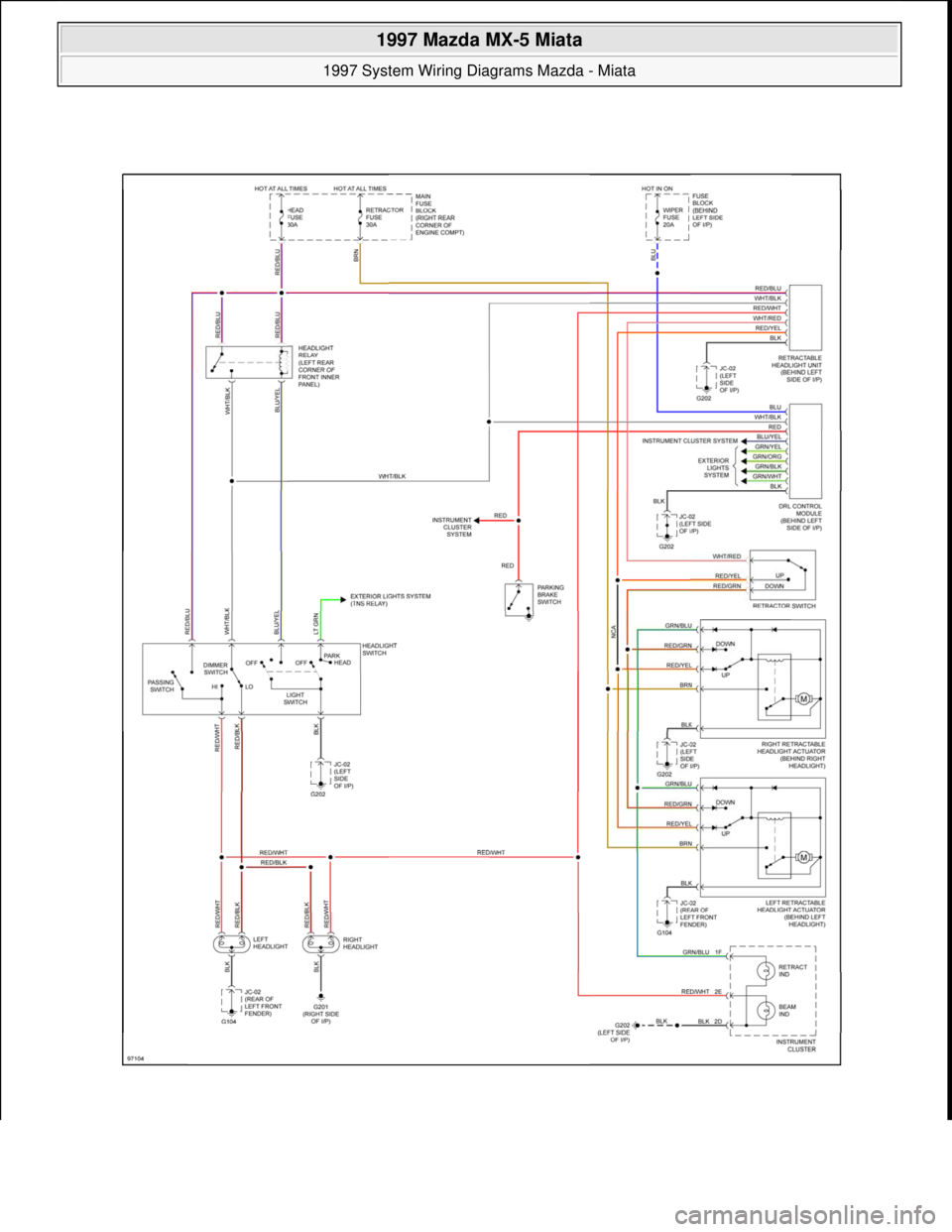

Fig. 14: Headlight Circuit, W/ DRL

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 29 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 30 © 2005 Mitchell Repair Information Company, LLC.

Fig. 15: Headlight Circuit, W/O DRL
HORN

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 31 © 2005 Mitchell Repair Information Company, LLC.
