1997 MAZDA MX-5 Factory Repair Manual

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 48 © 2005 Mitchell Repair Information Company, LLC.

Fig. 24: Premium Sound Radio Circuit
SHIFT INTERLOCKS

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 49 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 50 © 2005 Mitchell Repair Information Company, LLC.

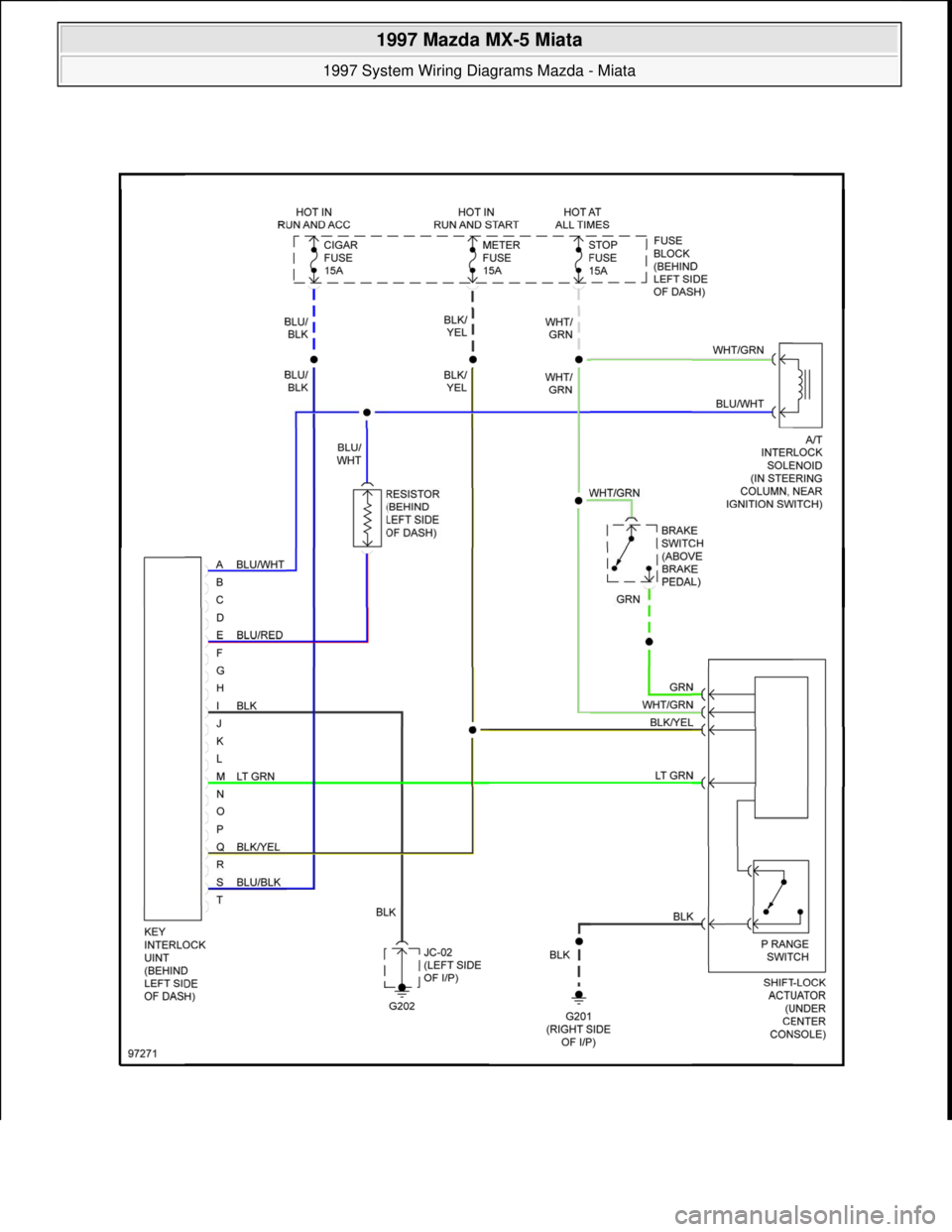

Fig. 25: Shift Interlock Circuit
STARTING/CHARGING

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 51 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 52 © 2005 Mitchell Repair Information Company, LLC.

Fig. 26: Charging Circuit

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 53 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 54 © 2005 Mitchell Repair Information Company, LLC.

Fig. 27: Starting Circuit, A/T

1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 55 © 2005 Mitchell Repair Information Company, LLC.
