1997 AUDI A4 Interior Monitor Workshop Manual

01-131

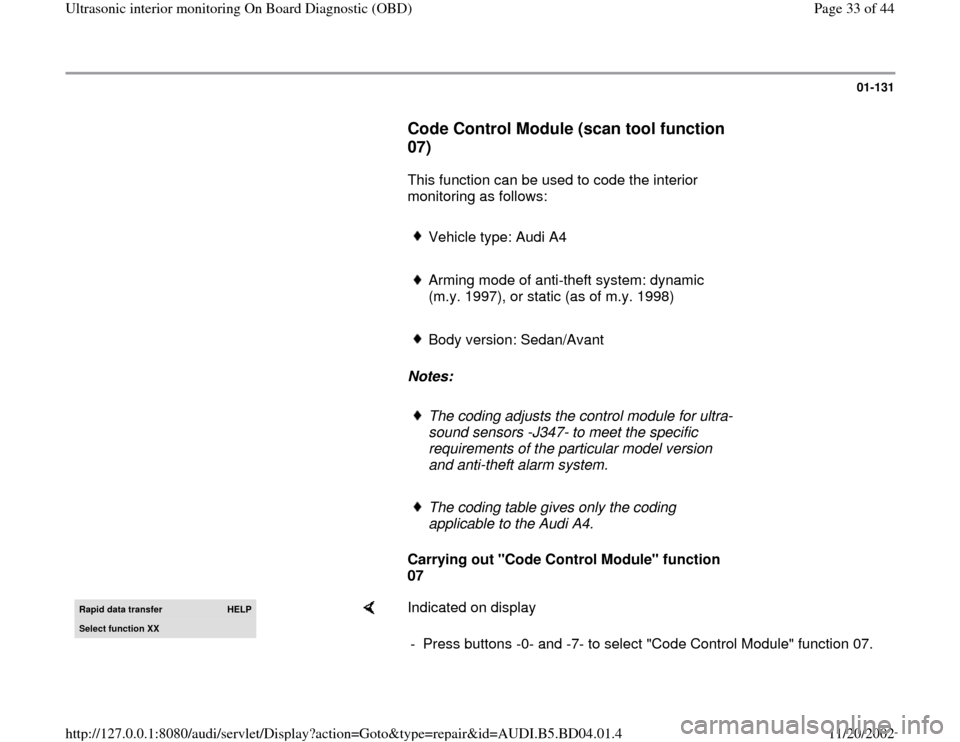

Code Control Module (scan tool function
07)

This function can be used to code the interior
monitoring as follows:
Vehicle type: Audi A4
Arming mode of anti-theft system: dynamic
(m.y. 1997), or static (as of m.y. 1998)
Body version: Sedan/Avant

Notes:
The coding adjusts the control module for ultra-
sound sensors -J347- to meet the specific
requirements of the particular model version
and anti-theft alarm system.
The coding table gives only the coding
applicable to the Audi A4.

Carrying out "Code Control Module" function
07
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -7- to select "Code Control Module" function 07.
Pa
ge 33 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

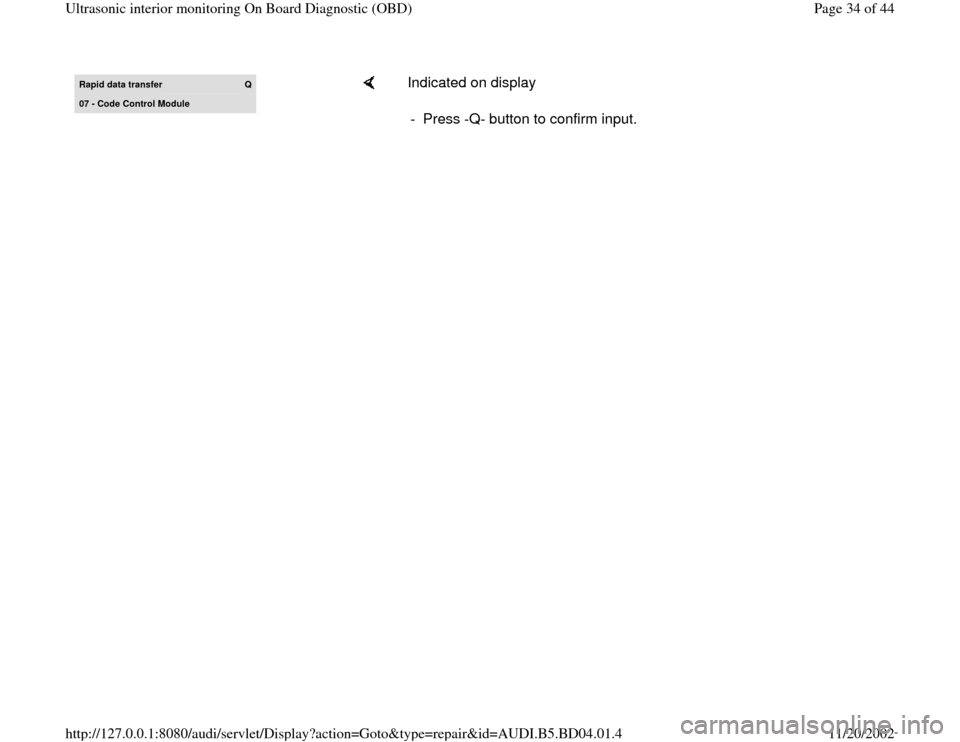

Rapid data transfer
Q
07 - Code Control Module

Indicated on display
- Press -Q- button to confirm input.
Pa
ge 34 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-132

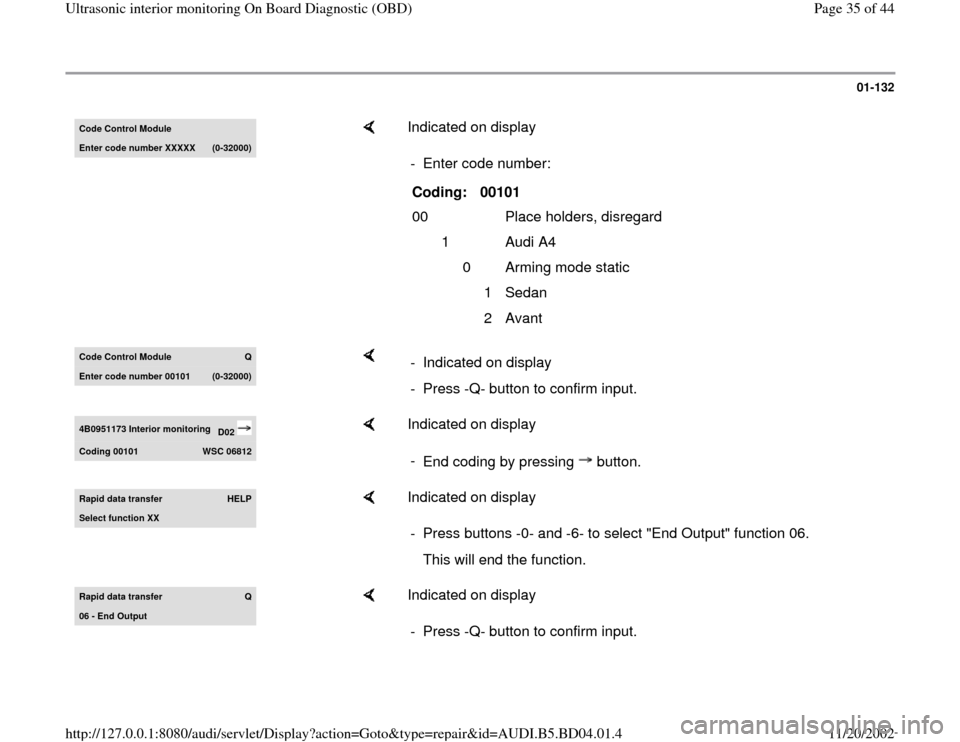

Code Control ModuleEnter code number XXXXX
(0-32000)

Indicated on display
- Enter code number:
Coding:
00101
00 Place holders, disregard
1 Audi A4
0 Arming mode static
1 Sedan
2 Avant
Code Control Module
Q
Enter code number 00101
(0-32000
)

- Indicated on display
- Press -Q- button to confirm input.
4B0951173 Interior monitoring
D02
Coding 00101
WSC 06812

Indicated on display
-
End coding by pressing button.
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -6- to select "End Output" function 06.
This will end the function.
Rapid data transfer
Q
06 - End Output

Indicated on display
- Press -Q- button to confirm input.
Pa
ge 35 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-133

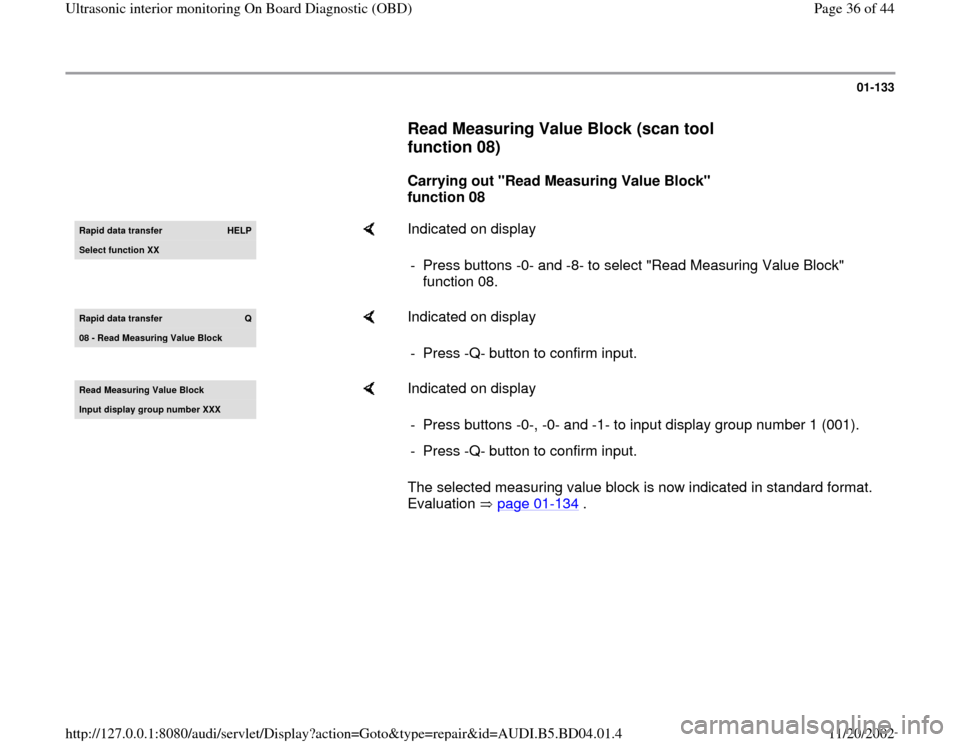

Read Measuring Value Block (scan tool
function 08)


Carrying out "Read Measuring Value Block"
function 08
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block"
function 08.
Rapid data transfer
Q
08 - Read Measurin
g Value Block

Indicated on display
- Press -Q- button to confirm input.
Read Measuring Value BlockInput displa
y group number XXX

Indicated on display
The selected measuring value block is now indicated in standard format.
Evaluation page 01
-134
. - Press buttons -0-, -0- and -1- to input display group number 1 (001).
- Press -Q- button to confirm input.
Pa
ge 36 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-134

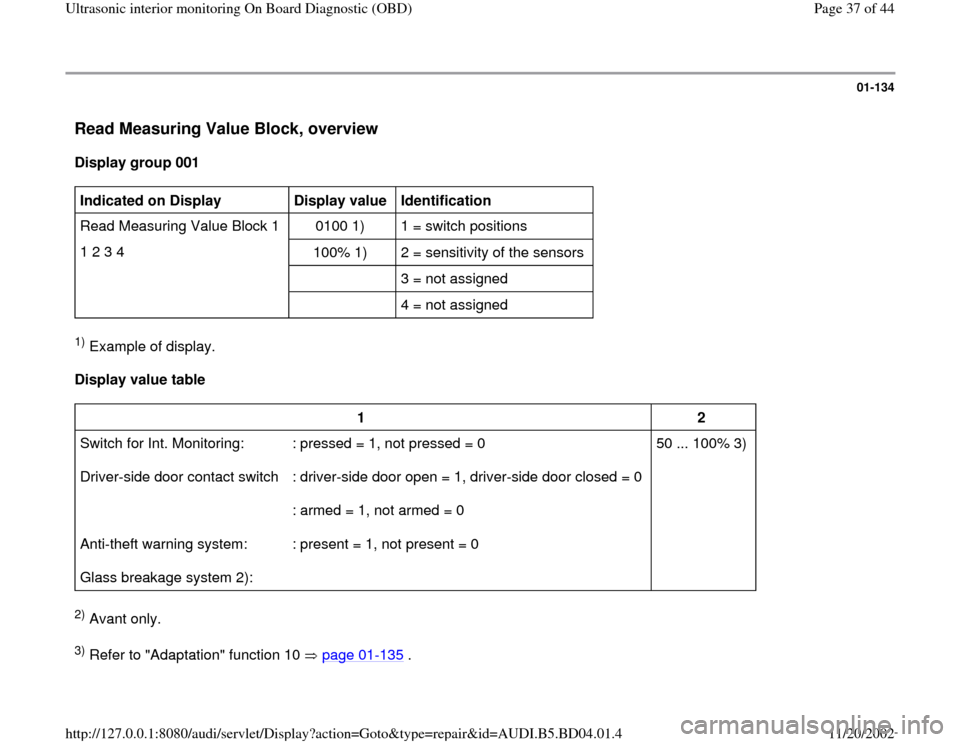

Read Measuring Value Block, overview

Display group 001
Indicated on Display
Display value
Identification
Read Measuring Value Block 1 0100 1) 1 = switch positions
1 2 3 4
100% 1) 2 = sensitivity of the sensors

3 = not assigned

4 = not assigned 1) Example of display.
Display value table
1
2
Switch for Int. Monitoring:
Driver-side door contact switch

Anti-theft warning system:
Glass breakage system 2): : pressed = 1, not pressed = 0
: driver-side door open = 1, driver-side door closed = 0
: armed = 1, not armed = 0
: present = 1, not present = 0 50 ... 100% 3)

2) Avant only. 3) Refer to "Adaptation" function 10 page 01
-135
.
Pa
ge 37 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-135

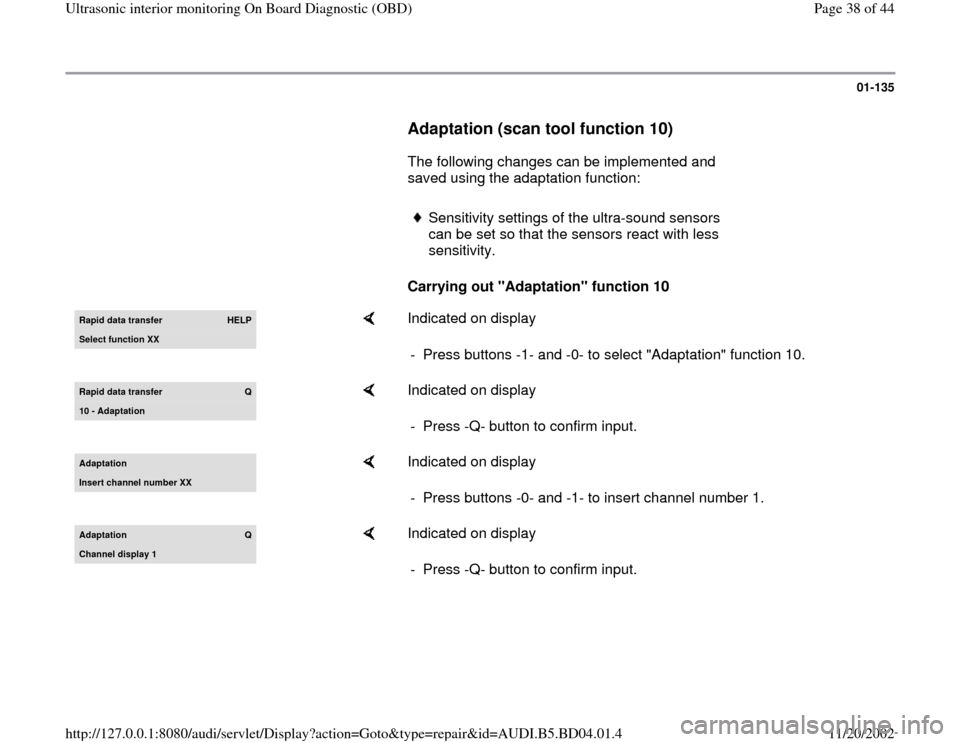

Adaptation (scan tool function 10)

The following changes can be implemented and
saved using the adaptation function:

Sensitivity settings of the ultra-sound sensors
can be set so that the sensors react with less
sensitivity.

Carrying out "Adaptation" function 10
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -1- and -0- to select "Adaptation" function 10.
Rapid data transfer
Q
10 - Adaptation

Indicated on display
- Press -Q- button to confirm input.
AdaptationInsert channel number XX

Indicated on display
- Press buttons -0- and -1- to insert channel number 1.
Adaptation
Q
Channel displa
y 1

Indicated on display
- Press -Q- button to confirm input.
Pa
ge 38 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-136

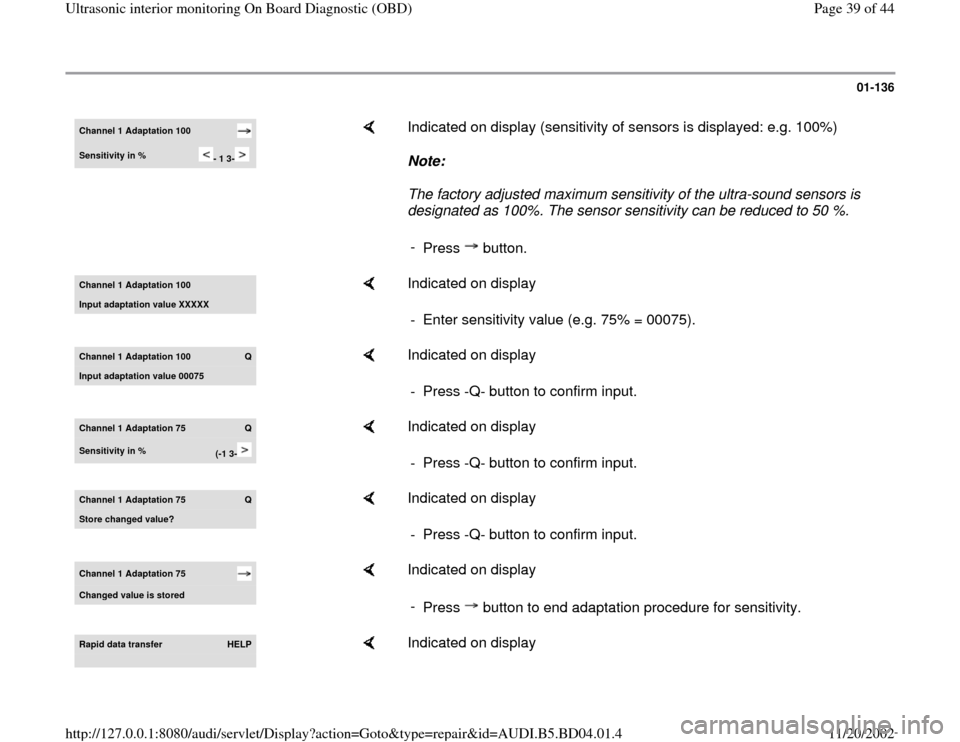

Channel 1 Adaptation 100 Sensitivity in %
- 1 3-

Indicated on display (sensitivity of sensors is displayed: e.g. 100%)
Note:
The factory adjusted maximum sensitivity of the ultra-sound sensors is
designated as 100%. The sensor sensitivity can be reduced to 50 %.
-
Press button.
Channel 1 Adaptation 100 Input adaptation value XXXXX

Indicated on display
- Enter sensitivity value (e.g. 75% = 00075).
Channel 1 Adaptation 100
Q
Input adaptation value 00075

Indicated on display
- Press -Q- button to confirm input.
Channel 1 Adaptation 75
Q
Sensitivity in %
(-1 3-

Indicated on display
- Press -Q- button to confirm input.
Channel 1 Adaptation 75
Q
Store changed value?

Indicated on display
- Press -Q- button to confirm input.
Channel 1 Adaptation 75 Chan
ged value is stored

Indicated on display
-
Press button to end adaptation procedure for sensitivity.
Rapid data transfer
HELP

Indicated on display
Pa
ge 39 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

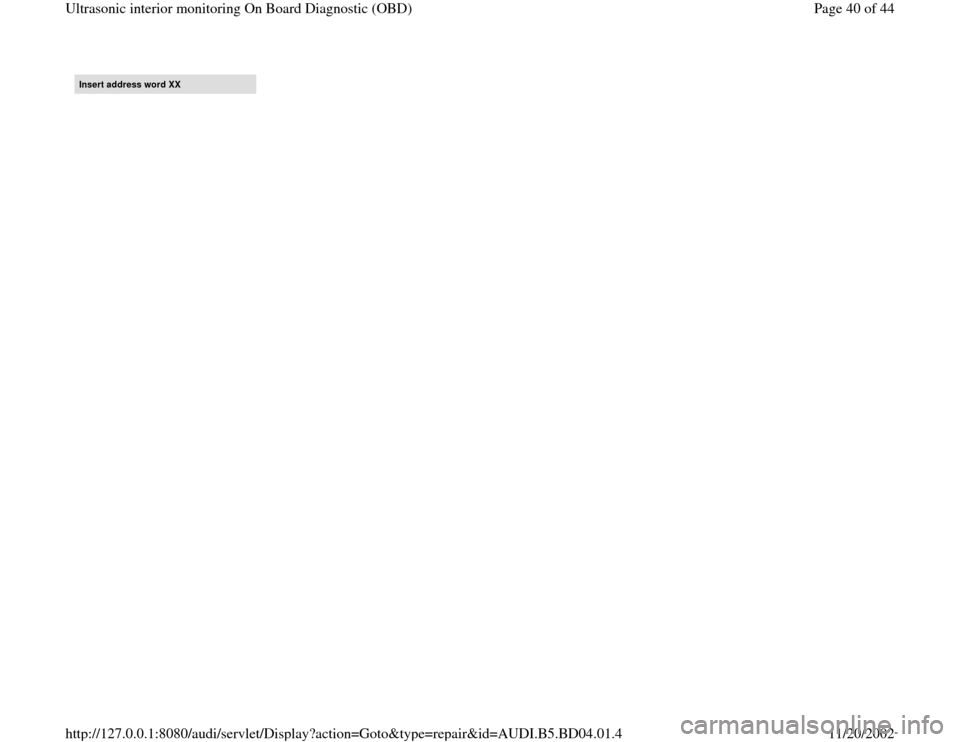

Insert address word XX
