Page 41 of 44
01-137

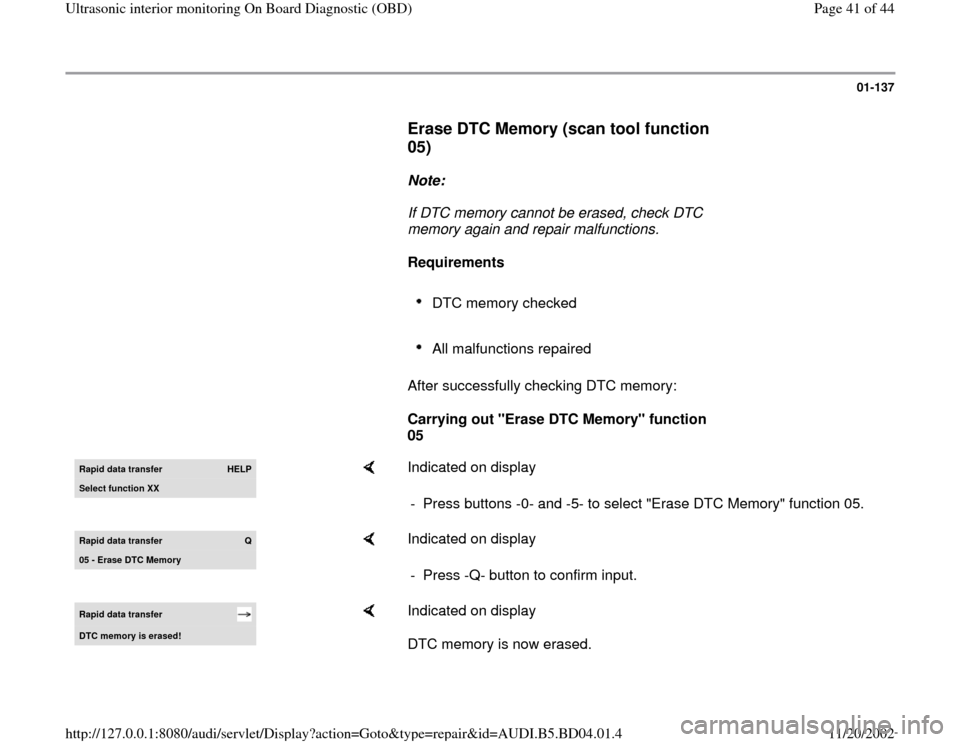

Erase DTC Memory (scan tool function
05)
Note:
If DTC memory cannot be erased, check DTC
memory again and repair malfunctions.
Requirements
DTC memory checked
All malfunctions repaired
After successfully checking DTC memory:
Carrying out "Erase DTC Memory" function
05
Rapid data transfer
HELP
Select function XX
Indicated on display
- Press buttons -0- and -5- to select "Erase DTC Memory" function 05.
Rapid data transfer
Q
05 - Erase DTC Memory
Indicated on display
- Press -Q- button to confirm input.
Rapid data transfer DTC memory is erased!
Indicated on display
DTC memory is now erased.
Pa
ge 41 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4
Page 42 of 44
-

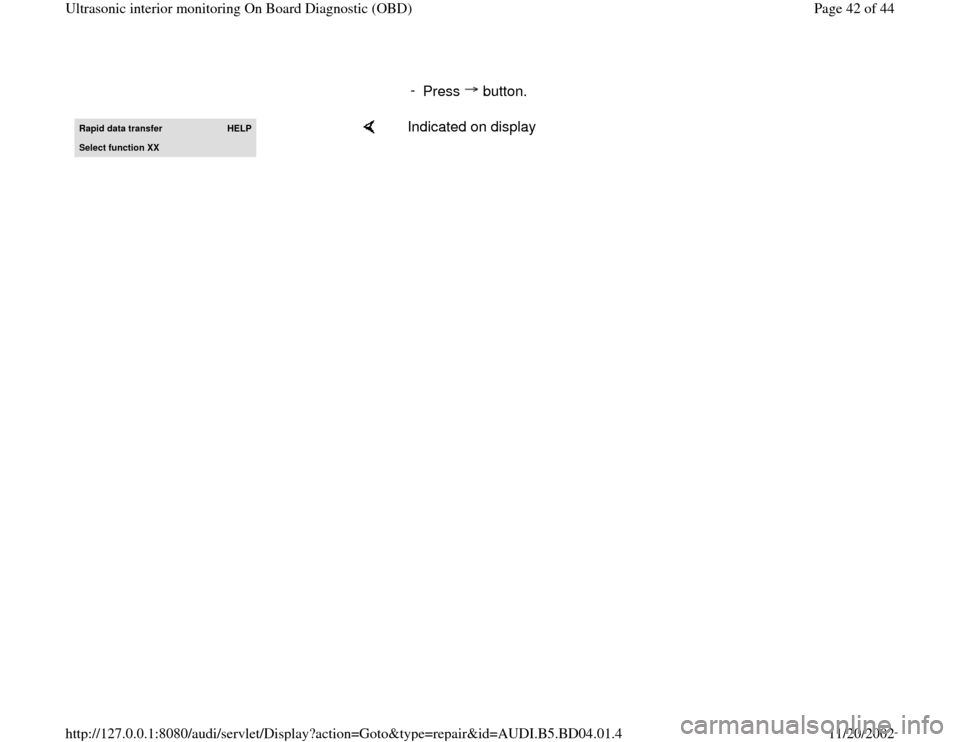

Press button.
Rapid data transfer
HELP
Select function XX
Indicated on display
Pa
ge 42 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4
Page 43 of 44
01-138

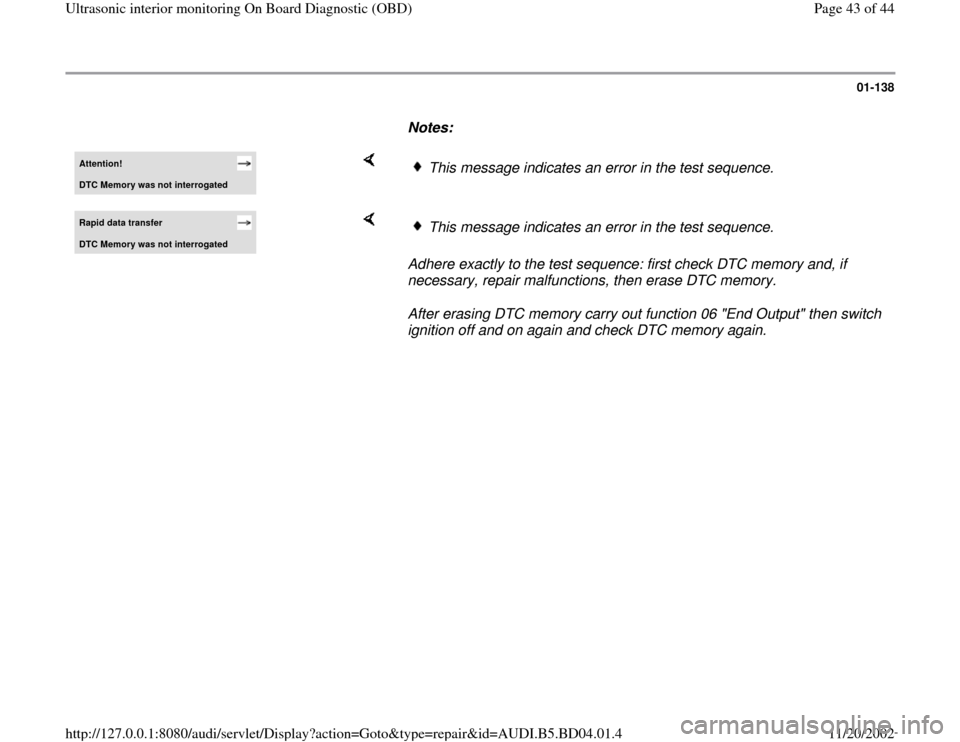

Notes: Attention! DTC Memory was not interrogated
This message indicates an error in the test sequence.
Rapid data transfer DTC Memor
y was not interro
gated
Adhere exactly to the test sequence: first check DTC memory and, if
necessary, repair malfunctions, then erase DTC memory.
After erasing DTC memory carry out function 06 "End Output" then switch
ignition off and on again and check DTC memory again.
This message indicates an error in the test sequence.
Pa
ge 43 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4
Page 44 of 44
01-139

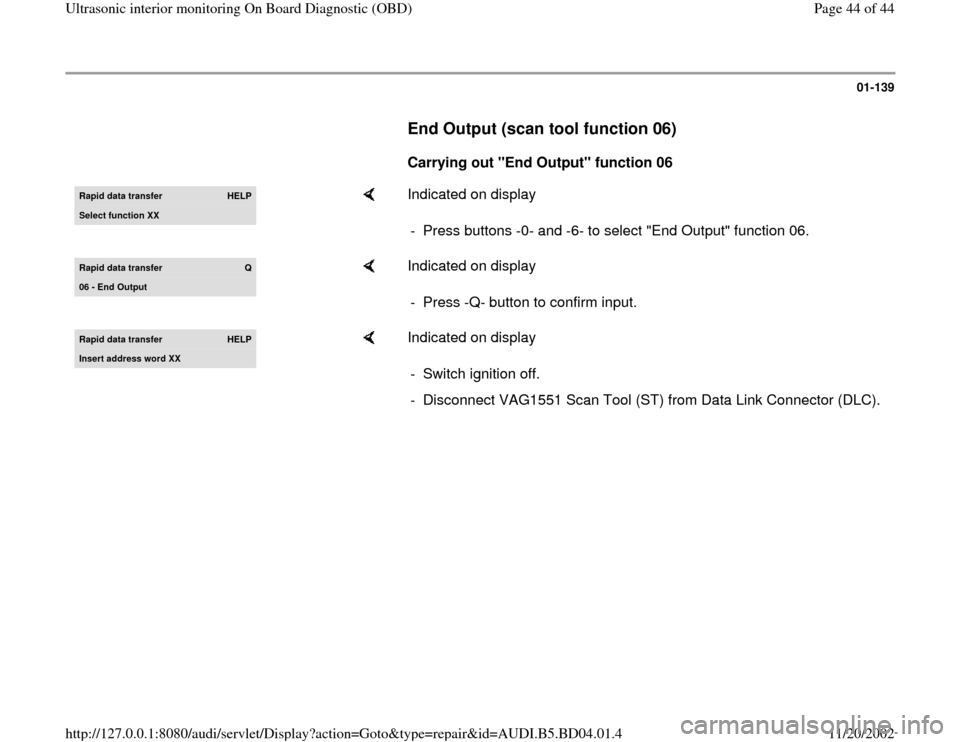

End Output (scan tool function 06)
Carrying out "End Output" function 06
Rapid data transfer
HELP
Select function XX
Indicated on display
- Press buttons -0- and -6- to select "End Output" function 06.
Rapid data transfer
Q
06 - End Output
Indicated on display
- Press -Q- button to confirm input.
Rapid data transfer
HELP
Insert address word XX
Indicated on display
- Switch ignition off.
- Disconnect VAG1551 Scan Tool (ST) from Data Link Connector (DLC).
