1997 AUDI A4 Interior Monitor Workshop Manual

01-120

V.A.G 1551 Scan Tool display
Possible cause
Corrective action
01384 1)
Alarm via glass break sensor
(sensor for broken window glass rear
left -G183-; sensor for broken window
glass rear right -G184- and conductor
loop for rear window heater)
Short circuit or open circuit in harness
connectors or in wire connections between
glass break sensors and rear window heater
to control module for ultra-Sound sensors -
J347- ATS was triggered by a break-in attempt via
one of the side windows or the rear window. Conductor loop in one of the side windows or
rear window has an open circuit False alarm Electrical Wiring Diagrams,
Troubleshooting & Component
Locations binder
Repair Manual, Body Exterior;
Repair Group. 64; Side window Avant, removing and installing

Repair Manual, Body Exterior;
Repair Group. 64; Rear window Avant, removing and installing
- Erase DTC memory
- Repair wiring according to
wiring diagram
- Replace side window with the
interrupted conductor loop - Replace rear window with the
interrupted conductor loop
1) Only for Avant
Pa
ge 17 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-121

V.A.G 1551 Scan Tool display
Possible cause
Corrective action
01403 1)
Glass break sensors rear
(sensor for broken window glass rear
left -G183-; sensor for broken window
glass rear right -G184- and conductor
loop for rear window defroster)
A short circuit or an open circuit occurs in the
harness connectors or in the wire connections
between glass break sensors and rear window
heater to control module for ultra-sound sensors
-J347- when setting ATS. A conductor loop of one of the side windows or
the rear window is interrupted during setting of
the ATS Electrical Wiring Diagrams,
Troubleshooting & Component
Locations binder
Repair Manual, Body
Exterior; Repair Group. 64; Side window Avant, removing and installing

Repair Manual, Body
Exterior; Repair Group. 64; Rear window Avant, removing and installing
- Erase DTC memory
- Repair wiring according to
wiring diagram
- Check conductor loop in
side windows and replace
side window if necessary - Check conductor loop in
rear window and replace rear
window if necessary
65535
Pa
ge 18 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

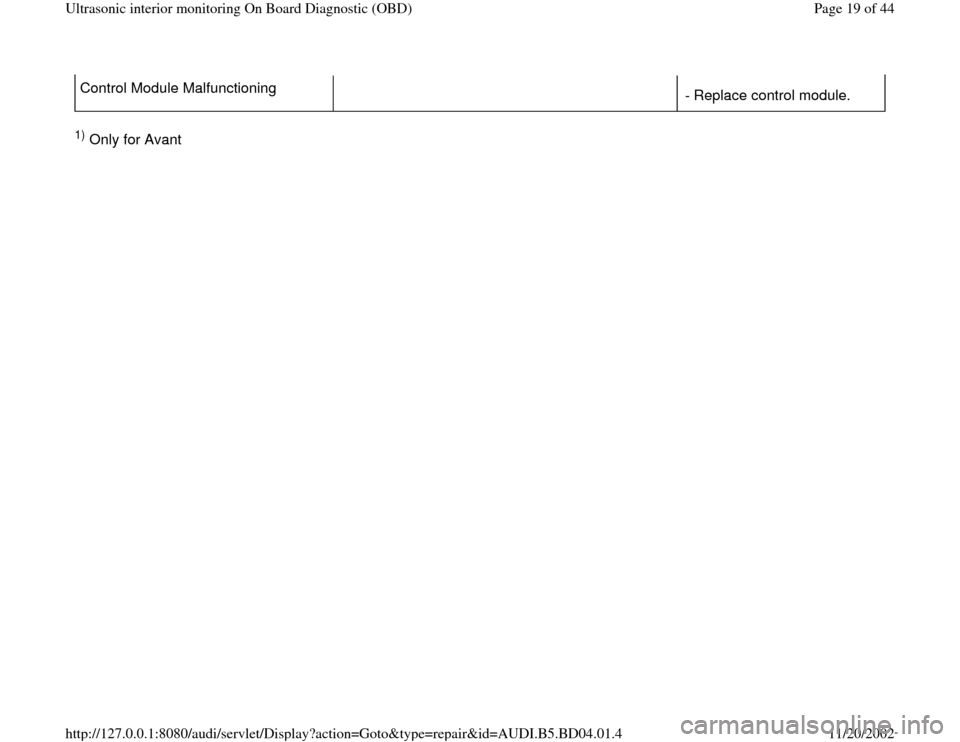

Control Module Malfunctioning
- Replace control module.1) Only for Avant
Pa
ge 19 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-122

Interior monitoring function test


- Open side window approx. 10 cm.

- Switch ignition off and remove ignition key.

- Close all doors.

- Lock vehicle, which will set the anti-theft warning
system and the interior monitoring.

- Wait 30 seconds until all warning lamps in door
trim blink slowly in 2 second intervals (f = 0,5
Hz).

- Insert hand through window opening and hold in
proximity of sensor.

- If the interior monitoring is OK, alarm will be
triggered. An entry into DTC memory of control
module for central locking "1370; alarm via
interior monitoring" as well as to ultra-sound
control module "alarm via sensor for ATS, fl, fr,
rl, rr".

- Switch off alarm by unlocking vehicle.

-
DTC must be checked and erased in DTC
Pa
ge 20 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

memory of the respective control module
Pa
ge 21 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

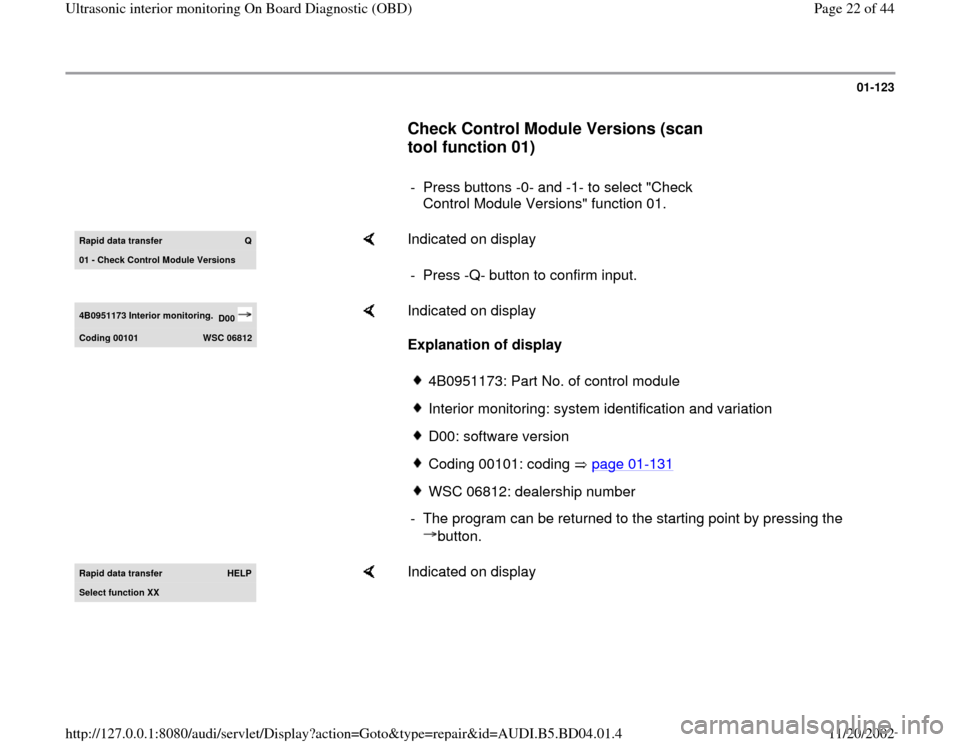

01-123

Check Control Module Versions (scan
tool function 01)


- Press buttons -0- and -1- to select "Check
Control Module Versions" function 01.
Rapid data transfer
Q
01 - Check Control Module Versions

Indicated on display
- Press -Q- button to confirm input.
4B0951173 Interior monitoring.
D00
Codin
g 00101
WSC 06812

Indicated on display
Explanation of display
4B0951173: Part No. of control moduleInterior monitoring: system identification and variationD00: software version Coding 00101: coding page 01
-131
WSC 06812: dealership number
- The program can be returned to the starting point by pressing the
button.
Rapid data transfer
HELP
Select function XX

Indicated on display
Pa
ge 22 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

01-124

Output Diagnostic Test Mode (scan tool
function 03)


Notes:

The Output Diagnostic Test Mode may only be
performed with the vehicle stationary and the
engine not running.
Any malfunctions identified by the Output
Diagnostic Test Mode must be checked and
repaired.

Performing output Diagnostic Test Mode
(DTM):
Rapid data transfer
HELPSelect function X
X

Indicated on display:
- Press buttons -0- and -3- to select "Output Diagnostic Test Mode
(DTM)" function 03.
Rapid data transfer
Q03 - Output Dia
gnostic Test Mode

Indicated on display:
The output DTM activates the following elements in sequence: - Press -Q- button to confirm input.
Warning lamps next to door locking button on driver-side or
passenger-side door
Pa
ge 23 of 44 Ultrasonic interior monitorin
g On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD04.01.4

An anti-theft warning system alarmWiring for voltage supply to the ultra-sound sensorsWiring for pulse signal to the ultra-sound sensors
