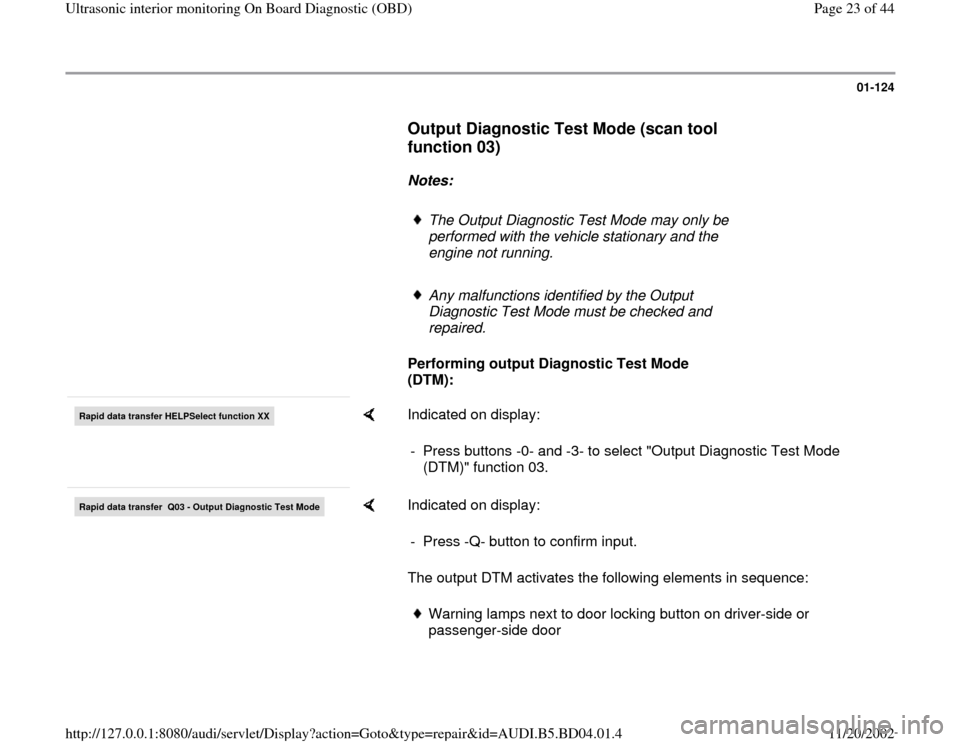

01-124
Output Diagnostic Test Mode (scan tool
function 03)
Notes:
The Output Diagnostic Test Mode may only be
performed with the vehicle stationary and the
engine not running.
Any malfunctions identified by the Output
Diagnostic Test Mode must be checked and
repaired.
Performing output Diagnostic Test Mode
(DTM):
Rapid data transfer
HELPSelect function X
X
Indicated on display:
- Press buttons -0- and -3- to select "Output Diagnostic Test Mode
(DTM)" function 03.
Rapid data transfer
Q03 - Output Dia
gnostic Test Mode
Indicated on display:
The output DTM activates the following elements in sequence: - Press -Q- button to confirm input.
Warning lamps next to door locking button on driver-side or
passenger-side door
