1996 TOYOTA COROLLA Owners Manual

124ProCarManuals.com

Part 4
If your vehicle will not startÐ
(a) Simple checks
125
IN CASE OF
AN EMERGENCY

If your vehicle will not start

If your engine stalls while
driving

If your vehicle overheats

If you have a flat tire

If your vehicle needs to be
towed

If you cannot shift automatic
transmission selector lever

If you lose your keys
Before making these checks, make sure
you have followed the correct starting pro-
cedure given in How to start the engineº
in Part 3 and that you have sufficient fuel.
If the engine is not turning over or is
turning over too slowlyÐ
1. Check that the battery terminals are
tight and clean.
2. If the battery terminals are O.K., switch
on the interior light.
3. If the light is out, dim or goes out when
the starter is cranked, the battery is dis-
charged. You may try jump starting. See
(c) Jump startingº for further instructions.
If the light is O.K., but the engine still will
not start, it needs adjustment or repair.
Call a Toyota dealer or qualified repair
shop.
NOTICE
Do not pull- or push-start the
vehicle. It may damage the vehicle
or cause a collision when the engine
starts. Also the three-way catalytic
converter may overheat and
become a fire hazard.
If the engine turns over at its normal
speed but will not startÐ
1. Check that all the push-on connectors
are tight. (For example, connections at
the spark plugs, ignition coil and/or distrib-
utor)
2. If the connectors are O.K., the engine
may be flooded because of repeated
cranking. See (b) Starting a flooded en-
gineº for further instructions.
ProCarManuals.com

126If the engine will not start, your engine
may be flooded because of repeated
cranking.
If this happens, turn the key to STARTº
with the accelerator pedal held down.
Keep the key and accelerator pedal so for
15 seconds and release them. Then try
starting the engine with your foot off the
accelerator pedal.
If the engine does not start after 15 sec-
onds of cranking, release the key, wait a
few minutes and try again.
If the engine still will not start, it needs ad-
justment or repair. Call a Toyota dealer or
qualified repair shop for assistance.
NOTICE
Do not crank for more than 15
seconds at a time. This may overheat
the starter and wiring systems.
To avoid serious personal injury and
damage to your vehicle which might
result from battery explosion, acid
burns, electrical burns, or damaged
electronic components, these instruc-
tions must be followed precisely.
If you are unsure about how to follow this
procedure, we strongly recommend that
you seek the help of a competent me-
chanic or towing service.

Batteries contain sulfuric acid
which is poisonous and corrosive.
Wear protective safety glasses
when jump starting, and avoid
spilling acid on your skin, cloth-
ing, or vehicle.

If you should accidentally get acid
on yourself or in your eyes, re-
move any contaminated clothing
and flush the affected area with
water for at least 15 minutes. Then
get immediate medical attention. If
possible, continue to apply water
with a sponge or cloth while en
route to the medical office.CAUTION
! (b) Starting a flooded engine (c) Jump starting
ProCarManuals.com

127

The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and
do not smoke or light a match
while jump starting.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless
you are sure that the booster battery
is correct.
JUMP STARTING PROCEDURE
1. If the booster battery is installed in
another vehicle, make sure the vehicles
are not touching. Turn off all unnecessary
lights and accessories.
2. If required, remove all the vent plugs
from the booster and discharged batter-
ies. Lay a cloth over the open vents on the
batteries. (This helps reduce the explo-
sion hazard, personal injuries and burns.)
3. If the engine in the vehicle with the
booster battery is not running, start it and
let it run for a few minutes. During jump
starting, run the engine at about 2000 rpm
with the accelerator pedal lightly de-
pressed.4. Connect the jumper cables in the exact
order shown in the illustration: positive
terminal (+º mark)-to-positive terminal
(+ºmark), and negative terminal (-º
mark)-to-engine or body ground. Note
that you first connect the positive cable to
the discharged battery and then to the
booster battery. Next, connect the nega-
tive cable to the booster battery and then
to a solid, stationary, unpainted, metallic
point (e.g. engine hanging hook) away
from the battery. Do not connect it to or
near any part that moves when the engine
is cranked.NOTICE
When making the connections, do
not lean over the battery or
accidentally let the jumper cables or
clamps touch anything except the
correct battery terminals or the
ground.
5. Start your engine in the normal way.
After starting, run it at about 2000 rpm for
several minutes with the accelerator ped-
al lightly depressed.
6. Carefully disconnect the cables in the
exact reverse order: the negative cable
and then the positive cable.7. Carefully dispose of the battery cover
clothsÐthey may now contain sulfuric
acid.
8. If removed, replace all the battery vent
plugs.
If the cause of your battery discharging is
not apparent (for example, lights left on),
you should have it checked.
ProCarManuals.com

128If your engine stalls while driving0
1. Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Try starting the engine again.
If the engine will not start, see If your ve-
hicle will not startº.

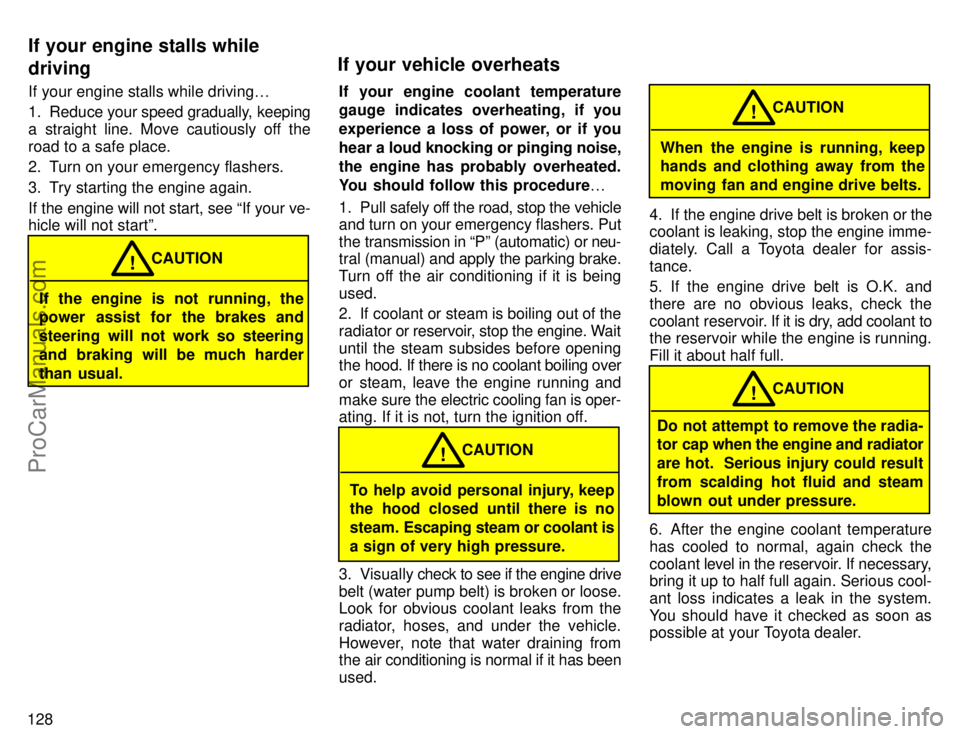

If the engine is not running, the
power assist for the brakes and
steering will not work so steering
and braking will be much harder
than usual.CAUTION
!
If your engine coolant temperature
gauge indicates overheating, if you
experience a loss of power, or if you
hear a loud knocking or pinging noise,
the engine has probably overheated.
You should follow this procedure0
1. Pull safely off the road, stop the vehicle
and turn on your emergency flashers. Put
the transmission in Pº (automatic) or neu-
tral (manual) and apply the parking brake.
Turn off the air conditioning if it is being
used.
2. If coolant or steam is boiling out of the
radiator or reservoir, stop the engine. Wait
until the steam subsides before opening
the hood. If there is no coolant boiling over
or steam, leave the engine running and
make sure the electric cooling fan is oper-
ating. If it is not, turn the ignition off.
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.CAUTION
!
3. Visually check to see if the engine drive
belt (water pump belt) is broken or loose.
Look for obvious coolant leaks from the
radiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has been
used.
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.CAUTION
!
4. If the engine drive belt is broken or the
coolant is leaking, stop the engine imme-
diately. Call a Toyota dealer for assis-
tance.
5. If the engine drive belt is O.K. and
there are no obvious leaks, check the
coolant reservoir. If it is dry, add coolant to
the reservoir while the engine is running.
Fill it about half full.
Do not attempt to remove the radia-
tor cap when the engine and radiator
are hot. Serious injury could result
from scalding hot fluid and steam
blown out under pressure.CAUTION
!
6. After the engine coolant temperature
has cooled to normal, again check the
coolant level in the reservoir. If necessary,
bring it up to half full again. Serious cool-
ant loss indicates a leak in the system.
You should have it checked as soon as
possible at your Toyota dealer.
If your engine stalls while
drivingIf your vehicle overheats
ProCarManuals.com

129 1. Reduce your speed gradually, keeping
a straight line. Move cautiously off the road
to a safe place well away from the traffic.
Avoid stopping on the center divider of a
highway. Park on a level spot with firm
ground.
2. Stop the engine and turn on your emer-
gency flashers.
3. Firmly set the parking brake and put
the transmission in Pº (automatic) or re-
verse (manual).
4. Have everyone get out of the vehicle
on the side away from traffic.
5. Read the following instructions thor-
oughly.
When jacking, be sure to observe the
following to reduce the possibility
of personal injury:

Follow jacking instructions.

Use the jack only for lifting your
vehicle during wheel changing.

Never get beneath the vehicle
when supported by a jack.

Do not start or run the engine
while your vehicle is supported by
a jack.CAUTION
!
NOTICE
Do not continue driving with a
deflated tire. Driving even a short
distance can damage a tire beyond
repair.
Compact spare tire
The compact spare tire is designed for
temporary emergency use only.
The standard tire should be repaired and
replaced as soon as possible.
The compact spare tire is identified by the
distinctive wording TEMPORARY USE
ONLYº molded into the side wall of the tire.
The compact spare tire saves space in
your luggage compartment, and its lighter
weight helps to improve fuel economy and
permits easier installation in case of a flat
tire.
If you have a flat tireÐ
ProCarManuals.com

130The compact spare tire can be used many
times, if necessary. It has tread life of up
to 4800 km (3000 miles) depending on
road conditions and your driving habits.
When tread wear indicators appear on the
tire, replace the tire.
See also the tire section in Chapter 7-2 for
details on the tread wear indicators and
other service information.

The compact spare tire was de-
signed especially for your Toyota.
Do not use it on any other vehicle.

Do not exceed 80 km/h (50 mph)
when driving with the compact
spare tire.CAUTION
!
NOTICE
Your ground clearance is reduced
when the compact spare tire is
installed so avoid driving over
obstacles and drive slowly on
rough, unpaved roads and speed
bumps. Also, do not attempt to go
through an automatic car wash as
the vehicle may get caught,
resulting in damage.
1. Get the tool bag, jack, jack handle
and spare tire.
To prepare yourself for an emergency,
you should familiarize yourself with the
use of the jack, each of the tools and their
storage locations.
ÐRequired tools and spare tire
ProCarManuals.com

131
When removing the jack, turn the joint by
hand towards the CONTRACT direction
until the jack is free. When storing, turn
the joint by hand towards the EXPAND di-
rection until the jack is firmly secured to
prevent it from flying forward during a col-
lision or sudden braking.To remove the spare tire:
1. Loosen the nut and remove it.
2. Remove the spare tire cover.
3. Loosen and remove the bolt and spacer.
4. Take the spare tire out of the vehicle.
When storing the spare tire, put it in place
with the outer side of the wheel facing up.
Then secure the tire by repeating the
above removal steps in reverse order to
prevent it from flying forward during a col-
lision or sudden braking.
To install the nut, just push it down.To remove the spare tire, loosen the bolt
and remove it.
When storing the spare tire, put it in place
with the outer side of the wheel facing up
and secure it to prevent it from flying for-
ward during a collision or sudden braking.
ProCarManuals.com
