1996 FORD SUPER DUTY Owners Manual

6rear edge of the driver's door. You can
determine whether the ambulance manufacturer
followed Ford's recommendations by directly
contacting that manufacturer.NOTE: Ford
Ambulance Preparation Packageis only
available on certain 7.3L Diesel Econoline and
F-Series vehicles.
*
[IN05050( EF )02/89]
NOTICE TO OWNERS OF
DIESEL-POWERED VEHICLES
*
[IN05070( EF )04/89]
Read the7.3L Diesel Engine Owner's Guide
Supplementfor information regarding correct
operation and maintenance of your
diesel-powered light truck.
%
*
[IN05100( ALL)05/95]
Your Vehicle Identification
Number (VIN)
*
[IN05200( ALL)05/95]
Your Vehicle Identification Number (VIN) is the
same as the warranty number that appears on
your owner card. You should include this
number any time you write to Ford Motor
Company about your vehicle.
*
[IN05300(BEF )05/95]
The Vehicle Identification Number is attached to
your vehicle in the following places:
*
[IN05350( EF )05/90]
Complete Ford Built Vehicles
*
[IN05400(BEF )05/95]
q
on the metal tag attached to the top of the
instrument panel on the driver's side Ð you
can see the tag by looking through the
windshield from outside your vehicle.
*
[IN05450(BEF )10/89]
one inch art:0010558-A
Vehicle Identification Number (VIN/Serial Number)
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

7 %
*
[IN05500(BEF )05/95]
q

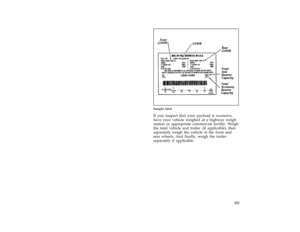

on the Safety Compliance Certification Label
Ð this label is attached to the left front door
lock facing or the door latch post pillar. It is
required by the National Highway Traffic
Safety Administration and is made of special
material. If someone tampers with it, it will
be destroyed and/or a destruction pattern
will appear.
*
[IN05515( ALL)04/94]
The label contains the name of the manufacturer,
the month and year of manufacture, the
certification statement and the Vehicle
Identification Number. The label also contains
Gross Vehicle Weight Rating and Gross Axle
Weight Ratings, wheel and tire data and
information codes for additional vehicle data.
For further information about the Safety
Compliance Certification Label and the
information contained on it, refer to the Index.
*
[IN05520( EFM)05/90]
Incomplete Vehicles
*
[IN05530( EFM)12/91]
On completed derivations of incomplete vehicles,
the Safety Compliance Certification Label is
affixed at a location determined by a subsequent
stage manufacturer of the completed vehicle. In
these cases the completed vehicle is
manufactured in two (or more) stages by two (or
more) separate manufacturers, with the
manufacture of the completed vehicle occurring
at a later date than the manufacture of the
incomplete vehicle. Consequently, the model
year of the completed vehicle may be later than
the model year of its chassis.
*
[IN05545( ALL)04/95]
Federal Highway Administration
Regulation
*
[IN05560( ALL)04/95]
Regulations such as those issued by the Federal
Highway Administration or issued pursuant to
the Occupational Safety and Health Act (OSHA),
and/or state and local laws and regulations may
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

8require additional equipment for the way you
intend to use the vehicle. It is the responsibility
of the registered owner to determine the
applicability of such laws and regulations to
your intended use for the vehicle, and to
arrange for the installation of required
equipment. Your Ford dealer has information
about the availability of many items of
equipment which may be ordered for your
vehicle.
*
[IN06000( ALL)01/95]
Breaking Your Vehicle In
*
[IN06100( ALL)03/95]
Your new vehicle goes through an adjustment or
break-in period during the first 1,000 miles
(1,600 km) that you drive it. During the break-in
period, you need to pay careful attention to how
you drive your vehicle.
%*
[IN06300( ALL)01/95]
q
Avoid sudden stops.Because your vehicle
has new brake linings, you should take these
steps:
*
[IN06400( ALL)01/95]
Ð Watch traffic carefully so that you can
anticipate when to stop.
*
[IN06500( ALL)01/95]
Ð Begin braking well in advance.
*
[IN06600( ALL)01/95]
Ð Apply the brakes gradually.
*
[IN06700( ALL)01/95]
The break-in period for new brake linings
lasts for 100 miles (160 km) of city driving or
1,000 miles (1,600 km) of highway driving.
*
[IN06750( ALL)12/93]
q

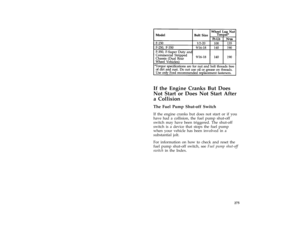

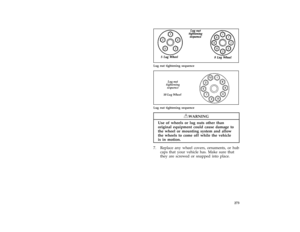

Wheel lug nuts must be retightened to proper
torque specifications at 500 miles/800 km of
new vehicle operation. Proper torque
specifications are provided in this guide. Also
retighten to proper torque specification at 500
miles/800 km after any wheel change or any
other time the wheel lug nuts have been
loosened.
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

9 %
*
[IN06800(BEF )01/95]
q
Use only the type of engine oil that Ford
recommends.SeeEngine oil recommendations
in the Index. Do not use special ªbreak-inº
oils.
%
*
[IN07100(BEF )04/95]
Cleaning the Outside of Your
Vehicle
%*
[IN07200(BEF )04/95]
Washing and Polishing Your Vehicle
*
[IN07300(BEF )04/95]
Wash the outside of your vehicle, including the
underside, with a mild detergent.
*
[IN07400(BEF )04/95]
DO NOT:
*
[IN07500(BEF )04/95]
q
Wash your vehicle with hot water
*
[IN07600(BEF )04/95]
q
Wash your vehicle while it sits in direct
sunlight
*
[IN07700(BEF )04/95]
q
Wash your vehicle while the body is hot
*
[IN07800(BEF )05/95]
Pollen, bird droppings and tree sap can damage
the paint, especially in hot weather. Wash your
vehicle as often as necessary to keep it clean.
*
[IN07900(BEF )05/95]
Take similar precautions if your vehicle is
exposed to chemical industrial fallout.
*
[IN08000(BEF )04/95]
Paint damage resulting from fallout is not
related to a defect in paint materials or
workmanship and therefore is not covered by
warranty. Ford, however, believes that continual
improvement in customer satisfaction is a high
priority. For this reason, Ford has authorized
their dealers to repair, at no charge to the
owner, the surfaces of new vehicles damaged by
environmental fallout within 12 months or 12,000
miles (20,000 km) of purchase, whichever comes
first. Customers may be required to bring their
vehicle in for inspection by a Ford
representative.
*
[IN08100(BEF )04/95]
Polish your vehicle to remove harmful deposits
and protect the finish.
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

10 %
*
[IN08200(BEF )04/95]
Cleaning Chrome and Aluminum Parts
*
[IN08300(BEF )04/95]
Wash chrome and aluminum parts with the
same detergent you use to wash the vehicle
body, such as Ford Premium Car Wash
Concentrate. You can use Ford Extra Strength
Tar and Road Oil Remover or equivalent to
clean grease, oil, and tar from chrome-plated
parts, including wheelcovers, aluminum wheels,
bumpers, or anodized aluminum parts.
%*
[IN08400(BEF )04/95]
Cleaning Plastic Parts
*
[IN08500(BEF )04/95]
Some of your vehicle's exterior trim parts are
plastic. Clean with a tar and road oil remover if
necessary. Use a vinyl cleaner for routine
cleaning.
*
[IN08600(BEF )04/95]
Do not clean plastic parts with thinners, solvents
or petroleum-based cleaners.
%*
[IN08700(BEF )04/95]
If you have your vehicle rustproofed, remove
oversprayed rustproofing with a tar and road oil
remover. If rustproofing is not removed from
plastic and rubber parts, it can cause
deterioration.
File:ltinf.ex
Update:Thu May 9 15:20:54 1996

11
Safety Restraints
*
[SR00500(BEF )04/95]
Important Safety Belt Information
*
[SR00600(BEF )03/95]
The use of safety belts helps to restrain you and
your passengers in case of a collision. In most
states and in Canada the law requires their use.
*
[SR00700(BEF )01/95]
Safety belts provide best restraint when:
*
[SR00800(BEF )01/95]
q
the seatback is upright
*
[SR00900(BEF )01/95]
q
the occupant is sitting upright (not slouched)
*
[SR01000(BEF )01/95]
q
the lap belt is snug and low on the hips
*
[SR01100(BEF )01/95]
q
the shoulder belt is snug against the chest
*
[SR01200(BEF )01/95]
q
the knees are straight forward
*
[SR02000(BEF )05/95]
To help you remember to fasten your safety belt,
a warning light may come on and a chime may
sound. SeeSafety Belt Warning Light and Chimein
theWarning Lights and Gaugeschapter.
*
[SR02100(BEF )01/95]
See the following sections in this chapter for
directions on how to properly use these safety
belts. Also seeSafety Restraints for Childrenin this
chapter for special instructions about using
safety belts for children.
%*
[SR02200(BEF )05/95]
RWARNING
Make sure that you and your passengers
wear safety belts. Always drive and ride
with your seatback upright and the lap
belt snug and low across the hips.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

12
*
[SR02400(BEF )05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR02500(BEF )05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR02600(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[SR02800(BEF )03/95]
RWARNING
Never wear the shoulder belt under the
arm. Never swing it around the neck over
the inside shoulder. Never use a single
belt for more than one person or across
more than one seating position. Each
seating position in your vehicle has a
specific safety belt assembly which is
made up of one buckle and one tongue
that are designed to be used as a pair.
Failure to follow these precautions could
increase the risk and/or severity of injury
in a collision.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

13
*
[SR02900(BEF )05/95]
RWARNING
Lock the doors of your vehicle before
driving to lessen the risk of the door
coming open in a collision.
[SR02910( EF )04/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for
front seat passenger and rear seat outboard
passengers.
[SR02930(BEF )04/95]
Dual Locking Mode Retractors
[SR02940(BEF )04/95]
Vehicle Sensitive (Emergency) Locking Mode
[SR02950(BEF )04/95]
In this operating mode, the shoulder belt
retractor will allow the occupant freedom of
movement, locking tight only on hard braking,
hard cornering or impacts of approximately
5 mph (8 km/h) or more.
[SR02960(BEF )04/95]
The front seat belt retractor can also be made to
lock by pulling/jerking on the belt.
[SR02970(BEF )04/95]
Automatic Locking Mode
[SR02980(BEF )04/95]
In this operating mode, the shoulder belt
retractor will be automatically locked and remain
locked when the combination lap/shoulder
safety belt is buckled, and does not allow the
occupant freedom of movement. This mode
provides the following:
[SR02990(BEF )04/95]
q
A tight lap/shoulder belt fit on occupant
[SR03000(BEF )04/95]
q

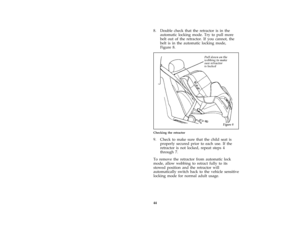

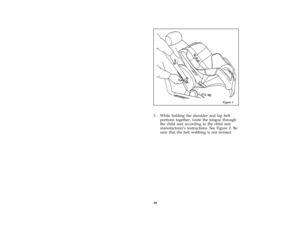

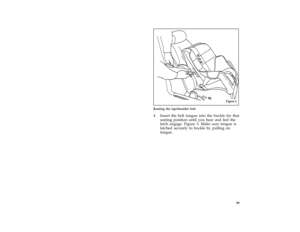

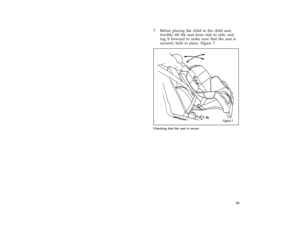

Child seat/infant carrier installation restraint
[SR03010(B F )04/95]
RWARNING
Rear-facing infant seats should never be
placed in the front seat.
[SR03020(BEF )04/95]

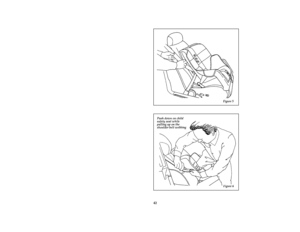

This mode must be used when installing a child
seat on the front passenger seat and rear
outboard seats where dual locking retractors are
provided.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996
