14 [SR03030(BEF )04/95]To switch the retractor from the ªemergency
locking modeº to the ªautomatic locking mode,º
perform the following steps:
[SR03040(BEF )04/95]
1. Buckle the lap/shoulder combination belt.
[SR03050(BEF )04/95]
2. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted, and when allowed to retract, a
clicking sound will be heard. At this time,
the belt retractor is in the ªautomatic locking
modeº (child restraint mode).
[SR03060(BEF )04/95]
3. A clicking sound will continue to be heard
as the belt is allowed to retract. This
indicates that the retractor is in the
ªautomatic locking mode.º
[SR03070(BEF )04/95]
NOTE: When the combination lap/shoulder
belt is unbuckled and allowed to
retract completely, the retractor will
switch back to the vehicle sensitive
(emergency) locking mode. See the
detailed instructions underSafety Seats
for Childrenin this chapter.
*
[SR03120(BEF )05/95]
Combination Lap and Shoulder
Belts
*
[SR03125(BEF )05/95]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, corner hard or if
your truck receives an impact of 5 mph
(8 km/h) or more, the combination lap/shoulder
belt locks and helps reduce your forward
movement. The front seat belt systems can also
be made to lock by jerking on the shoulder belt.
*
[SR03130(BEF )05/95]
NOTE: The rear belts cannot be made to lock
up by jerking on shoulder belt.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

15
*
[SR03135(BEF )05/95]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SR03137(BEF )05/95]
To fasten the belt
*
[SR03140(BEF )05/95]
Pull the combination lap/shoulder belt from the
retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If it is, remove the twist. Insert
the belt tongue into the proper buckle until you
hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR03145( EF )05/95]
one third page art:0020639-D*
[SR03160(BEF )05/95]
RWARNING
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never swing it around
the neck over the inside shoulder. Never
use a single belt for more than one
person. Failure to follow these precautions
could increase the risk and/or severity of
injury in a collision.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

16
*
[SR03165(BEF )05/95]
To tighten the lap portion of the belt, pull up on
the shoulder belt until it fits you snugly. The
belt should rest as low on your hips as possible.
[SR03175(BEF )05/95]
RWARNING
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never swing it around
the neck over the inside shoulder. Never
use a single belt for more than one
person. Failure to follow these precautions
could increase the risk and/or severity of
injury in a collision.
[SR03185(BEF )05/95]
Due to folding rear seats, sometimes the buckles
and tongues toward the center of the vehicle
may be hidden by the rear edge of the seat
cushion. Pull them out so they will be accessible.
[SR03190(BEF )05/95]
While you are fastened in the seat belt, the
combination lap and shoulder belt adjusts to
your movement. However, if you brake hard,
turn hard, or if your vehicle receives an impact
of 5 mph (8 km/h) or more, the lap and
shoulder belt will become locked and help
reduce your forward movement.
%*
[SR06800(BEF )05/95]
Adjustable Lap Belts Without Retractors
[SR06900( F )05/95]
The lap belts for center side facing (Jump seat)
do not have retractors, but do have a locking
adjustable tongue. They should be shortened and
fastened to buckle when you are not using them.
To lengthen your belt, tip the belt tongue at a
right angle to the belt and pull the belt over
your lap until the tongue reaches the buckle.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

17 [SR07400(BEF )05/95]
one third page art:0020638-C
Fastening occupant safety lap belts
[SR07500(BEF )04/95]
To fasten the belt, pull the belt across your hips
and insert the tongue into the correct buckle on
your seat until you hear a snap and feel it latch.
Make sure the buckle is securely fastened by
pulling tongue.
*
[SR07600(BEF )03/91]
Adjust the belt so that it fits snugly and as low
as possible around the hips:
*
[SR07700(BEF )02/95]
q
If you need to lengthen the belt, unfasten it
and repeat the procedure above.
*
[SR07800(BEF )03/95]
q
If you need to shorten the belt, pull on the
loose end of the webbing.
[SR08500(BEF )05/95]
To unfasten the belt:
[SR08525(BEF )05/95]
1. Push the release button on the buckle. This
allows the tongue to unlatch from the
buckle.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

18 [SR08550( EF )05/95]
one third page pica art:0020639-DUnfastening the outboard lap/shoulder belts
[SR08650(BEF )05/95]
2. While the belt retracts, guide the tongue to
its stowed position. If you do not guide the
tongue, it may strike you or part of the
vehicle.
*
[SR08800(BEF )03/95]
How to Untwist or Unjam a Safety Belt
Retractor
*
[SR08900(BEF )03/95]
If you should jam the lap belt retractor by
allowing the belt to retract when it is twisted,
you can free the webbing with this procedure:
*
[SR09000(BEF )03/95]
1. Pull on the belt with both hands to tighten it
on the retractor spool.
*
[SR09100(BEF )03/95]
2. Feed the belt back into the retractor until it
is completely retracted. Repeat previous step
if necessary.
[SR09200(BEF )02/95]
3. Pull the belt out of the retractor as far as it
will go and untwist the belt or remove the
object that is jamming the belt. Let the belt
retract.
*
[SR09300(BEF )03/95]
4. Then, pull the belt out and let it retract
several times to make sure that the belt
works properly.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

19 [SR09505(BEF )05/95]
Procedure to Correct a Twisted Safety
Shoulder Belt at the ªDº Ring (if so
equipped) Front and/or Rear Outboard
Seating Positions
[SR09507(BEF )05/95]
NOTE: The restraint system shown in the
following figures may be different than
the restraint system in your vehicle.
However, use these figures and this
procedure to correct a twisted safety
shoulder belt at any outboard seating
position that has a ªDº ring.
[SR09510(BEF )05/95]

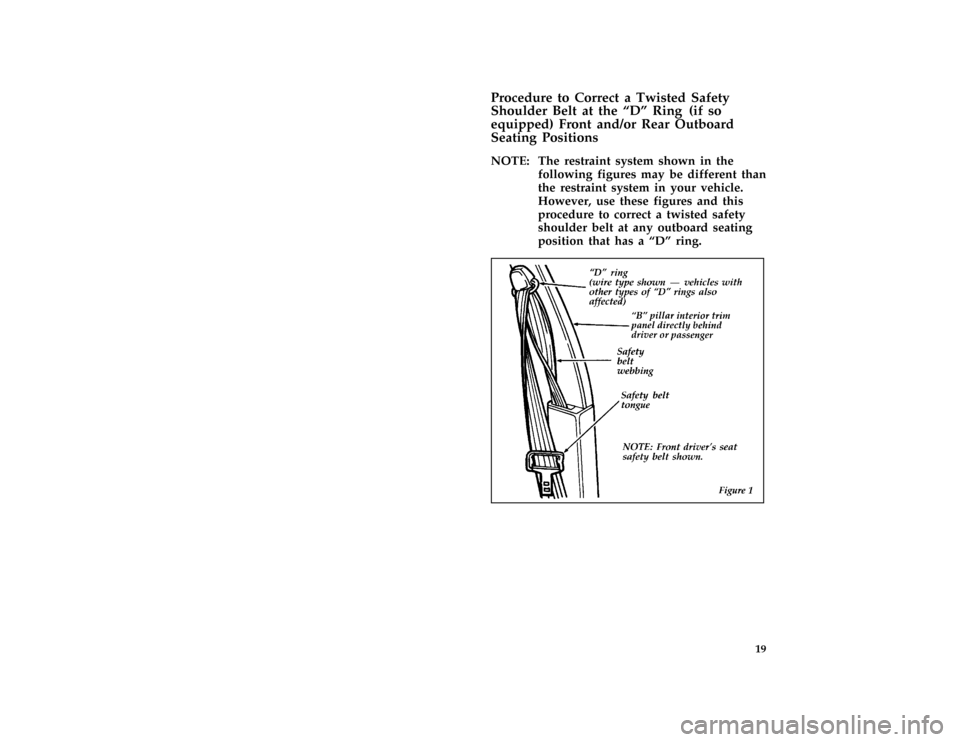

half page art:0060598-CFile:ltsrf.ex
Update:Thu May 9 15:26:26 1996

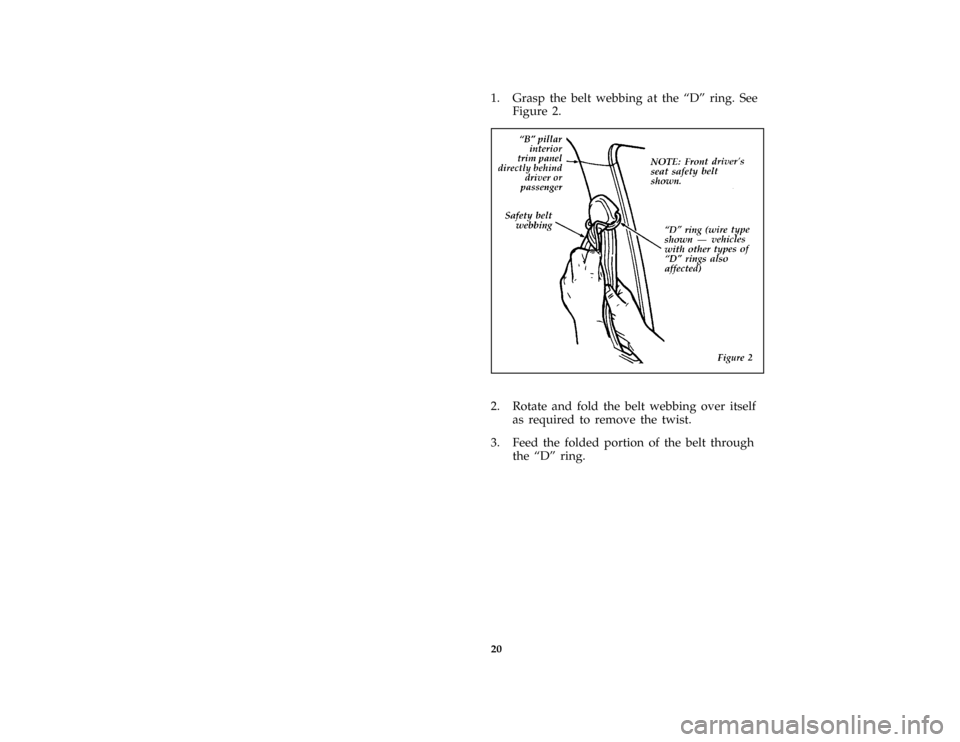

20 [SR09515(BEF )05/95]1. Grasp the belt webbing at the ªDº ring. See
Figure 2.
[SR09520(BEF )05/95]
half page art:0060599-D[SR09525(BEF )05/95]
2. Rotate and fold the belt webbing over itself
as required to remove the twist.
[SR09527(BEF )05/95]
3. Feed the folded portion of the belt through
the ªDº ring.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

21 [SR09530(BEF )05/95]

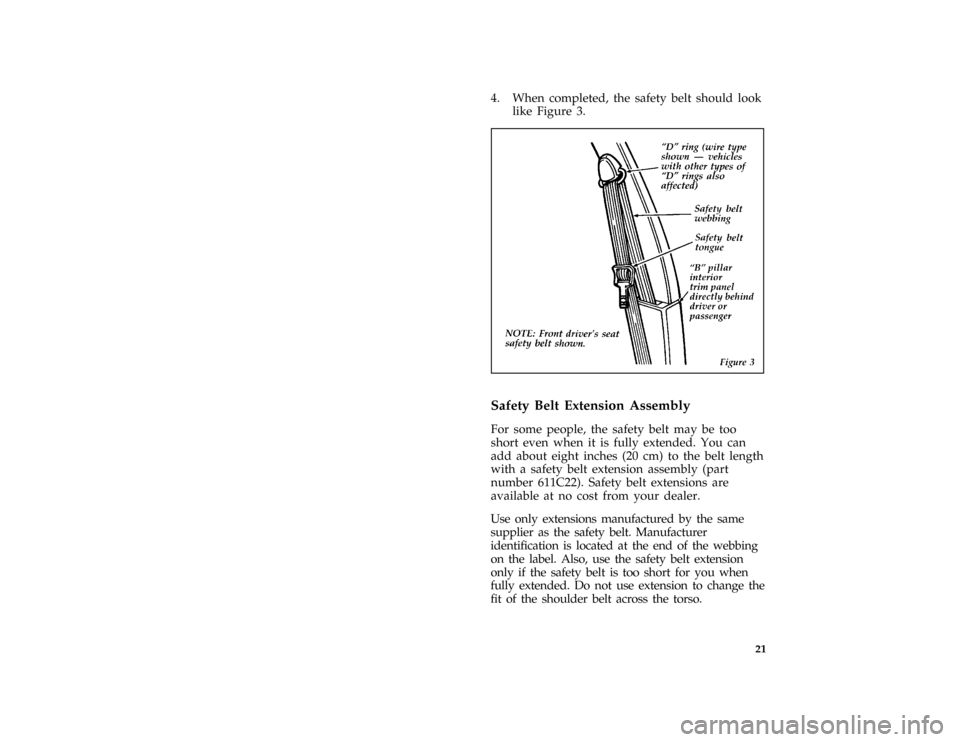

4. When completed, the safety belt should look
like Figure 3.
[SR09535(BEF )05/95]
half page art:0060600-D%*
[SR09600(BEF )05/95]
Safety Belt Extension Assembly
*
[SR09700(BEF )05/95]
For some people, the safety belt may be too
short even when it is fully extended. You can
add about eight inches (20 cm) to the belt length
with a safety belt extension assembly (part
number 611C22). Safety belt extensions are
available at no cost from your dealer.
*
[SR09750(BEF )05/95]
Use only extensions manufactured by the same
supplier as the safety belt. Manufacturer
identification is located at the end of the webbing
on the label. Also, use the safety belt extension
only if the safety belt is too short for you when
fully extended. Do not use extension to change the
fit of the shoulder belt across the torso.
