1996 FORD SUPER DUTY Owners Manual

223
that you can load 83 pounds (38 kgs) of options
on the front axle, add 150 pound (68 kgs)
passengers to all seating positions, and add
evenly distributed cargo in the box without
exceeding the GAWR F.
*
[DR31950( ALL)06/92]
It is possible to hang heavier equipment on the
front as long as the vehicle owner/operator
compensates. This can be accomplished, if
necessary, by carrying fewer passengers, less
cargo or positioning cargo more toward the rear,
which has the effect of reducing the load on the
front. Keep in mind that the GAWR F, GAWR
R, nor the GVWR should ever be exceeded.
*
[DR32001( ALL)05/91]
Total Accessory Reserve Capacity in Pounds:
On the sample label this value is given as 112
pounds (51 kgs). This is a number that is related
to government crash test standards, and only
indirectly reflects on the amount of accessory
weight that can be carried.
*
[DR32050( ALL)06/94]
In the case of both these numbers (83 and 112
pounds) (38 and 51 kgs), the important thing to
remember is that for safe operation, an
owner/operator should calculate the amount and
the distribution of all weights (passengers,
accessory equipment and cargo). These combined
weights should fall below the vehicle's GVWR
and GAWR.
*
[DR32101( F )05/91]
Camper Bodies
*
[DR32150( F )06/92]
Many truck owners carry camper bodies during
at least part of the year. A camper body is a
load just like any other. It is important for the
owner to match the camper body to the truck's
load carrying capability. It is also important to
take into account the weight of food, clothing
and equipment that may be carried in the
camper.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

224
*
[DR32201( ALL)01/93]
Trailers
*
[DR32251( ALL)10/94]
Towing a trailer safely means having the proper
weight on the tongue (usually 10% of the trailer
weight). Load-equalizing hitches on large rigs
may transfer weight to each of the vehicle's
axles. This weight must be included in capacity
calculations when determining if the vehicle is
loaded within safe limits.
*
[DR32301( ALL)01/95]
If your vehicle exceeds the GVWR, remove cargo
from your vehicle accordingly. If your vehicle
exceeds the GAWR for either axle, shift the load
or remove cargo accordingly.
*
[DR32350( ALL)02/95]
RWARNING
If the GVWR or the GAWR specified on
the Safety Compliance Certification Label
is exceeded, your vehicle may be damaged
or you may lose control and injure
someone.
*
[DR32401( ALL)05/95]
RWARNING
Towing trailers beyond the maximum
recommended gross trailer weight could
result in engine damage, transmission/axle
damage, structural damage, loss of control,
and personal injury.
*
[DR32450( ALL)03/91]

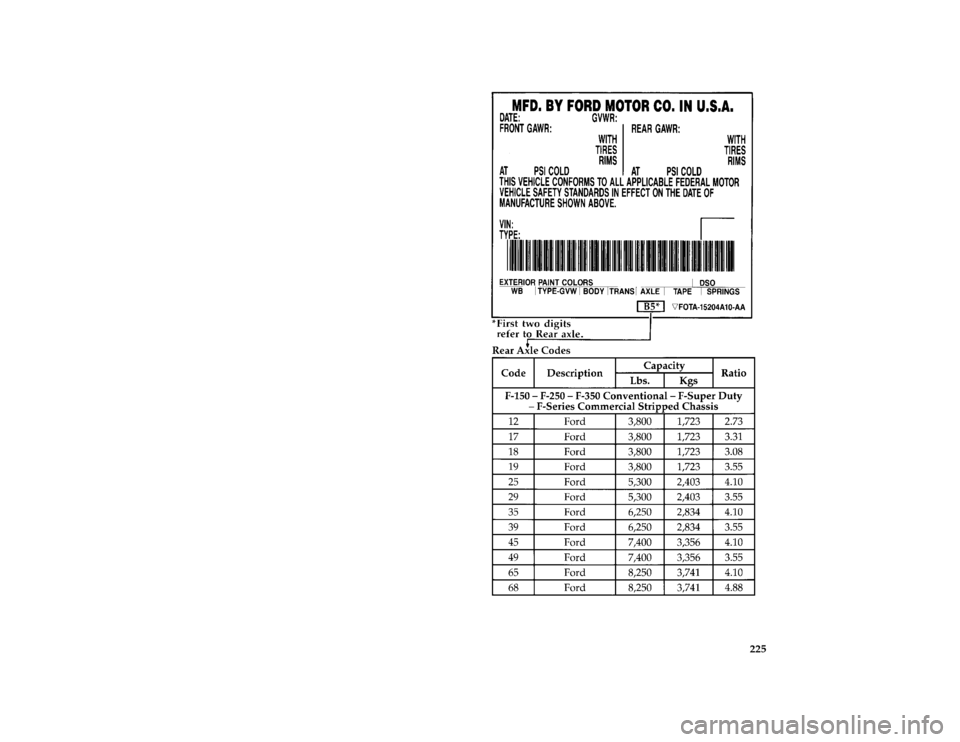

Using the Safety Compliance Certification Label
find the axle code number and the engine type
for your vehicle.
*
[DR32500( ALL)03/91]
Use the appropriate Maximum Gross Combined
Weight Rating (GCWR) chart to find the
Maximum GCWR for your type engine and rear
axle ratio.
*
[DR32551( ALL)03/91]
Subtract your Loaded Vehicle Weight from the
Maximum GCWR found in the chart. This is the
maximum trailer weight your vehicle can tow
and must fall below the maximum shown under
Trailer Weight on the chart.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

225 [DR34700( F )02/95]
thirty-six pica chart:0020169-G
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

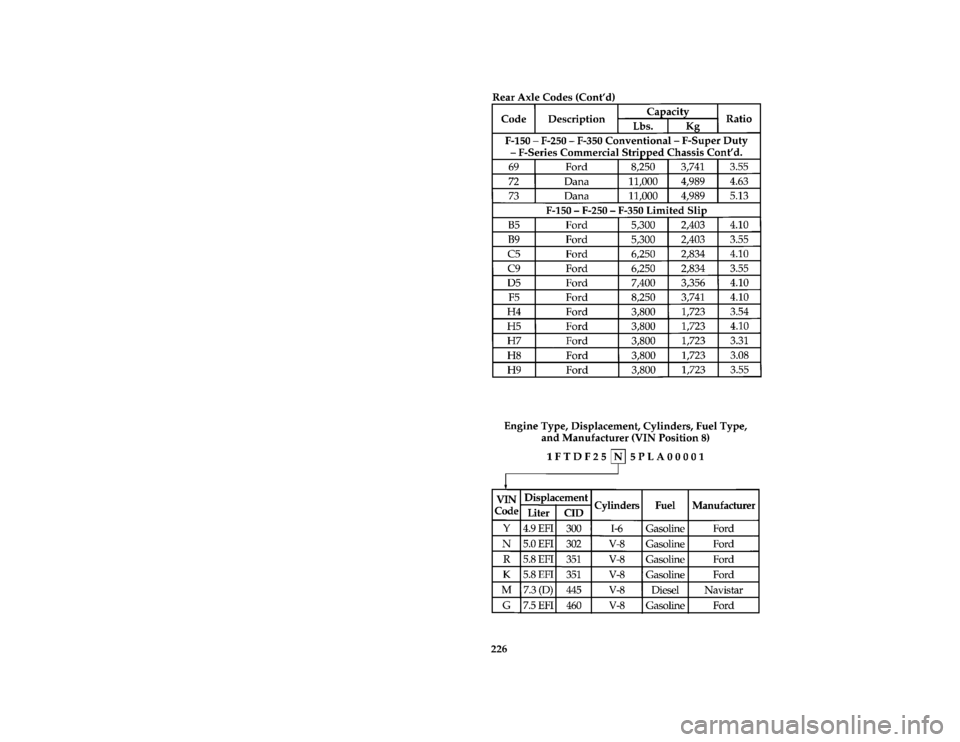

226 [DR34750( F )04/95]
twenty-two pica chart:0020496-D
[DR34780( F )02/95]
fourteen pica chart:0020473-DFile:ltdrf.ex
Update:Thu May 9 15:17:55 1996

227
*
[DR34790( F )04/89]
Manual Transmissions
[DR34800(F )]
Thirty-six pica chart:0020170-GFile:ltdrf.ex
Update:Thu May 9 15:17:55 1996

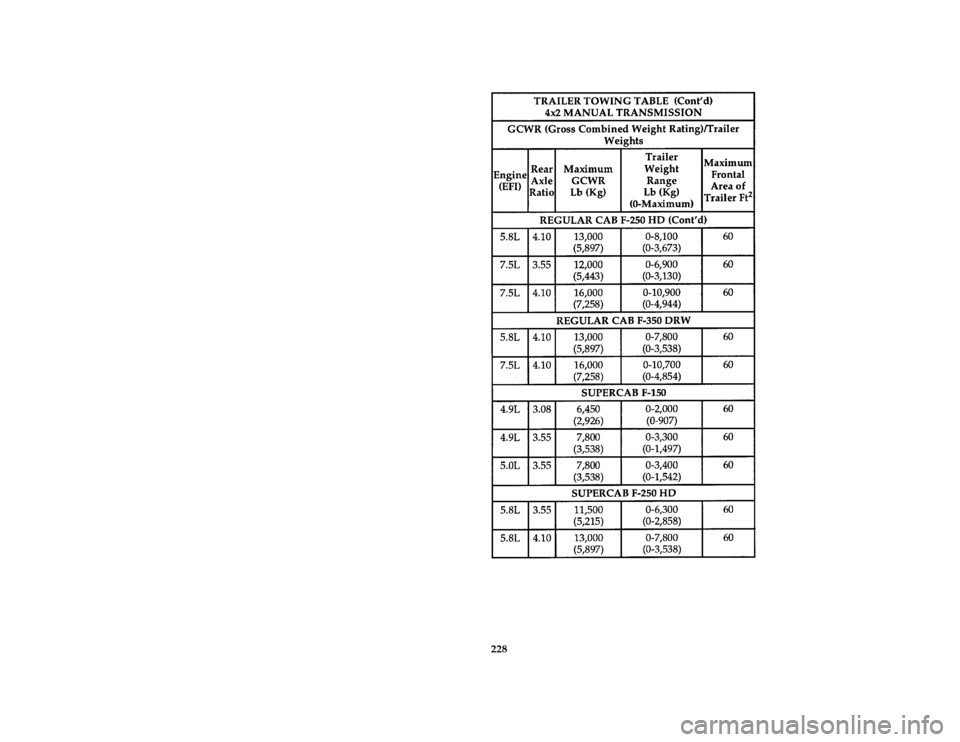

228 [DR34900( F )04/95]
thirty-six pica chart:0020171-I
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

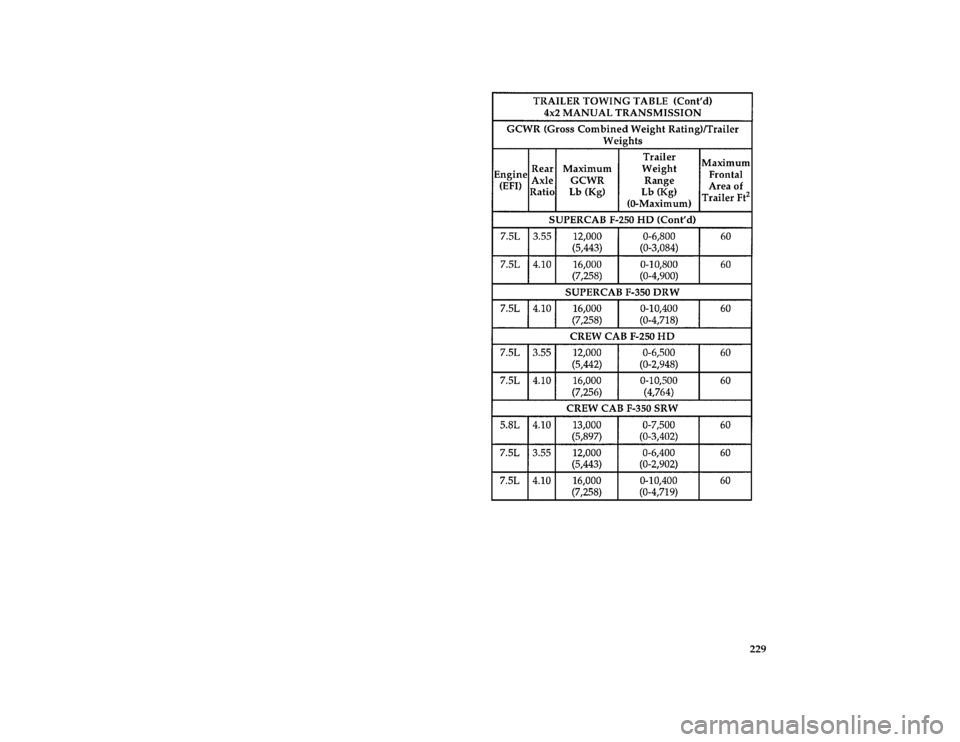

229 [DR34915( F )05/95]
thirty-six pica chart:0021093-D
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996

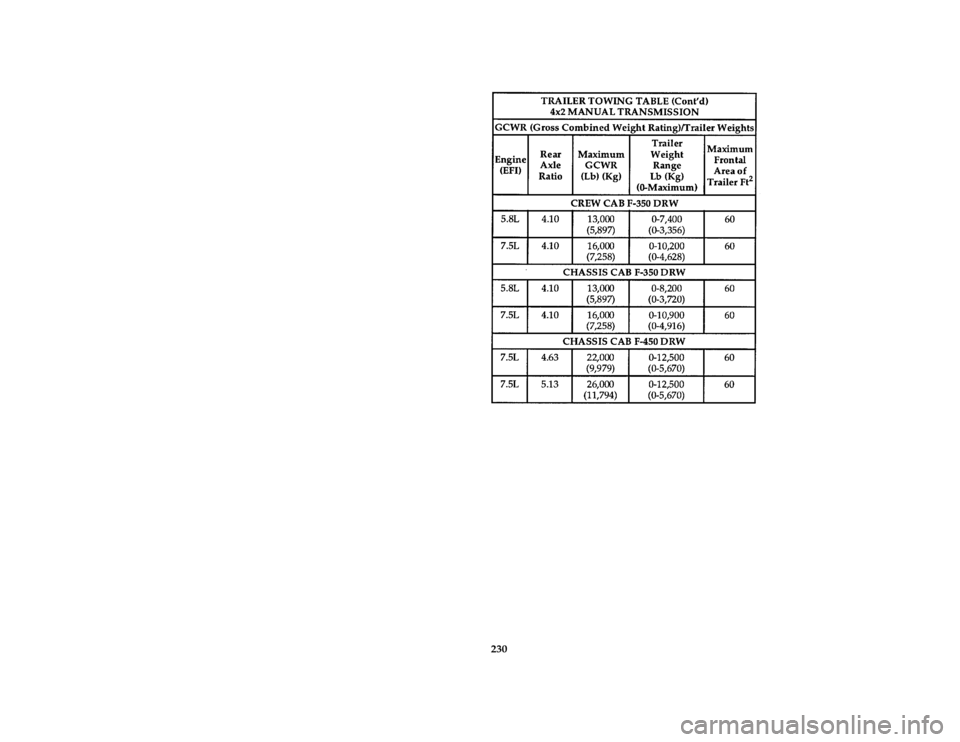

230 [DR34920( F )05/95]
thirty-two pica chart:0021094-F
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
