Do not put objects under the front seats that
will interfere with the flow of air under the
seats to the back seat area of your vehicle.
*
[IP01595(B F )02/95]
q
Remove any snow, ice, or leaves from the air
intake area at the bottom of the windshield.
*
[IP01801( F )05/94]
one third page art:0020104-D
Climate control knobs (Heater A/C system)
*
[IP03901(B F )05/94]
one third page art:0020096-D
Climate control knobs (heater only)
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

88
*
[IP16300( F )03/91]
Dual Fuel Tank Selector Switch
*
[IP16400( F )03/91]
Not Available on F-Series Standard
Wheelbase (117") (4 x 4)
*
[IP16501( F )03/91]
To choose which fuel tank that you want your
engine to draw fuel from (front or rear) you
must use this switch. Your fuel gauge will
display the amount of fuel available in the
currently selected tank.
*
[IP16601( F )03/91]
The fuse that protects the fuel tank selector
circuit is labeled AUX FUEL TANK SELECTOR
on your fuse panel cover.
*
[IP16701( F )03/91]
quarter page art:0020066-B
Fuel tank selector switch
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

89
*
[IP16800(BEF )01/95]
The Interior and Exterior Lights
*
[IP16900( ALL)01/95]
Turning On the Exterior Lights
*
[IP17000( ALL)02/95]
To turn on your headlamps, parking lamps,
marker lamps, and tail lamps, use the headlamp
switch to the left of the steering column.
*
[IP17100( ALL)06/94]
1. Pull the headlamp control knob toward you
to the first position. Parking lamps, tail
lamps and marker lamps are now on.
*
[IP17200( ALL)06/94]
2. Pull the headlamp control knob toward you
to the outer position. Headlamps are now on
in addition to the above.
*
[IP17250(BEF )02/95]
3. Rotate the knob when it is in an on position
to brighten or dim the instrument panel
lamps. Rotate fully counterclockwise to
operate courtesy and cargo lamps.
*
[IP17260(B FM)10/92]
half page art:0020122-F
Headlamp switch
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

90 %
*
[IP17400(BEF )05/95]
Cleaning the Exterior Lamps
*
[IP17500(BEF )05/95]
Do not use dry paper towel, chemical solvents
or abrasive cleaners to clean the lamps, as these
may cause scratches or crack the lamps.
%*
[IP17715( F )04/95]
Fog Lamps (If equipped)
*
[IP17735( F )06/92]
The fog lamps rocker switch is located on the
instrument panel to the right of the steering
column.
*
[IP17755( F )06/92]
quarter page art:0020940-A
Fog lamp switch
*
[IP17760( F )02/93]
The fog lamps act as a supplement to the low
beam headlamps under limited visibility
conditions such as rain, snow, dust or fog and
operate only when the low beam headlamps are
on.
*
[IP17770( F )02/93]
To maximize fog lamp bulb life it is
recommended that the fog lamp switch be
turned off after each use prior to turning off the
headlamps.
*
[IP17780( F )06/94]
q
To turn the fog lamps on, push the ON side
of the rocker switch. An indicator light will
glow when the lamps are on.
*
[IP17790( F )06/94]
q
To turn off, push the OFF side of the switch.
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

91
*
[IP17815( ALL)01/95]
Daytime Running Light System
*
[IP17820( ALL)03/95]
(Canadian vehicles only)
*
[IP17830( ALL)03/95]
The Daytime Running Light (DRL) system turns
the high beam headlamps on, with a reduced
light output, when:
*
[IP17835( ALL)03/95]
q
The headlamp system is in the OFF position,
and
*
[IP17840( ALL)03/95]
q
The vehicle is running, and
*
[IP17850( ALL)01/95]
q
The vehicle has a fully released parking
brake.
*
[IP17875( ALL)01/95]
NOTE: You may notice that the lights flicker
when the vehicle is turned on or off.
This is a normal condition.
*
[IP17890(BEF )05/95]
RWARNING
The Daytime Running Light (DRL) system
will not illuminate the tail lamps and
parking lamps. Turn on your headlamps
at dusk. Failure to do so may result in a
collision.
*
[IP17900(BEF )03/95]
Lighting Up the Instrument Panel and the
Interior of Your Vehicle
*
[IP18000(BEF )03/95]
The instrument panel lights can be turned on by
pulling the headlamp switch toward you to
either the first or outer position. You can
brighten or dim the instrument panel lights by
rotating the headlamp switch knob.
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

92 %
*
[IP18400(BEF )03/95]
Cargo, Courtesy and Dome Lamps
*
[IP19175(B F )05/90]
The interior/courtesy lamp is automatically
turned on when the driver or passenger door is
opened. Turning the headlamp switch fully
counterclockwise will operate the interior lamp
when the doors are closed.
*
[IP19185(B F )05/95]
quarter page art:0020695-A
Interior/Courtesy lamp
*
[IP19190(B F )05/95]
Combination Cargo and High-Mount
Brakelamp
*
[IP19200(B F )05/95]
The combination cargo/high-mount brakelamp is
located outside the vehicle, directly over the rear
window. Use the headlamp control switch to
turn on the cargo lamp and interior courtesy
lights.
[IP19250( F )05/95]
A high-mount brakelamp feed is provided in the
taillamp wiring, in the event an aftermarket cap
is installed on the vehicle obscuring the
cargo/high-mount brakelamp on the cab. The
feed is located at the left rear of the vehicle,
behind the bumper and is marked with a white
tag ªcenter high-mount stop lamp.º
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

93
*
[IP19350( F )09/93]

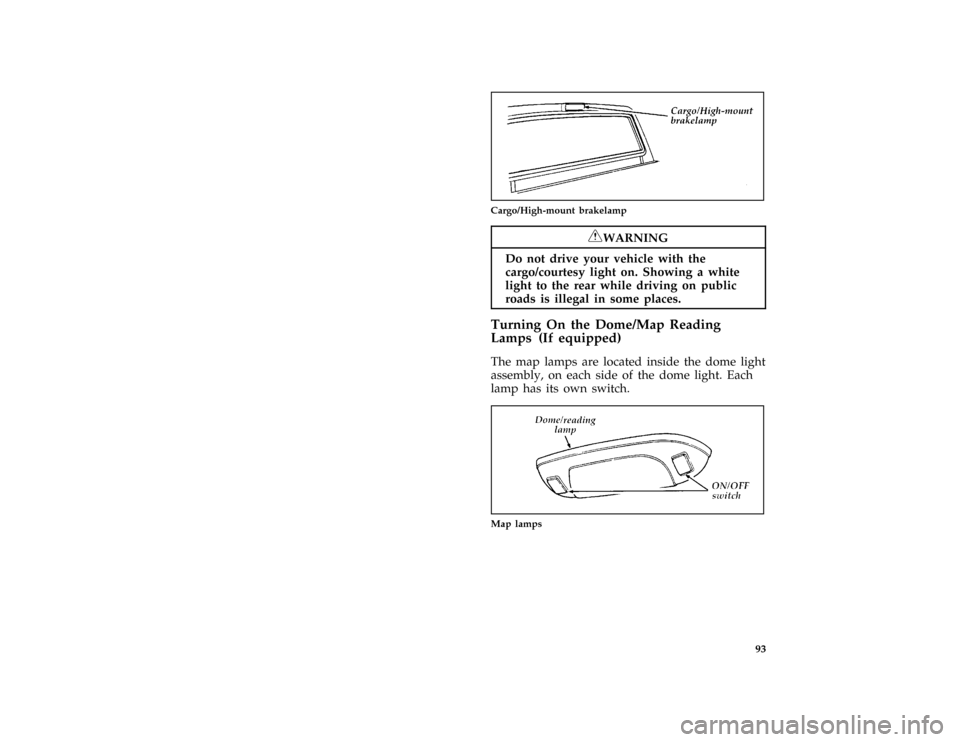

quarter page art:0020902-B
Cargo/High-mount brakelamp
*
[IP19400(B F )05/91]
RWARNING
Do not drive your vehicle with the
cargo/courtesy light on. Showing a white
light to the rear while driving on public
roads is illegal in some places.
*
[IP19705(B F )07/94]
Turning On the Dome/Map Reading
Lamps (If equipped)
*
[IP19805(B F )07/94]
The map lamps are located inside the dome light
assembly, on each side of the dome light. Each
lamp has its own switch.
*
[IP19900(B F )05/94]
quarter page art:0020127-B
Map lamps
File:ltipf.ex
Update:Thu May 9 15:21:29 1996

94 %
*
[IP20060(BEF )04/95]
Cleaning the Instrument Panel Lens
*
[IP20070(BEF )04/95]
Clean the instrument panel lens with a soft cloth
and a glass cleaner, such as Ford Ultra-Clear
Spray Glass Cleaner, or equivalent. Do not use
paper towel or an abrasive cleaner to clean the
lens as these may cause scratches.
%*
[IP20075(BEF )04/95]
Cleaning the Interior Lamps
*
[IP20080(BEF )04/95]
Your interior dome lamps and map lamps are
plastic and should be cleaned with a mild
detergent diluted in water. Rinse them with clear
water.
File:ltipf.ex
