1996 FORD SUPER DUTY Owners Manual

338
*
[SV27860( ALL)03/90]
RWARNING
Make sure that all replacement tires are of
the same size, type, load-carrying capacity,
and tread design (e.g. ªAll Terrainº, etc.),
as originally offered by Ford.
*
[SV27885( ALL)04/95]
RWARNING
Do not replace your tires with ªhigh
performanceº tires or larger size tires.
*
[SV27892( EF )05/95]
RWARNING
Use of aftermarket wheel assemblies may
damage your vehicle or cause accidents
resulting in serious injuries.
*
[SV27895( ALL)05/95]
RWARNING
Failure to follow these precautions may
adversely affect the handling of the
vehicle and make it easier to lose control
and roll over.
*
[SV27900( ALL)01/95]
Tires that are larger or smaller than your
vehicle's original tires may also affect the
accuracy of your speedometer.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

339
*
[SV28500( FM)05/89]
full page art:0020370-C

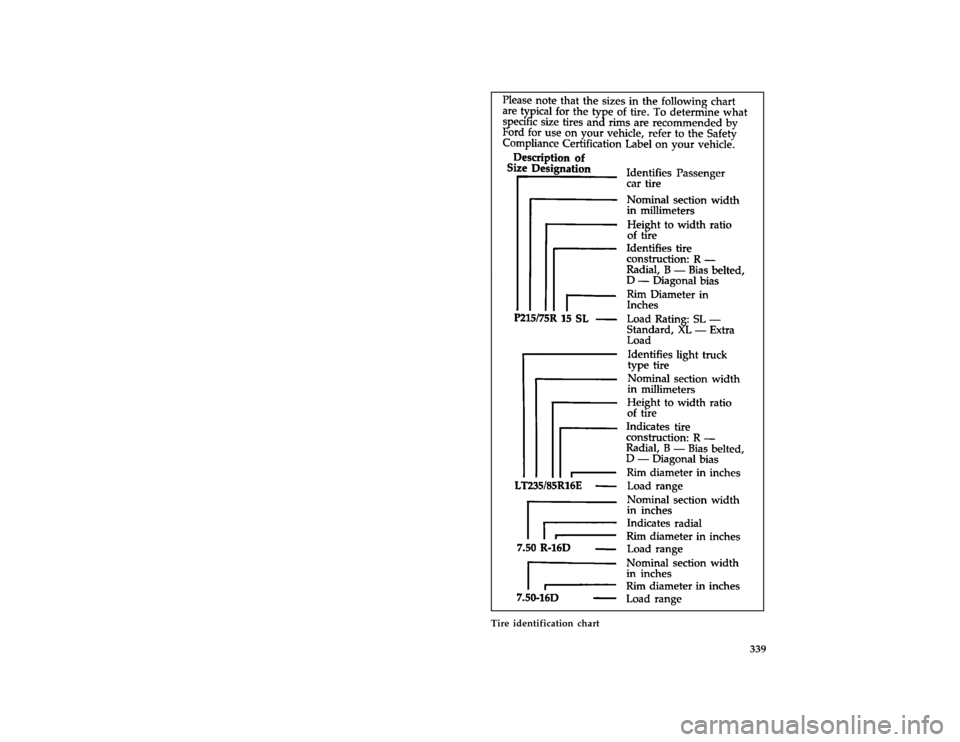

Tire identification chart
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

340
*
[SV28750( EF )11/90]
RWARNING
To avoid possible serious or fatal bodily
injury while mounting tires, mount LT
Metric 16-inch radial tires only on 16-inch
rims and not 16.5-inch rims. In addition,
mount radial tires only on wheels
approved for radial tires.
*
[SV28800( ALL)04/95]
Wheel and Tire Matching
*
[SV28900( ALL)03/95]
See an authorized tire dealer for proper
servicing procedures. Wheels and tires must be
properly removed, matched and remounted to
maintain the best possible ride.
%*
[SV31100(BEF )04/95]
Snow Tires and Chains
*
[SV31200(BEF )01/95]
The tires on your vehicle have all-weather treads
that provide traction in rain or snow. However,
during the winter months in some climates, you
may need to use snow tires and occasionally
chains for your tires.
*
[SV31300(BEF )05/95]
RWARNING
Snow tires must be the same size and
grade as the tires you currently have on
your vehicle.
*
[SV31400(BEF )02/95]
Use chains on the tires only in an emergency or
if the law requires them where you live. If you
choose to use chains on your vehicle's tires, be
aware of the following:
*
[SV31500(BEF )01/95]
q
Make sure the chains are the right size for
your tires. Use only SAE Class ªSº chains.
Other types may damage your vehicle.
*
[SV31600(BEF )01/95]
q
Put the chains on tightly with the ends held
down securely. Verify that no chain touches
any wiring, brake lines, or fuel lines. Follow
the chain manufacturer's instructions.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

341
*
[SV31700(BEF )01/95]
q
Drive slowly. If you can hear the chains rub
or bang against your vehicle, stop the vehicle
and tighten the chains. If you continue to
hear the chains rub or bang against your
vehicle, remove the chains to prevent damage
to your vehicle.
*
[SV31800(BEF )10/94]
q
Avoid fully loading your vehicle if possible.
*
[SV31900(BEF )05/94]
q
Remove tire chains at the first opportunity
after using them on snow and ice. Do not use
the chains on dry roads.
*
[SV31950(BEF )05/91]
q
Make sure your suspension insulation and
bumpers are not missing or worn to avoid
damage to your vehicle.
%*
[SV31975(BEF )04/95]
Cleaning the Wheels
*
[SV31980(BEF )05/95]
Wash the wheels with the same detergent you
use to wash your vehicle's body. Do not use
acid-based wheel cleaners, steel wool, abrasives,
fuel, or strong detergents. These substances will
damage protective coatings. Use tar and road oil
remover to remove grease and tar.
*
[SV31985(BEF )04/95]
NOTE: Before going to a car wash, find out if
the brushes are abrasive.
*
[SV31987( F )04/95]
Cleaning F-350 Aluminum Dual Rear Wheels
*
[SV31989( F )04/95]
If you have factory-installed Forged Aluminum
Wheels on your F-350, you may use the cleaning
instructions below to help provide optimum
appearance season after season.
*
[SV31991( F )04/95]
1. Keep your F-350 Forged Aluminum Wheels
looking great with simple care. Wash the
wheels with steam or high pressure water
from a hose, and a mild detergent, such as
Ford's Premium Car Wash Concentrate, or
equivalent. Do not use harsh alkaline
cleaners.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

342
*
[SV31993( F )04/95]
2. You can brighten the wheels, even after
years of use, with readily-available buffing
compounds, such as Ford Custom Bright
Metal Cleaner or equivalent. Follow the
buffing instructions that come with the
compound.
*
[SV31995( F )04/95]
3. When tires are removed, the entire wheel
must be cleaned and inspected. Remove any
soil or oxidation products from the tire side
of the rim with a wire brush.
*
[SV31997( F )04/95]
4. Aluminum alloys resist corrosion. This is
why your Forged F-350 Aluminum Wheels
never need sanding or painting. However,
certain environments can lead to corrosion:
salt, chloride compounds used for snow
removal and highly alkaline materials. Wash
corrosives elements off the wheel before they
have time to react.
*
[SV32100( ALL)03/95]
Battery
*
[SV32200( ALL)02/95]
Your vehicle may have a Motorcraft
maintenance-free battery. When the original
equipment battery is replaced under warranty, it
may be replaced by a Motorcraft
Low-Maintenance Battery.
*
[SV32500( ALL)02/95]
The Low-Maintenance Battery has removable
vent caps for checking the electrolyte level and
for adding water, if necessary. The electrolyte
level should be checked at least every 24 months
or 24,000 miles (40,000 km) in temperatures up
to 90ÊF (32ÊC) andmore often in temperatures
above90ÊF (32ÊC).Keep the electrolyte level in
each cell up to the level indicator. Do not
overfill.
*
[SV32700( ALL)02/95]
If the level gets low, you can add tap water to
the battery, provided the water isn't hard or
doesn't have a high mineral or alkali content.
However, if possible you should refill the battery
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

343
with distilled water. If the battery needs water
quite often, have the charging system checked
for a possible malfunction.
%*
[SV32725( ALL)03/95]
Help Us Protect Our Environment
*
[SV32750( ALL)04/95]
Ford Motor Company strongly recommends that
used lead-acid batteries be returned to an
authorized recycling facility for disposal.
*
[SV32775( ALL)03/95]
one inch art:0000983-A
Battery recycling symbol
*
[SV33200( ALL)01/95]
RWARNING
Batteries normally produce explosive gases
which can cause personal injury.
Therefore, do not allow flames, sparks or
lit tobacco to come near the battery. When
charging or working near a battery, always
cover your face and protect your eyes, and
also provide ventilation.
%*
[SV33300( ALL)05/95]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
*
[SV33305( ALL)05/95]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

344 %
*
[SV33400( ALL)05/95]
RWARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
*
[SV33500( ALL)01/95]
Automatic Transmission Fluid
*
[SV33601( ALL)04/95]
Under normal driving conditions automatic
transmission fluid should be changed every
30,000 miles (48,000 km) or 21,000 miles
(34,000 km) if under severe duty conditions.
However, if the transmission is not working
properly, for instance, the transmission may slip
or shift slowly, or you may notice some sign of
fluid leakage, the fluid level should be checked.
[SV33605( ALL)04/95]
NOTE: Except E4OD transmission, there is no
30,000 mile (48,000 km) sheduled
transmission fluid change requirement.
[SV33615( ALL)05/95]
Transmission fluid, filter and seal assembly
should be changed every 21,000 miles
(34,000 km) only under any of the following
conditions.
[SV33620( ALL)04/95]
q
Extended periods of high speed driving
during hot weather at/or above+90ÊF
(+30ÊC).
[SV33625( ALL)04/95]
q
Towing a trailer for distances over 1,000 miles
(1,600 km) per trip.
[SV33630( ALL)04/95]
q
Accumulating 5,000 miles (8,000 km) or more
per month.
[SV33635( ALL)04/95]
q
Continuous operation and/or extensive idling
(a delivery service as an example).
[SV33640( ALL)04/95]
q
Operating in severe dust conditions.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

345 [SV33645( ALL)04/95]
NOTE: Use of a transmission fluid other than
specified could result in transmission
malfunction and/or failure. Refer to
ªAdding automatic transmission fluidº,
ªRefill capacitiesº and ªlubricant
specificationsº for further information.
%*
[SV33651( ALL)02/95]
Checking the Automatic Transmission
Fluid
*
[SV33701( ALL)02/95]
It is preferable to check the transmission fluid
level at normal operating temperature
150ÊF-170ÊF (66ÊC-77ÊC),after approximately 20
miles (32 km) of driving. However, if necessary,
you can check the fluid level without having to
drive 20 miles (32 km) to obtain a normal
operating temperature if outside temperatures
are above50ÊF (10ÊC).
*
[SV33801( ALL)01/95]
NOTE: If the vehicle has been operated for an
extended period at high speeds or in
city traffic during hot weather, or
pulling a trailer, the vehicle should be
turned off for about 30 minutes to
allow the fluid to cool before checking.
*
[SV33910( ALL)12/91]
With the vehicle on a level surface, start the
engine and move the transmission shift selector
through all of the gear ranges allowing sufficient
time for each position to engage. Securely latch
the transmission shift selector in the Park (P)
position, fully set the parking brake and leave
the engine running.
*
[SV33920(B F )06/94]
NOTE: Vehicles equipped with the 4x4 option
must have the 4x4 shift selector in any
position other than neutral.
