1996 FORD SUPER DUTY washer fluid

98
*
[SC04950( ALL)10/92]
one third page art:0020831-A
Interval wiper on turn signal lever
*
[SC05000( ALL)02/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
*
[SC05100( ALL)04/95]
Windshield Washer
*
[SC05200( ALL)03/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if wipers were off) or returning to
HI, LO, or the interval setting selected.
*
[SC05300( ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

99
*
[SC05400( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05500(BEF )04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[SC05510( ALL)03/95]
Hazard Flasher
*
[SC05520( ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05525( FM)10/92]
The flashers will continue to flash with the brake
pedal depressed.
*
[SC05530( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
*
[SC05540( ALL)09/93]
To use the hazard flasher:
*
[SC05550( ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560( ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
*
[SC05562( ALL)10/92]
NOTE: The flasher button will be sticking up
slightly higher when ON than when
OFF.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996

310 %
*
[SV05900(BEF )04/95]
Cleaning the Engine
*
[SV05920(BEF )04/95]
A clean engine is more efficient because a
buildup of grease and dirt acts as an insulator,
keeping the engine warmer than usual.
*
[SV05940(BEF )05/95]
q
Extreme care must be used if a power washer
is used to clean the engine. The high pressure
fluid could penetrate sealed parts and
assemblies causing damage or malfunctions.
*
[SV05960(BEF )04/95]
q
In order to avoid possible cracking of the
engine block or fuel injection pump, do not
spray a hot engine or injection pump with
cold water.
*
[SV05980(BEF )04/95]
q
The alternator, distributor and air intake must
be covered. Covering these components will
help prevent water damage.
*
[SV06000(BEF )04/95]
q
Never wash or rinse the engine while it is
running. Water getting into the engine may
cause internal damage.
*
[SV06100( ALL)03/95]
Filling the Fuel Tank
*
[SV06450( F )05/90]

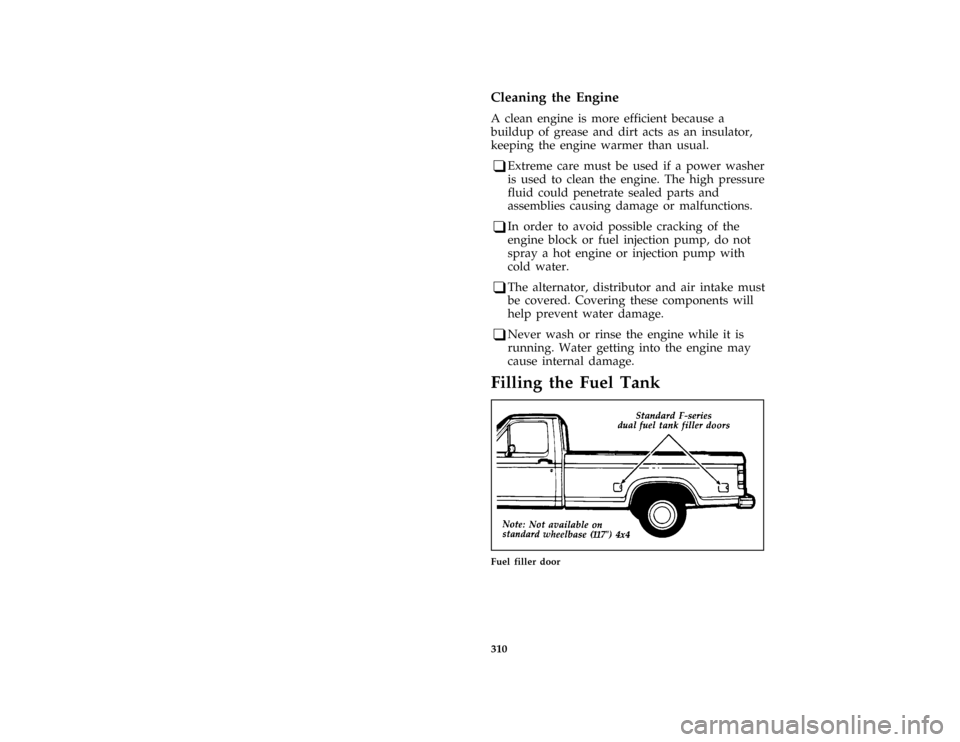

one third page art:0020351-D
Fuel filler door
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

325
*
[SV17750( ALL)03/95]
If the engine coolant has not been checked for a
long period of time the engine coolant reservoir
may eventually empty. If the engine coolant
reservoir empties, check the engine coolant level
in the radiator. Read the following warnings
before removing the radiator cap. If it is
necessary to fill the radiator, refer to theEngine
Coolant Refill Procedurein this chapter for
instructions.
*
[SV17950(BEF )01/95]

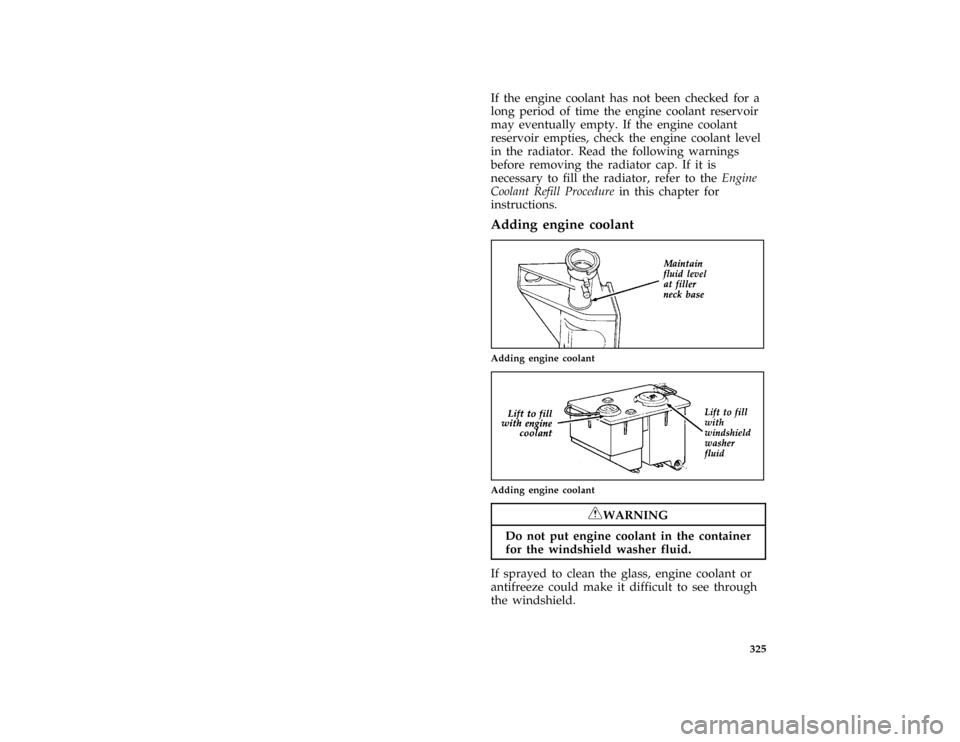

Adding engine coolant
*
[SV18000(B F )07/94]
quarter page art:0020354-A
Adding engine coolant
*
[SV18150(B F )05/90]
quarter page art:0020360-C
Adding engine coolant
*
[SV18400( ALL)05/95]
RWARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[SV18420( ALL)05/95]
If sprayed to clean the glass, engine coolant or
antifreeze could make it difficult to see through
the windshield.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

330
*
[SV22100( ALL)10/89]
3. Start and idle the engine until the thermostat
opens and the radiator upper hose becomes
warm.
*
[SV22200( ALL)05/95]
4. Shut off the engine and allow the engine to
cool. Cover the radiator cap with a thick
cloth and cautiously remove it. Step back
while the pressure releases.
*
[SV22500( ALL)10/89]
5. Finally, check the radiator and add more
engine coolant if needed, following the
procedures noted above. Reinstall the
radiator cap securely, when finished.
*
[SV22525( ALL)05/90]
6. If more engine coolant is necessary, fill the
overflow reservoir to the appropriate level
marked on the bottle.
*
[SV22700(BEF )03/95]
Windshield Washer Fluid and
Wipers
*
[SV22800(BEF )03/95]
Washer Fluid
*
[SV22900(BEF )01/95]
Check the level of the windshield washer fluid
every time you stop for fuel. The reservoir for
the windshield washer fluid is located in the
engine compartment.
*
[SV23200(BEF )03/95]
Adding washer fluid
*
[SV23300(BEF )05/95]
RWARNING
Do not put windshield washer fluid in the
container for the engine coolant.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996

331
*
[SV23600(B F )02/92]

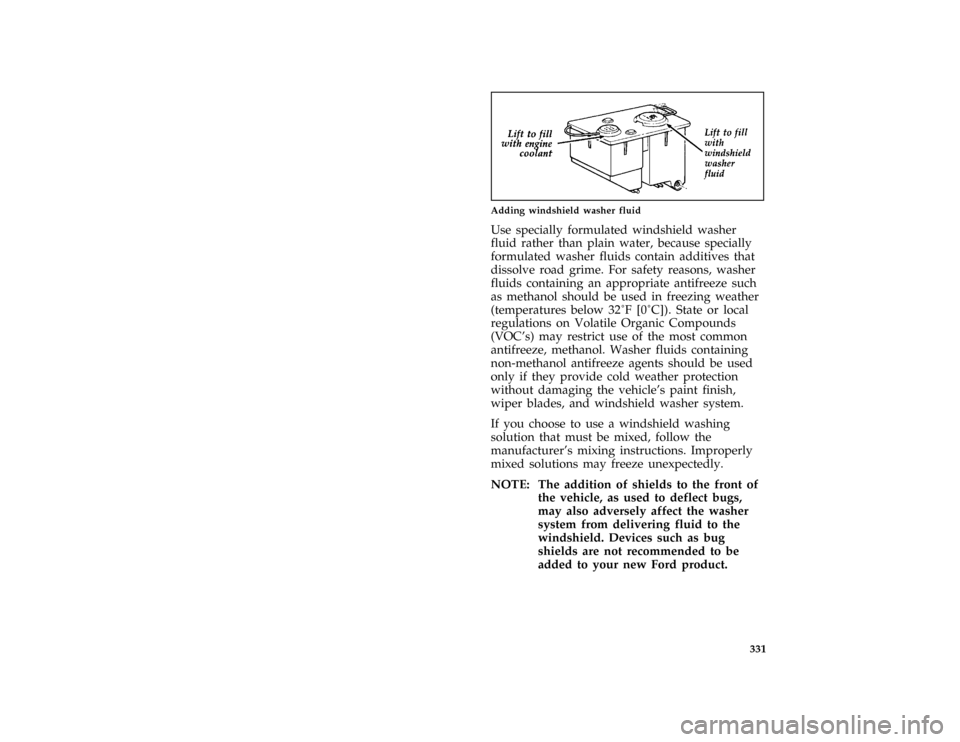

quarter page art:0020360-C
Adding windshield washer fluid
%*
[SV23850(BEF )01/95]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
as methanol should be used in freezing weather
(temperatures below32ÊF [0ÊC]).State or local
regulations on Volatile Organic Compounds
(VOC's) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
*
[SV23900(BEF )10/89]
If you choose to use a windshield washing
solution that must be mixed, follow the
manufacturer's mixing instructions. Improperly
mixed solutions may freeze unexpectedly.
[SV24000(BEF )04/95]
NOTE: The addition of shields to the front of
the vehicle, as used to deflect bugs,
may also adversely affect the washer
system from delivering fluid to the
windshield. Devices such as bug
shields are not recommended to be
added to your new Ford product.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
