1996 FORD F250 Owners Manual

354
*
[SV39500( ALL)04/95]
Fuses, Fuse Links and Circuit
Breakers
*
[SV39650(B FM)12/91]
Fuses, circuit breakers and fuse links protect
your vehicle's electrical system from overloading.
If electrical parts in your vehicle are not
working, the system may have been overloaded
and blown a fuse or tripped a circuit breaker.
Before you replace or repair any electrical parts,
check the appropriate fuses or circuit breakers.
*
[SV39700( ALL)10/89]
The following charts tell you which fuses or
circuit breakers protect each electrical part of
your vehicle. If a fuse blows or a circuit breaker
opens a circuit, all the parts of your vehicle that
use that circuit will not work.
*
[SV39800( ALL)02/95]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakerslater in this chapter.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
ProCarManuals.com

355
*
[SV40100(B F )03/94]
full page art:0020390-L
Fuses and their location
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
ProCarManuals.com

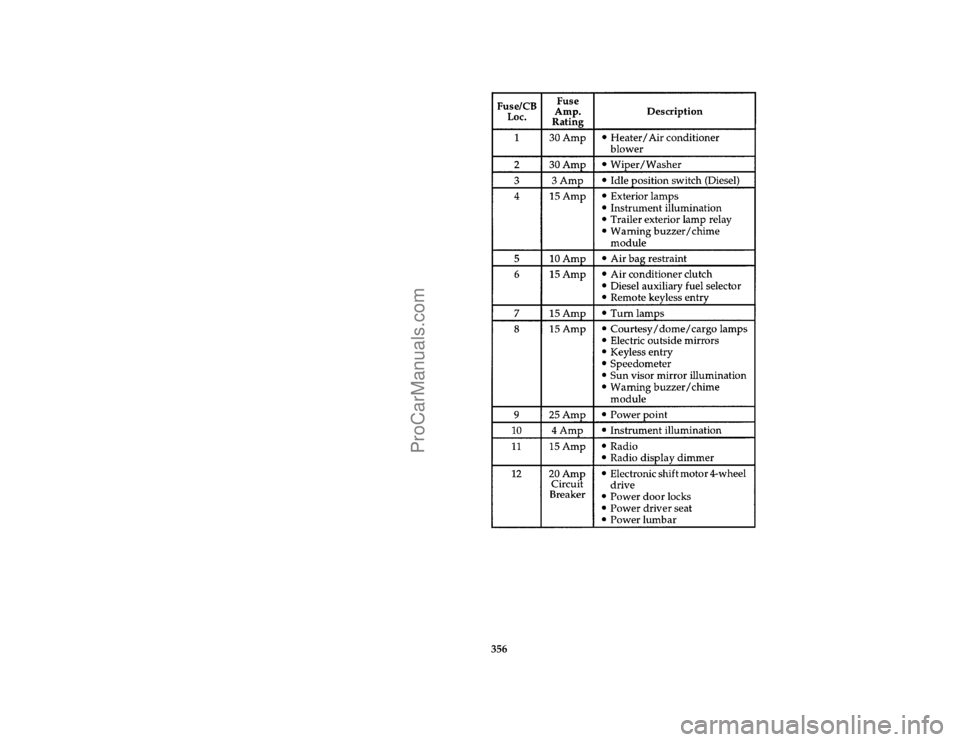

356 [SV40160( F )05/95]
thirty-four pica chart:0020995-G
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
ProCarManuals.com

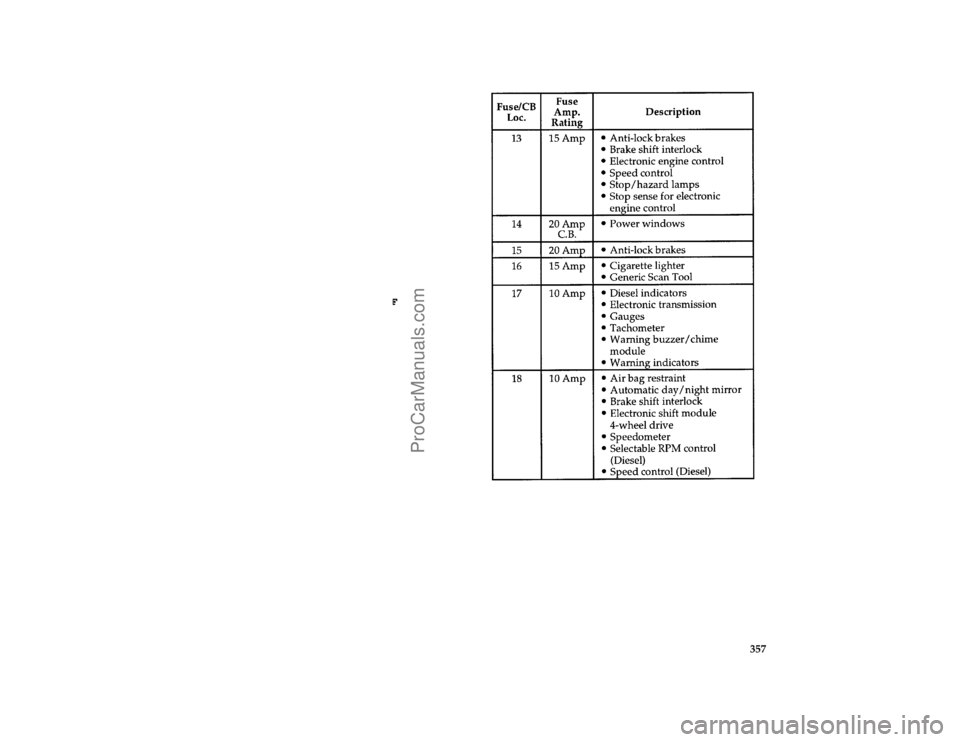

357 [SV40180( F )04/95]
twenty-eight pica chart:0020996-F
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
ProCarManuals.com

358
*

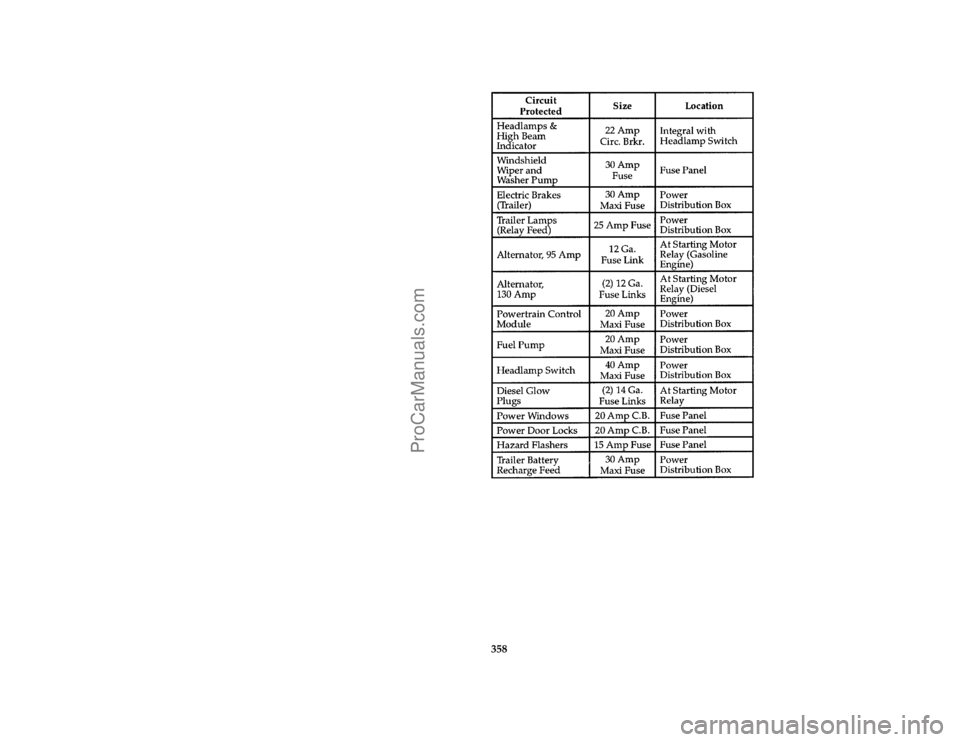

[SV41100( F )04/95]
thirty pica chart:0020400-J
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
ProCarManuals.com

359
*
[SV41300( ALL)10/92]
Power distribution box
*
[SV41400( ALL)10/92]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[SV41500( ALL)10/92]
The high current fuses are coded as follows: 30
amp -light green, 40 amp - orange, 50 amp - red,
60 amp -blue.
*
[SV41600( ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[SV41620( ALL)05/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[SV41700( ALL)03/93]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[SV41800( ALL)04/95]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[SV41900( ALL)05/95]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
ProCarManuals.com

360
*
[SV42150(B F )07/94]

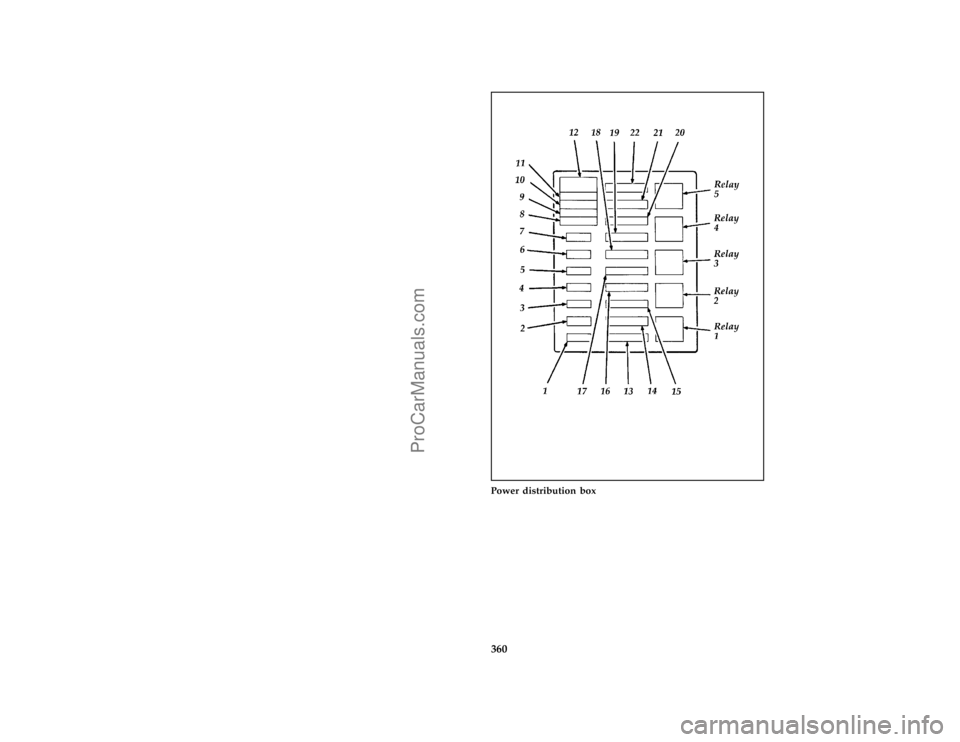

three fourths page art:0020840-F
Power distribution box
File:ltsvf.ex
Update:Thu May 9 15:30:19 1996
ProCarManuals.com

361
*

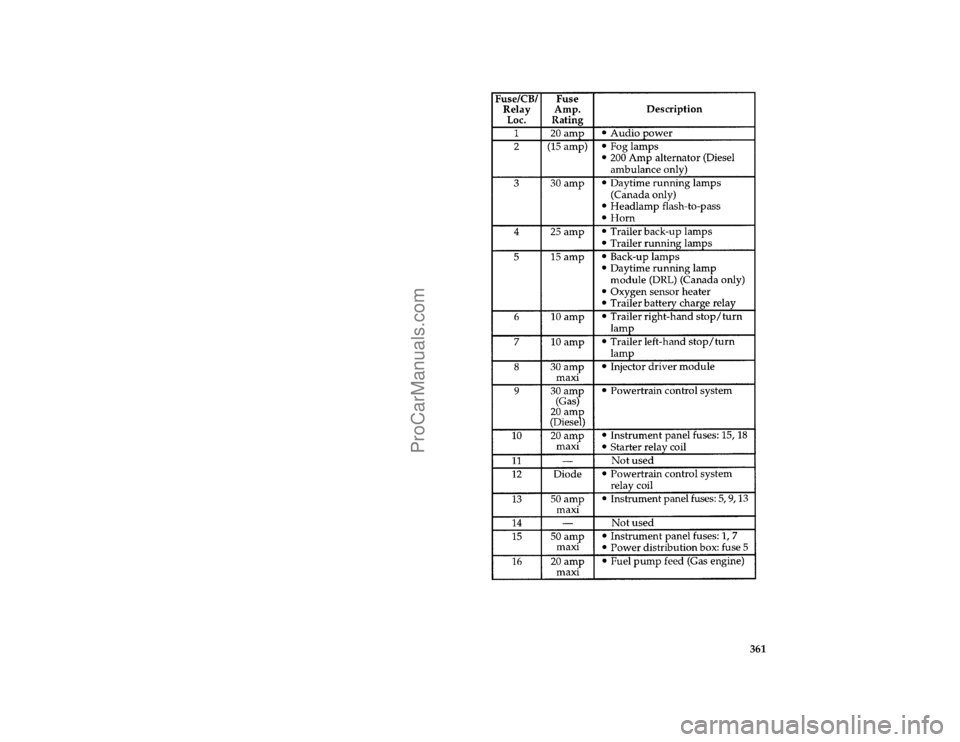

[SV42156( F )05/95]
thirty-six pica chart:0021005-F
