1996 FORD F250 Owners Manual

95
Steering Column Controls
*
[SC00400( ALL)01/95]
The controls on the steering column and wheel
are designed to give you easy access to the
controls while you are driving.
*
[SC00500( ALL)01/95]
The Turn Signal Lever
*
[SC00600( ALL)01/95]
You can use the turn signal lever on the left side
of the steering column to:
*
[SC00700( ALL)03/95]
q
operate the turn signals and cornering lamps
*
[SC00800(BEF )01/95]
q
turn the high beams on/off
*
[SC00900(BEF )01/95]
q
flash the lights
*
[SC01000(BEF )01/95]
q
turn the windshield wipers and washer
on/off
*
[SC01100( ALL)01/95]
Turn Signals
*
[SC01200( ALL)03/95]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
*
[SC01400( ALL)03/95]
If the turn signal stays on after you turn, move
the lever back to the center (off) position.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

96
*
[SC01700( ALL)01/94]
one third page art:0020081-C
Turn signal lever and functions
*
[SC01800( ALL)11/89]
If the turn indicator light in the instrument
panel does not illuminate or remains on (doesn't
flash) when you signal a turn, the turn signaling
system is malfunctioning. Have this condition
corrected as soon as possible, but make sure that
you use the accepted hand signals in the
meantime.
*
[SC03200( ALL)03/95]
High Beams
*
[SC03300( ALL)05/95]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[SC03400( ALL)03/95]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

97
*
[SC03800( ALL)03/95]
one third page art:0020074-B
Headlamp high beam switch and turn signal lever
*
[SC04200( ALL)05/95]
Flashing the Lights
*
[SC04300( ALL)05/95]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is on or off.
*
[SC04400( ALL)03/95]
Windshield Wipers and Washer
*
[SC04500( ALL)03/95]
To turn on the windshield wipers, the ignition
key must be turned to the ON or ACC position.
*
[SC04600( ALL)03/95]
Turn the knob on the end of the turn signal
lever toward the front of the vehicle. You can
turn it to either the LO or HI speed position.
*
[SC04700( ALL)03/95]
Variable Interval Wipers
*
[SC04800( ALL)03/95]
In addition to two speed wipers, your vehicle is
equipped with wipers that you can set to
operate at varying intervals. For example, you
can set the interval so they wipe less often when
it drizzles or more often in heavier rain.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

98
*
[SC04950( ALL)10/92]
one third page art:0020831-A

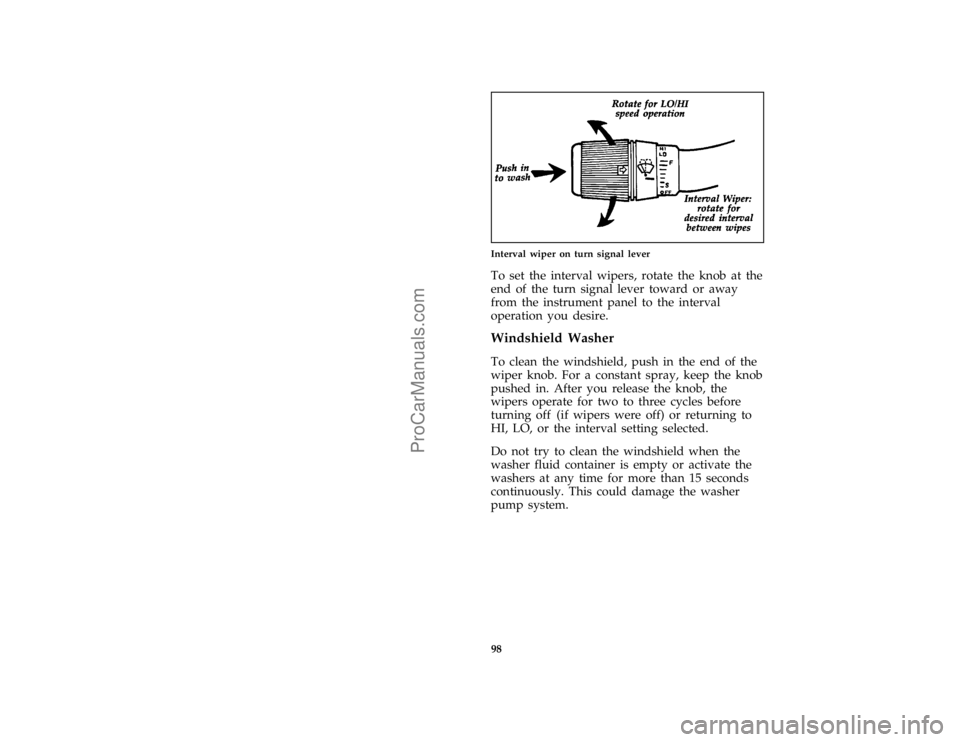

Interval wiper on turn signal lever
*
[SC05000( ALL)02/95]
To set the interval wipers, rotate the knob at the
end of the turn signal lever toward or away
from the instrument panel to the interval
operation you desire.
*
[SC05100( ALL)04/95]
Windshield Washer
*
[SC05200( ALL)03/95]
To clean the windshield, push in the end of the
wiper knob. For a constant spray, keep the knob
pushed in. After you release the knob, the
wipers operate for two to three cycles before
turning off (if wipers were off) or returning to
HI, LO, or the interval setting selected.
*
[SC05300( ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

99
*
[SC05400( ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC05500(BEF )04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
%
*
[SC05510( ALL)03/95]
Hazard Flasher
*
[SC05520( ALL)04/95]
The hazard flasher is used to alert other drivers
to hazardous situations.
*
[SC05525( FM)10/92]
The flashers will continue to flash with the brake
pedal depressed.
*
[SC05530( ALL)03/95]
The flashers work whether your vehicle is
running or not. The flashers work for up to two
hours when the battery is fully charged and in
good condition without draining the battery
excessively. If the flashers run for longer than
two hours or if the battery is not fully charged,
the battery can be drained.
*
[SC05540( ALL)09/93]
To use the hazard flasher:
*
[SC05550( ALL)10/92]
1. Push in the flasher button; it will pop out
and the lamps will begin to flash.
*
[SC05560( ALL)10/92]
2. To stop the flashers, push in the flasher
button again.
*
[SC05562( ALL)10/92]
NOTE: The flasher button will be sticking up
slightly higher when ON than when
OFF.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

100
*
[SC05575(BEF )06/93]
one third page art:0020075-B

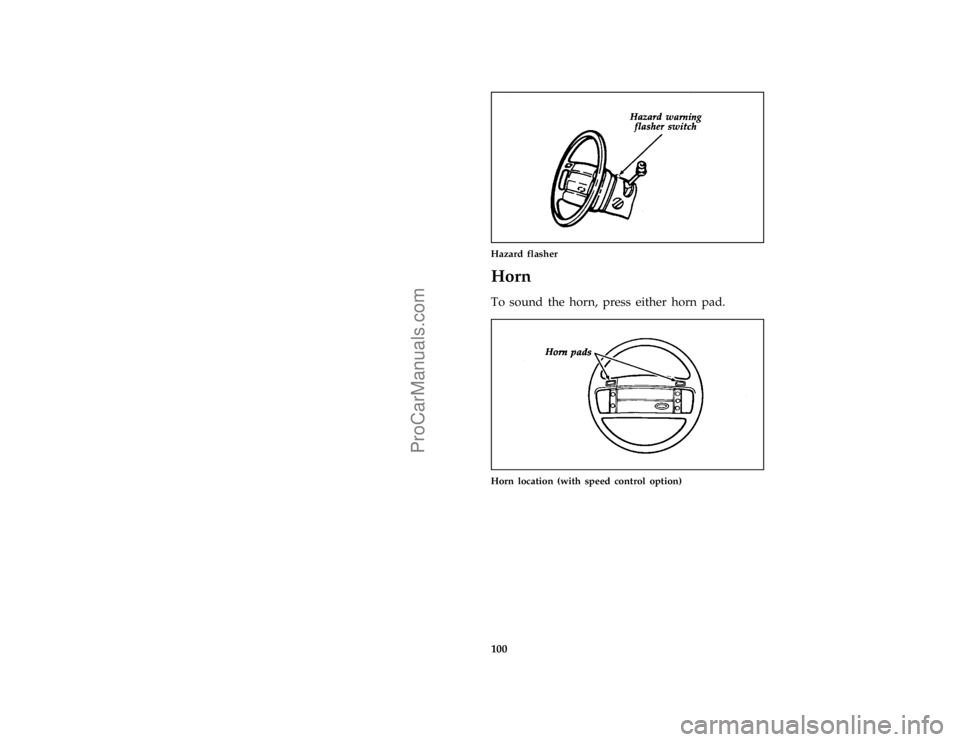

Hazard flasher
*
[SC05600( ALL)01/95]
Horn
*
[SC05800(BEF )05/95]
To sound the horn, press either horn pad.
*
[SC06150(BEF )06/93]
one third page art:0020086-B
Horn location (with speed control option)
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

101
*
[SC06200(BEF )05/95]
Tilt Steering (If equipped)
*
[SC06300(BEF )05/95]
RWARNING
Never adjust the steering wheel when the
vehicle is moving.
*
[SC06500(BEF )01/94]
one third page art:0020089-C

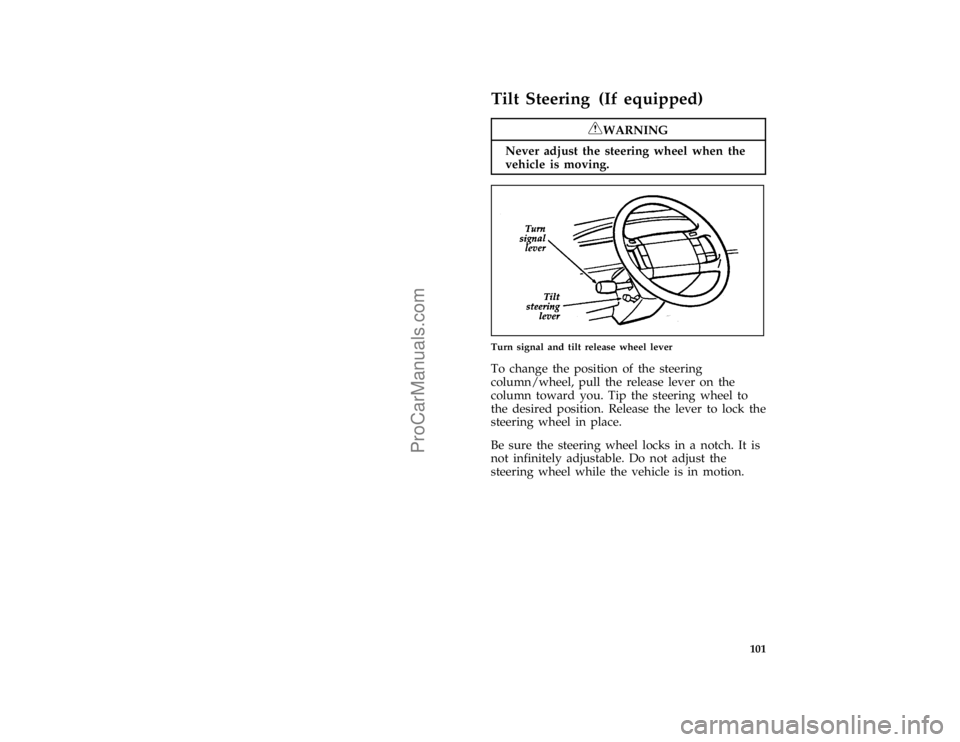

Turn signal and tilt release wheel lever
*
[SC06700( ALL)04/95]
To change the position of the steering
column/wheel, pull the release lever on the
column toward you. Tip the steering wheel to
the desired position. Release the lever to lock the
steering wheel in place.
*
[SC07250( ALL)12/89]
Be sure the steering wheel locks in a notch. It is
not infinitely adjustable. Do not adjust the
steering wheel while the vehicle is in motion.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com

102
*
[SC07300(BEF )03/91]
Speed Control (If equipped)
*
[SC07450( ALL)05/95]
Your vehicle has speed control, so you can
automatically maintain a constant speed above
30 mph (50 km/h). The switches to operate the
speed control are on the steering wheel.
*
[SC07500( ALL)05/95]
Use of radio transmitting equipment that is not
Federal Communications Commission (FCC) or
in Canada the Canadian Radio and
Telecommunications Commission (CRTC)
approved may cause the speed control to
malfunction. Therefore, use only properly
installed FCC (CRTC in Canada) approved radio
transmitting equipment in your vehicle.
*
[SC07700(BEF )05/95]
quarter page art:0020093-B

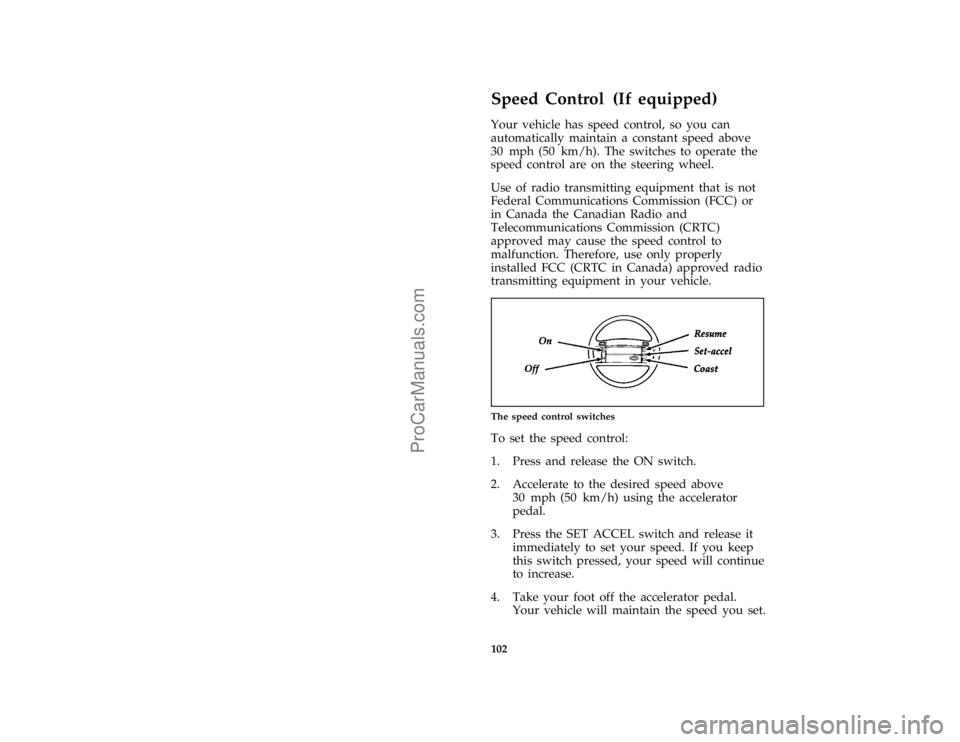

The speed control switches
*
[SC07800( ALL)03/95]
To set the speed control:
*
[SC08000( ALL)03/95]
1. Press and release the ON switch.
*
[SC08100( ALL)04/95]
2. Accelerate to the desired speed above
30 mph (50 km/h) using the accelerator
pedal.
*
[SC08400( ALL)03/95]
3. Press the SET ACCEL switch and release it
immediately to set your speed. If you keep
this switch pressed, your speed will continue
to increase.
*
[SC08500( ALL)03/95]
4. Take your foot off the accelerator pedal.
Your vehicle will maintain the speed you set.
File:ltscf.ex
Update:Thu May 9 15:25:14 1996
ProCarManuals.com
