264 [RE15445( FM)05/95]On F-Super Duty vehicles, the parking brake is
on the transmission. Therefore, the vehicle will
not be prevented from moving when a rear
wheel is lifted, even if the vehicle is in Park and
the parking brake is applied. Be sure to block
both directions of the wheel that is diagonally
opposite to the wheel that is being lifted.
*
[RE15450( FM)05/95]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[RE15550(BEF )05/95]
2. Get out the spare tire and jack.
*
[RE15800(B F )10/92]
The jack and lug wrench are stowed under the
hood on the right front fender inner panel, and
the jack handle is on the radiator support.
*
[RE15900(B F )06/93]
half page art:0020286-E
Jack and assembly location
File:ltref.ex
Update:Thu May 9 15:24:41 1996
ProCarManuals.com

265
*
[RE16800(BEF )12/91]
3. Use the tapered end of the lug nut wrench
to unscrew wheel ornaments attached by
retaining screws. Remove any wheel trim.
Insert the tapered end of the lug nut wrench
behind wheel covers or hubcaps and twist
off.
*
[RE16900(BEF )10/89]
4. Loosen the wheel nuts by pulling up on the
handle of the lug nut wrench about one-half
turn (counterclockwise). Do not remove the
wheel lug nuts until you raise the tire off the
ground.
%*
[RE16950(BEF )05/95]
Removing and Replacing the Tire
[RE17100(B F )02/95]
1. Insert the jack handle into the jack and use
the handle to slide the jack under the
vehicle.
*
[RE17175(BEF )05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[RE17200(BEF )05/95]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
File:ltref.ex
Update:Thu May 9 15:24:41 1996
ProCarManuals.com

266
*
[RE17300(BEF )01/95]
2. Positioning the jack
*
[RE19200( F )01/89]
a. To raise a front or rear wheel, place the
jack as shown in the illustration that
applies to your vehicle.
*
[RE19300( F )05/90]
one third page art:0020304-A
Positioning the jack
*
[RE19400( F )05/90]
one third page art:0020305-B
Positioning the jack
File:ltref.ex
Update:Thu May 9 15:24:41 1996
ProCarManuals.com

267
*
[RE19500( F )05/90]
one third page art:0020300-A
F-Series jacking points
*
[RE19600( F )05/90]
one third page art:0020301-A
F-Series jacking points
File:ltref.ex
Update:Thu May 9 15:24:41 1996
ProCarManuals.com

268
*

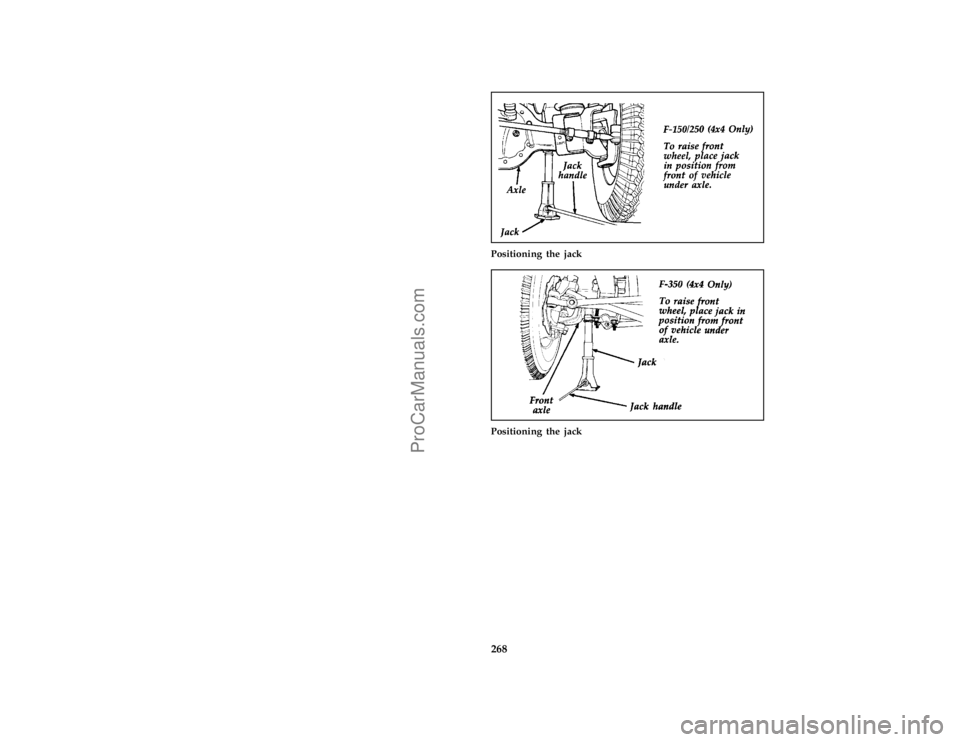

[RE19700( F )05/90]
one third page art:0020302-A
Positioning the jack
*
[RE19800( F )05/90]
one third page art:0020303-A
Positioning the jack
File:ltref.ex
Update:Thu May 9 15:24:41 1996
ProCarManuals.com

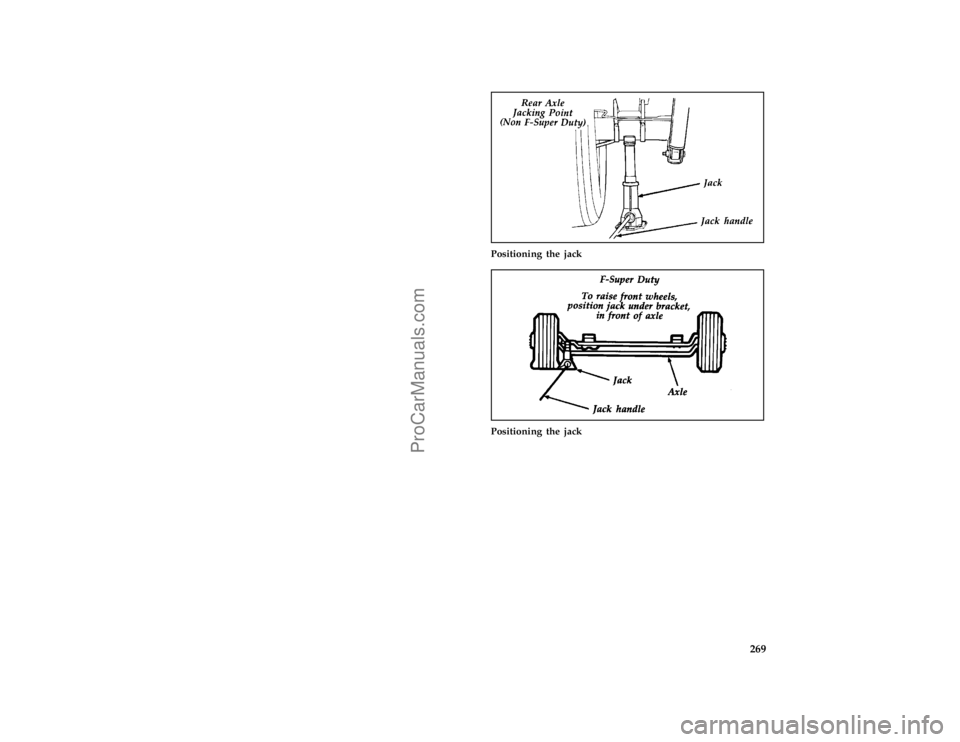

269
*
[RE19900( F )04/89]
one third page art:0020306-A
Positioning the jack
*
[RE20000( F )01/89]
one third page art:0020307-A
Positioning the jack
File:ltref.ex
Update:Thu May 9 15:24:41 1996
ProCarManuals.com

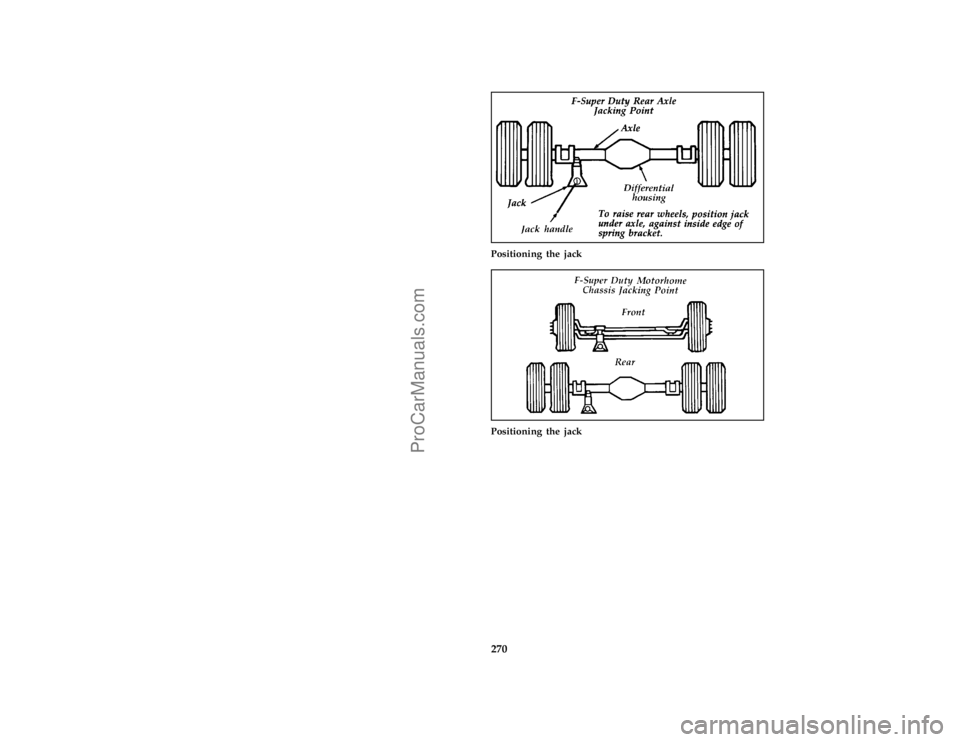

270
*
[RE21000( F )12/91]
one third page art:0020308-B
Positioning the jack
*
[RE21100( FM)03/91]
one third page art:0020725-A
Positioning the jack
File:ltref.ex
Update:Thu May 9 15:24:41 1996
ProCarManuals.com

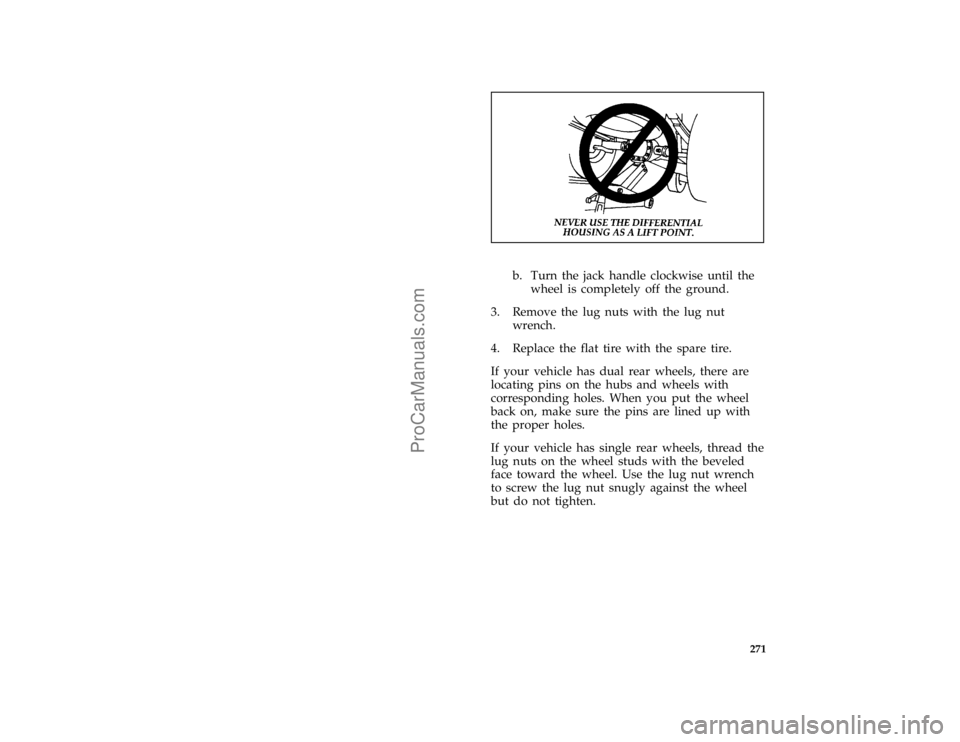

271
*
[RE21151(BEF )10/92]
one third page art:0020939-B
*
[RE21200( F )08/91]
b. Turn the jack handle clockwise until the
wheel is completely off the ground.
*
[RE21400(BEF )01/95]
3. Remove the lug nuts with the lug nut
wrench.
*
[RE21500(BEF )01/95]
4. Replace the flat tire with the spare tire.
*
[RE21600( EFM)01/89]
If your vehicle has dual rear wheels, there are
locating pins on the hubs and wheels with
corresponding holes. When you put the wheel
back on, make sure the pins are lined up with
the proper holes.
[RE21800( EF )02/95]
If your vehicle has single rear wheels, thread the
lug nuts on the wheel studs with the beveled
face toward the wheel. Use the lug nut wrench
to screw the lug nut snugly against the wheel
but do not tighten.
