1996 FORD F250 Owners Manual

207
*
[DR24975(B F )05/95]
RWARNING
Do not leave the vehicle unattended with
the transfer case in the N (Neutral)
position. Always set the parking brake
fully and turn off the ignition when
leaving the vehicle.
*
[DR25000(B FM)03/93]
To release the parking brake, press the service
brake pedal with your right foot and pull the
parking brake release lever.
*
[DR25050( ALL)01/93]
RWARNING
If the parking brake is fully released, but
the Brake System light remains on, have
the brakes checked immediately. They
may not be working properly.
*
[DR25100( ALL)01/95]
The parking brake is not designed to stop a
moving vehicle, but you can use the parking
brake to stop your vehicle in an emergency if
the normal brakes fail. However, since the
parking brake applies only the rear brakes, the
stopping distance will increase greatly and the
handling of your vehicle will be adversely
affected.
*
[DR25200( ALL)01/95]
Driving Under Special Conditions
*
[DR25250( ALL)01/95]
Tips for Safe Driving
*
[DR25301( ALL)05/95]
As with any new vehicle, yours may drive and
handle differently from your previous vehicle.
Use care until you become accustomed to its
various features and driving characteristics.
*
[DR25350( ALL)03/95]
Operate your vehicle within reasonable limits.
Sudden acceleration, deceleration, turning, or
combinations of these maneuvers can cause a
vehicle to behave differently than anticipated.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

208
*
[DR25501( ALL)02/95]
Wheel Spin
*
[DR25550( ALL)11/92]
q
Extreme acceleration can cause the rear
wheels to spin, perhaps resulting in reduced
steering control.
*
[DR25601( ALL)05/90]
If the wheels spin during vehicle start-up, shift
to a different gear:
*
[DR25750(B F )03/93]
q
Automatic Overdrive 4R7OW: use 2 (Second)
*
[DR25800( ALL)03/93]
q
Electronic 4-Speed Automatic Transmission
E4OD: use 2 (Second)
*
[DR25950(B F )05/90]
q
Mazda R2 5-Speed Overdrive Manual: use 2
(Second)
*
[DR26001( F )01/93]
q
4-Speed Manual: use 3 (Third)
*
[DR26050( EF )05/90]
q
3-Speed Automatic (C6): use 2 (Second)
*
[DR26201( F )01/89]
q
Heavy Duty ZF S5-42 5-Speed Manual with
Overdrive (Unloaded): use 3 (Third)
*
[DR26250( F )01/89]
q
Heavy Duty ZF S5-42 5-Speed Manual with
Overdrive (loaded): use 2 (Second)
*
[DR26301( ALL)01/89]
Move forward slowly and evenly. If this does
not work, try rocking the vehicle.
*
[DR26401(B F )05/91]
For 4x4 vehicles, engage 4WD, and try to drive
away.
*
[DR26550( ALL)05/90]
High Speed Driving
*
[DR26575( ALL)05/95]
Ford Motor Company recommends obeying
posted speed limits.
*
[DR26601( ALL)05/95]
RWARNING
Driving too fast for conditions creates the
possibility of loss of vehicle control.
Driving at very high speeds for extended
periods of time may result in damage to
vehicle components.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

209
*
[DR26625(BEF )12/91]
Speed limiter
*
[DR26652(BEF )03/94]
All models are equipped with an electronic
engine control system (EEC) which limits the
maximum engine speed and thus road speed in
top gear. Vehicle operation is normal since the
controlled maximum speed is above posted
highway speeds in North America.
%*
[DR26701( ALL)01/95]
Driving in Bad Weather
%*
[DR26750( ALL)01/95]
Slippery roads
*
[DR26801( ALL)03/95]
Drive cautiously on wet or snowy roads:
*
[DR26850( ALL)03/95]
q
Do not quickly move the steering wheel
unless necessary.
*
[DR26901( ALL)01/95]
q
Drive slower than you normally would.
*
[DR26951( ALL)01/95]
q
Give your vehicle more distance to stop.
*
[DR27025( ALL)07/94]
q
To stop on ice, shift to Neutral below 10 mph
(16 km/h) and gently pump brakes. (Except
with 4WAL)
*
[DR27050( ALL)02/93]
q
Consider using one of the lower gears.
*
[DR27101(B F )05/91]
q
For 4x4 vehicles, engage 4WD, and try to
drive slowly away.
*
[DR27150(B F )05/95]
RWARNING
To avoid losing control on slippery roads,
do not downshift into Low with the
automatic transmission when moving
faster than 20 mph (32 km/h). Do not
downshift into First with the manual
transmission when moving faster than
5 mph (8 km/h).
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

210
*
[DR27350(B F )06/94]
RWARNING
The rear antilock brake system may not
prevent brake lock-up on extremely
slippery surfaces. Rear brake lock-up may
also occur while driving in four-wheel
drive because the transfer case couples the
front and rear axles together.
*
[DR27450(BEF )03/95]
Traction-Lok Rear Axle (If equipped)
*
[DR27501(BEF )03/95]
This axle provides added drive away traction on
slippery surfaces, particularly when one or more
wheels are on a surface with poor traction.
*
[DR27550(BEF )03/93]
Extended use of other than matching size tires
on a Traction-Lok rear axle could result in a
permanent reduction in effectiveness. This loss of
effectiveness does not affect normal driving and
should not be noticeable to the driver.
*
[DR27601(BEF )05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
%*
[DR27651( ALL)01/95]
High water
*
[DR27675( ALL)06/92]
Never attempt to cross water that is fast flowing
or of unknown depth.
*
[DR27701( ALL)05/90]
Do not drive through flooded areas unless you
are sure that the water is below the bottom of
the wheel hubs.
*
[DR27750( ALL)04/94]
If you must drive through high water, drive
slowly. You may have limited traction or wet
brakes, so allow extra stopping distance because
your vehicle will not stop as quickly as usual.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

211
*
[DR27801( ALL)01/95]
After you drive through the standing water,
apply your brakes gently several times as your
vehicle moves slowly. This helps to dry the
brakes.
*
[DR27820( ALL)07/94]
NOTE: If the transmission and transfer case is
submerged in water, their fluids should
be checked and changed, if necessary.
*
[DR27825( ALL)03/93]
NOTE: All rear axle lube quantities must be
replaced every 100,000 miles
(160,000 km) or if the axle has been
submerged in water. Otherwise, the
lube should not be checked or changed
unless a leak is suspected or repair
required.
*
[DR27850( ALL)11/89]
Rocking the vehicle
*
[DR27901(B F )05/90]
For 4x4 vehicles, engage 4WD LOW, when the
vehicle gets stuck and try to drive away.
*
[DR27950( ALL)05/95]
If your vehicle gets stuck (for example, in mud
or snow), you may rock it out of the spot. Shift
in a steady rhythm between forward and reverse
gears. Allow the transmission to fully engage,
then press lightly on the accelerator. Do not rock
the vehicle for more than a few minutes. This
may overheat the engine and transmission,
causing damage to both. In addition, other
vehicle systems and components may also be
damaged.
*
[DR27975( ALL)05/95]
RWARNING
Do not spin the wheels at over 35 mph
(56 km/h). The tires may fail and injure a
passenger or bystander.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

212
*
[DR28050(BEF )03/95]
Driving With a Heavy Load
*
[DR28101(BEF )01/95]
There are limits to the amount of weight your
vehicle can carry or tow. The total weight of
your vehicle, plus the weight of the passengers
and cargo, should never be more than the Gross
Vehicle Weight Rating (GVWR). Also, the weight
that your vehicle carries over the front axle and
rear axle should never be more than the Gross
Axle Weight Rating (GAWR) for the respective
axle.
*
[DR28150(BEF )01/95]
The weight limits of your vehicle's tires affect
the GVWR or GAWR limitations. Usage of
replacement tires with higher weight limit than
originals does not increase GVWR or GAWR.
Usage of lower capacity replacement tires may
lower GVWR and GAWR limitations.
*
[DR28201(BEF )02/95]
RWARNING
If the GVWR or the GAWR specified on
the Safety Compliance Certification Label
is exceeded, your vehicle may be damaged
or you may lose control and injure
someone.
*
[DR28250(B F )03/91]
Heavy duty front suspension package
(option)
*
[DR28301(B F )03/91]
This optional front suspension package is
designed to handle the additional loads that will
be imposed on the vehicle by adding aftermarket
equipment, such as a snowplow. Refer to the
Safety Compliance Certification Label for details.
*
[DR28350( F )03/91]
Securing loads in cargo area
*
[DR28450( F )03/91]
To prevent damage to the pickup box and cab,
secure any movable cargo pieces using ropes or
straps and the tie down holes in the stake
pockets of the steel pickup box or the tie-down
bars in the flareside pickup box.
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

213
*
[DR28500( F )05/91]

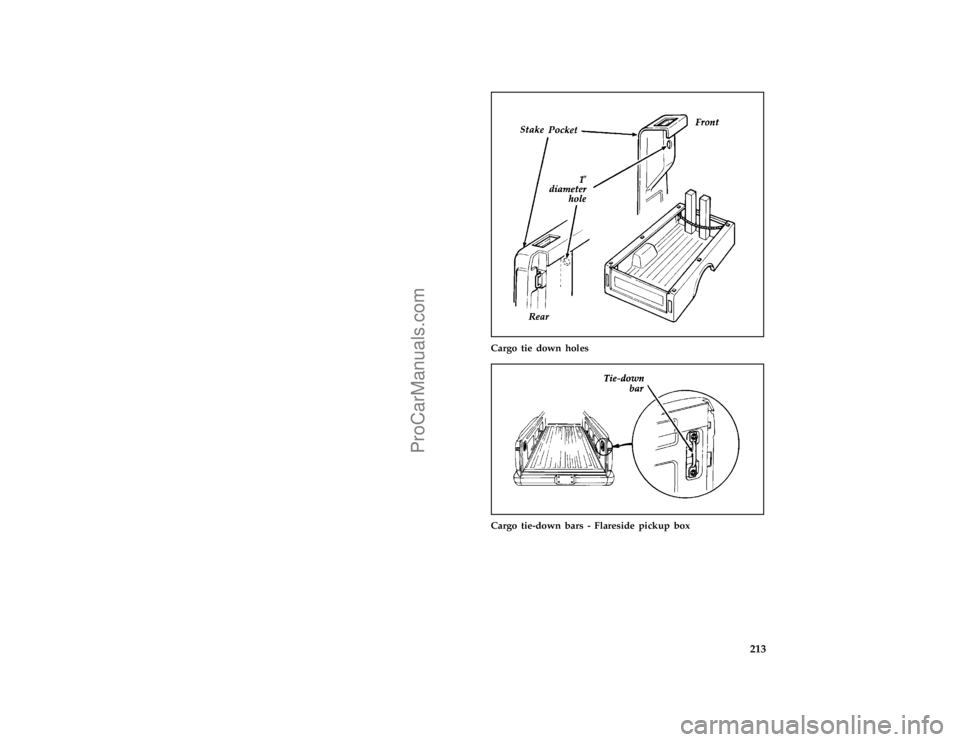

half page art:0020154-A
Cargo tie down holes
*
[DR28550( F )03/91]
one third page art:0020774-A
Cargo tie-down bars - Flareside pickup box
File:ltdrf.ex
Update:Thu May 9 15:17:55 1996
ProCarManuals.com

214
*
[DR28750( ALL)01/93]
Vehicle/Trailer Loads
*
[DR28801( ALL)06/92]
All vehicles may tow a Class I trailer provided
the Gross Combined Weight (GCW) is less than
or equal to the GVWR shown on the Safety
Compliance Certification Label. For heavier
trailer applications, refer to the towing
information found later in this chapter.
*
[DR28950(BEF )02/95]
Trailer Towing (may require trailer tow
option package)
*
[DR29001( ALL)03/91]
Towing a trailer puts additional loads on your
vehicle's engine, transmission, axle, brakes, tires
and suspension. For your safety and for the
good of your vehicle, use the right equipment
for the type of trailer you tow.
[DR29010(B F )05/95]
If your trailer is equipped with electric brakes,
auxiliary battery, or back-up lamps, the optional
7 wire trailer towing electrical hook-up will be
required on the vehicle.
*
[DR29025( ALL)09/92]
Your trailer towing capability will vary based on
the standard and optional equipment on your
vehicle. Refer to the followingVehicle
Loading/Towing Informationand the Trailer
Towing Tables to determine the specific towing
capability of your vehicle.
*
[DR29050( ALL)02/92]
q
Stay within the load limits when you tow.
*
[DR29101( ALL)01/95]
q
Carefully and thoroughly prepare your
vehicle for towing, making sure to use the
right equipment and to attach it properly.
(SeePreparing to Towin this chapter.)
*
[DR29151( ALL)01/95]
q
Use extra caution when driving your vehicle
while you tow. (SeeDriving while you towin
this chapter.)
*
[DR29201( ALL)01/95]
q
Service your vehicle more frequently if you
tow a trailer. (SeeServicing your vehicle if you
towin this chapter.)
