1996 FORD F250 Owners Manual

135
*
[FV54300( F )01/93]
For vehicles equipped with the swing-out
recreational mirrors, the right-hand side mirror is a
flat glass mirror. All other right-hand side view
mirrors used are convex. Convex mirrors have a
curved surface and will show a wider view of the
lane next to and behind your vehicle.
*
[FV54400(BEF )05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
*
[FV54500(BEF )08/91]
Dual Electric Remote Control Mirrors
(If equipped)
*
[FV54600(BEF )08/91]
To adjust the remote controlled side mirrors:
*
[FV54800(BEF )06/94]
1. Find the control switch in the driver's door
panel.
*
[FV55000(BEF )06/94]
2. Select the right or left mirror by moving the
selector switch to R or L.
*
[FV55200(BEF )06/94]
3. Move the control knob in the direction you
want to move the mirror.
*
[FV55400(BEF )06/94]
4. Return the selector switch to the middle
position to keep the mirror in place.
*
[FV55700(B F )12/91]

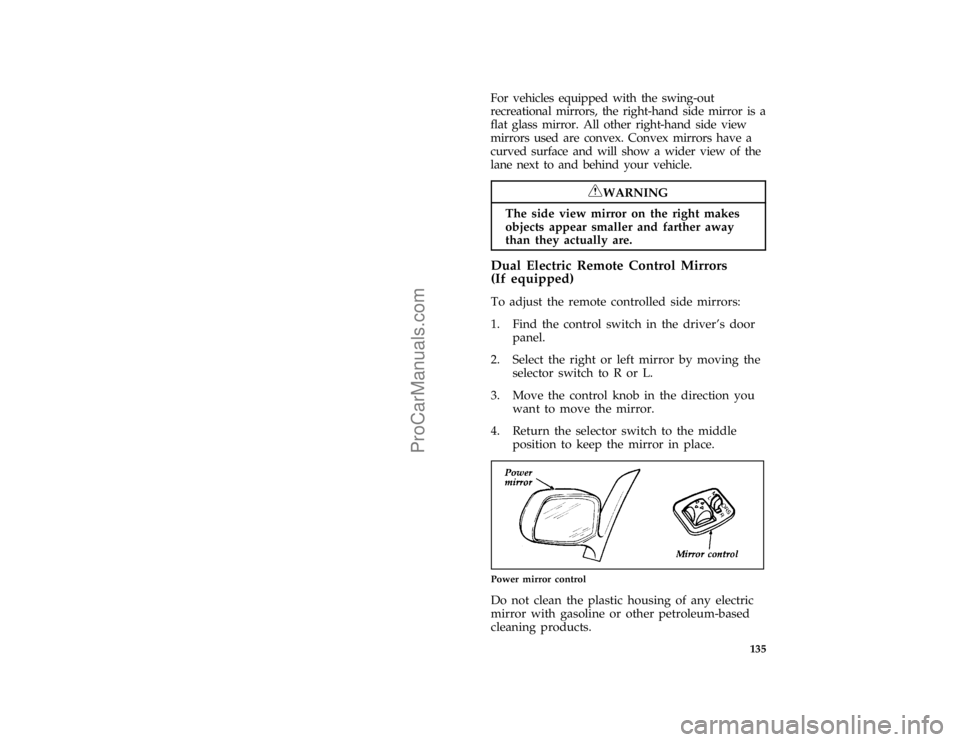

quarter page art:0020886-A
Power mirror control
*
[FV55900(BEF )12/91]
Do not clean the plastic housing of any electric
mirror with gasoline or other petroleum-based
cleaning products.
File:ltfvf.ex
Update:Thu May 9 15:20:08 1996
ProCarManuals.com

136
*
[FV59400(BEF )01/95]
Console
*
[FV59500(BEF )12/91]
Your vehicle may have a full console. The full
console has the features shown in the illustration
below.
*
[FV60100(B F )12/91]

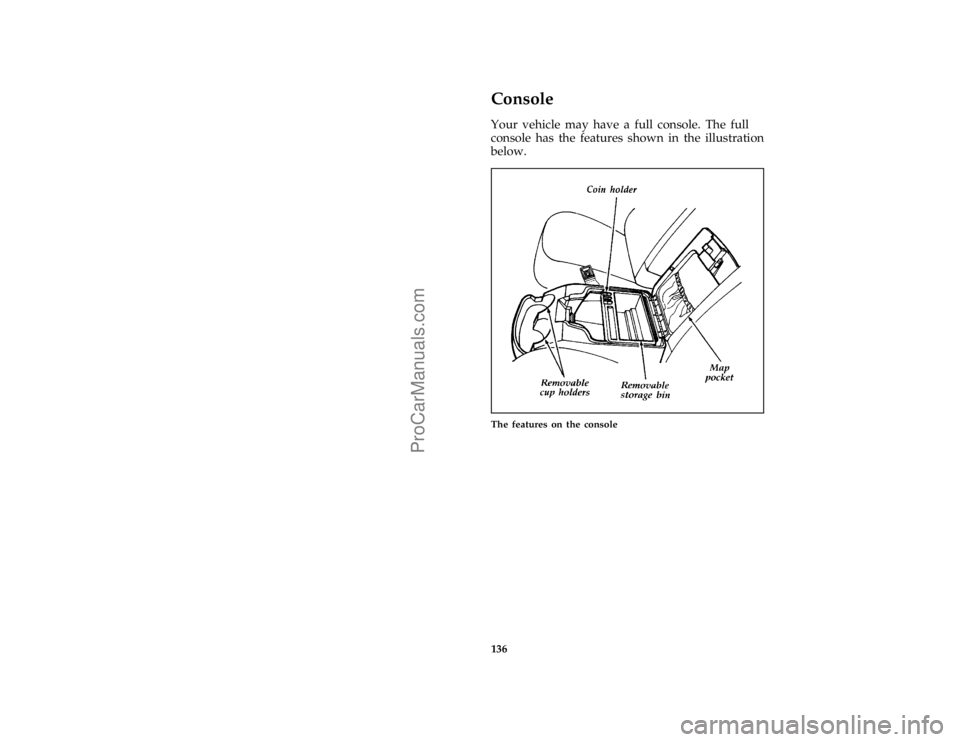

half page art:0020683-C
The features on the console
File:ltfvf.ex
Update:Thu May 9 15:20:08 1996
ProCarManuals.com

137
*
[FV60200(B F )12/91]

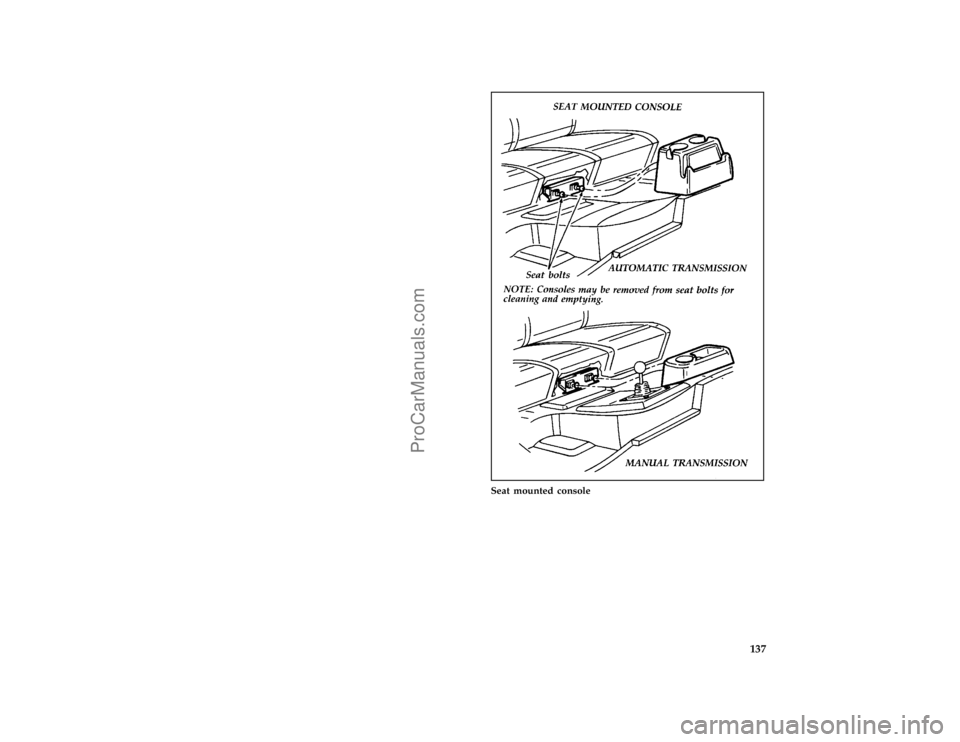

three fourths page art:0020909-A
Seat mounted console
File:ltfvf.ex
Update:Thu May 9 15:20:08 1996
ProCarManuals.com

138
*
[FV69900(BEF )03/95]
Power Point Electrical Outlet
*
[FV70000(B F )05/94]
The power point outlet is located on the
instrument panel to the right of the shift lever.
This outlet should be used in place of the
cigarette lighter for optional electrical accessories.
*
[FV70200(BEF )06/92]
NOTE: Do not use the cigarette lighter in
place of the power point.
*
[FV70300(B F )06/92]

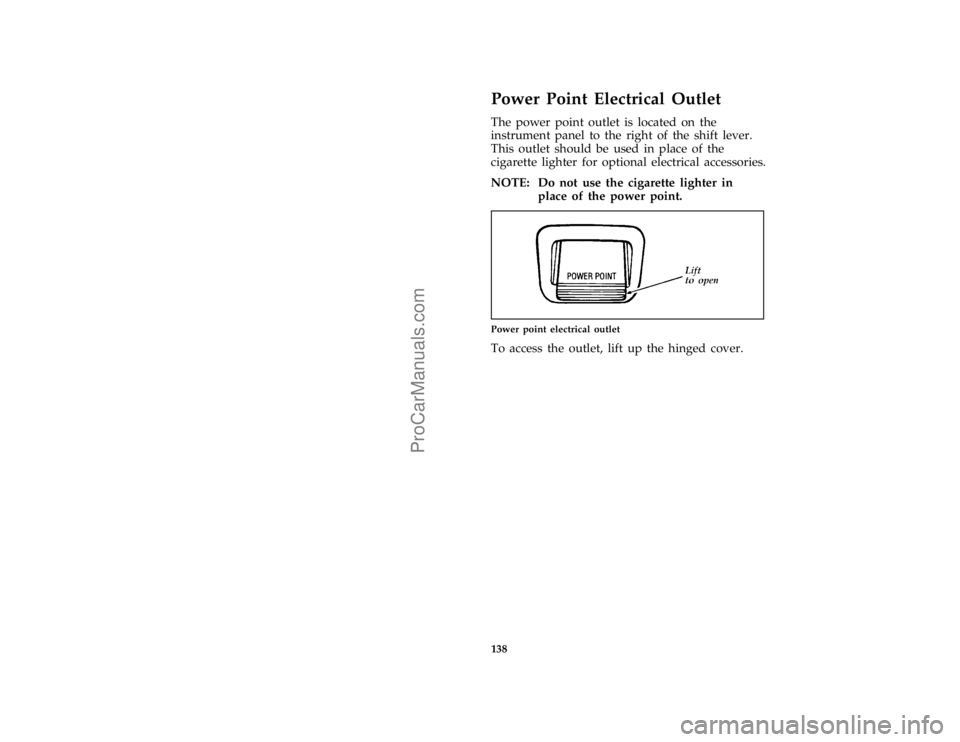

quarter page art:0020929-A
Power point electrical outlet
*
[FV70500(B F )07/92]
To access the outlet, lift up the hinged cover.
File:ltfvf.ex
Update:Thu May 9 15:20:08 1996
ProCarManuals.com

139
Electronic Sound Systems
*
[AS01100(BEF )04/95]

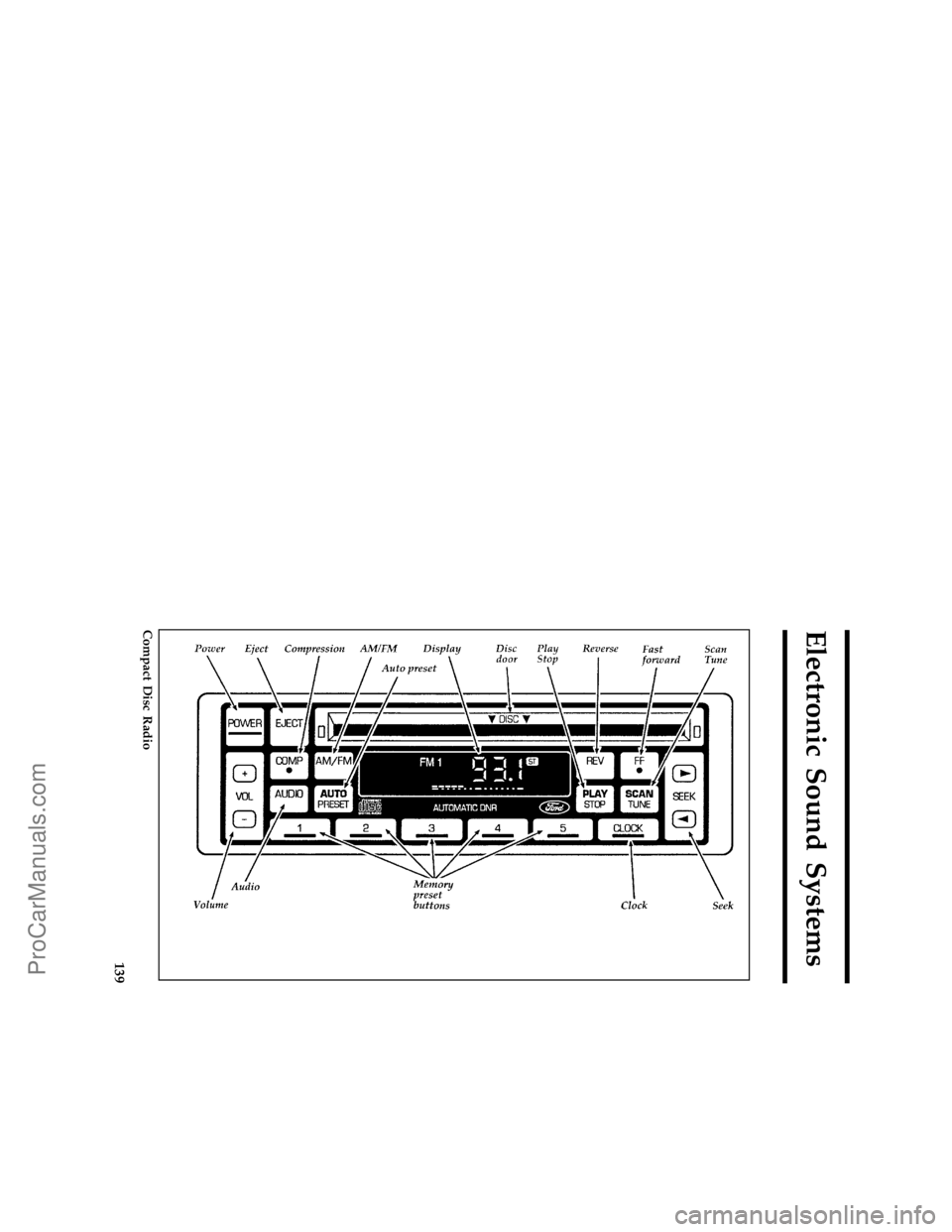

full page art:0060648-B
Compact Disc Radio
File:ltasf.ex
Update:Thu May 9 15:15:21 1996
ProCarManuals.com

140
*
[AS01200(BEF )04/95]
Compact Disc Radio
*
[AS01250(BEF )05/95]
The Compact Disc Radio combines the Electronic
Stereo Radio with the Ford Compact Disc Player.
*
[AS01300(BEF )04/95]
Using the Controls on Your New Radio/CD
Player
*
[AS01400(BEF )04/95]
Most of the features of this unit work for both
radio and CD operation. Also, some of the knobs
and buttons control several different functions,
so be sure to read all of the operating
instructions carefully.
*
[AS01500(BEF )04/95]
How to turn the radio on and off
*
[AS01600(BEF )04/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS01625(BEF )04/95]
How to adjust the volume
*
[AS01650(BEF )05/95]
Press the (+/-) side of the ªVOLº button to
increase/decrease the volume. Bars illuminate in
the display to show the relative volume level.
*
[AS01675(BEF )04/95]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off (with the
ªPOWERº button), the volume will
remain in the position it was set at
when radio power is switched back on.
*
[AS01700(BEF )04/95]
Selecting the AM or FM frequency band
*
[AS01800(BEF )04/95]
Push the ªAM/FMº button to select the desired
frequency band. When in the radio mode,
pushing the button more than once will alternate
between AM, FM1 and FM2. These functions are
used with the station memory buttons described
underHow to tune radio stations.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996
ProCarManuals.com

141 %
*
[AS01900(BEF )05/95]
How to tune radio stations
*
[AS02000(BEF )07/94]
There are four ways for you to tune in a
particular station. You can manually locate the
station using the ªSCAN/TUNEº button,
ªSEEKº the station, ªSCANº to the station or
select the station by using the memory buttons,
which you can set to any desired frequency.
These four methods are described below.
*
[AS02100(BEF )04/95]
q
Using the ªSCAN/TUNEº button to manually
tune
*
[AS02200(BEF )04/95]
You can change the frequency up or down
one increment at a time (FM changes in
increments of 200kHz; AM changes in
increments of 10kHz) by first pressing the
ªSCAN/TUNEº button twice (display shows
ªTUNEº), then Ðwithin approximately five
secondsÐpressing and releasing either the
top
aor bottom
bhalf of the ªSEEKº
button. To change frequencies quickly, press
andhold downeither the top or bottom half
of the ªSEEKº button. While you are
manually tuning, the display will show a
blinking ªMº.
*
[AS02300(BEF )04/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
File:ltasf.ex
Update:Thu May 9 15:15:21 1996
ProCarManuals.com

142
*
[AS02400(BEF )04/95]
q
Using the ªSEEKº function
*
[AS02500(BEF )04/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the top
a
half of the ªSEEKº button to select the next
listenable station up the frequency band.
Press the bottom
bhalf of the button to
select the next listenable station down the
frequency band. By pressing and holding the
button, listenable stations can be passed over
to reach the desired station.
*
[AS02600(BEF )04/95]
q
Using the ªSCAN/TUNEº button to scan
radio stations
*
[AS02700(BEF )04/95]
Pressing the ªSCAN/TUNEº button once
enters the scan mode (display will indicate
ªSCNº). Pushing the top
ahalf of the
ªSEEKº button will begin the scan mode up
the frequency band, stopping on each
listenable station for approximately five
seconds. Pushing the bottom
bhalf of the
ªSEEKº button will begin the scan mode
down the frequency band, again stopping on
each listenable station for approximately five
seconds.
*
[AS02800(BEF )04/95]
To stop the scan mode on the presently
sampled station press the ªSCAN/TUNEº
button again.
*
[AS03000(BEF )04/95]
q
Setting the Station Memory Preset buttons
*
[AS03100(BEF )04/95]
Your radio is equipped with 5 station memory
buttons. These buttons can be used to select up
to 5 preset AM stations and 10 FM stations (5 in
FM1 and 5 in FM2). Follow the easy steps below
to set these buttons to the desired frequencies.
*
[AS03200(BEF )04/95]
1. Select a band, then select a frequency.
