1996 CHEVROLET TRACKER Owners Manual

I 5.
6.
Lower the sun visors
and push both sides
of
the lock buttons on the
front latches.
7. Pull back the swing am, unfasten the five snaps that
secure the canvas
to the swing arm and remove the
canvas from the swing
arm.
Unhook the latches.
8. Return the swing arm forward and hook it securely
with the latches.
9. Pull the tension belts located above the door frame
out
through their rings.
2-50
ProCarManuals.com

10. Lay the front half part of the canvas top onto
the rear half
of the top. Then, fold it forward so it
is in “half.”
11. Put the rear bottom corners of the canvas top into
the luggage compartment.
12. Lower the top bows. Y
Make sure that the lower top bow rests on the
rubber support without pinching
any part of the
canvas
top.
2-51
ProCarManuals.com

13. Lower the folded canvas behind the rear
seatback(s). Make sure that the rear seat belts
around the shoulder anchor are clear from the
folded top.
14. Fasten the upper top
bow with the belt
on the driver’s
side
seat belt shoulder
anchor bracket.
Reverse the steps
to raise your canvas top.
After raising the canvas top,
make sure that the canvas
extension is located outside the roof rail.
ProCarManuals.com

Removing and Installing the Canvas Top
1. Complete the steps listed previously for lowering the
2. Detach the rear bottom corners of the canvas top.
canvas top.
3. Unfasten the VelcroB
fastener.
4. Unsnap the canvas top to remove it all the way.
See “Preparing Your Canvas Top for Storage” in this
section for the correct storage procedure.
2-53
ProCarManuals.com

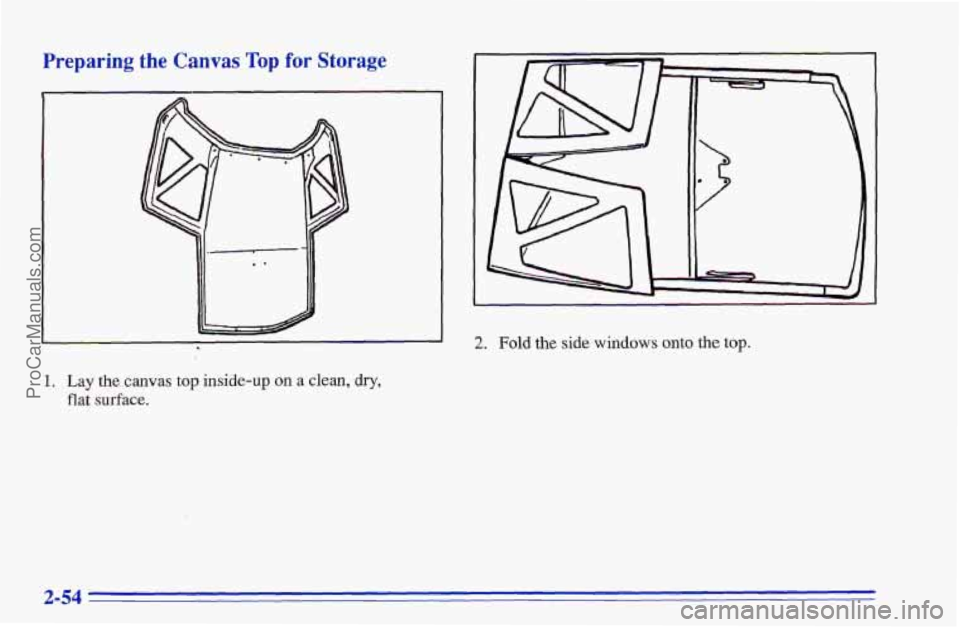

Preparing the Canvas Top fur Storage
2. Fold the side windows onto the top.
1. Lay the canvas top inside-up on a clean, dry,
flat surface.
ProCarManuals.com

3. Fold the front part of the canvas top over
4. Lay the rear window on top of the folded canvas top.
the windows.
5. Roll the canvas top around the rear window.
6. Store in a clean, dry location.
ProCarManuals.com

Instrument Panel -- Your Information Svstem
2-56
ProCarManuals.com

A. Defroster
B. Rear Defogger (Option)
C. Turn Signal/Multifunction Lever
D. Power Mirror Control (Option)
E. Air Vent
E Instrument Panel Brightness Control
G. Hazard Switch
H. Fuse Block
I. Instrument Cluster
J. Ignition Switch
K. Horn
L. Windshield Wipermasher Lever
M. Cruise Control ON/OFF Button (Option)
N. Rear Window Wiper Button (Option)
0. Rear Window Washer Button (Option)
P. Comfort Controls
Q. Cigarette Lighter
R. Shift Lever
S. Parking Brake Lever
T. Coinholder/Bin
U. Audio System
V. Transfer Case Shift Lever
W. Ashtray
X. Glove Box
2-57
