1996 CHEVROLET BLAZER Owners Manual

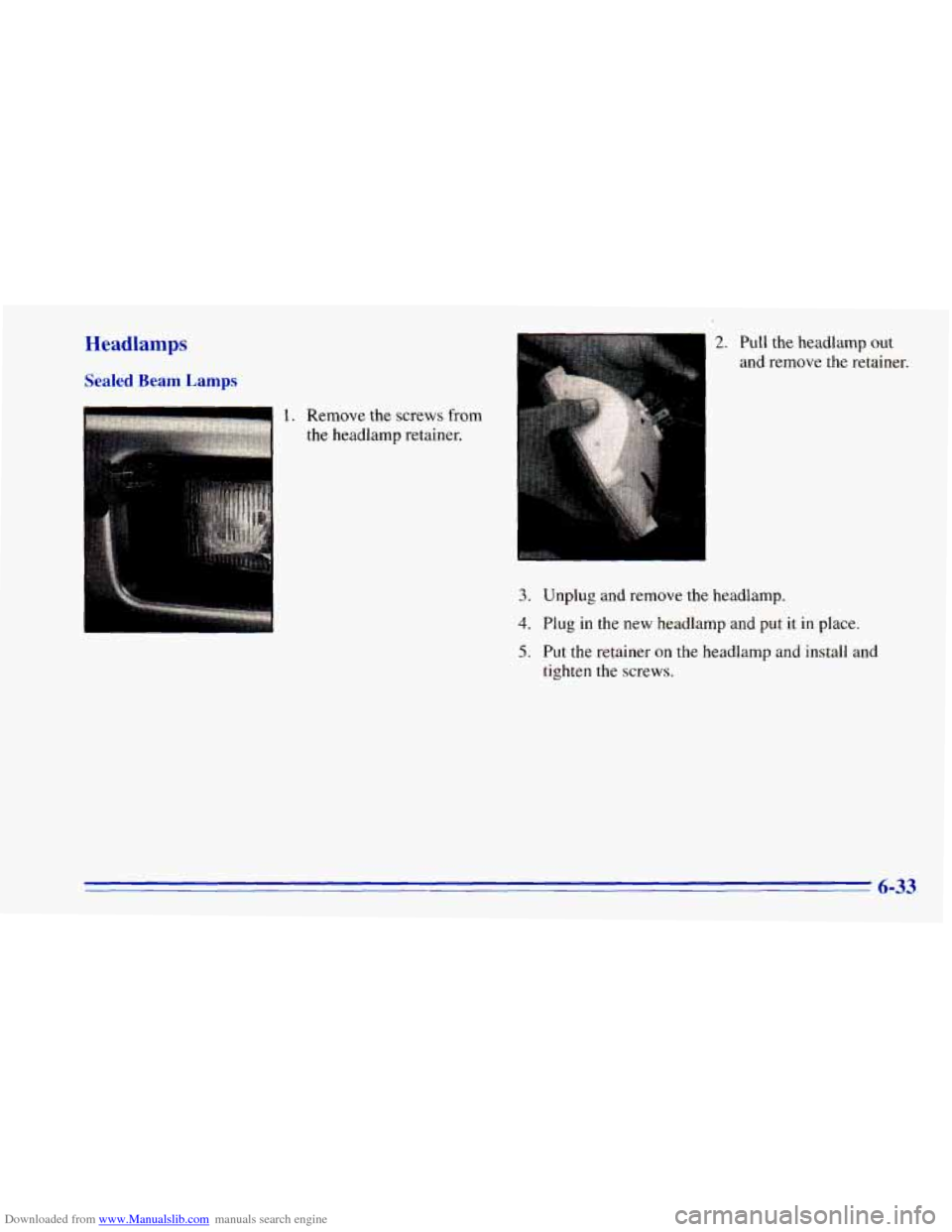

Downloaded from www.Manualslib.com manuals search engine Headlamps
Sealed Beam Lamps
1. Remove the screws from
the headlamp retainer.
2. Pull the headlamp out
I and remove the retainer.
3. Unplug and remove the headlamp.
4. Plug in the new headlamp and put it in place.
5. Put the retainer on the headlamp and install and
tighten the screws.
6-33

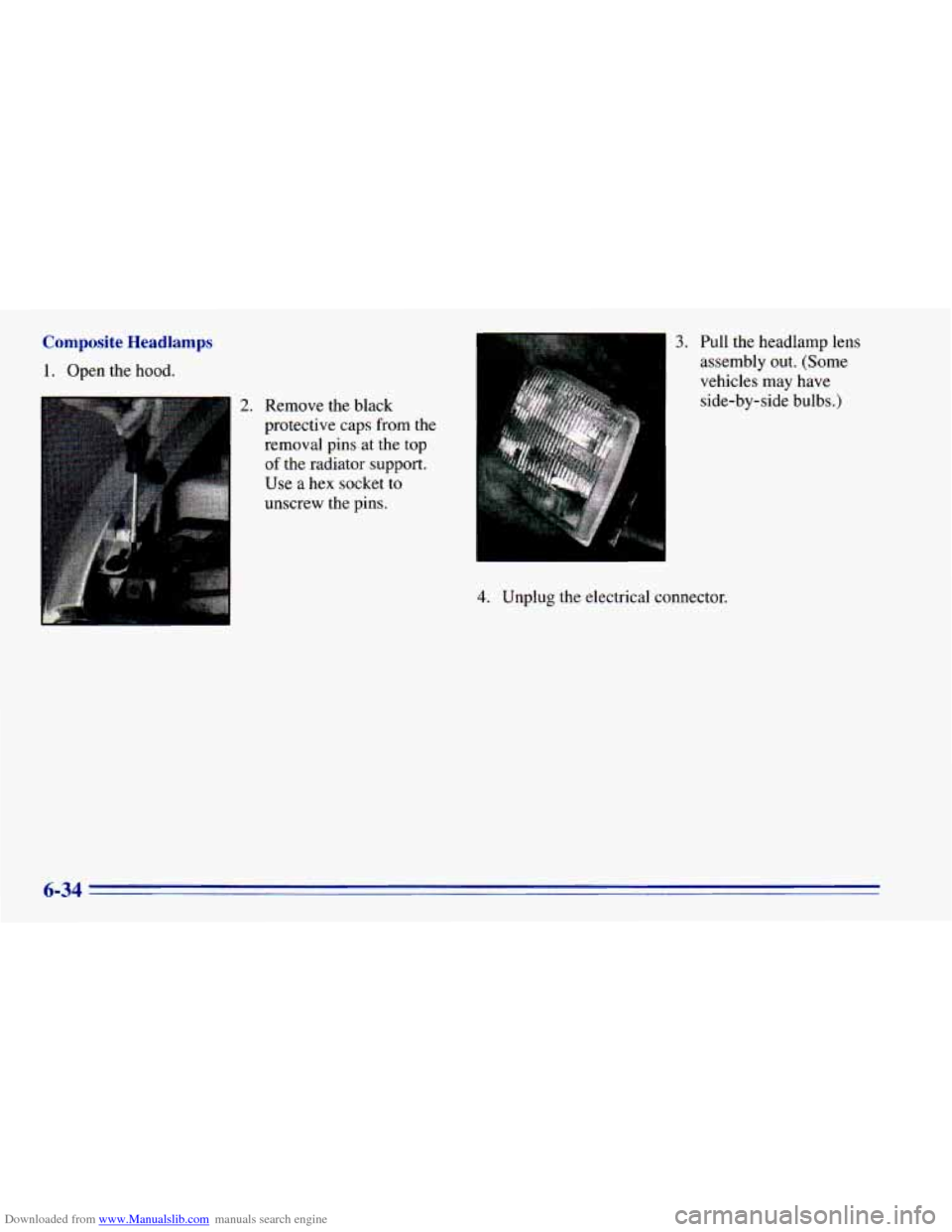

Downloaded from www.Manualslib.com manuals search engine Composite Headlamps
1. Open the hood. removal pins at the top
of the radiator support.
Use a hex socket
to
unscrew the pins.
3. Pull the headlamp lens
assembly out. (Some
vehicles may have
side-by-side bulbs.)
~ ~ ~~~
4. Unplug the electrical connector.
6-34

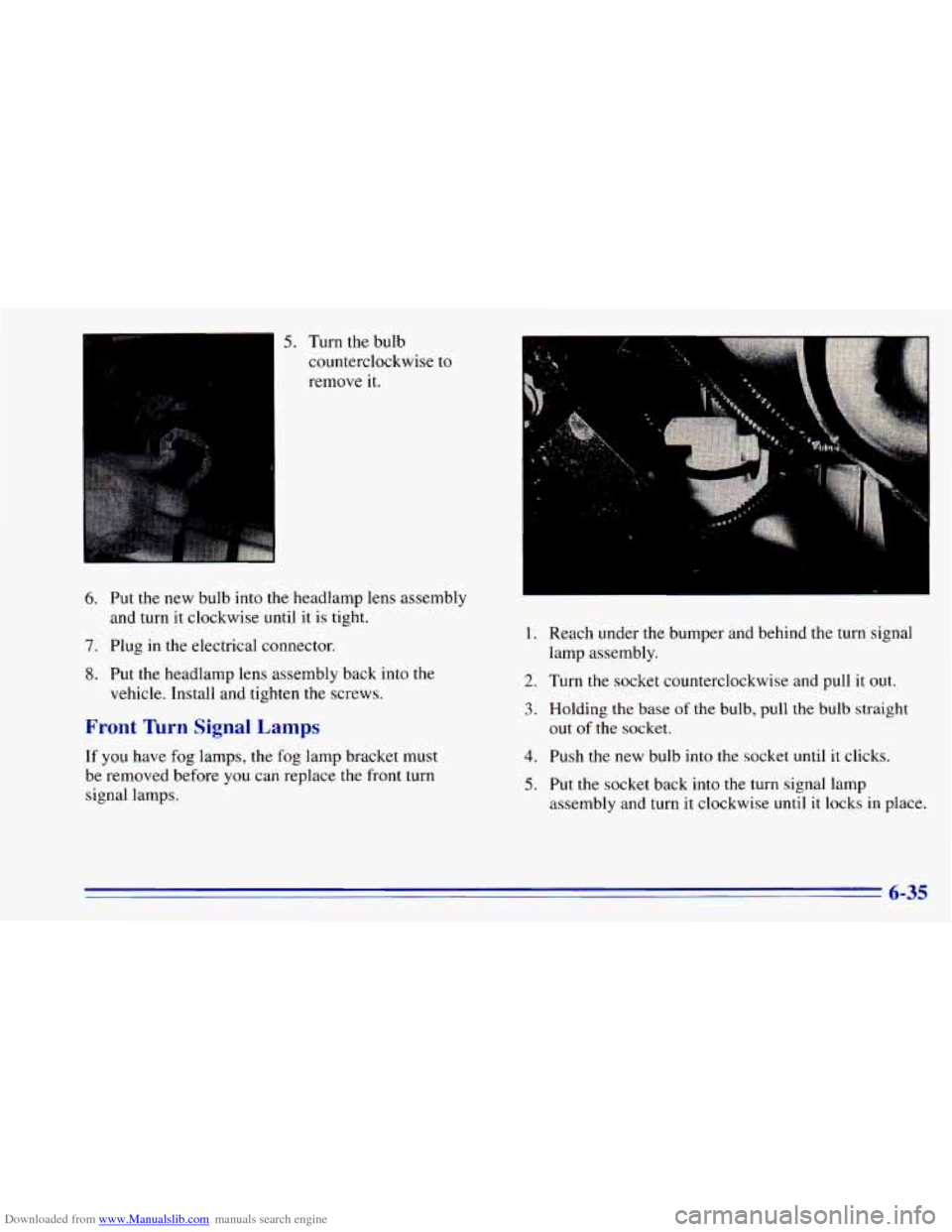

Downloaded from www.Manualslib.com manuals search engine 5. Turn the bulb
counterclockwise to remove it.
6. Put the new bulb into the headlamp lens assembly
and turn it clockwise until it is tight.
7. Plug in the electrical connector.
8. Put the headlamp lens assembly back into the
vehicle. Install and tighten the screws.
Front Turn Signal Lamps
If you have fog lamps, the fog lamp bracket must
be removed before you can replace the front turn
signal lamps.
.
1. Reach under the bumper and behind the turn signal
2. Turn the socket counterclockwise and pull it out.
3. Holding the base of the bulb, pull the bulb straight
lamp
assembly.
out of the socket.
4. Push the new bulb into the socket until it clicks.
5. Put the socket back into the turn signal lamp
assembly and turn it clockwise until
it locks in place.
6-35

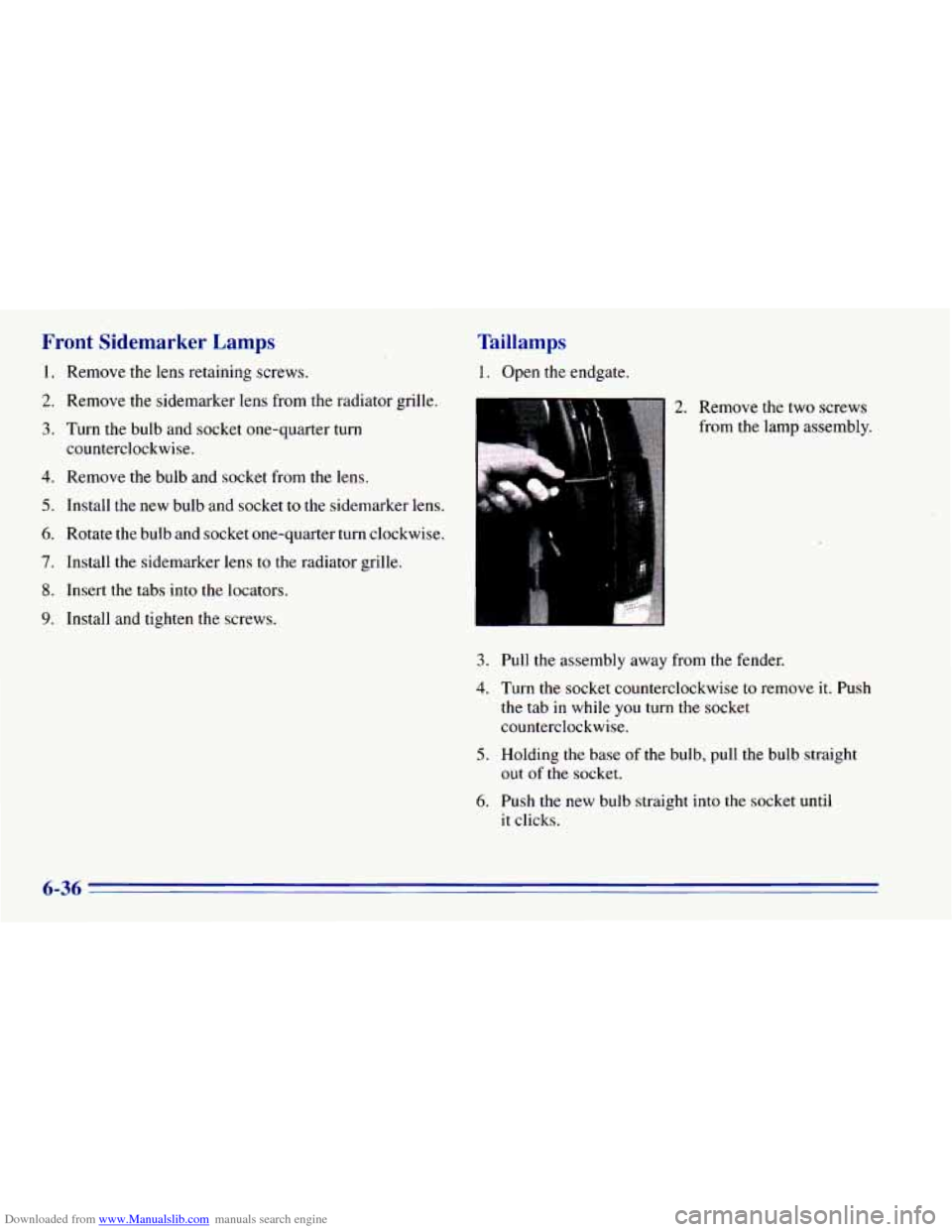

Downloaded from www.Manualslib.com manuals search engine Front Sidemarker Lamps
1. Remove the lens retaining screws.
2. Remove the sidemarker lens from the radiator grille.
3. Turn the bulb and socket one-quarter turn
4. Remove the bulb and socket from the lens.
5. Install the new bulb and socket to the sidemarker lens.
6. Rotate the bulb and socket one-quarter turn clockwise.
7. Install the sidemarker lens to the radiator grille.
8. Insert the tabs into the locators.
counterclockwise.
9. Install and
tighten the screws.
Taillamps
1. Open the endgate.
2. Remove the two screws
from the lamp assembly.
3. Pull the assembly away from me fender.
4. Turn the socket counterclockwise to remove it. Push
the tab
in while you turn the socket
counterclockwise.
5. Holding the base of the bulb, pull the bulb straight
out of the socket.
6. Push the new bulb straight into the socket until
it clicks.
6-36

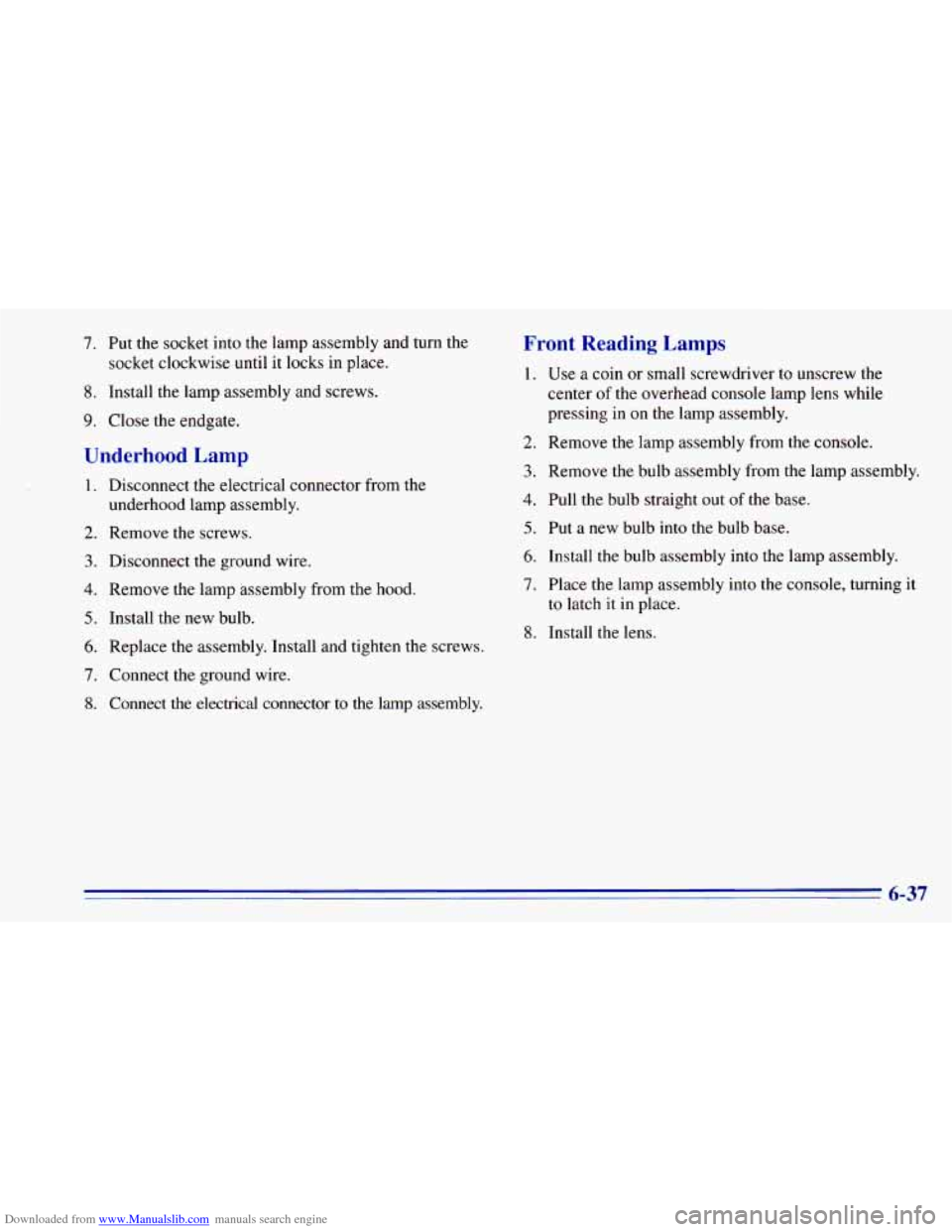

Downloaded from www.Manualslib.com manuals search engine 7. Put the socket into the lamp assembly and turn the
socket clockwise until it locks
in place.
8. Install the lamp assembly and screws.
9. Close the endgate.
Underhood Lamp
1. Disconnect the electrical connector from the
underhood lamp assembly.
2. Remove the screws.
3. Disconnect the ground wire.
4. Remove the lamp assembly from the hood.
5. Install the new bulb.
6. Replace the assembly. Install and tighten the screws.
7. Connect the ground wire.
8. Connect the electrical connector to the lamp assembly.
Front Reading Lamps
1. Use a coin or small screwdriver to unscrew the
center of the overhead console lamp lens while
pressing in on the lamp assembly.
2. Remove the lamp assembly from the console.
3. Remove the bulb assembly from the lamp assembly.
4. Pull the bulb straight out of the base.
5. Put a new bulb into the bulb base.
6. Install the bulb assembly into the lamp assembly.
7. Place the lamp assembly into the console, turning it
8. Install the lens. to latch
it in place.
6-37

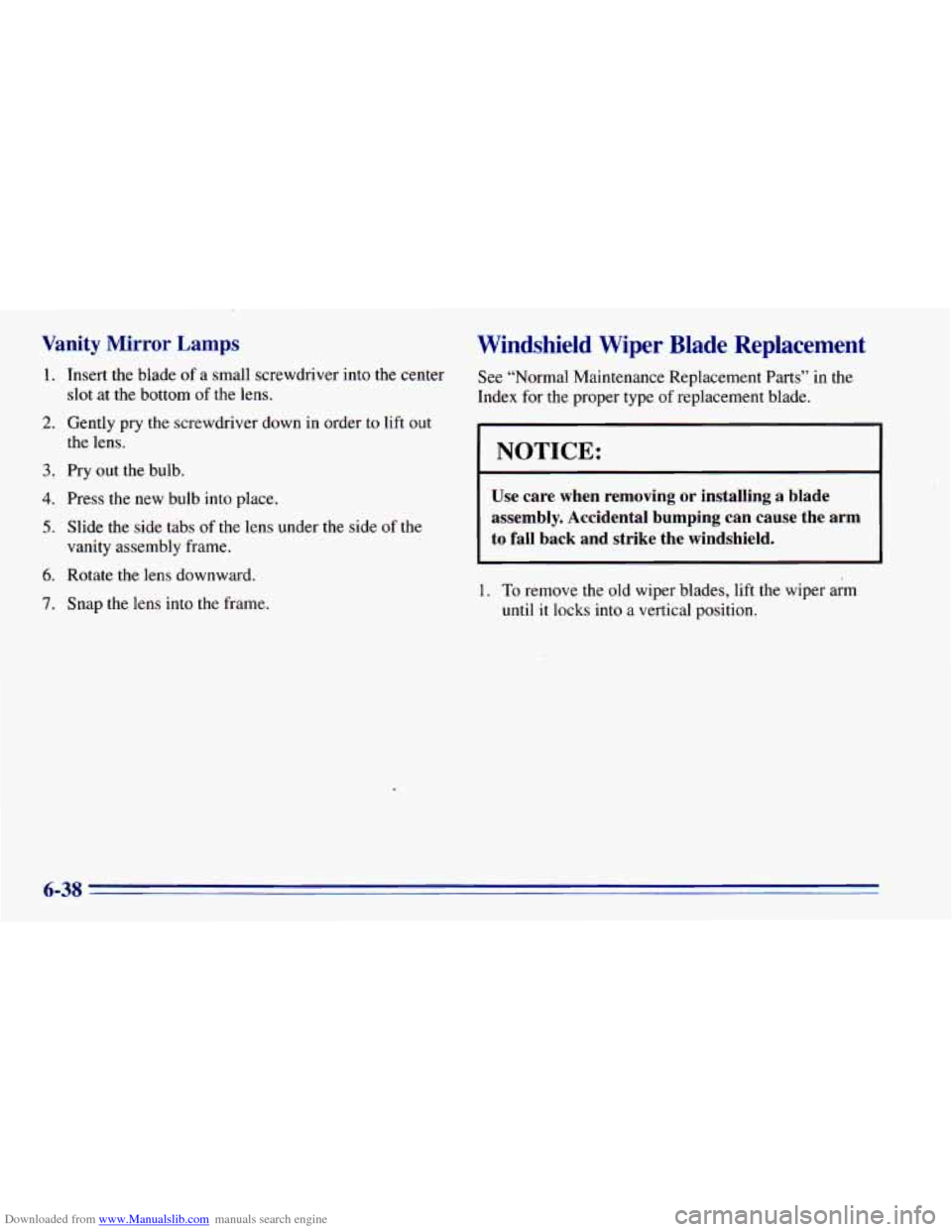

Downloaded from www.Manualslib.com manuals search engine Vanity Mirror Lamps
1.
2.
3.
4.
5.
6.
7.
Insert the blade of a small screwdriver into the center
slot at the bottom
of the lens.
Gently pry the screwdriver down in order to lift out
the lens.
Pry out the bulb.
Press the new bulb into place.
Slide the side tabs
of the lens under the side of the
vanity assembly frame.
Rotate the lens downward.
Snap the lens into
the frame.
Windshield Wiper Blade Replacement
See “Normal Maintenance Replacement Parts” in the
Index for the proper type
of replacement blade.
I NOTICE:
Use care when removing or installing a blade
assembly. Accidental bumping can cause the
arm
to fall back and strike the windshield.
1. To remove the old wiper blades, lift the wiper arm
until it locks into a vertical position.
6-38

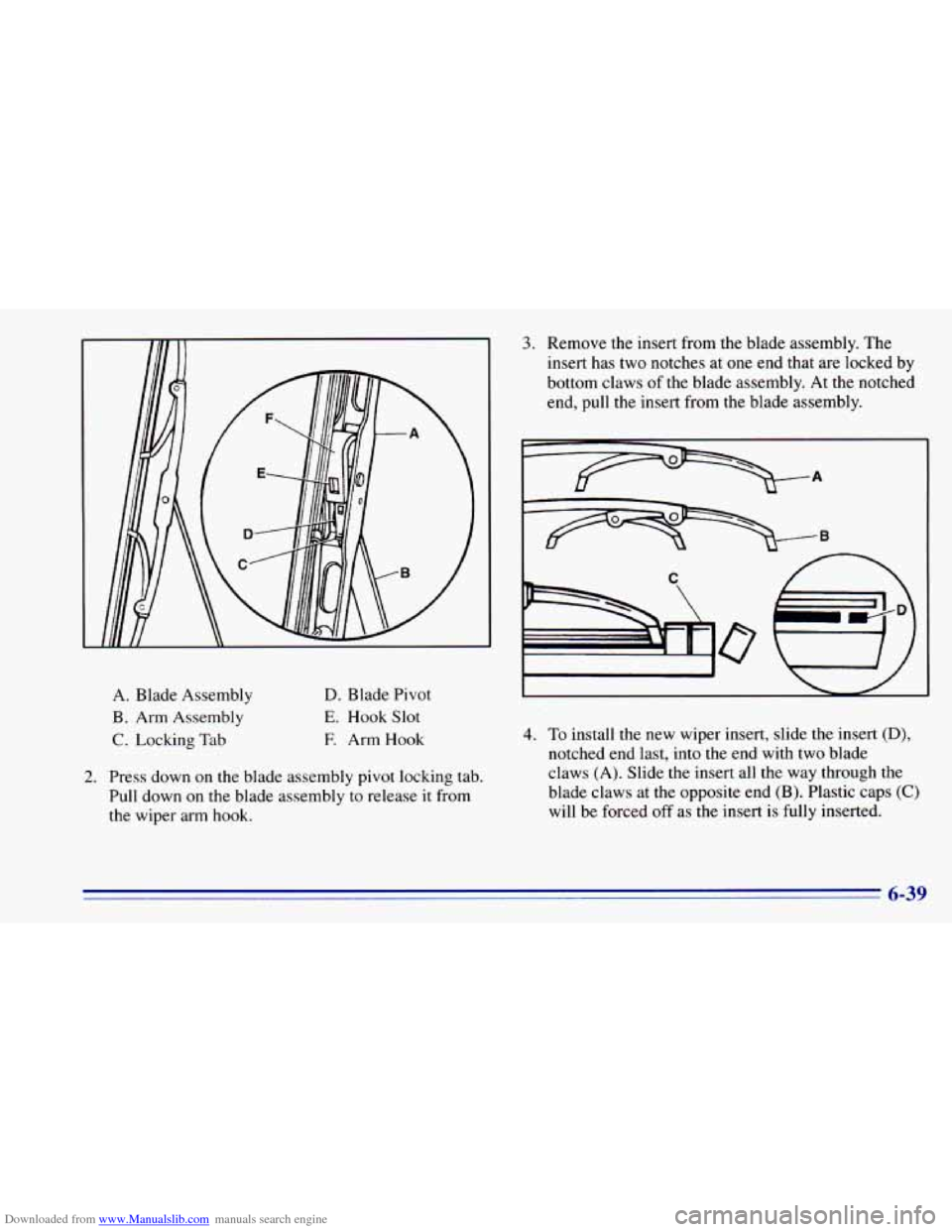

Downloaded from www.Manualslib.com manuals search engine A. Blade Assembly
B. Arm Assembly
C. Locking Tab
D. Blade Pivot
E. Hook Slot
E Arm Hook
2. Press down on the blade assembly pivot locking tab.
Pull down on the blade assembly to release
it from
the wiper arm hook.
3. Remove the insert from the blade assembly. The
insert has two notches at one end that are locked by
bottom claws of the blade assembly. At the notched
end, pull the insert from the blade assembly.
A u
n n
u
0
4. To install the new wiper insert, slide the insert (D),
notched end last, into the end with two blade
claws
(A). Slide the insert all the way through the
blade claws at the opposite end
(B). Plqstic caps (C)
will be forced off as the insert is fully inserted.
6-39

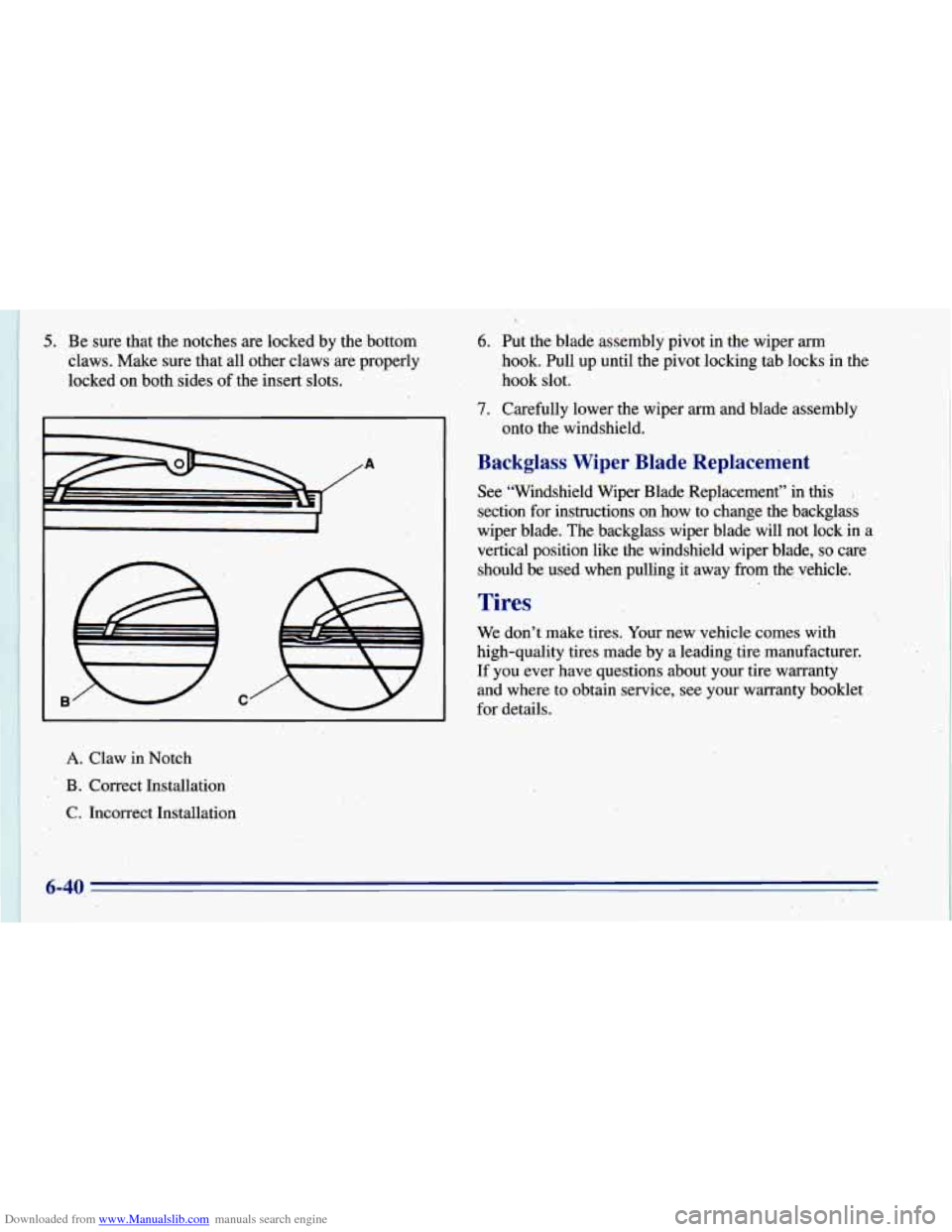

Downloaded from www.Manualslib.com manuals search engine 5. Be sure that the notches are locked by the bottom
claws. Make sure that all other claws are properly
locked on both sides of the insert slots.
C /
A. Claw in Notch
*. B. Cori-ect Installation
C. Incorrect Installation
?,

6. Put the blade assembly pivot in the wiper arm
hook. Pull up until the pivot locking tab locks in the
hook slot;
7. Carefully lower the wiper arrn and blade assembly
Backglass Wiper Blade Replacement
See “Windshield Wiper Blade Replacement” in this
section for instructions on how to change the backglass
wiper blade. The backglawwiper blade will not lock in a
vertical position like the windshield wiper blade,
so care
should
be used when pulling it away from the. vehicle.
onto the
windshield.
.I ’
Tires
We don’t make tires. Your new vehicle comes with
high-quality tires made by a leading tire manufacturer.
If you ever have questions about your tire warranty
and where to obtain service, see your warranty booklet
for details.
