1996 BUICK PARK AVENUE Owners Manual

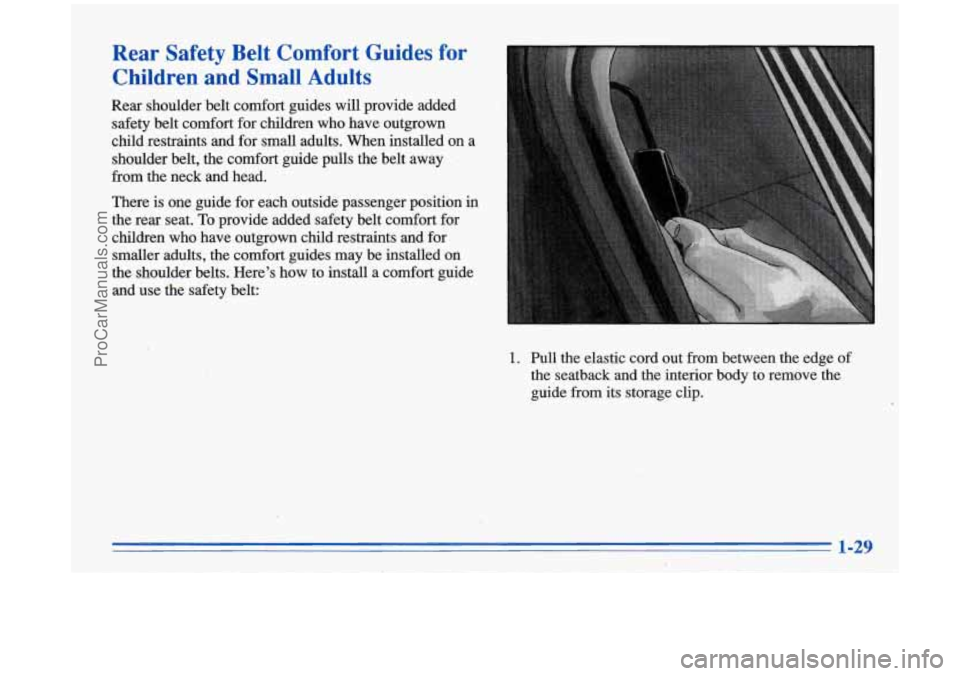

Rear Safety Belt Comfort Guides for Children and Small Adults
Rear shoulder belt comfort guides will provide added
safety belt comfort for children who have outgrown
child restraints and for small adults. When installed on a
shoulder belt, the comfort guide pulls the belt away
from the neck and head.
There is one guide
for each outside passenger position ip
the rear seat. To provide added safety belt comfort for
children who have outgrown child restraints and for
smaller adults, the comfort guides may be installed on
the shoulder belts.. Here’s how
to install a comfort guide
and use the safety belt:
1. Pull the elastic cord out fi-om between the edge of
the seatback and the interior body to remove the
guide from its storage clip.
1-29
f’
ProCarManuals.com

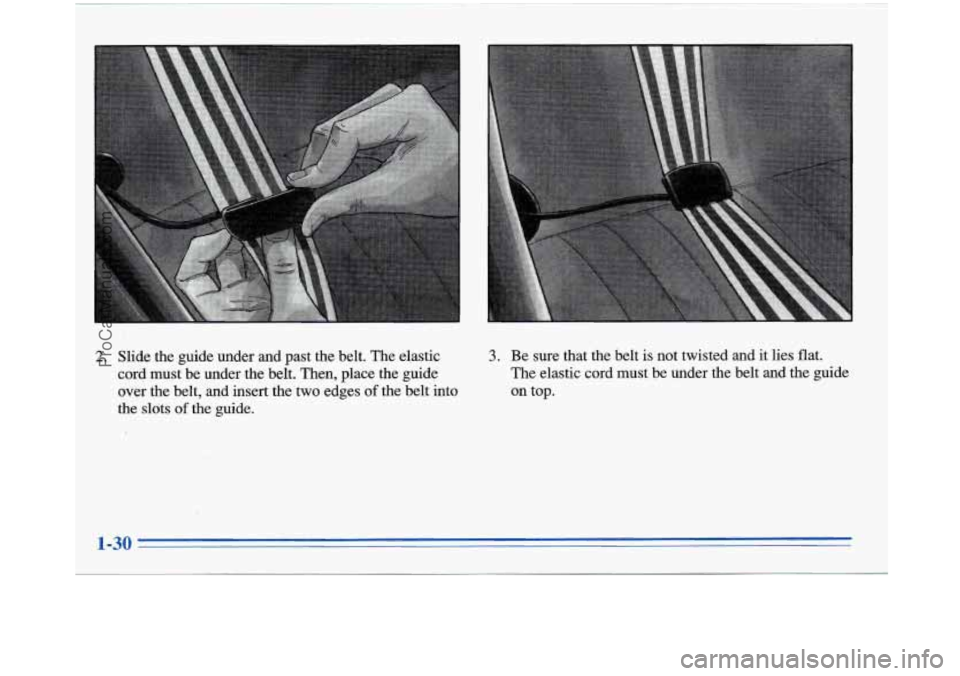

2. Slide the guide under and past the belt. The elastic
cord must be under the belt. Then, place the guide
over the belt, and insert the two edges
of the belt into
the slots
of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the guide
on top.
ProCarManuals.com

h
4. Buckle, position and release the safety belt as
described in “Rear Seat Outside Passenger Positions”
earlier in this section. Make sure that the shoulder
belt crosses the shoulder.
To remove and store the comfort guides, just perform these
steps
in reverse order. Squeeze the belt edges together so
that you can take them out from the guides. Pull the guide
upward to expose its storage clip, and
then slide the guide
onto the clip. Rotate the guide and clip inward and in
between the seatback and the interior body, leaving
only
the loop of elastic cord exposed.

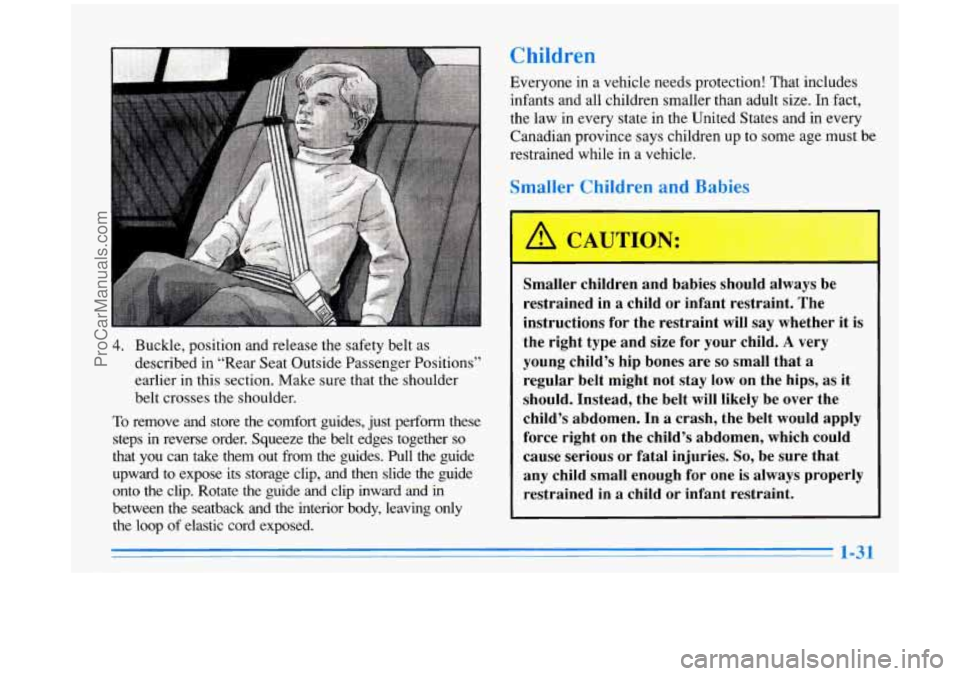

Children
Everyone in a vehicle needs protection! That includes
infants and all children smaller than adult size. In fact,
the law in every state in the United States and in every
Canadian province says children up to some age must be
restrained while in a vehicle.
Smaller Children and Babie
Smaller children and babies should always be
restrained in
a child or infant restraint. The
instructions for the restraint will
say whether it is
the right type and size
for your child. A very
young child’s hip bones are so small that a
regular belt might not stay low on the hips, as it
should. Instead, the belt will likely be over the
child’s abdomen.
In a crash, the belt would apply
force right on the child’s abdomen, which could
cause serious or fatal injuries.
So, be sure that
any child small enough for one is always properly
restrained in
a child or infant restraint.
-31
ProCarManuals.com

heavy you can't hold it. For example, in a crash
at only
25 mph (40 kndh), a 12-1b. (5.5 kg) baby
will suddenly become a 240-lb. (110
kg) force on
your arms. The baby would be almost impossible
to hold.
Secure the baby in
an infant restraint.
I I

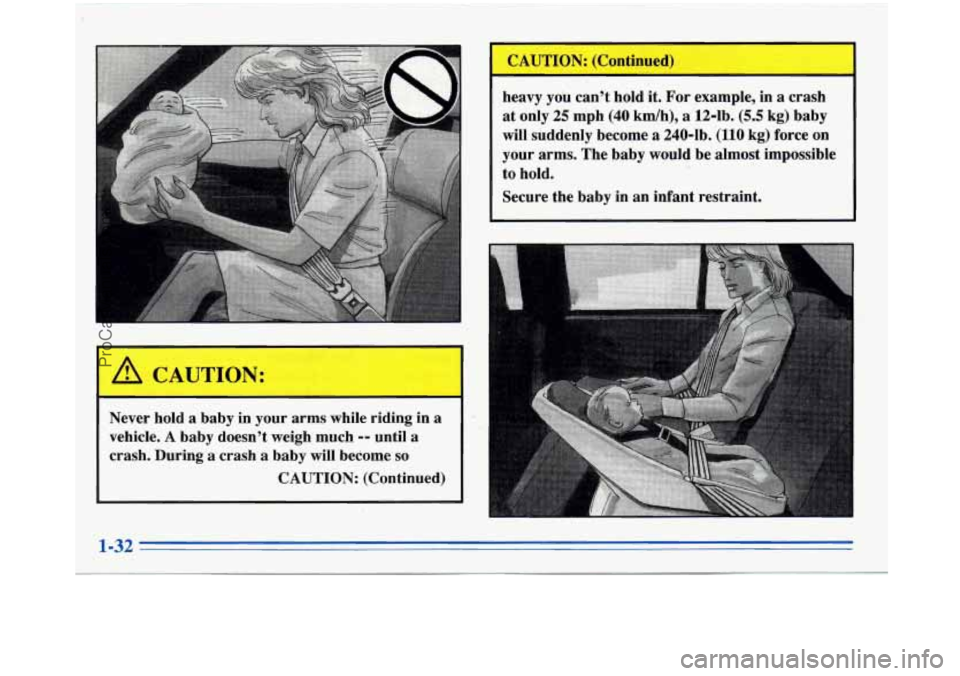

Never hold a baby in your arms while riding in a
vehicle. A baby doesn't weigh much -- until a
crash. During a crash a baby will beCome so
CAUTION: (Continued)
ProCarManuals.com

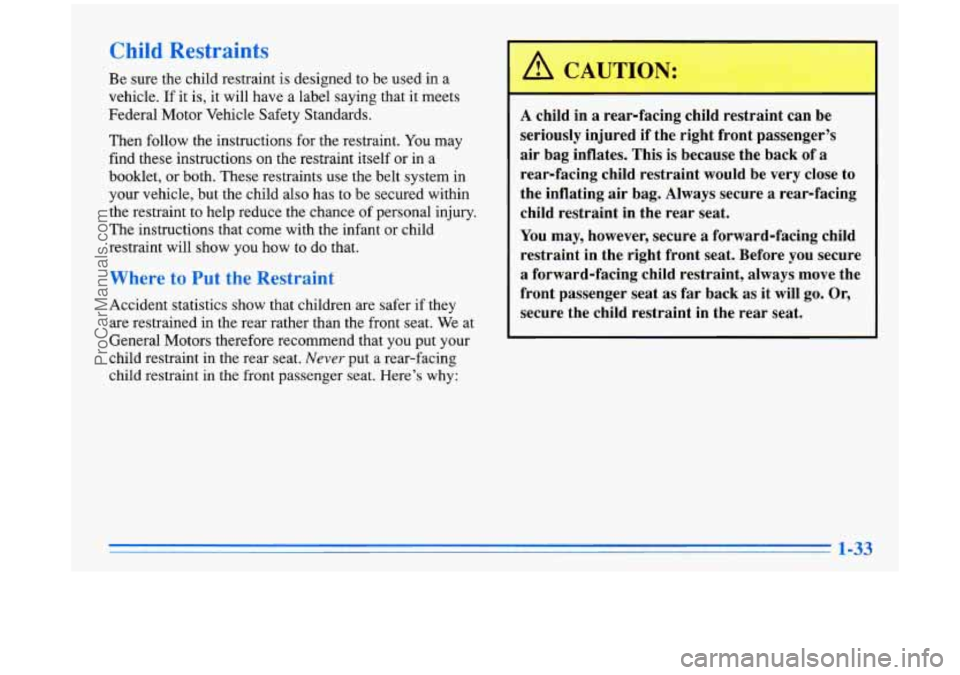

Child Restraints
Be sure the child restraint is designed to be used in a
vehicle. If it
is, it will have a label saying that it meets
Federal Motor Vehicle Safety Standards.
Then follow the instructions for the restraint.
You may
find these instructions on the restraint itself or
in a
booklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance
of personal injury.
The instructions that come with the infant or child
restraint will show you how to do that.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. We at
General Motors therefore recommend that you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint
in the front passenger seat. Here’s why:
A CATTTION:
I- - e
A child in a rear-facing child restraint can be
seriously injured
if the right front passenger’s
air bag inflates. This is because the back of
a
rear-facing child restraint would be very close to
the inflating air bag. Always secure
a rear-facing
child restraint in the rear seat.
You may, however, secure
a forward-facing child
restraint in the right front seat. Before
you secure
a forward-facing child restraint, always move the
front passenger seat as
far back as it will go. Or,
secure the child restraint in the rear seat.
ProCarManuals.com

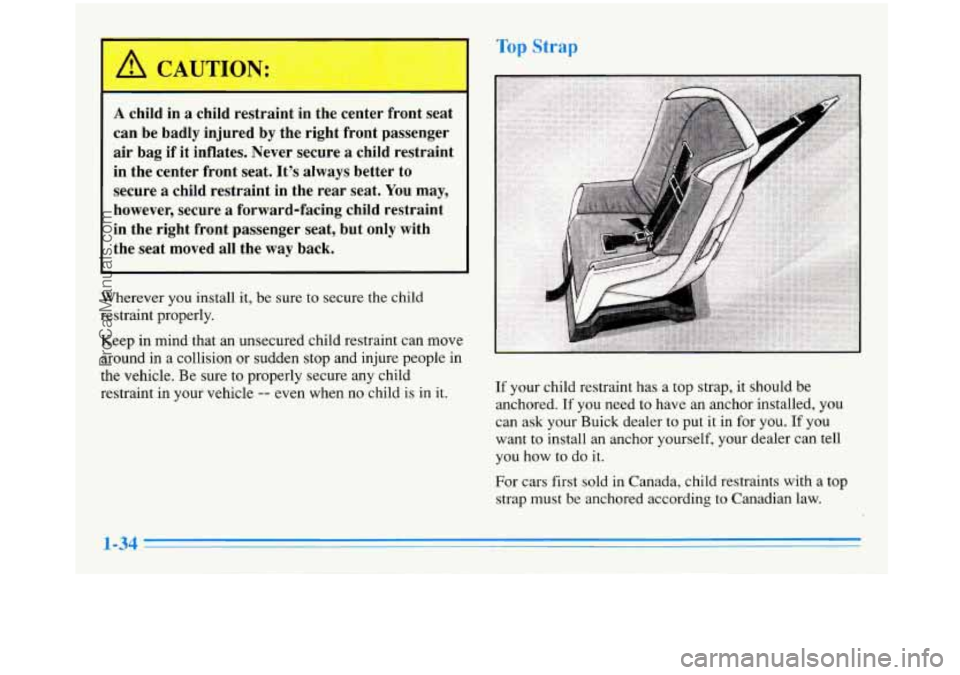

A child in a child restraint in the center front seat
can be badly injured by the right front passenger
air bag if it inflates. Never secure
a child restraint
in the center front seat. It’s always better to
secure
a child restraint in the rear seat. You may,
however, secure a forward-facing child restraint
in the right front passenger seat, but only with
the seat moved all the way back.
Wherever you install
it, be sure to secure the child
restraint properly.
Keep
in mind that an unsecured child restraint can move
around in a collision or sudden stop and injure people in
the vehicle. Be sure
to properly secure any child
restraint in your vehicle
-- even when no child is in it. If your child restraint has a top strap, it should be
anchored.
If you need to have an anchor installed, you
can ask your Buick dealer to put it in for you.
If you
want to install an anchor yourself, your dealer can tell
you how to do it.
For cars first sold in Canada, child restraints with a top
strap must be anchored according to Canadian law.
ProCarManuals.com

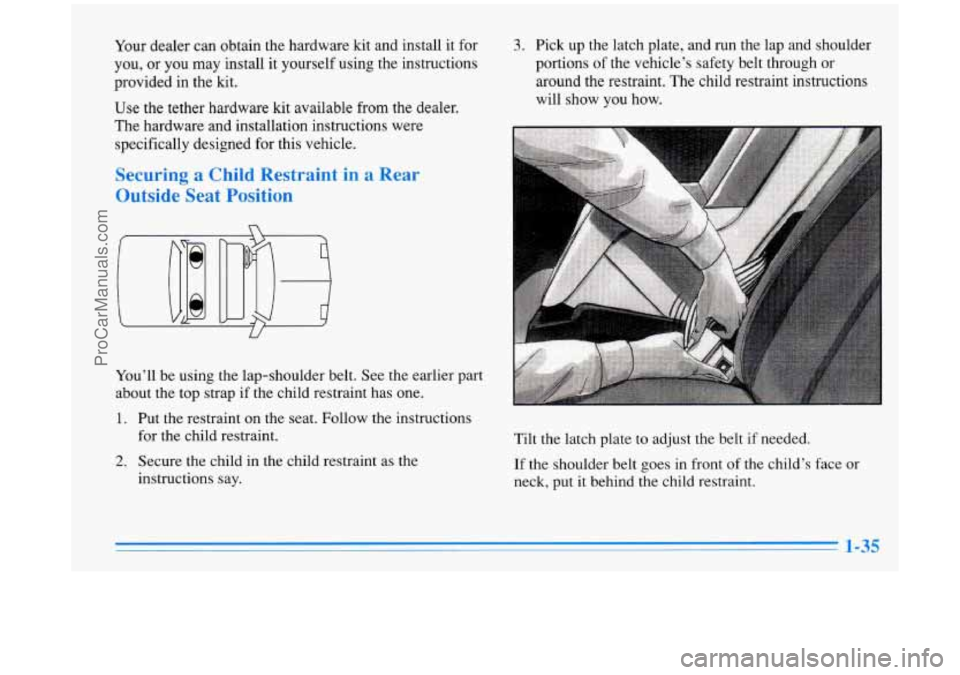

Your dealer can obtain the hardware kit and install it for
you, or you may install it yourself using the instructions
provided in the kit.
Use the tether hardware kit available from the dealer.
The hardware and installation instructions were
specifically designed for this vehicle.
:wing ,
tsidc
U
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through
or
around the restraint. The child restraint instructions
will show you how.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say. Tilt the latch plate
to adjust the belt if needed.
If the shoulder belt goes in front of the child’s face or
neck, put
it behind the child restraint.
ProCarManuals.com

I

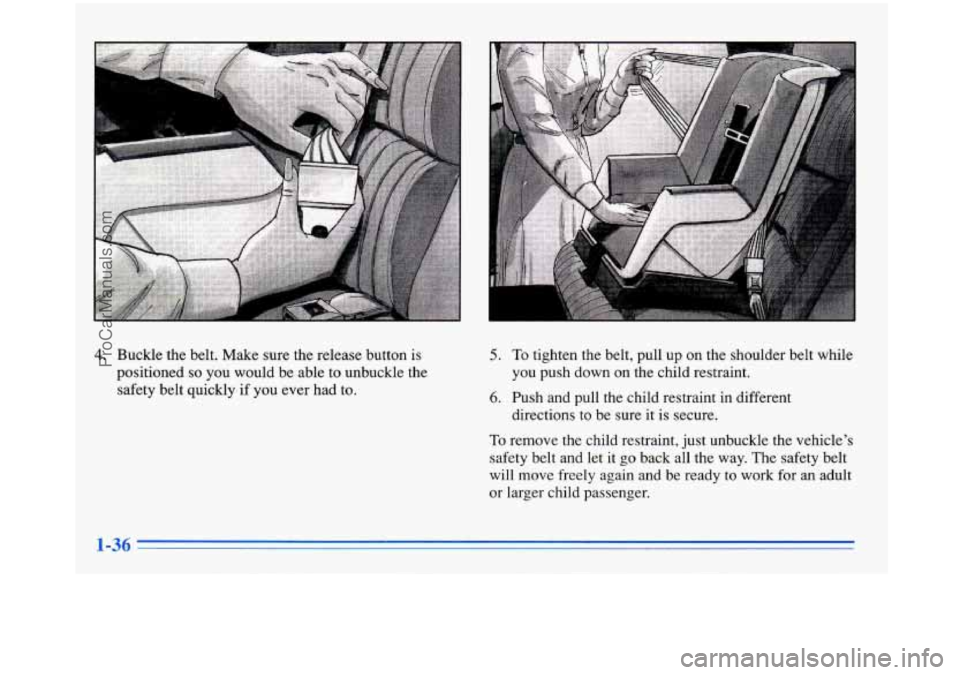

4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To tighten the belt, pull up on the shoulder belt while
you push down on the child restraint.
6. Push and pull the child restraint in different
directions
to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
