Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the fuse block. An electrical overload will cause the
lights to go on and off or, in some cases, to remain
off.
If this happens, have your headlamp system checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed.
6-54
ProCarManuals.com
Page 266 of 354

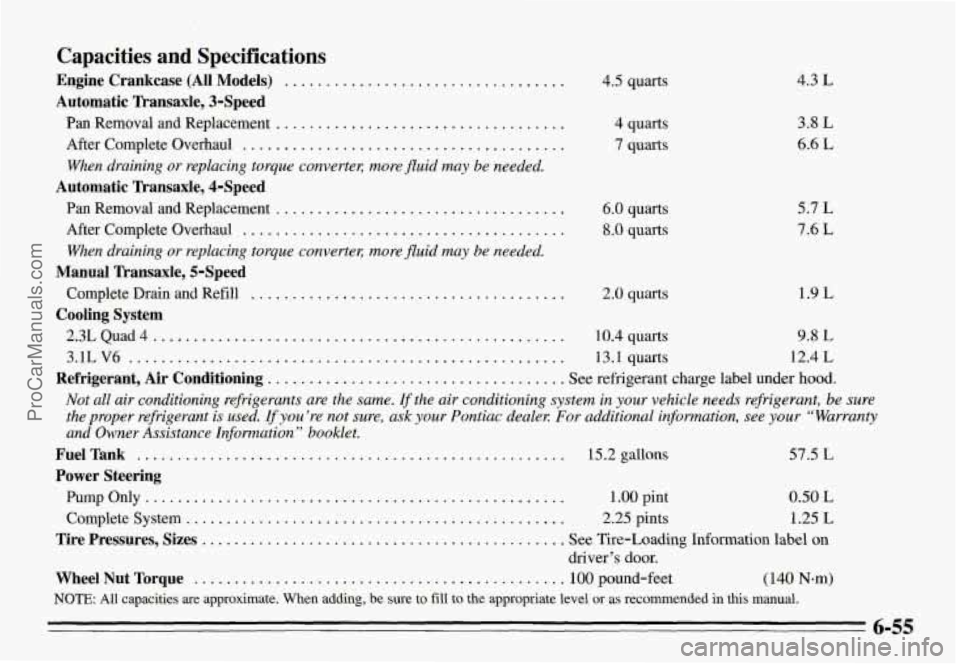

Capacities and Specifications
Engine Crankcase (All Models) ..................................
Automatic Transaxle, 3-Speed
Pan Removal and Replacement ...................................
When draining or replacing torque convertel; more fluid may be needed.
Pan Removal and Replacement ...................................
When draining or replacing torque convertel; more fluid may be needed.
After Complete Overhaul .......................................
Automatic Transaxle, 4-Speed
After Complete Overhaul .......................................
Manual Transaxle, 5-Speed
Cooling System
Complete Drain and Refill ......................................
2.3LQuad4 ..................................................
3.1LV6 .....................................................
4.5 quarts
4 quarts
7 quarts
6.0 quarts
8.0 quarts
2.0 quarts
4.3 L
3.8 L
6.6 L
5.7 L
7.6 L
1.9 L
10.4 quarts 9.8 L
13.1 quarts 12.4 L
Refrigerant, Air Conditioning .................................... See refrigerant charge label under hood.
Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs refrigerant, be sure
the proper refi-igerant is used.
If you’re not sure, ask your Pontiac dealel: For additional information, see your “Warranty
and Owner Assistance Information
” booklet.
FuelTank .................................................... 15.2gallons 57.5 L
Power Steering
Pumponly ................................................... 1.00 pint 0.50 L
Complete System .............................................. 2.25 pints 1.25 L
Tire Pressures, Sizes ............................................ See Tire-Loading Information label on
driver’s door.
WheelNutTorque ............................................. 100pound-feet (140 N-m)
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level or as recommended in this manual.
6-55
ProCarManuals.com
Page 267 of 354

Replacement Bulbs
Back Up Lamps ............................ 2057
Front Parking/Turn Signal Lamps
........... 2057 NA
License Plate Lamp
......................... 194
Center High-Mounted Stoplamp
............... 912
OUTSIDE LAMPS BULB
Halogen Headlamps
LowBeam ............................... 9006
High Beam ............................... 9005
Side Marker Lamps
Front ................................. 194NA
Rear
...................................... 24
TrunkLamp
................................ 906
Stop/Tail/Turn Signal Lamps .................. 2057
Fog Lamps ................................. 885
INSIDE LAMPS BULB
Ashtray .................................... 161
Without Sunroof ........................... 168
With Sunroof
............................ 214-2
Rear Reading Lamps
......................... 168
Underdash Lamp
............................ 194
Heater
& AK Control ........................ 161
High-Beam Indicator
......................... 161
Front Reading Lamps
Indicator Lamps
Charge. Oil. Fasten Safety Belts. ABS. Upshift. Low
Coolant. Brake.
Turn Signals. Malfunction Indicator
Lamp (Service Engine Soon). Check Gages
..... 161
Glovebox Lamp ............................. 161
6-56
ProCarManuals.com
Page 268 of 354

Engine Specifications
Quad 4 2.3L DOHC
VINEngineCode ................................... D
Type ............................................. L4
Displacement
...................................... 2.3 Liters
Compression Ratio
.................................. 9.5: 1
Firing Order ....................................... 1-3-4-2
Thermostat Temperature
............................. 195 OF (9 1 O C)
3.1L V6
M
V6
3.1 Liters
9.5: 1
1-2-3-4-5-6
195°F (91 "C)
Normal Maintenance Replacement Parts
Air Cleaner Element
2.3L Quad 4 ....................................... AC Type A- 1233C
3.1L V6
.......................................... AC Type A-1233C
2.3LQuad4
....................................... ACTypePF-1225
Engine Oil Filter
3.1LV6 .......................................... ACTypePF-47
PCV Valve .........................................
3.1L V6 .......................................... AC Type CV-892C
2.3L Quad DOHC
.................................. AC Type m41-910 (Platinum Plug)
3.1L V6
.......................................... AC Type R44 LT SM6
Sparkplugs ........................................
Gap: 0.060 inch (1.52 mm)
Gap: 0.060 inch (1.52 mm)
6-57
ProCarManuals.com
Page 269 of 354
Page 270 of 354

Section 7 Maintenance Schedule
IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
This section covers the maintenance required for your
Pontiac. Your vehicle needs these services to retain its
safety, dependability and emission control performance. ~~
1
Protection I
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Pontiac dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance or the
removal
of important components can significantly
affect the quality of the air we breathe. Improper fluid
levels or even the wrong tire inflation can increase the
level of emissions from your vehicle.
To help protect our
environment, and to help keep your vehicle
in good
condition, please maintain your vehicle properly.
7-1
ProCarManuals.com
Page 271 of 354

How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what
to have done and how often. Some of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment,
you should
let your dealer’s service department or another qualified
service center do these jobs.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service
information
GM publishes. See “Service Publications”
in the Index.
“Part B: Owner Checks and Services” tells you what
should be checked whenever you stop for fuel. It also
explains what you can easily do to help keep your
vehicle in good condition.
“Part C: Periodic Maintenance Inspections” explains
important inspections that your Pontiac dealer’s service
department or another qualified service center should
perform.
“Part D: Recommended Fluids and Lubricants” lists
some products
GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
“Part E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write it down in this part. This will help you
determine when your next maintenance should be done.
In addition, it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle for
warranty repairs.
7-2
ProCarManuals.com
Page 272 of 354

Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t
know
exactly how you’ll drive it. You may drive very short
distances only a few times a week. Or you may drive
long distances all the time in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or
in many other
ways.
Because of all the different ways people use their GM
vehicles, maintenance needs vary. You may even need
more frequent checks
and replacements than you’ll find
in the schedules in this section.
So please read this
section and note how you drive. If you have any
questions on how to keep your vehicle in good
condition, see your Pontiac dealer.
This part tells you the maintenance services you should
have done and when you should schedule them.
If you
go to your dealer for your service needs, you’ll know
that GM-trained and supported service people will
perform the work using genuine GM parts.
The proper fluids and lubricants to use are listed in Part
D. Make sure whoever services your vehicle uses these.
All parts should be replaced and all necessary repairs
done before you
or anyone else drives the vehicle.
These schedules are for vehicles that:
e
e
e
carry passengers and cargo within recommended
limits. You will find these limits on
your vehicle’s
Tire-Loading Information label. See “Loading Your
Vehicle” in the Index.
are driven on reasonable road surfaces within legal
driving limits.
use the recommended unleaded fuel. See “Fuel” in
the Index.
Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how to decide which
schedule to follow:
7-3
ProCarManuals.com
