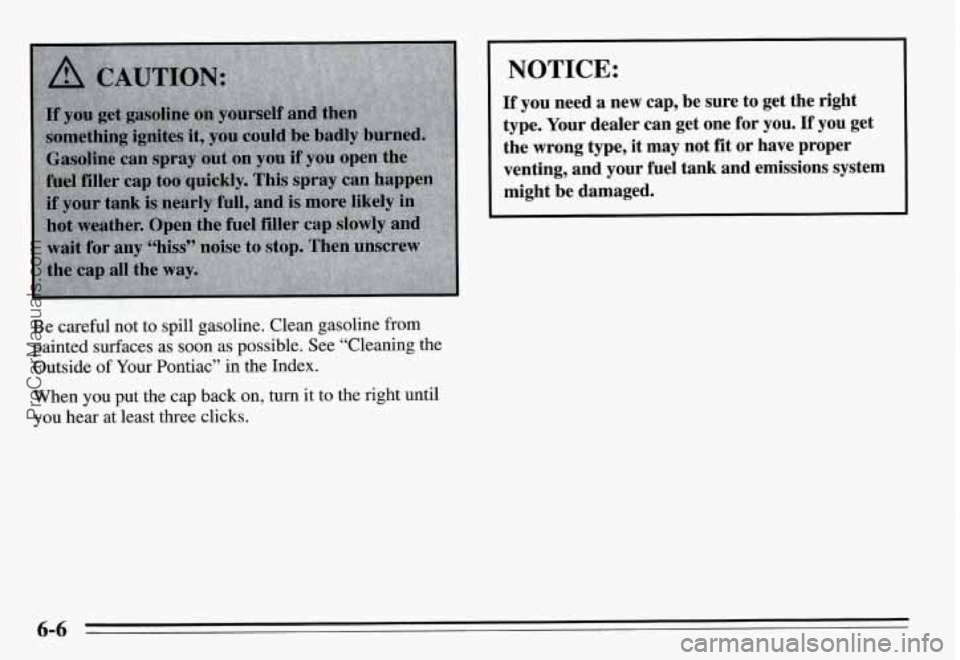

Page 217 of 354
I NOTICE:
Be careful not to spill gasoline. Clean gasoline from
painted surfaces as soon as possible. See “Cleaning the
Outside
of Your Pontiac” in the Index.
When you put the cap back on, turn it to the right until
you hear at least three clicks.
If you need a new cap, be sure to get the right
type. Your dealer can get one for you.
If you get
the wrong type, it may not fit or have proper
venting, and your fuel tank and emissions system
might be damaged.
6-6
ProCarManuals.com
Page 218 of 354
Checking Things Under the Hood
The following sections tell you how to check fluids,
lubricants and important
parts underhood.
Hood Release
To open the hood, first
pull the handle inside
the vehicle.
Then go to the front of the vehicle and press the
secondary hood release handle to the right.
6-7
ProCarManuals.com

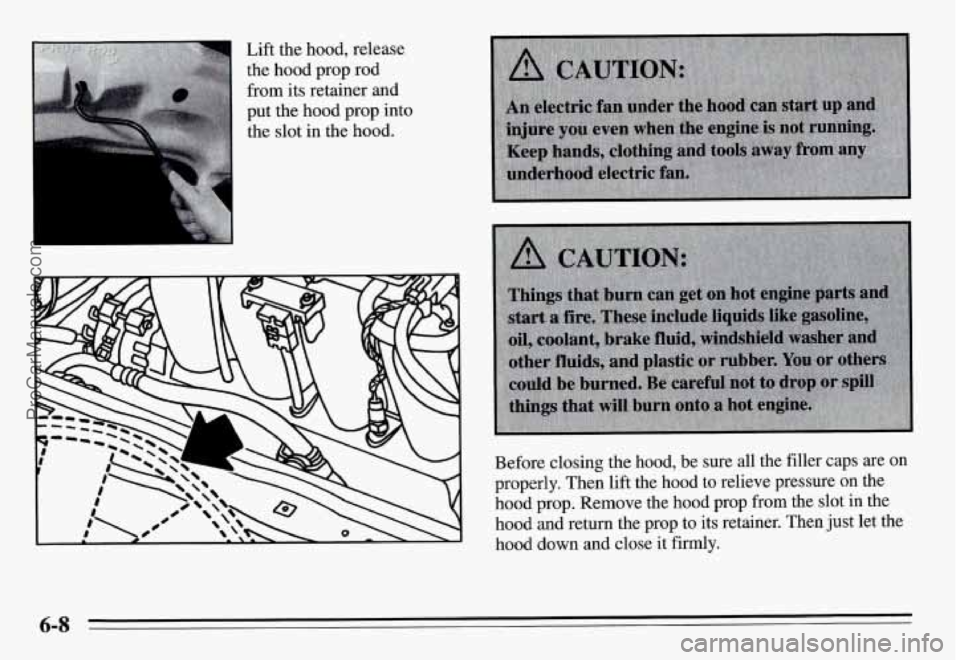

Page 219 of 354
I
Lift the hood, release
the hood prop rod
from its retainer and
put the hood prop into
the slot in the hood.
Before closing the hood, be sure all the filler caps are on
properly. Then lift the
hood to relieve pressure on the
hood prop. Remove the hood prop from the slot in the
hood and return the prop to its retainer. Then just let the
hood down and close it
firmly.
6-8
ProCarManuals.com
Page 220 of 354
2.3L Quad 4 Engine (CODE D)
PO ??
When you open the hood, you'll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Engine Oil Dipstick
Automatic Transaxle Dipstick (if equipped)
Brake Fluid Reservoir
Air Cleaner
,? I, 4
Hydraulic Clutch Fluid Reservoir (if so equipped)
Battery
Windshield Washer Huid Reservoir
Power Steering Fluid Reservoir
Engine Oil
Fill Cap
'il.
10. Engine Coolant Surge Tank
6-9
ProCarManuals.com
Page 221 of 354
3.1L V6 Engine (CODE M)
P 9p P
When you open the hood, you’ll see:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Power Steering Fluid Reservoir
Automatic Transaxle Fluid Dipstick
Brake Fluid Reservoir
Air Cleaner
Battery
Windshield Washer Fluid Reservoir
Engine Oil Dipstick
Engine Oil
Fill Cap
Engine Coolant Surge Tank
6-10
ProCarManuals.com
Page 222 of 354
Engine Oil
CHECK
OIL
If the CHECK OIL light on the instrument panel comes
on,
it means you need to check your engine oil level
right away. For more information, see
“CHECK OIL
Light” in the Index. You should check your engine oil
level regularly; this is an added reminder.
It’s a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be
warm and the vehicle must be on level ground.
Turn off the engine and give the oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the actual level.
2.3 L Engine Oil Dipstick
6-11
ProCarManuals.com
Page 223 of 354
3.1 L V-6 Engine Oil Dipstick
The engine oil dipstick handle is yellow. The dipstick on
the
2.3L L-4 engine is located on the rear of the engine.
The dipstick on the
3.1L V-6 engine is located on the
front of the engine behind the fan.
To Check Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
2.3L Quad 4: Adding Oil
6-12
ProCarManuals.com
Page 224 of 354
3.1L V-6: Adding Oil When to Add Oil
If the oil is at or below the ADD line, then you’ll need
to add some oil. But you must
use the right kind. This
part explains what kind of oil to use. For crankcase
capacity, see “Capacities and Specifications” in the
Index.
NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the upper
mark that shows the proper operating range,
your engine could be damaged.
Just fill it enough to put the level somewhere in the
proper operating range. Push the dipstick all
the way
back in when
you’re through.
6-13
