Page 105 of 354

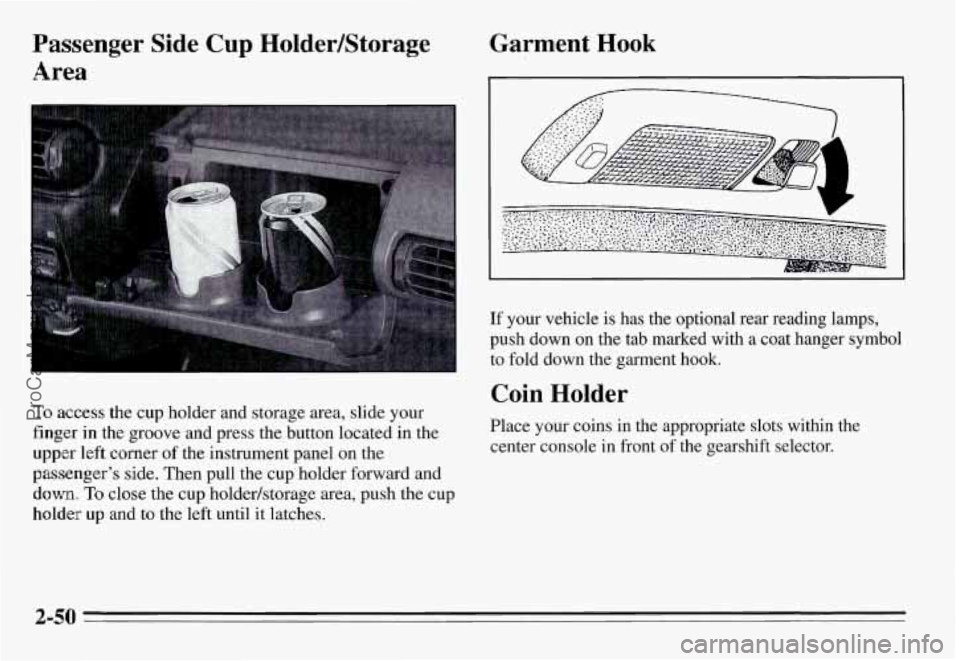

Passenger Side Cup HolderBtorage
Area
To access the cup holder and storage area, slide your
finger in the groove and press the button located in the
upper left corner of the instrument panel on the
passenger’s side. Then pull the cup holder forward and
down. To close the cup holder/storage area, push the cup
holder
up and to the left until it latches.
Garment Hook
If your vehicle is has the optional rear reading lamps,
push down on the tab marked with a coat hanger symbol to fold down the garment hook.
Coin Holder
Place your coins in the appropriate slots within the
center console in front of the gearshift selector.
2-50
ProCarManuals.com
Page 106 of 354

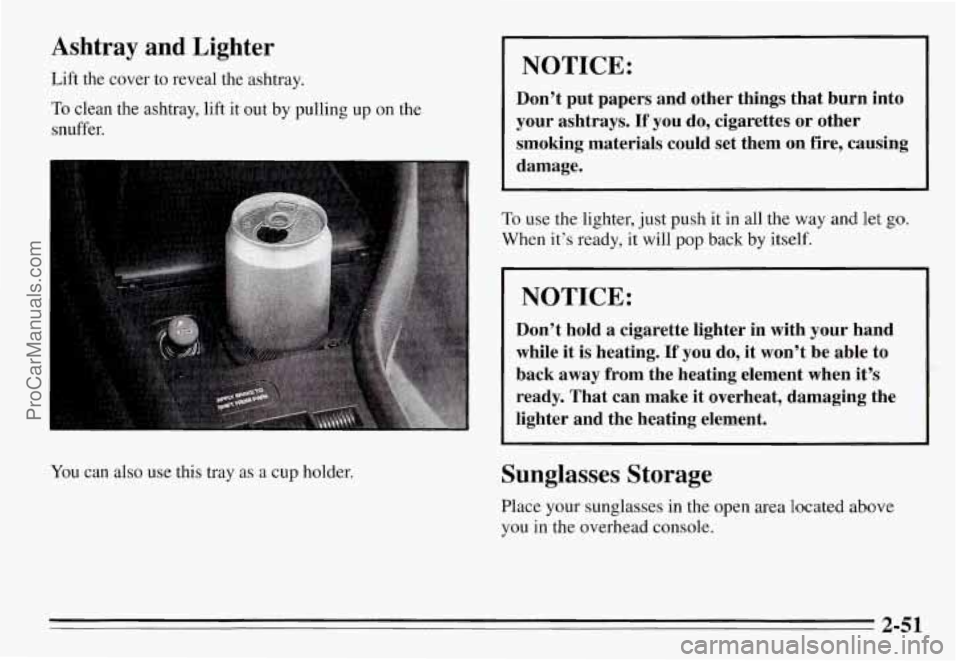

Ashtray and Lighter
Lift the cover to reveal the ashtray.
To clean the ashtray, lift it out by pulling up on the
snuffer.
You can also use this tray as a cup holder.
NOTICE:
Don’t put papers and other things that burn into
your ashtrays.
If you do, cigarettes or other
smoking materials could set them on fire, causing
damage.
To use the lighter, just push it in all the way and let go.
When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while
it is heating. If you do, it won’t be able to
back away from the heating element when
it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
Sunglasses Storage
Place your sunglasses in the open area located above
you in the overhead console.
2-51
ProCarManuals.com
Page 107 of 354
The Instrument Panel -- Your Information System
Your instrument panel is designed to let you know at a
glance how your vehicle is running. You’ll know how
fast you’re going, how much fuel you’re using, and
many other things you’ll need to drive safely and
economically.
2-52
ProCarManuals.com
Page 108 of 354
i
The main components of your instrument panel are:
1. Fog Lamp Switch
2. Instrument Panel Intensity Control/ Interior Lamps
Switch
3. Side Vent
4. Turn SignaVMultifunction Lever
5. Hazard Warning Flashers Switch
6. Instrument Cluster
7. Windshield WipersNasher Stalk
8. Center Vent
9. Audio System
10. Side Vent
11. Side Window Defogger Vent
12. Glove Box
13. Climate Control System
14. AshtrayLighter
15. Gear Shift Lever
16. Rear Window Defogger (Option)
17. Ignition Switch
18. SRS - Supplemental Restraint System (Air Bag)
19. Horns
20. Tilt Steering Wheel Lever (Option)
21. Parking Brake Release Lever
22. Hood Release Handle
23. Fuse Panel
2-53
ProCarManuals.com
Page 109 of 354

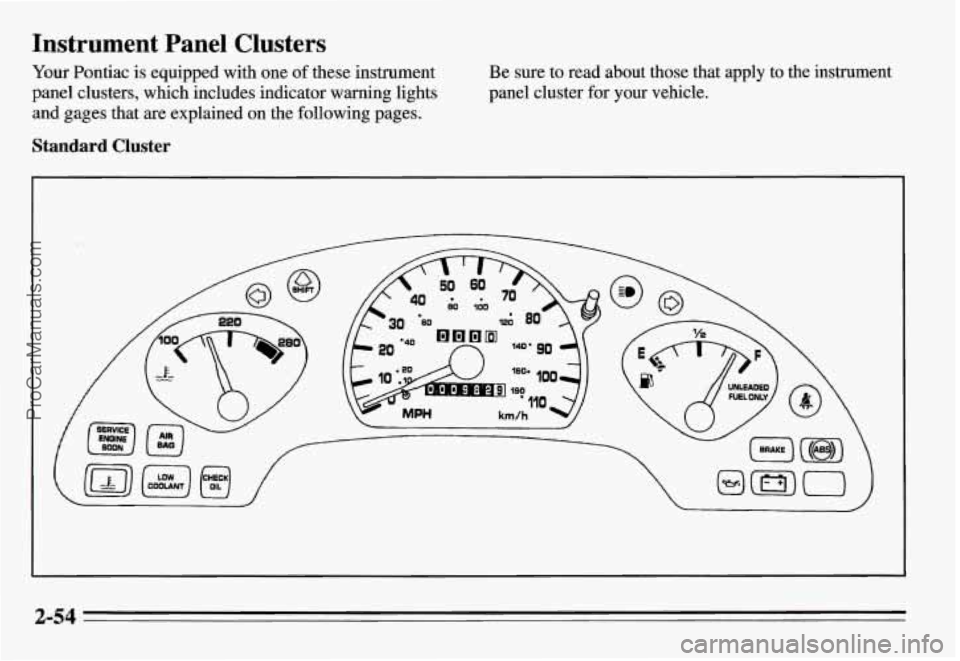

Instrument Panel Clusters
Your Pontiac is equipped with one of these instrument
panel clusters, which includes indicator warning lights
and gages that are explained on the following pages.
Standard Cluster
Be sure to read about those that apply to the instrument
panel cluster for
your vehicle.
2-54
ProCarManuals.com
Page 110 of 354

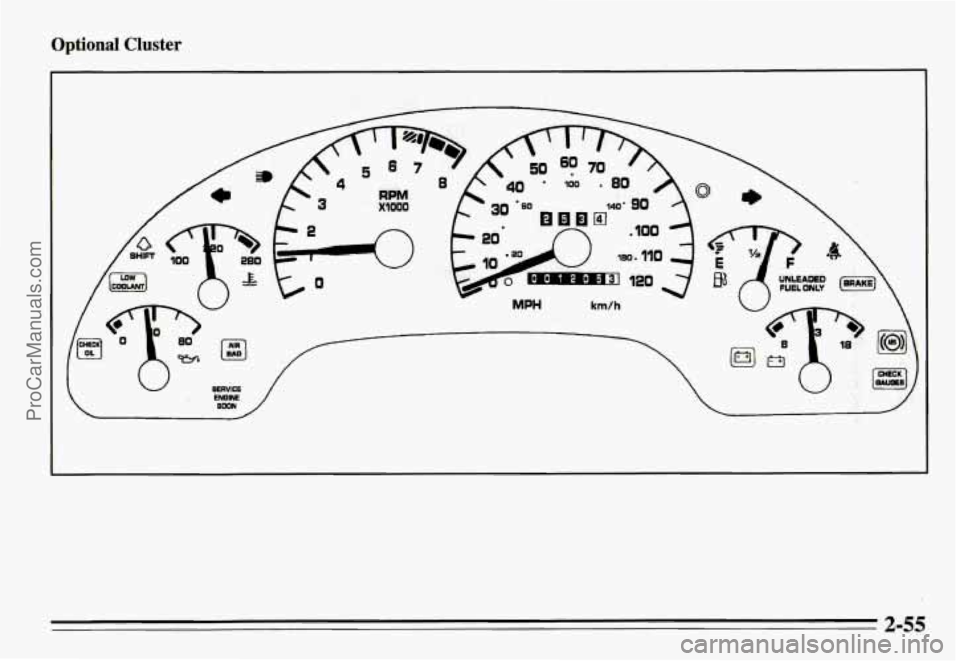

Optional Cluster
hJ X'
I W BERVICE /
2-55
ProCarManuals.com
Page 111 of 354

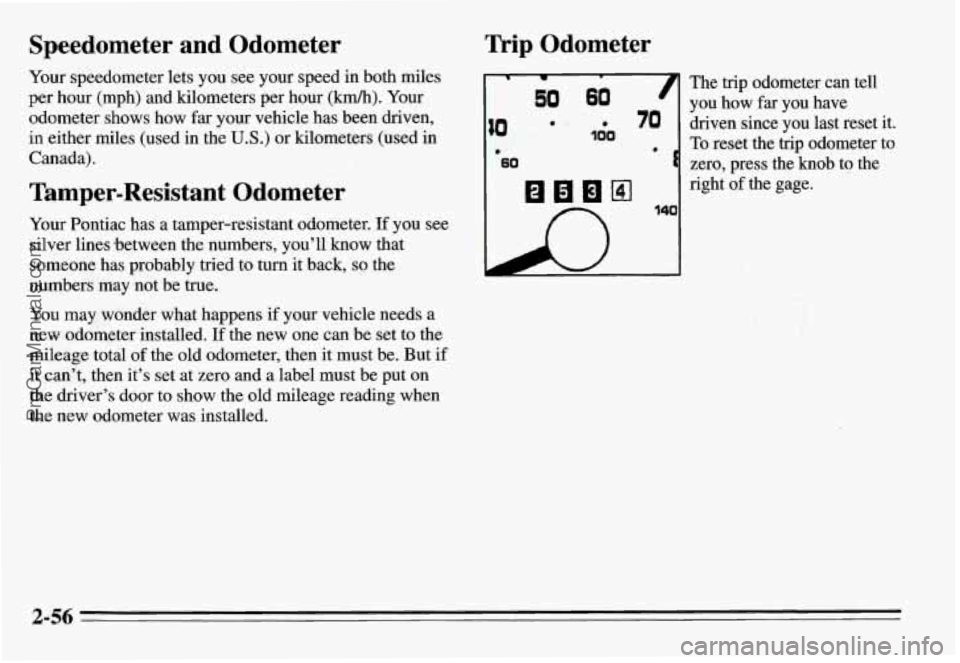

,Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per
hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven,
in either miles (used in the
U.S.) or kilometers (used in
Canada).
Tamper-Resistant Odometer
Your Pontiac has a tamper-resistant odometer. If you see
silver lines between the numbers, you’ll know that
someone has probably tried to turn it back,
so the
numbers may not be true.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of the old odometer, then it must be. But
if
it can’t, then it’s set at zero and a label must be put on
the driver’s door to show the old mileage reading when
the new odometer was installed.
Trip Odometer
The trip odometer can tell
you how far you have
To reset the trip odometer to
driven since you last reset it.
I 1 zero, press the~knob to the
HHHB right of the gage.
n
140
I
2-56
ProCarManuals.com
Page 112 of 354

Tachometer (Option)
e--
@ -*
5
4
RPM
XlOOO
The tachometer shows your engine speed in revolutions
per minute (rpm).
NOTICE:
Do not run your engine at speeds in the red area,
or engine damage may occur.
Warning Lights, Gages and Indicators
This part describes the warning lights and gages that may
be on your vehicle. The pictures will help you locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one
of your vehicle’s functions. As you will
see in the details on the next few pages, some warning
lights come on briefly when you
start the engine just to let
you know they’re working. If you are familiar with this
section, you should not be alarmed when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages and
warning lights work together to let
you know when
there’s a problem with your vehicle.
When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
2-57
