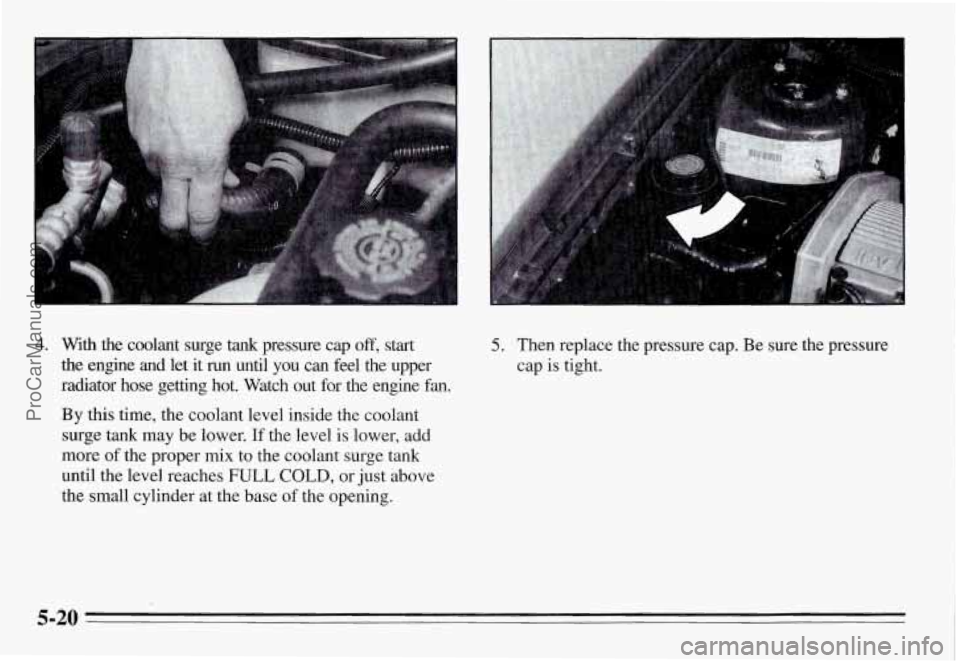

4. With the coolant surge tank pressure cap off, start
the engine and let it run until you can feel the upper
radiator hose getting hot. Watch out for the engine fan.
By this time, the coolant level inside the coolant
surge tank may be lower. If the level is lower, add
more of the proper mix to the coolant surge tank
until the level reaches
FULL COLD, or just above
the small cylinder at the base of the opening.
1
5. Then replace the pressure cap. Be sure the pressure
cap is tight.
5-20
ProCarManuals.com
Page 202 of 354

If a Tire Goes Flat
It’s unusual for a tire to “blow out’’ while you’re driving,
especially if you maintain your tires properly. If air goes
out of a tire, it’s much more likely to leak out slowly.
But if you should ever have a “blowout,” here
are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, then gently brake to a
stop well out
of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you’d use in a
skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go.
It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop, well off the road
if possible.
If a tire goes flat, the next part shows how to use your
jacking equipment to change
a flat tire safely.
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
5-21
ProCarManuals.com
Page 203 of 354
The following steps will tell you how to use the jack and
change a tire.
The equipment you’ll need is in the trunk.
1. Turn the center retainer nut on the compact spare tire
housing counterclockwise to remove it, then lift the
tire cover. You will find the jacking instructions label
on the underside of the tire cover,
2. Remove the wing bolt securing the compact spare
tire and spacer by turning it counterclockwise. Then
lift
off the spacer and remove the spare tire.
3. The jack and the wheel wrench are stored in a foam
tray by the compact spare tire.
a few inches.
4. Turn the jack handle clockwise to raise the jack head
5. Using the wheel wrench, remove the plastic cap nuts
(if your vehicle has them) and loosen all the wheel
nuts. Don’t remove them yet.
On some models, a cover plate must be removed to
find the wheel nuts. Carefully use the wedge end
of
the wheel wrench to pry it off.
5-22
ProCarManuals.com
Page 204 of 354
18” (46cm) 18 (46cm)

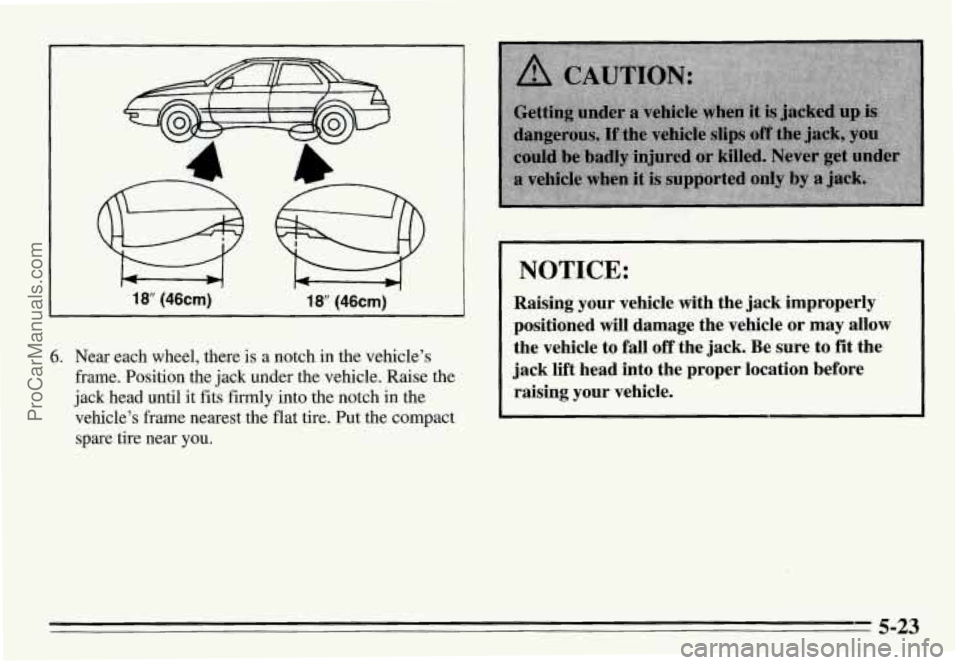

6. Near each wheel, there is a notch in the vehicle’s
frame. Position the jack under the vehicle. Raise the
jack head until it fits firmly into the notch in the
vehicle’s frame nearest the flat tire. ht the compact
spare tire near you.
NOTICE:
Raising your vehicle with the jack improperly
positioned will damage the vehicle or may allow
the vehicle to fall off the jack. Be sure to
fit the
jack lift head into the proper location before raising your vehicle.
5-23
ProCarManuals.com
Page 205 of 354
I I

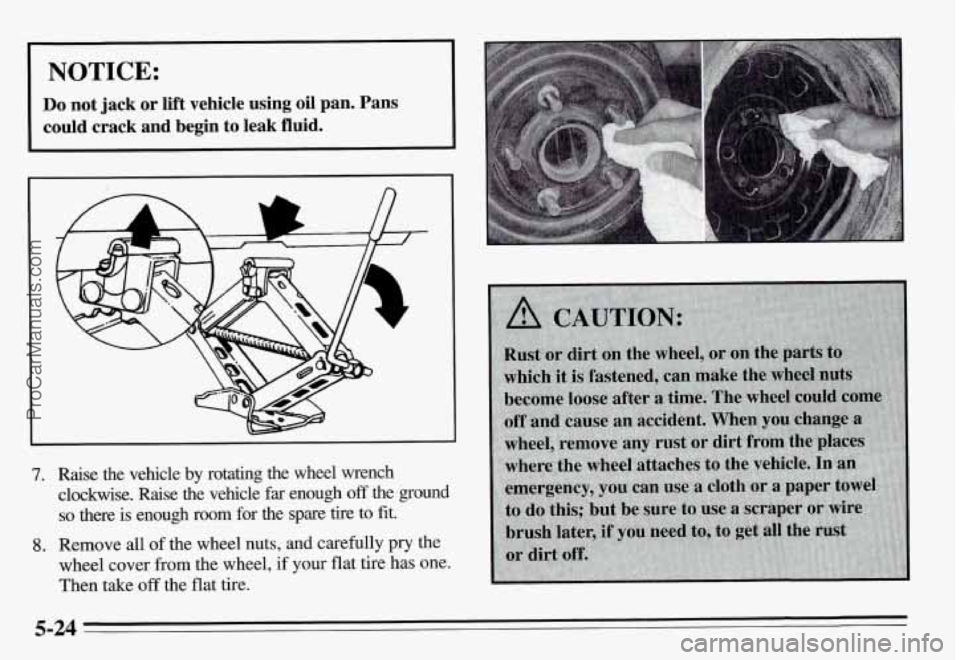

NOTICE: I
Do not jack or lift vehicle using oil pan. Pans
could crack and begin to leak fluid.
I
7. Raise the vehicle by rotating the wheel wrench
clockwise. Raise the vehicle far enough
off the ground
so there is enough room for the spare tire to fit.
wheel cover from the wheel, if your flat tire has one.
Then take
off the flat tire.
8. Remove all of the wheel nuts, and carefully pry the
5-24
ProCarManuals.com
Page 206 of 354

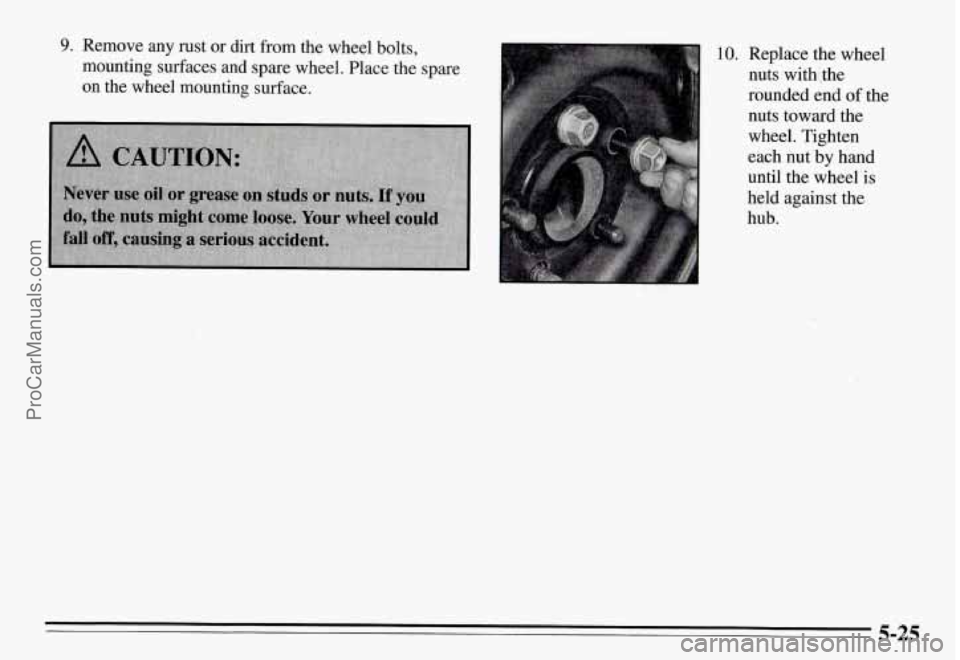

9. Remove any rust or dirt from the wheel bolts,
mounting surfaces and spare wheel. Place the spare
on the wheel mounting surface.
10. Replace the wheel
nuts withthe
rounded end
of the
nuts toward the
wheel. Tighten
each nut
by hand
until the wheel is
held against the
hub.
5-25
ProCarManuals.com
Page 207 of 354

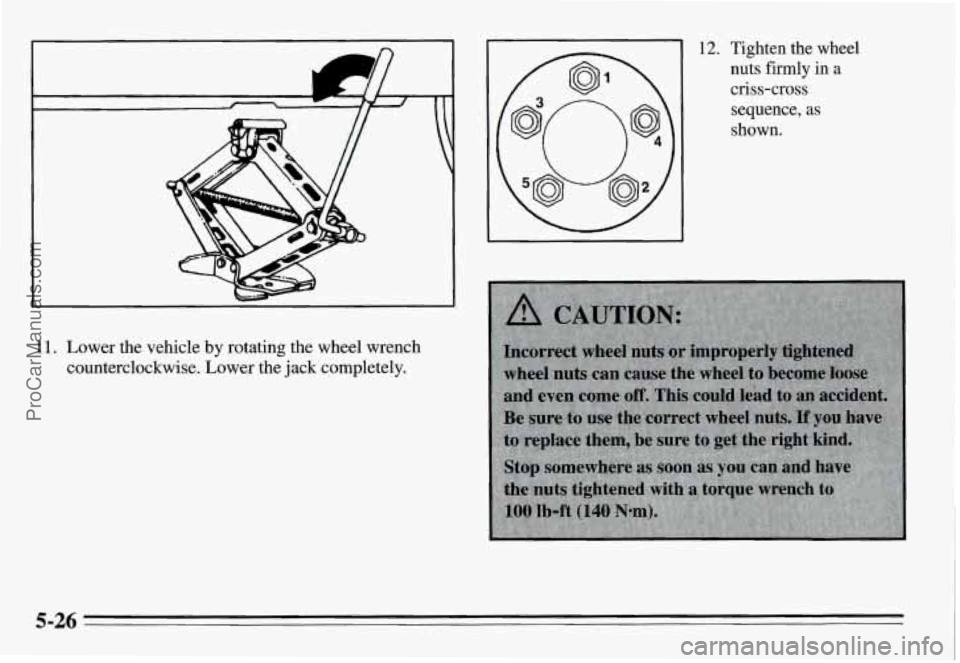

11. Lower the vehicle by rotating the wheel wrench
counterclockwise. Lower the jack completely.
12. Tighten the wheel
nuts firmly in a
criss-cross
sequence,
as
shown.
5-26
ProCarManuals.com
Page 208 of 354

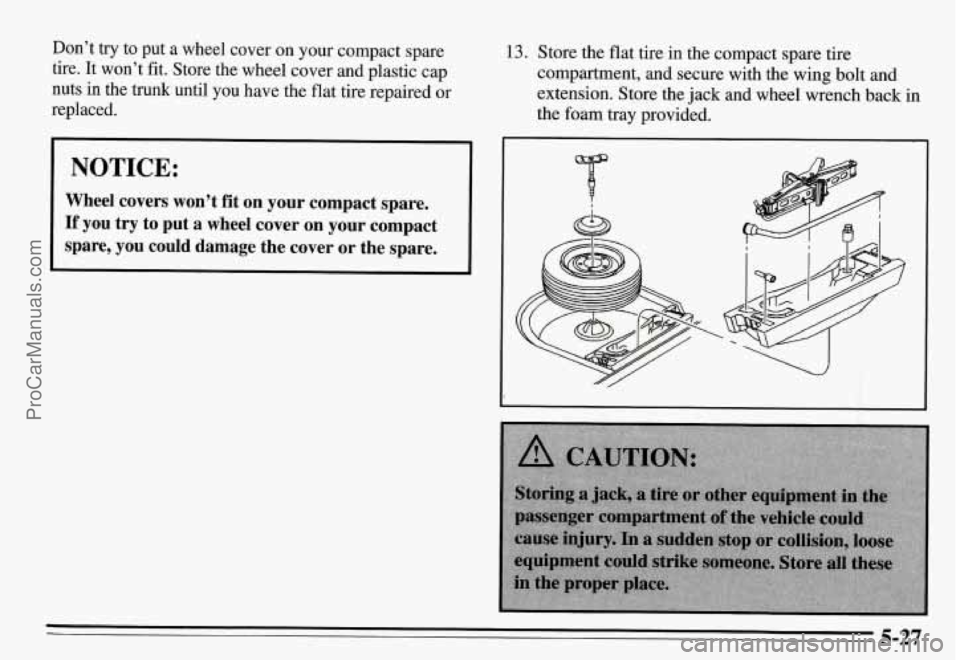

Don’t try to put a wheel cover on your compact spare
tire. It won’t fit. Store the wheel cover and plastic cap
nuts in the trunk
until you have the flat tire repaired or
replaced.
NOTICE:
Wheel covers won’t fit on your compact spare.
If you try to put a wheel cover on your compact
spare, you
could damage the cover or the spare.
13. Store the flat tire in the compact spare tire
compartment, and secure with the wing bolt and
extension. Store the jack and wheel wrench back in
the foam tray provided.
