1995 CHEVROLET BLAZER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Power Door Locks
If your vehicle has
power door locks,
push
LOCK on the
power door lock
switch on the door
armrest. This switch
will lock all the doors
at once.
To unlock the doors,
push on the raised
area next to the key symbol.
On four-door models, the lever on each rear door works only that door's
lock.
2-5

Downloaded from www.Manualslib.com manuals search engine Child Security Locks
7
With this feature, you
can lock the rear doors
so they can’t be
opened from the
inside by passengers.
Move the lock up to
lock the doors and
down to release the
door locks.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your door and set th\
e
locks from inside. Then get out and close the door.
Keyless Entry System
If your vehicle has this option, you can lock and unlock your doors or
unlock your rear endgate from up to
30 feet (9 m) away using the key chain
transmitter supplied with your vehicle.
Your Keyless Entry System operates on a radio frequency subject to Federal
Communications Commission (FCC) Rules.
This device complies with Part
15 of the FCC Rules. Operation is subject to
the following
two conditions: (1) This device may not cause harmful
interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Should interference
to this system occur, try this:
0 Check to determine if battery replacement is necessary. See the
Check the distance. You may be too far from your vehicle. This product
instructions on battery replacement.
has a maximum range.
0 Check the location. Other vehicles or objects may be blocking the
signal.
See your GM dealer or a qualified technician for service.
Changes
or modifications to this system by other than an authorized service
facility could void authorization to use this equipment.
2-6

Downloaded from www.Manualslib.com manuals search engine Operation
When you press UNLOCK, the driver’s door will unlock automatically. If
you press UNLOCK again within five seconds, all doors will unlock. All
doors will lock when LOCK is pressed.
The endgate glass will unlock when the REAR button is pressed. Vehicles
with automatic transmissions must have the transmission in PARK
(P).
Vehicles with manual transmission must have the parking brake engaged.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another transmitter from
unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember
to bring any remaining
transmitters with you when you go to your dealer. When the dealer matches
the replacement transmitter to your vehicle, the remaining transmitters must
also be matched. Once the
new transmitter is coded, the lost transmitter will
not unlock your vehicle.
You can match a transmitter to as many different vehicles as you own,
provided they are equipped with
exactly the same model system. (General
Motors offers several different models of these systems on their vehicles.)
Each vehicle can have only two transmitters matched to it.
See your dealer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the batteries in your key chain transmitter should last
about two years.
You can tell the batteries are weak if the transmitter won’t work at the
normal range in any location.
If you have to get close to your vehicle before
the transmitter works, it’s probably time to change the batteries.
2-7

Downloaded from www.Manualslib.com manuals search engine Your transmitter housing snaps apart for ease in battery replacement. To
open the housing:
I 1. Insert a dime
between two halves
of the
transmitter
housing near the key ring hole.
2. Remove the
bottom by
twisting the dime.
3. Remove and replace the batteries with two Duracell @-type batte\
ries
(DL2016 or equivalent), positive side down.
4. Align and snap together the back and top transmitter housings. \
Endgate (Hatch) Release
To open a mechanical
lock system from the
outside, insert the key in the lock and turn to
the left to unlock the
glass.
If your vehicle
has an
endgate-mounted spare tire carrier, you
must move the carrier
arm out of the way to
open the glass.
2-8

Downloaded from www.Manualslib.com manuals search engine I

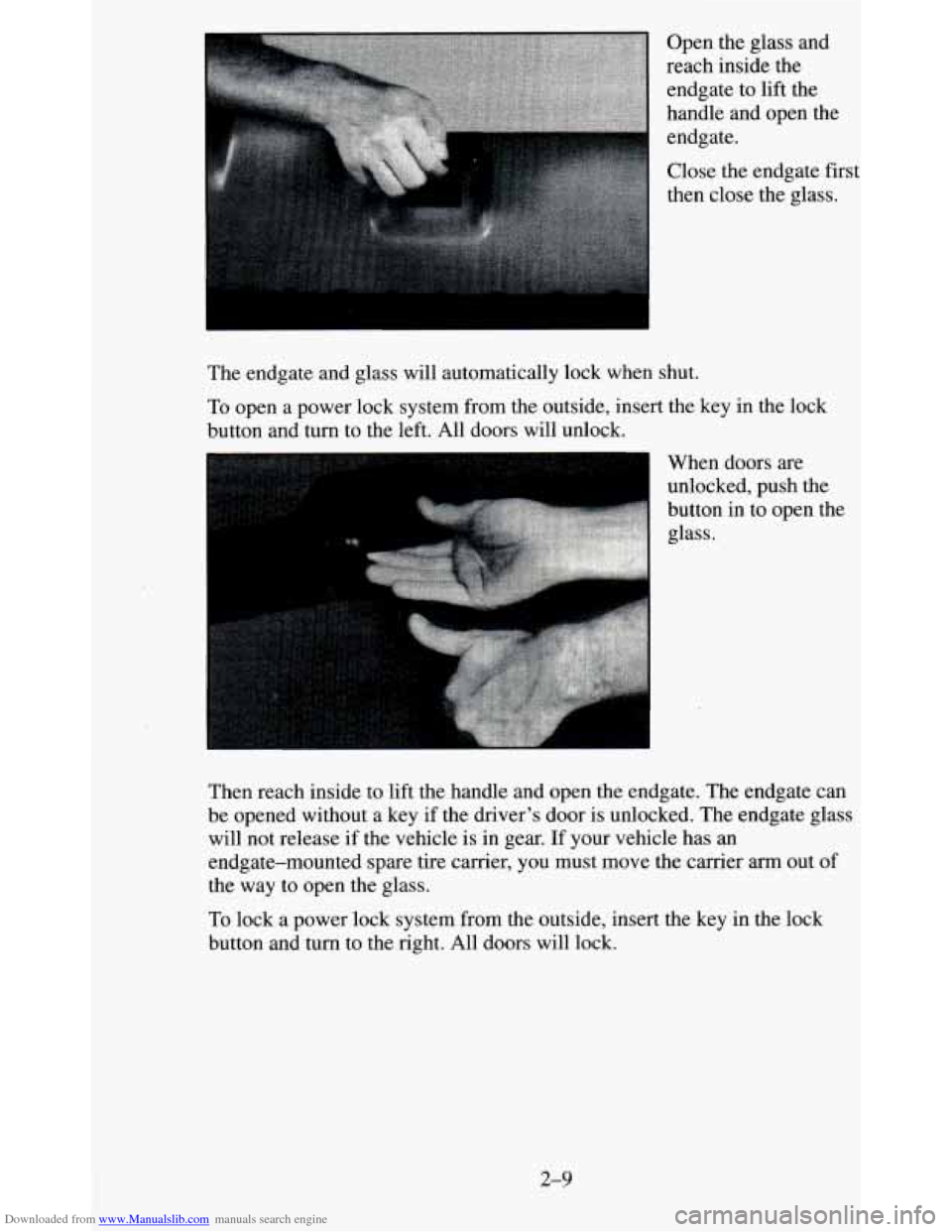

Open the glass and
reach inside the
endgate to lift the
handle and open the
endgate.
Close the endgate first
then close the glass.
The endgate and glass will automatically lock when shut.
To open
a power lock system from the outside, insert the key in the lock
button and turn to the left. All doors will unlock.
When doors are
unlocked, push the
button in to open
the
glass.
Then reach inside to lift the handle and open the endgate. The endgate can
be opened without a key if the driver’s door is unlocked. The endgate glass
will not release if the vehicle is in gear. If your vehicle has an
endgate-mounted spare tire carrier, you must move the carrier
arm out of
the way to open the glass.
To lock a power lock system from the outside, insert the key
in the lock
button and turn to the right. All doors will lock.
2-9

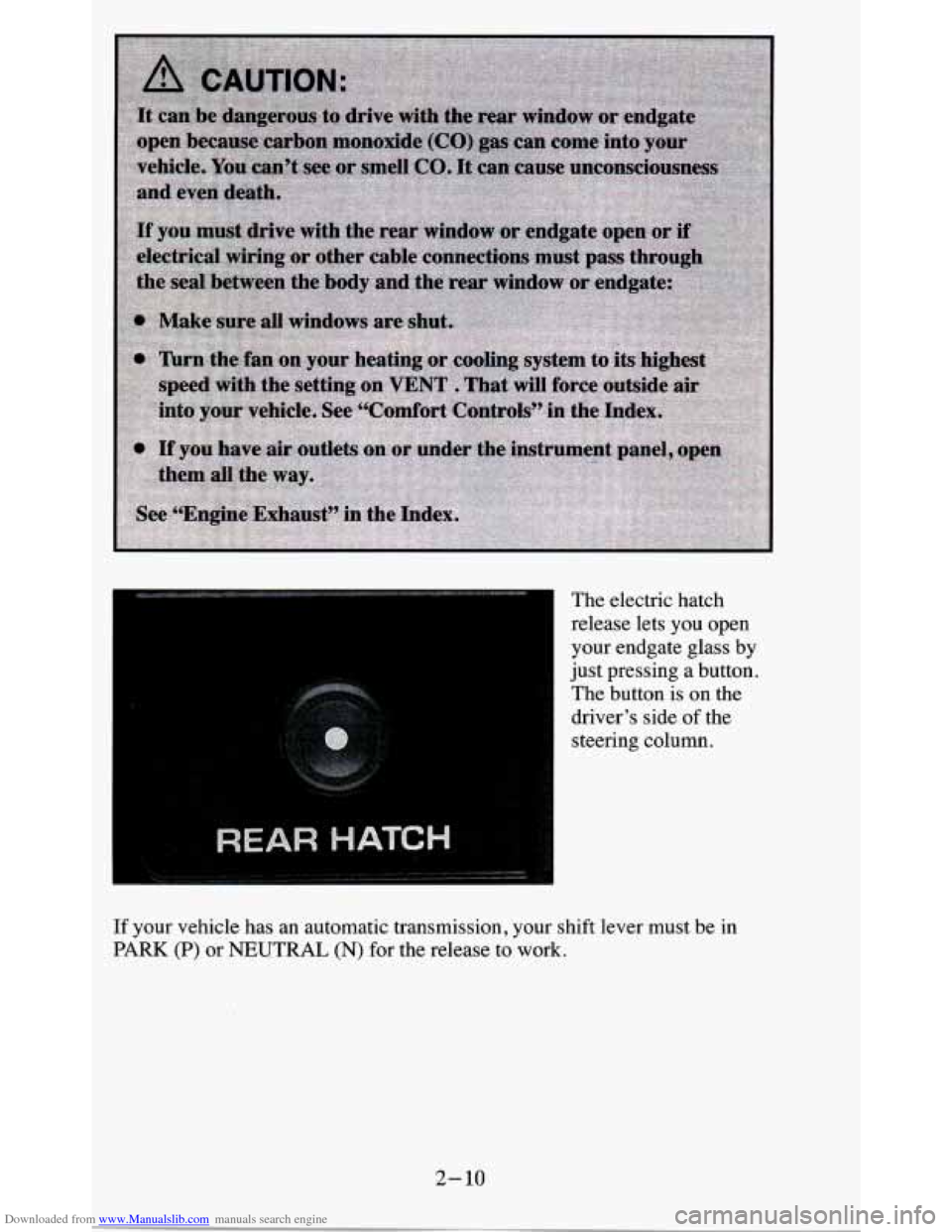

Downloaded from www.Manualslib.com manuals search engine The electric hatch
release lets you open
your endgate glass by
just pressing a button.
The button is on the
driver’s side
of the
steering column.
If your vehicle has an automatic transmission, your shift lever must be in
PARK (P) or NEUTRAL (N) for the release to work.
2- 10

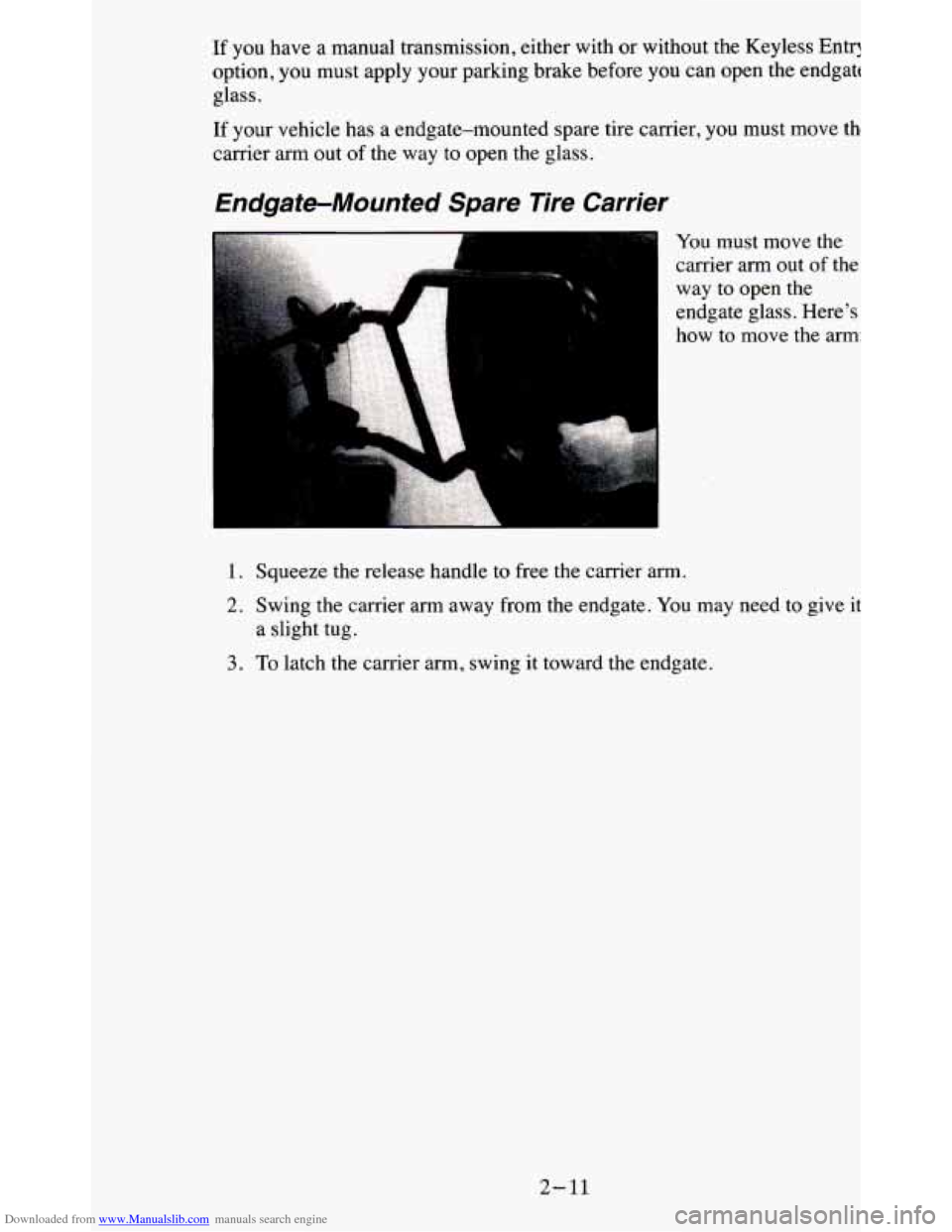

Downloaded from www.Manualslib.com manuals search engine If you have a manual transmission, either with or without the Keyless Entr!
option, you must apply your parking brake before you can open the endgatc
glass.
If your vehicle has a endgate-mounted spare tire carrier, you must move th
carrier arm out of the way to open the glass.
Endgate-Mounted Spare lire Carrier
You must move the
carrier arm
out of the
way to open the
endgate glass. Here's
how to move the arm
1. Squeeze the release handle to free the carrier arm.
2. Swing the carrier arm away from the endgate. You may need to give it
a slight tug.
3. To latch the carrier arm, swing it toward the endgate.
2-11

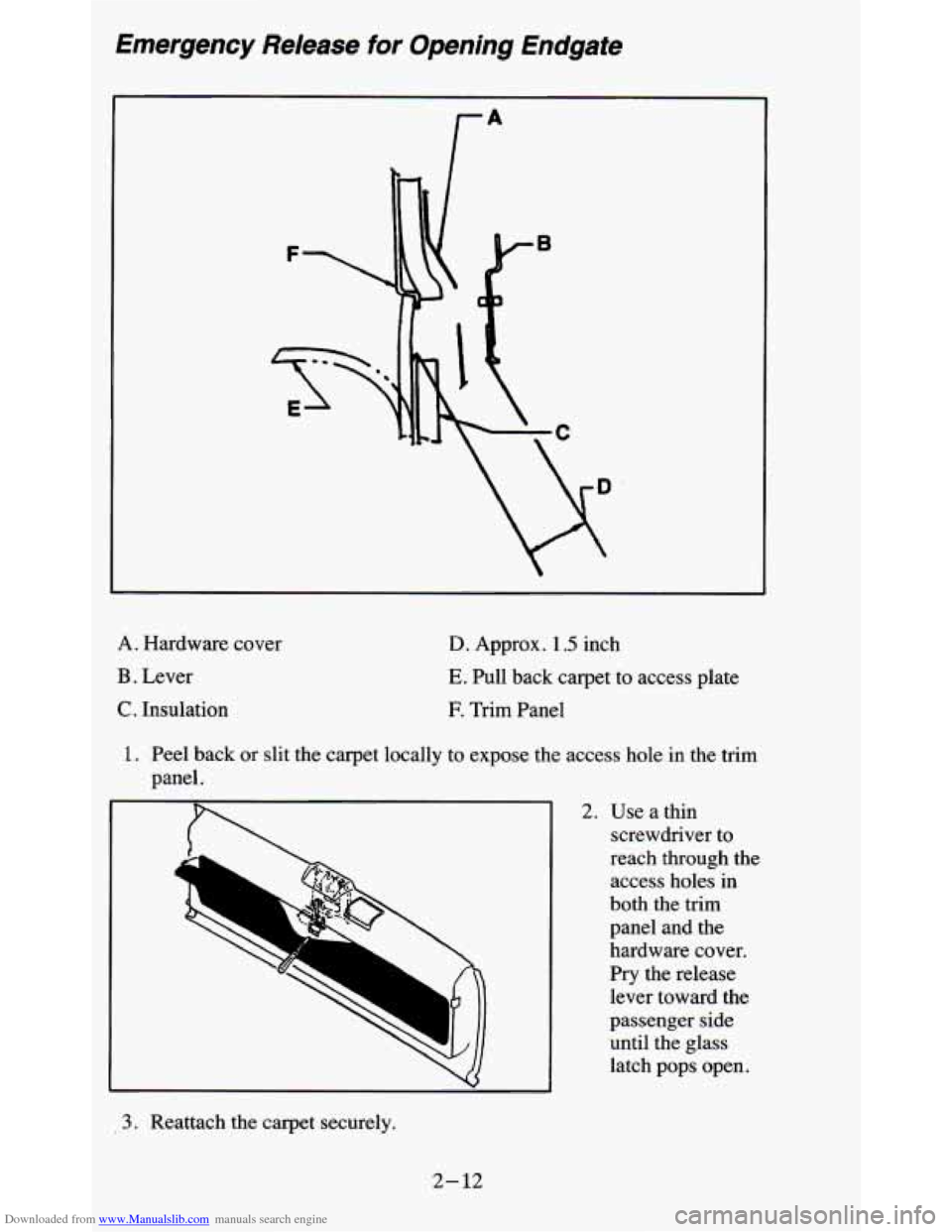

Downloaded from www.Manualslib.com manuals search engine Emergency Release for Opening Endgate
A. Hardware cover
B . Lever
C. Insulation
D. Approx. 1.5 inch
E. Pull back carpet to access plate
E Trim Panel
1. Peel back or slit the carpet locally to expose the access hole in the trim
panel.
2. Use a thin screwdriver to
reach through the access holes in
both the trim
panel and the
hardware cover.
Pry the release
lever toward the
passenger side
until the glass
latch pops open.
3. Reattach the carpet securely.
2-12
