1995 CHEVROLET BLAZER Owners Manual

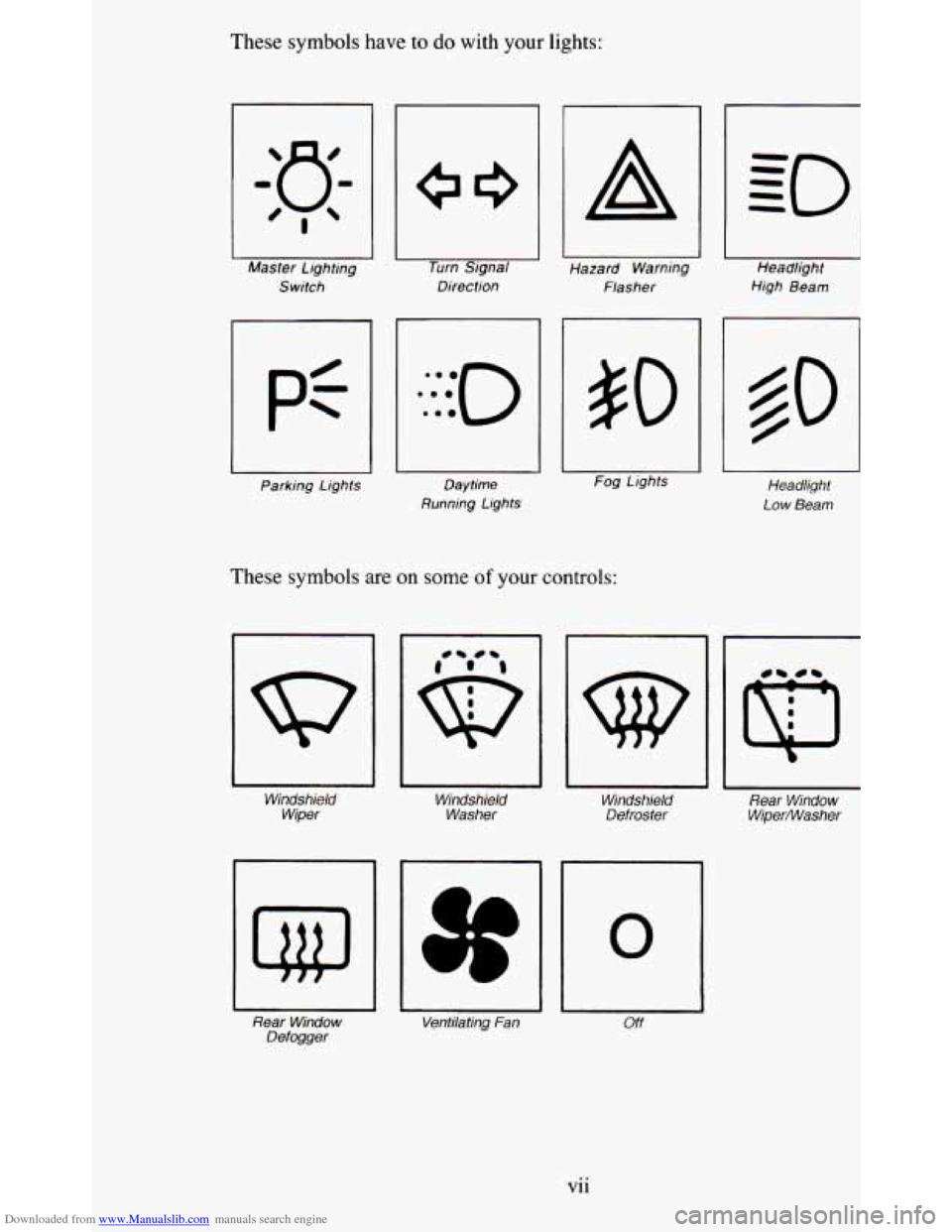

Downloaded from www.Manualslib.com manuals search engine These symbols have to do with your lights:
Master Lighting
Switch
I
Parking Lights
- Turn Signal Direction
Daytime
Running Lights
A
Hazard Warning
Rasher
I Fog Lights
These symbols are on some of your controls:
Windshield
Wiper
Rear Window Defogger
Q
0* ew
Windshield Washer
Ventilating Fan
I
Windshield Defroster
0
c Off
Heaulight
High
Beam
Headlight
Low Beam
0% 0%
Rear Window
WiperMasher
vii

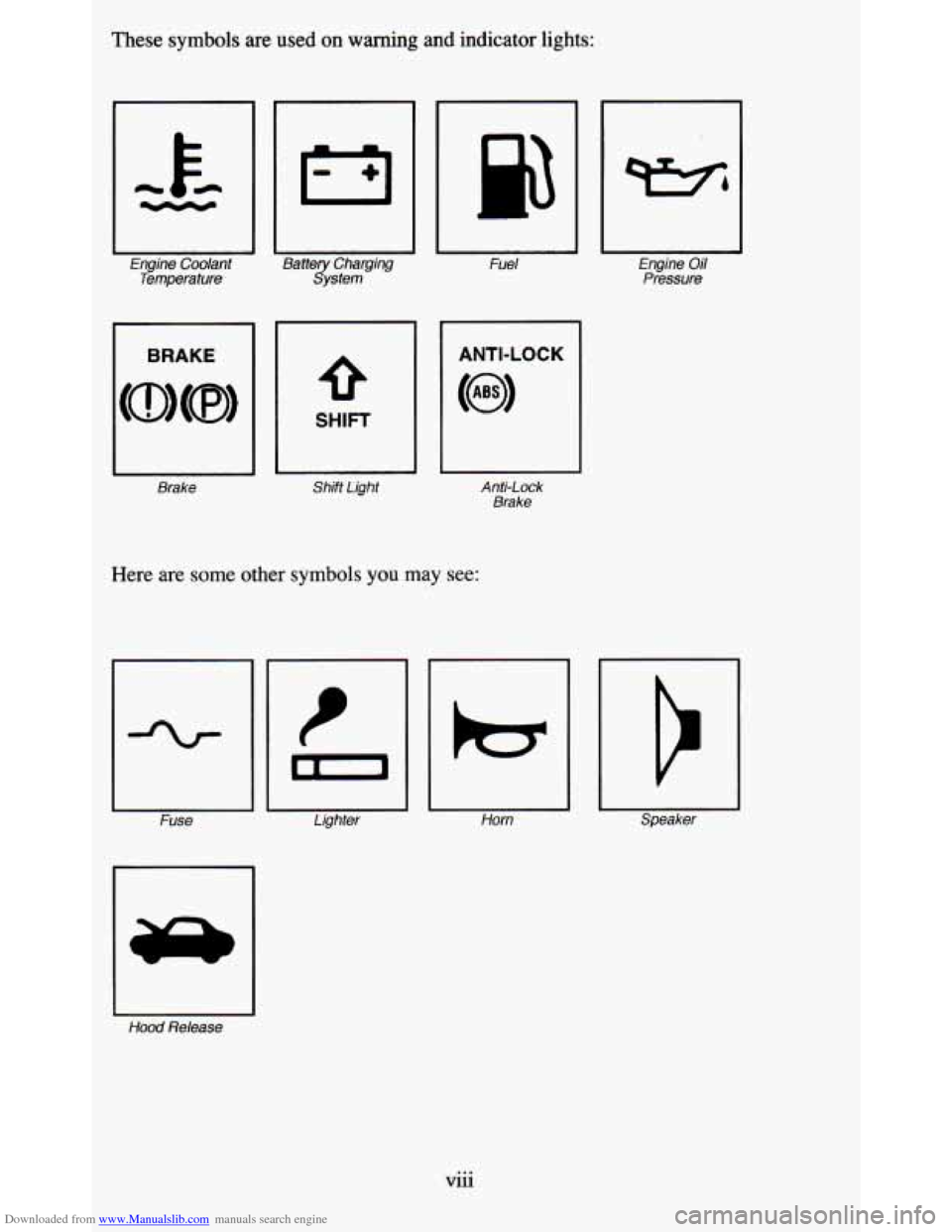

Downloaded from www.Manualslib.com manuals search engine These symbols are used on warning and indicator lights:
Engine Coolant
Temperature
I BRAKE
Brake
Battery Charging
System
1
Fuel
SHIFT
Shift Light
1 ANTI-LOCK
I
Anti-Lock Brake
Here are some other symbols you may see:
Fuse Lighter
I-
I-
Horn
L
Engine Oil Pressure
Hood
Release
Vlll ...

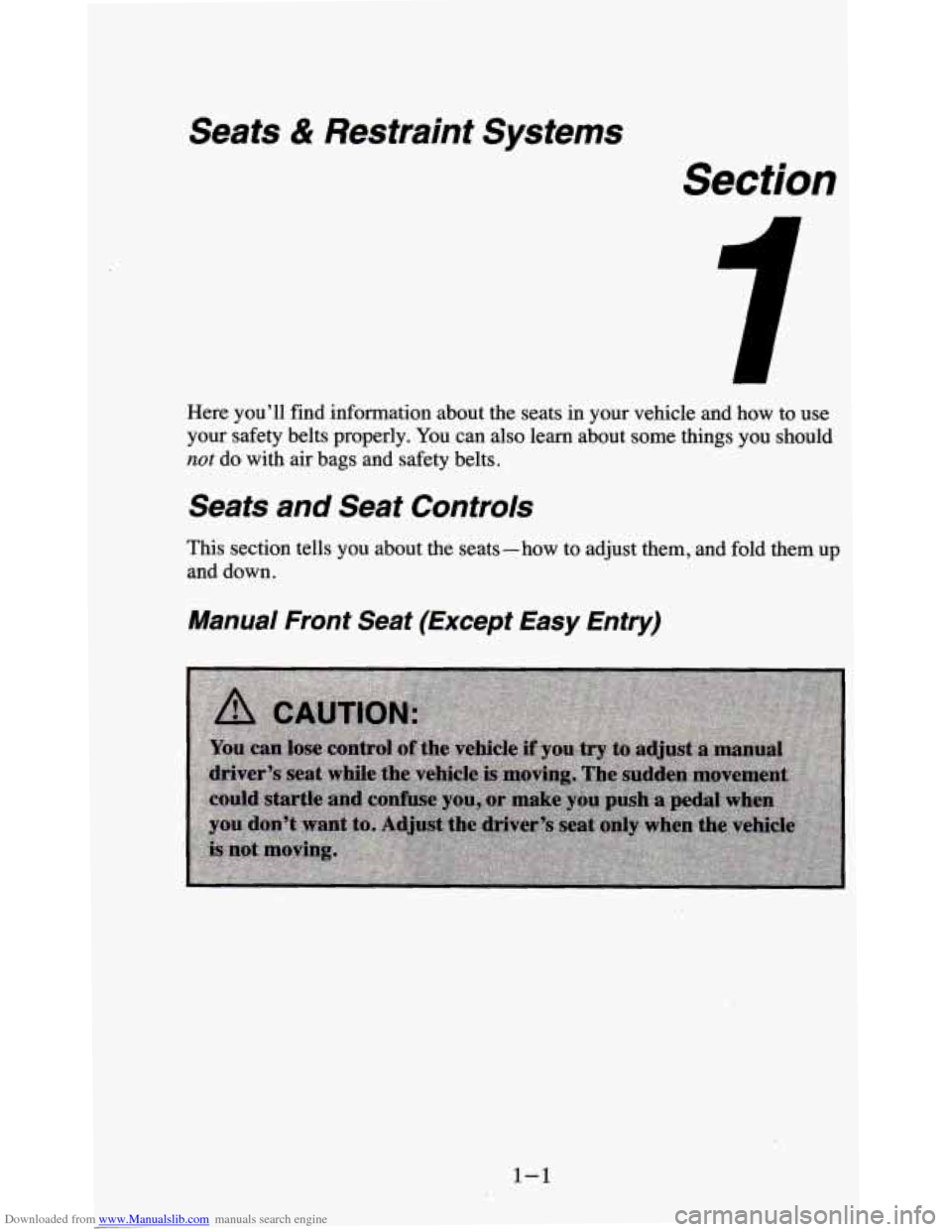

Downloaded from www.Manualslib.com manuals search engine Seats & Restraint Systems
Section
Here you’ll find information about the seats in your vehicle and how to use
your safety belts properly.
You can also learn about some things you should
not do with air bags and safety belts.
Seats and Seat Controls
Manual Front Seat (Except Easy Entry)
1-1

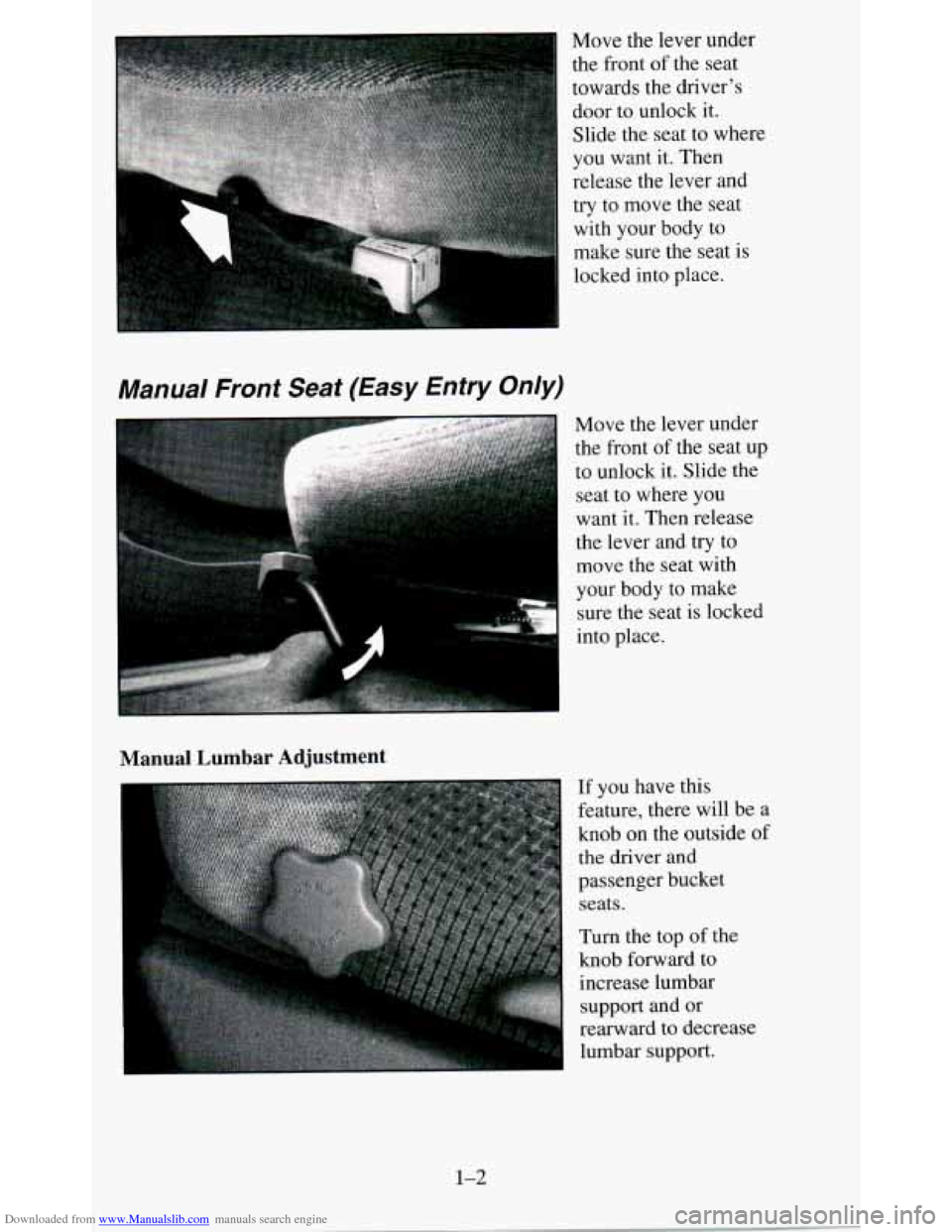

Downloaded from www.Manualslib.com manuals search engine Manual Front Seat (Easy Entry Only)
Move the lever under
the front of the seat
towards the driver's
door to unlock it.
Slide the seat to where
you want it. Then
release the lever and
try to move the seat with your body to
make sure the seat is
locked into place.
Move the lever under
the front of the seat up
to unlock it. Slide the
seat to where you
want it. Then release
the lever and try to move the seat with
' your body to make
-_ a, sure the seat is locked
into place.
Manual Lumbar Adjustment
If you have this
feature, there will be
a
knob on the outside of
the driver and
passenger bucket seats.
Turn the top
of the
knob forward to
increase lumbar support and or
rearward to decrease
lumbar support.
1-2

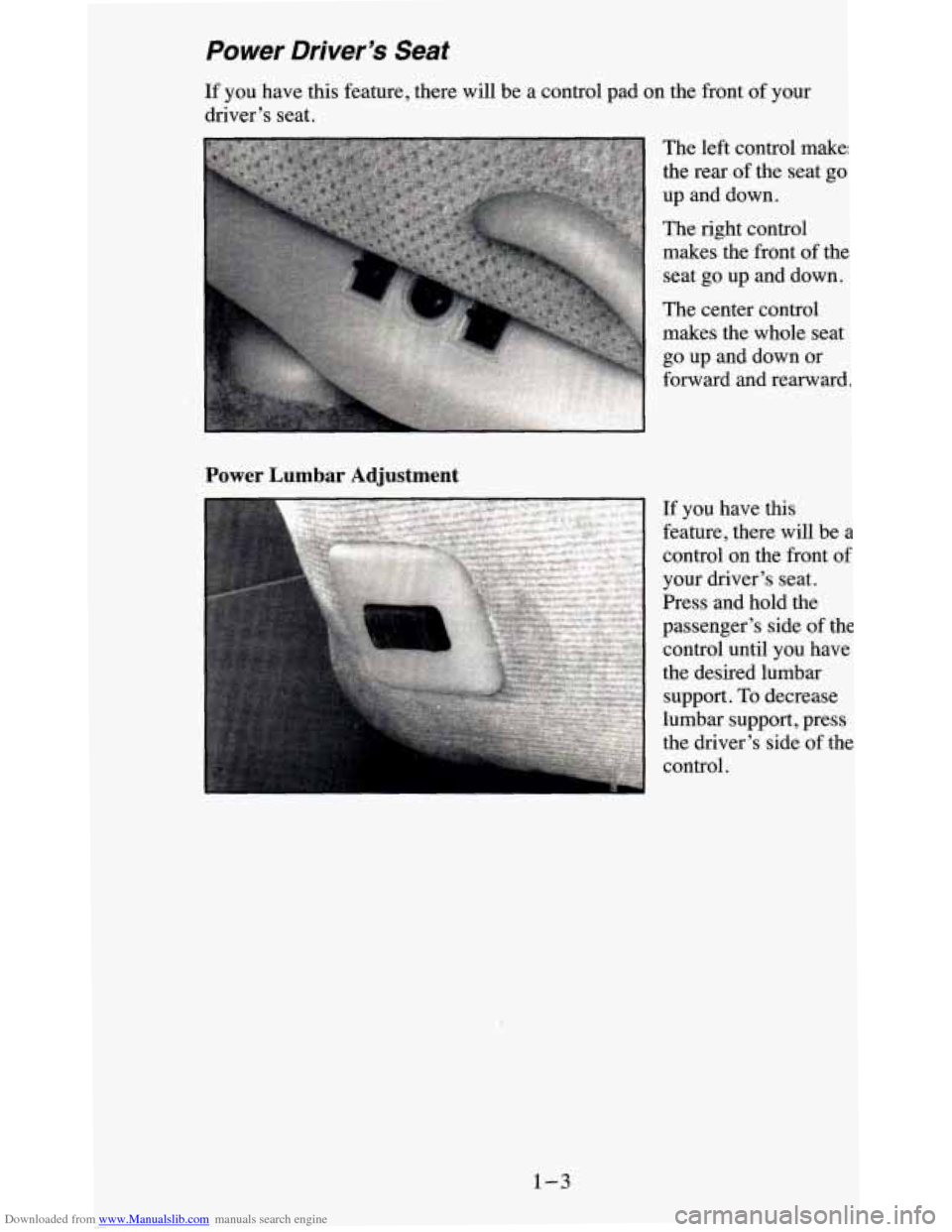

Downloaded from www.Manualslib.com manuals search engine Power Driver’s Seat
If you have this feature, there will be a control pad on the front of your
driver’s seat.
Power Lumbar Adjustment
The left control make
the rear of the seat
go
up and down.
The right control
makes the front of the
seat go up and down..
The center control
makes the whole seat
go up and down or
forward and rearward
If you have this
feature, there will be
a
control on the front of
your driver’s seat.
Press and hold the
passenger’s side of the
control until you have
the desired lumbar support. To decrease
lumbar support, press
the driver’s side
of the
control.
1-3

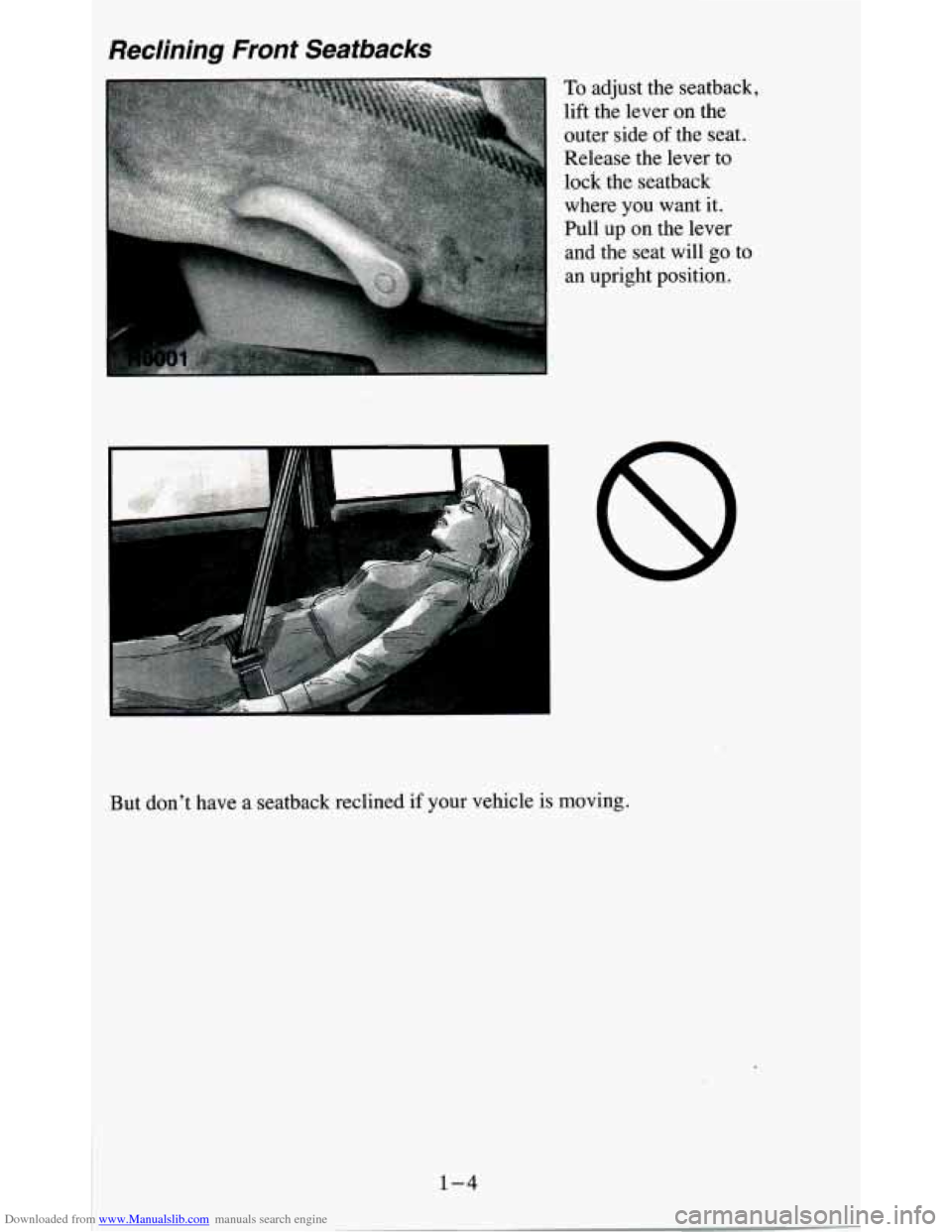

Downloaded from www.Manualslib.com manuals search engine Reclining Front Seatbacks
To adjust the seatback,
lift the lever on the
outer side
of the seat.
Release the lever to
lock the seatback
where you want it.
Pull up on the lever
and the seat will
go to
an upright position.
But don’t have a seatback reclined
if your vehicle is moving.
1-4

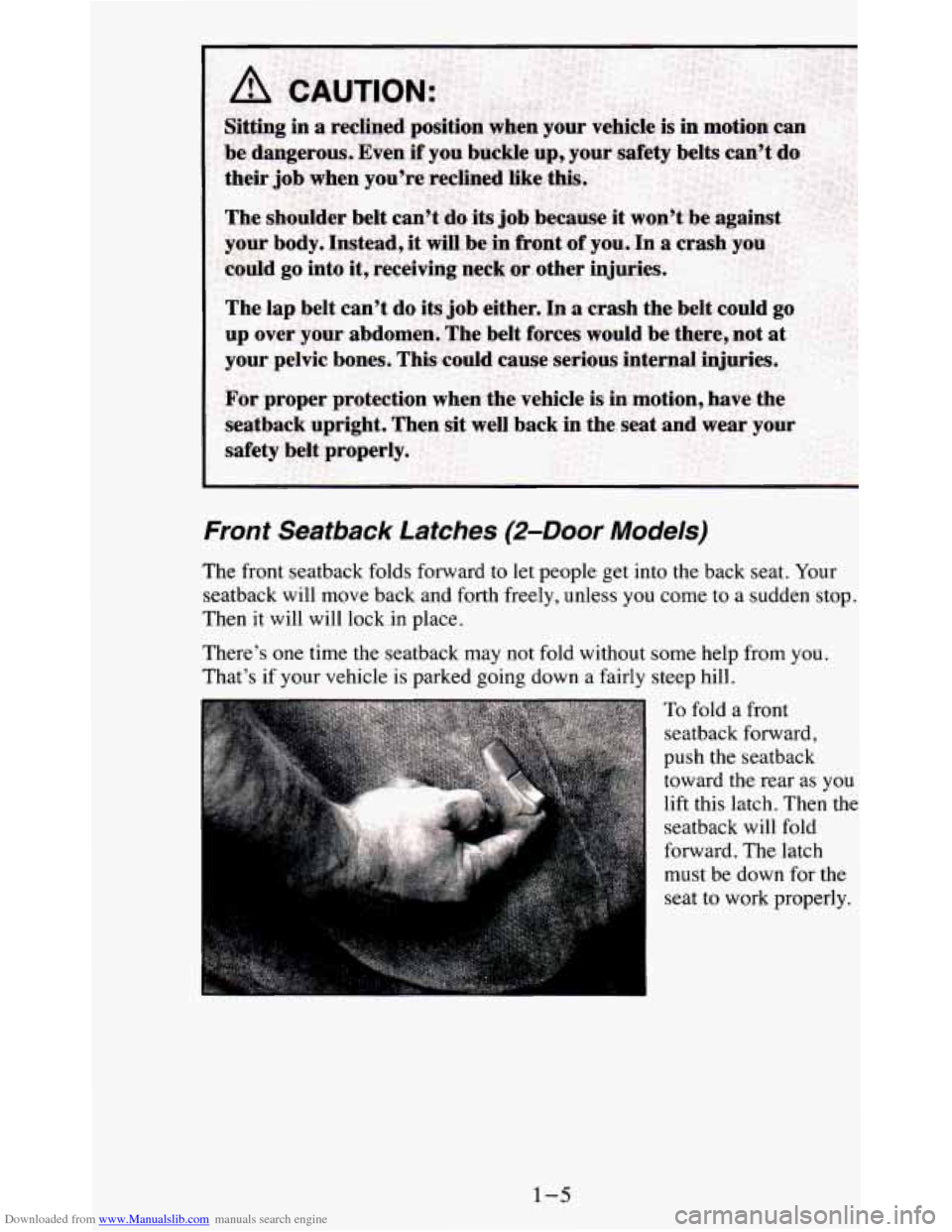

Downloaded from www.Manualslib.com manuals search engine Front Seatback Latches (2-Door Models)
The front seatback folds forward to let people get into the back seat. Your
seatback will move back and forth freely, unless
you come to a sudden stop.
Then it will will lock in place.
There’s one time the seatback may
not fold without some help from you.
That’s if your vehicle is parked going down a fairly steep hill.
To fold a front seatback forward,
push the seatback toward the rear as you
lift this latch. Then the
seatback will fold
forward. The latch
must be down for the
seat to work properly.
1-5

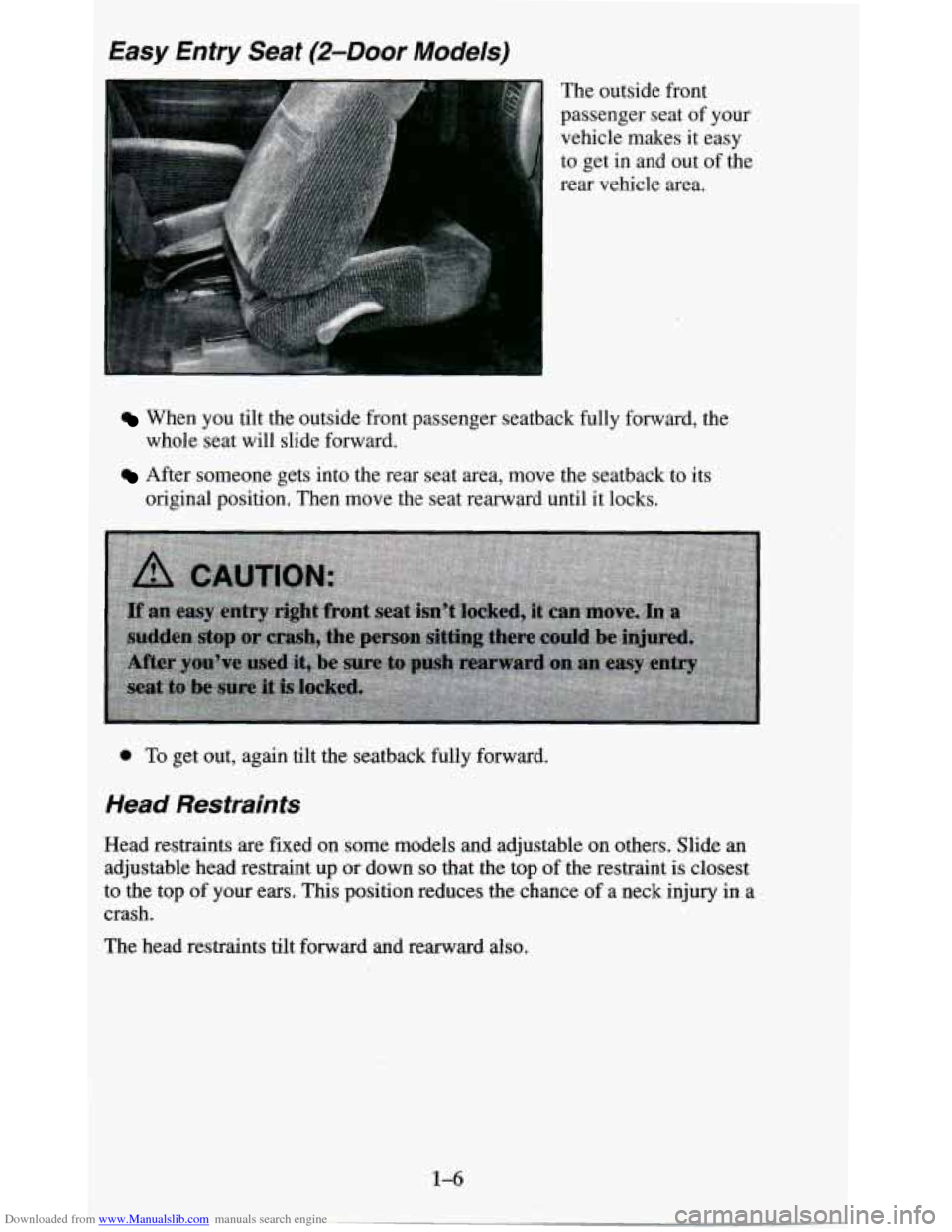

Downloaded from www.Manualslib.com manuals search engine Easy Entry Seat (2-Door Models)
The outside front
passenger seat of your
vehicle makes it easy
to get in and out of the
rear vehicle area.
When you tilt the outside front passenger seatback fully forwar\
d, the whole seat will slide forward.
After someone gets into the rear seat area, move the seatback \
to its
original position. Then move the seat rearward until it locks. \
0 To get out, again tilt the seatback fully forward.
Head Restraints
Head restraints are fixed on some models and adjustable on oth\
ers. Slide an
adjustable head restraint up or down so that the top of the restraint is closest
to the top
of your ears. This position reduces the chance of a neck injury in a
crash.
The head restraints tilt forward and rearward also.
1-6
