1995 CHEVROLET BLAZER Owners Manual

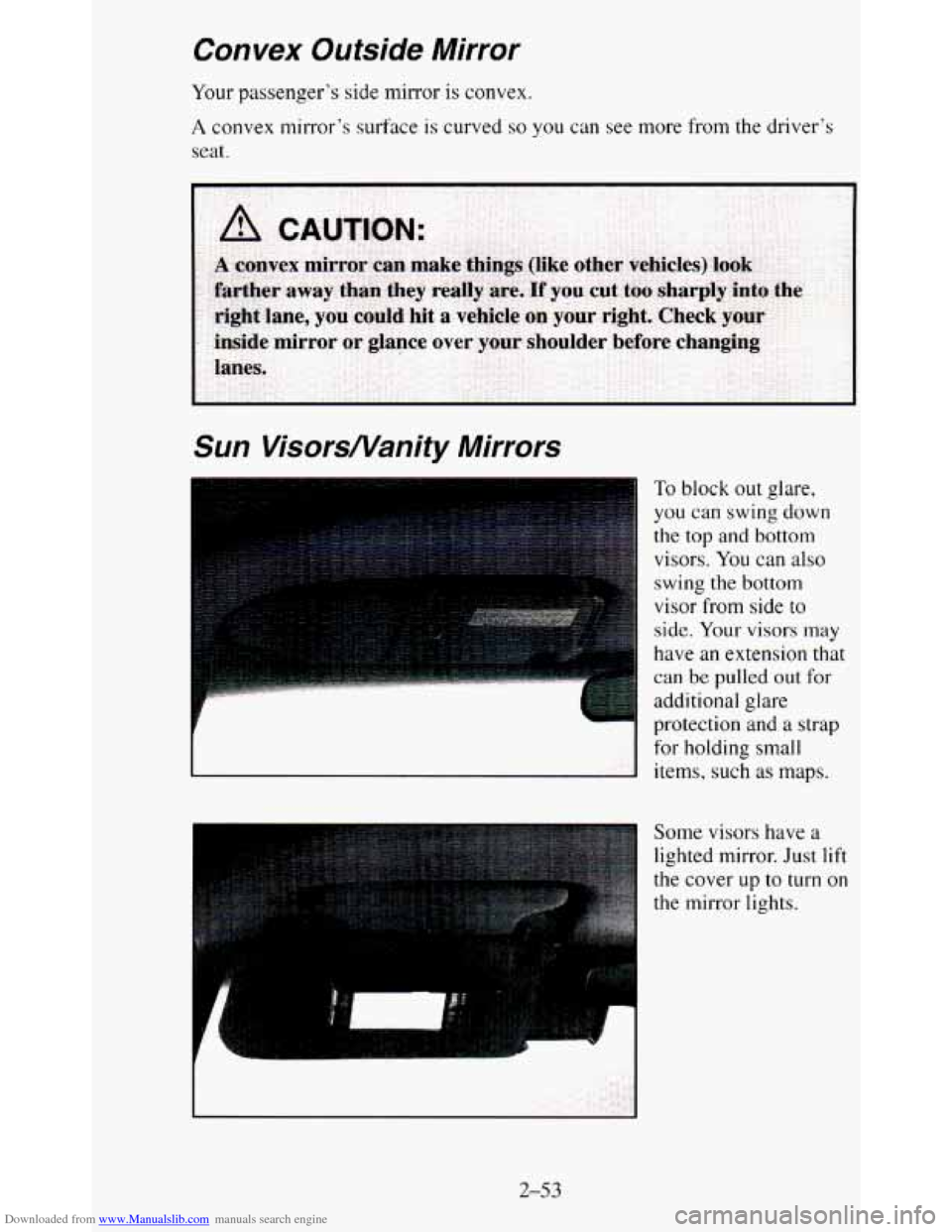

Downloaded from www.Manualslib.com manuals search engine Convex Outside Mirror
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
Sun VisorsNanity Mirrors
- - -
L
To block out glare,
you can swing down
the top and bottom
visors.
You can also
swing the bottom
visor from side
to
side. Your visors may
have an extension that
can be pulled out for
additional glare
protection and a strap
for holding small
items, such
as maps.
Some visors have
a
lighted mirror. Just lift
the cover
up to turn on
the mirror lights.
2-53

Downloaded from www.Manualslib.com manuals search engine Accessory Power Outlets (Option)
If you have accessory
power outlets, you can
plug in auxiliary
electrical equipment.
Just pull down from
the top of the door and
follow the proper installation
instructions that are
included with any
electrical equipment
you install.
These circuits are protected by a fuse and
have maximum current levels.
NOTICE:
When using the accessory power outlets, maximum electrical
load must not exceed 25 amps. Always turn off any electrical
equipment when not
in use. Leaving electrical equipment on for
extended periods will drain your battery.
Cigarette Lighter/Ashtrays
..
To use the lighter,
press it in all the way,
and let
go. When it's
ready,
it will pop back
by itself,
Don't hold a cigarette lighter in with
your hand while it is heating. If you
do, it won't be able to back away from the heating element when it's ready.
That can make it overload, damaging the lighter and the heating element.
2-54

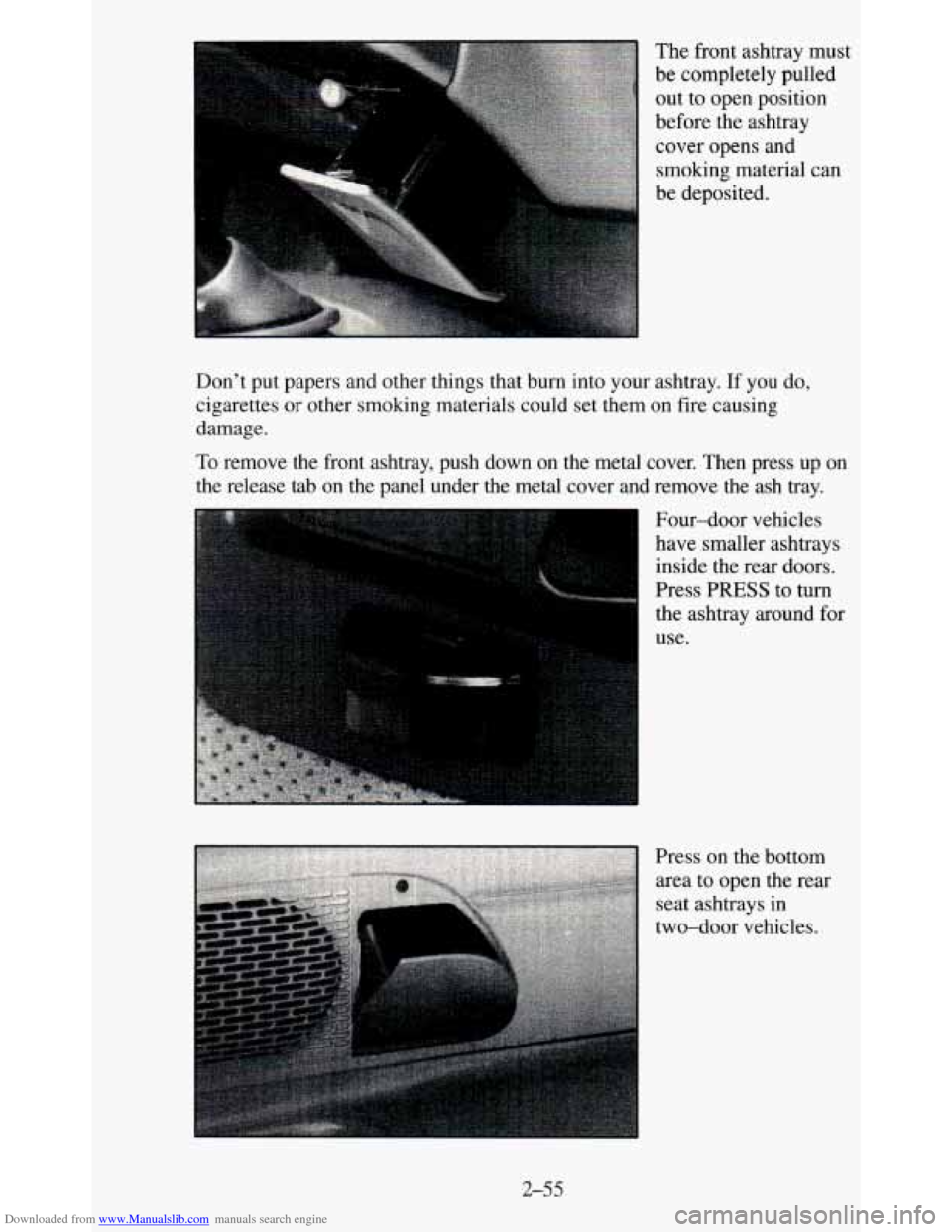

Downloaded from www.Manualslib.com manuals search engine The front ashtray must
be completely pulled out to open position
before the ashtray cover
opens and
smoking material can
be deposited.
Don’t put papers and other things that
burn into your ashtray. If you do,
cigarettes
or other smoking materials could set them on fire causing
damage.
To remove the front ashtray, push down on the metal cover. Then \
press up on
the release tab on the panel under the metal cover and remove the ash tray.
Four-door vehicles
have smaller ashtrays
inside the rear doors.
Press
PRESS to turn
the ashtray around for
use. I
Press on the bottom
area to open the rear seat ashtrays in
two-door vehicles.
2-55

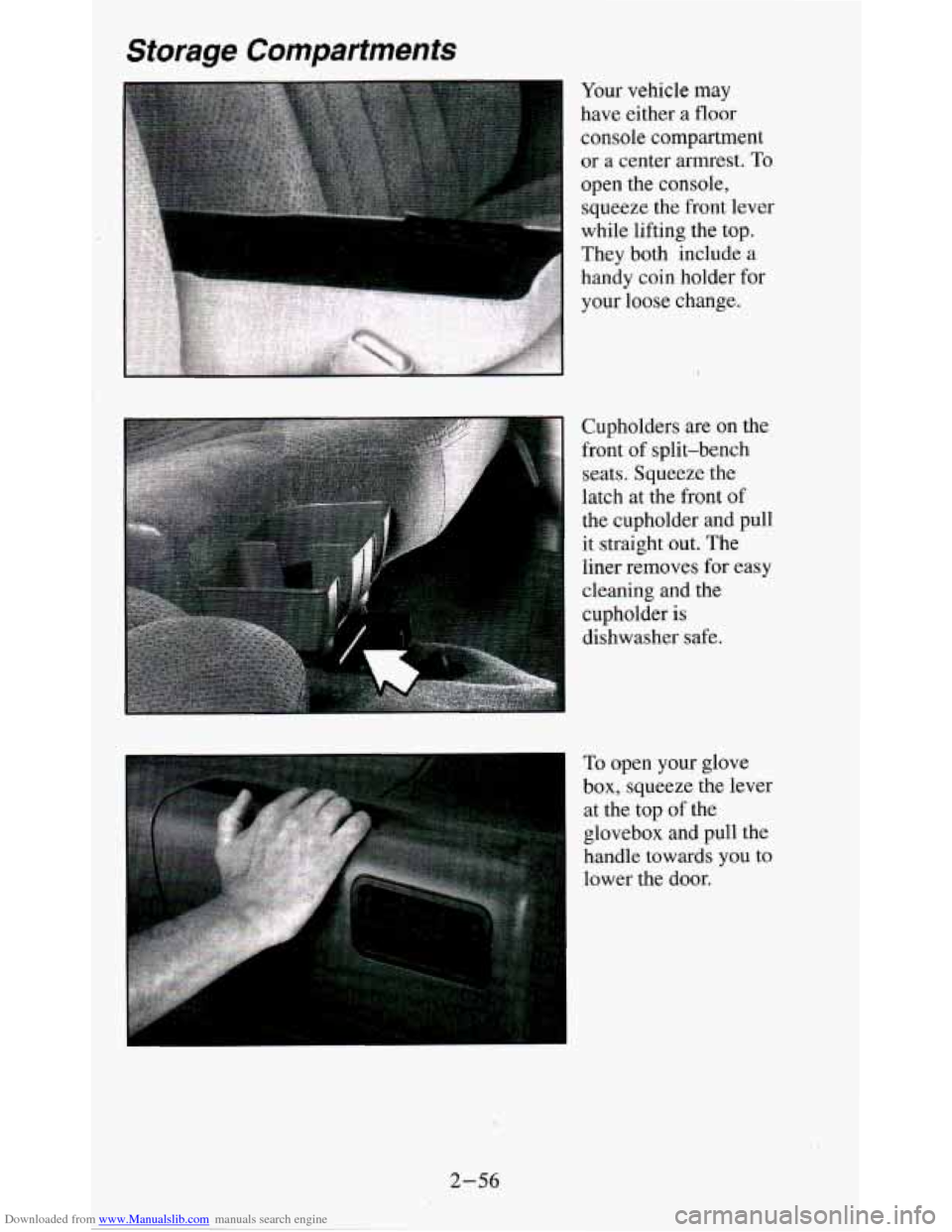

Downloaded from www.Manualslib.com manuals search engine Storage Compartments
Cupholders are on the
front of split-bench
seats. Squeeze the
latch at the front of
the cupholder and pull
it straight out. The
liner removes
for easy
cleaning and the
cupholder is
dishwasher safe.
To open your glove
box, squeeze the lever
at the top of the
glovebox and pull the
handle towards
you to
lower the door.
2-56

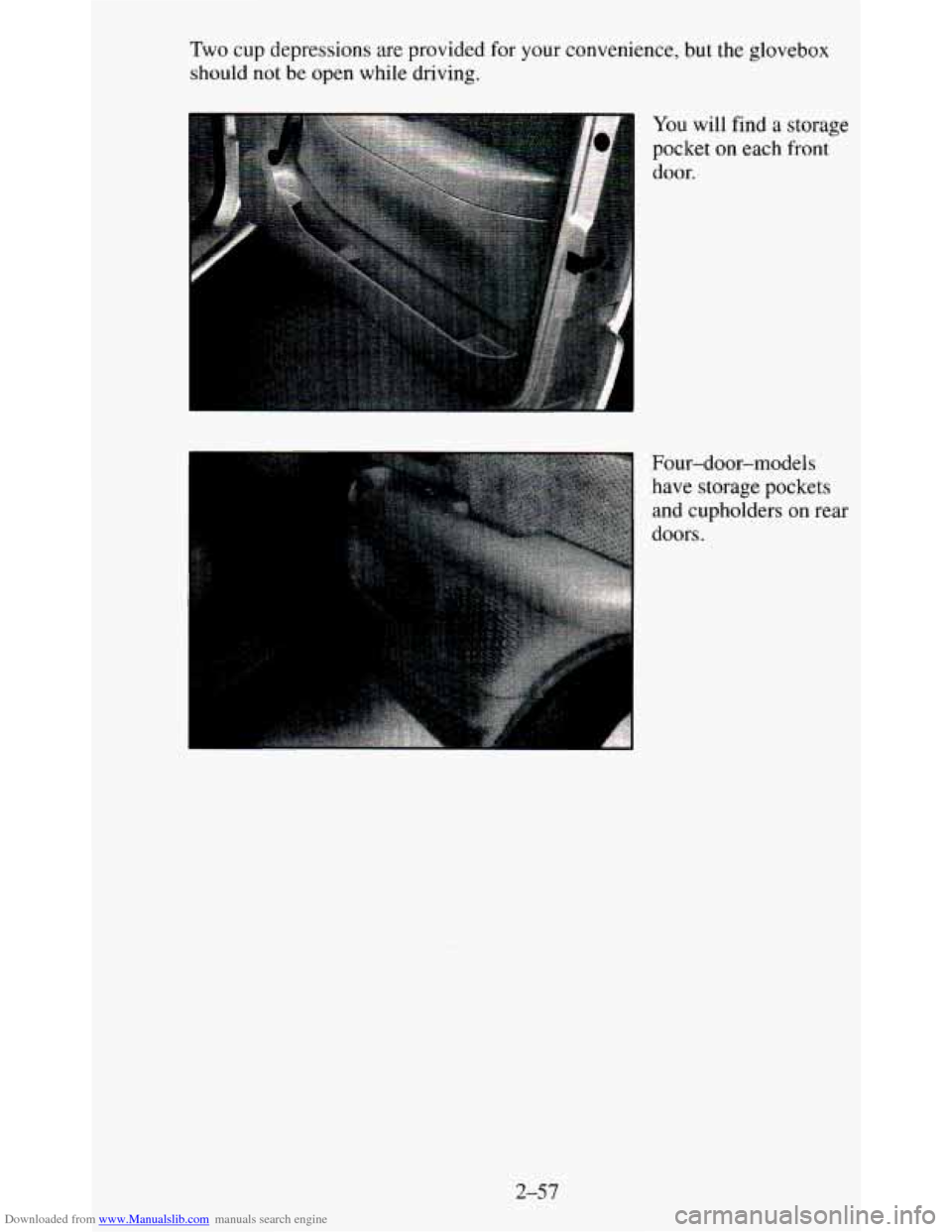

Downloaded from www.Manualslib.com manuals search engine Two cup depressions are provided for your convenience, but the glovebox
should not be open while driving.
You
will find a storage
pocket
on each front
door.
Four-door-models have storage pockets
and cupholders on rear
doors.
2-57

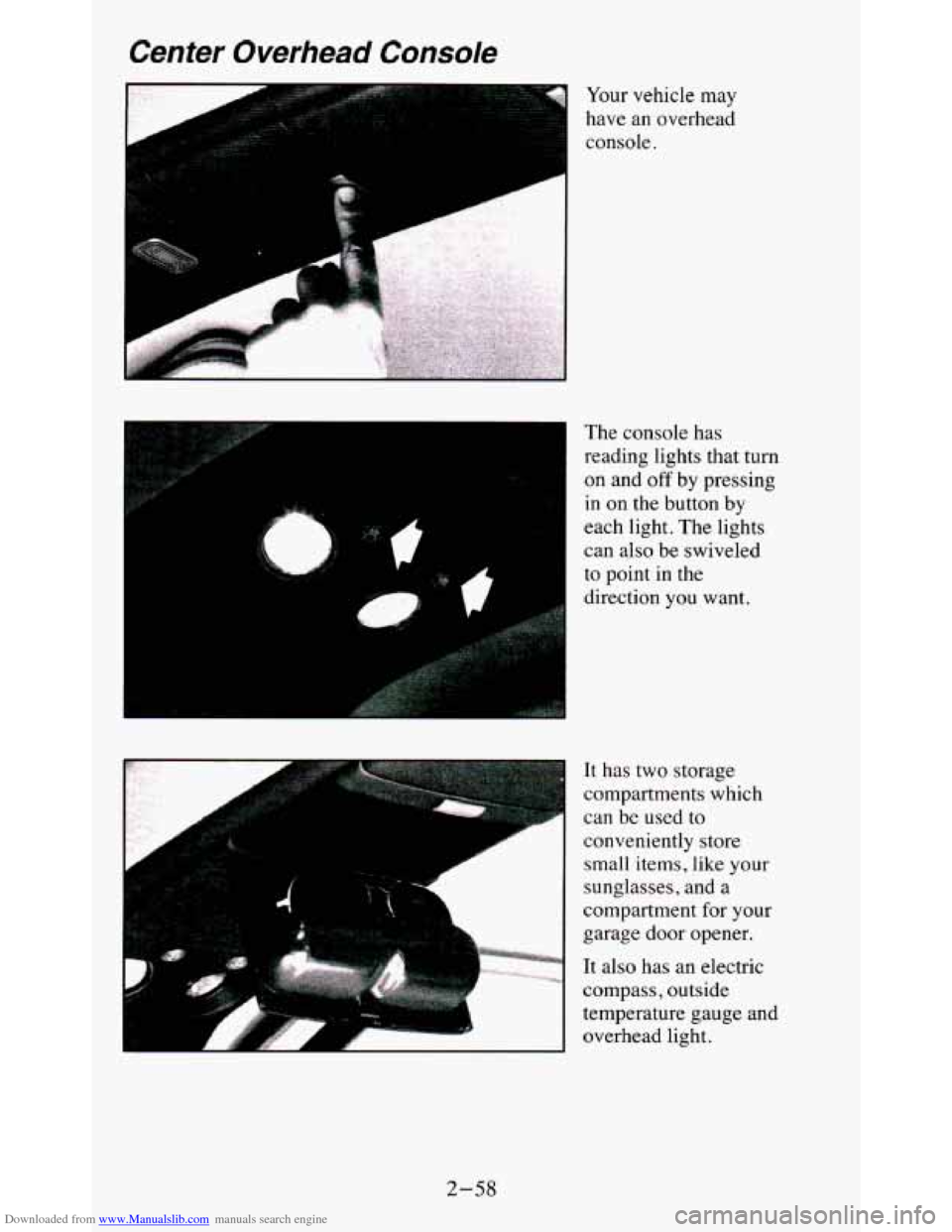

Downloaded from www.Manualslib.com manuals search engine Center Overhead Console
- I
P
Your vehicle may
have an overhead
console
+
The console has
reading lights that turn
on and off by pressing
in on the button by
each light. The lights
can also be swiveled
to point in the
direction
you want.
It has two storage
compartments which
can
be used to
conveniently store small
items, like your
sunglasses, and a
compartment for your
garage door opener.
It also has an electric
compass, outside
temperature gauge and
overhead light.
2-58

Downloaded from www.Manualslib.com manuals search engine Temperature and Compass Display
The outside air
temperature and the
compass are displayed
at the front of the
overhead console. The
control switches are
located
on the driver's
side of the display.
Turn the display on or
off by pressing the ON/OFF switch. Display the
temperature in either degrees Fahrenheit (English) or Celsius (metric) by
pressing the US/MET switch.
Before you turn
on the ignition and move the vehicle, the temperature
indicated will be the last outside temperature recorded with the ignition on.
If the outside temperature is
37 "F (3 "C) or lower when you turn on the
ignition, ICE will appear
on the display. It's a caution to the driver that road
conditions may be icy, and that appropriate precautions should be taken.
Gompass Calibration
The compass is self-calibrating, so it does not need to be manually set.
However, when your vehicle is new, the compass may function er\
ratically. If
it does, CAL (Calibration) will appear
on the display. To correct the
problem, drive in a complete
360" circle three times, and the compass will
function normally.
2-59

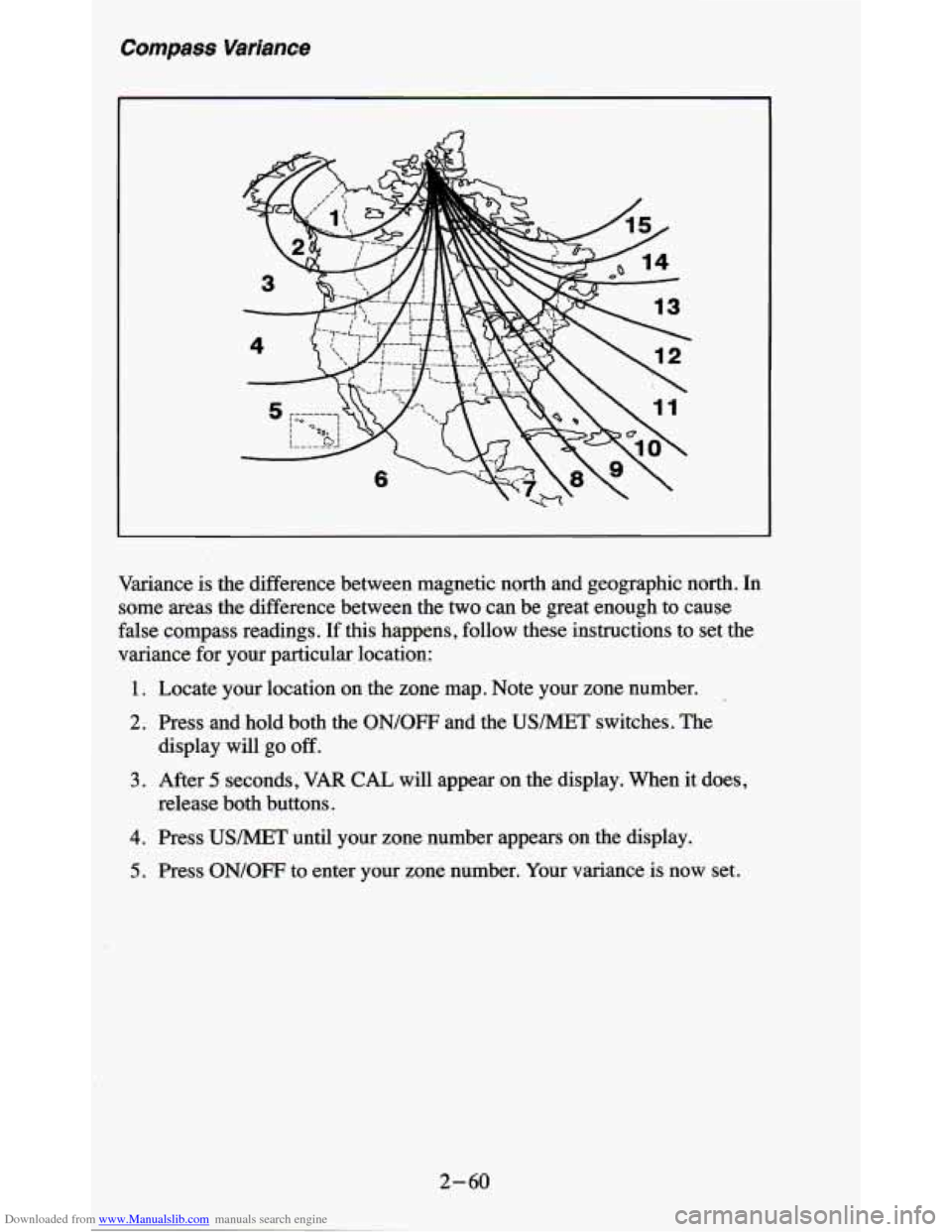

Downloaded from www.Manualslib.com manuals search engine Compass Variance
Variance is the difference between magnetic north and geographic north. In
some areas the difference between the two can be great enough to cause
false compass readings.
If this happens, follow these instructions to set the
variance for your particular location:
1. Locate your location on the zone map. Note your zone number.
2. Press and hold both the ON/OFF and the USMET switches. The
display will
go off.
release both buttons.
3. After 5 seconds, VAR CAL will appear on the display. When it does,
4. Press USMET until your zone number appears on the display.
5. Press ON/OFF to enter your zone number. Your variance is now set.
2-60
