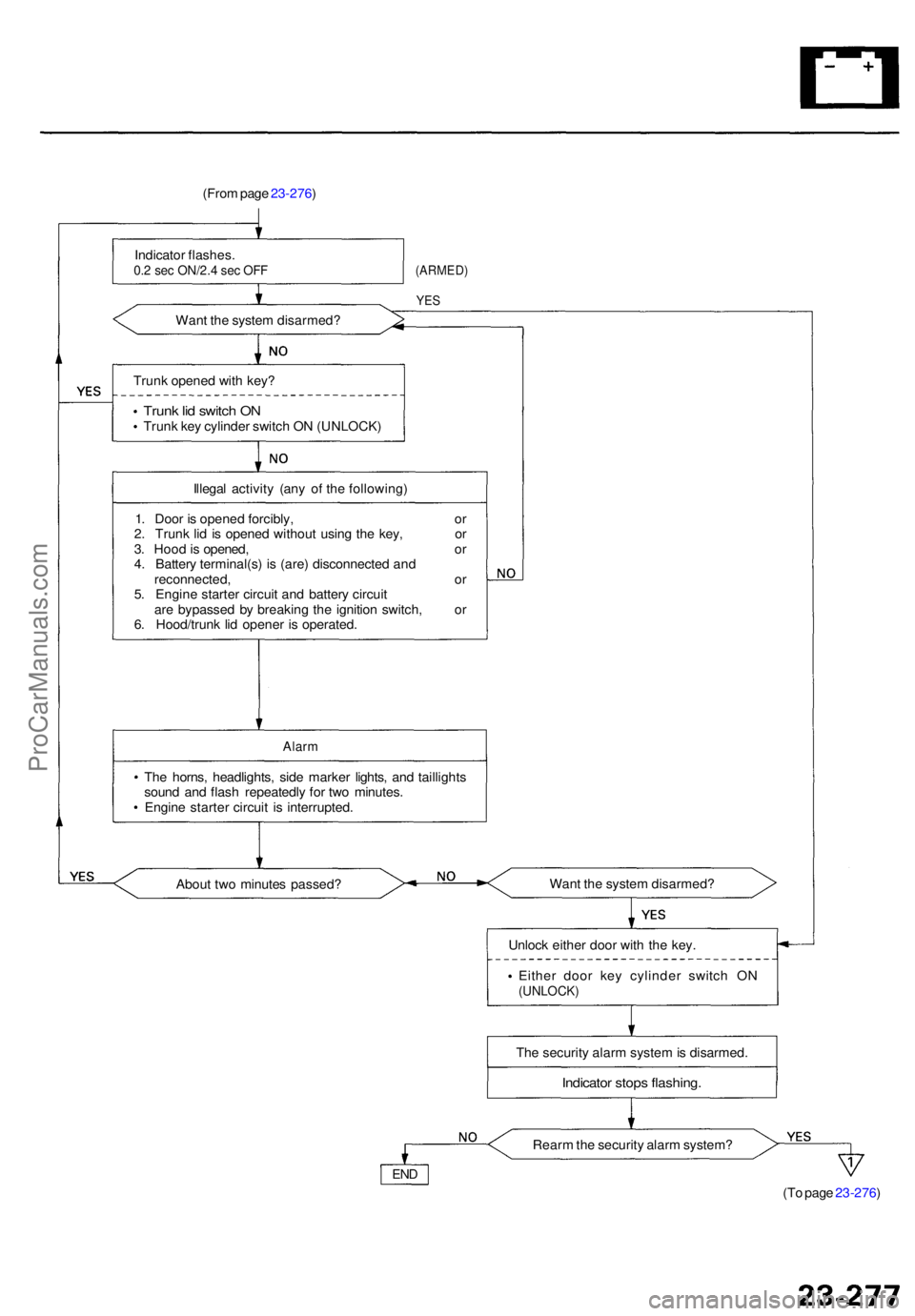

(From pag e 23-276 )
Indicato r flashes .
0.2 se c ON/2. 4 se c OF F
Wan t th e syste m disarmed ?
(ARMED)
YES
Trun k opene d wit h key ?
Trun k li d switc h O NTrun k ke y cylinde r switc h O N (UNLOCK )
Illega l activit y (an y o f th e following )
1 . Doo r i s opene d forcibly , o r
2 . Trun k li d i s opene d withou t usin g th e key , o r
3 . Hoo d is opened , o r
4 . Batter y terminal(s ) i s (are ) disconnecte d an d
reconnected , o r
5 . Engin e starte r circui t an d batter y circui t
ar e bypasse d b y breakin g th e ignitio n switch , o r
6 . Hood/trun k li d opene r i s operated .
Alarm
The horns , headlights , sid e marke r lights , an d taillight s
soun d an d flas h repeatedl y fo r tw o minutes .
Engin e starte r circui t i s interrupted .
Abou t tw o minute s passed ? Wan
t th e syste m disarmed ?
Unloc k eithe r doo r wit h th e key .
Eithe r doo r ke y cylinde r switc h O N
(UNLOCK )
The securit y alar m syste m is disarmed.
Indicato r stop s flashing .
Rearm th e securit y alar m system ?
(To pag e 23-276 )
END
ProCarManuals.com

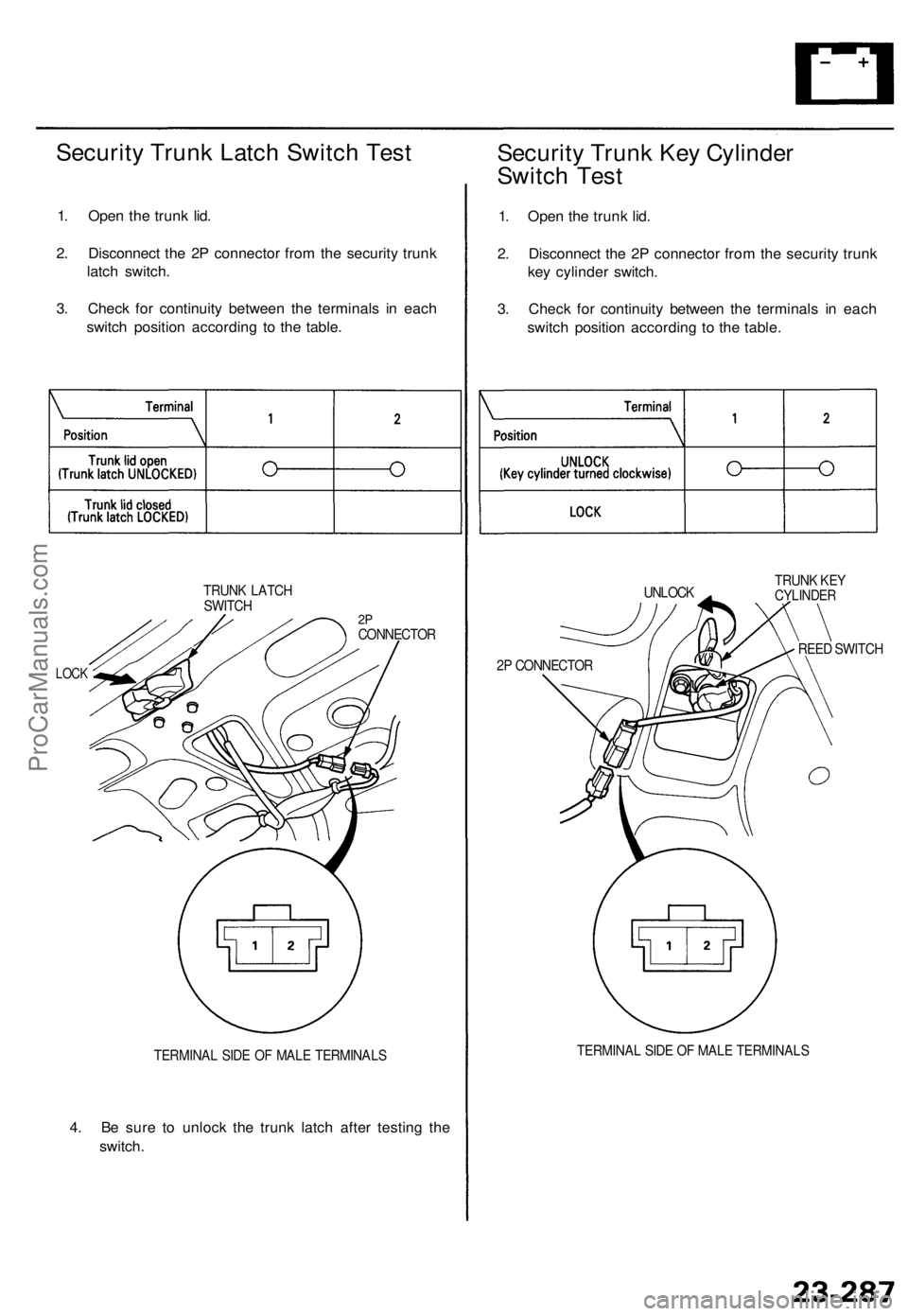

Security Trunk Latch Switch Test
1. Open the trunk lid.
2. Disconnect the 2P connector from the security trunk
latch switch.
3. Check for continuity between the terminals in each
switch position according to the table.
TRUNK LATCH
SWITCH
2P
CONNECTOR
LOCK
TERMINAL SIDE OF MALE TERMINALS
4. Be sure to unlock the trunk latch after testing the
switch.
Security Trunk Key Cylinder
Switch Test
1. Open the trunk lid.
2. Disconnect the 2P connector from the security trunk
key cylinder switch.
3. Check for continuity between the terminals in each
switch position according to the table.
UNLOCK
TRUNK KEY
CYLINDER
REED SWITCH
2P CONNECTOR
TERMINAL SIDE OF MALE TERMINALSProCarManuals.com
