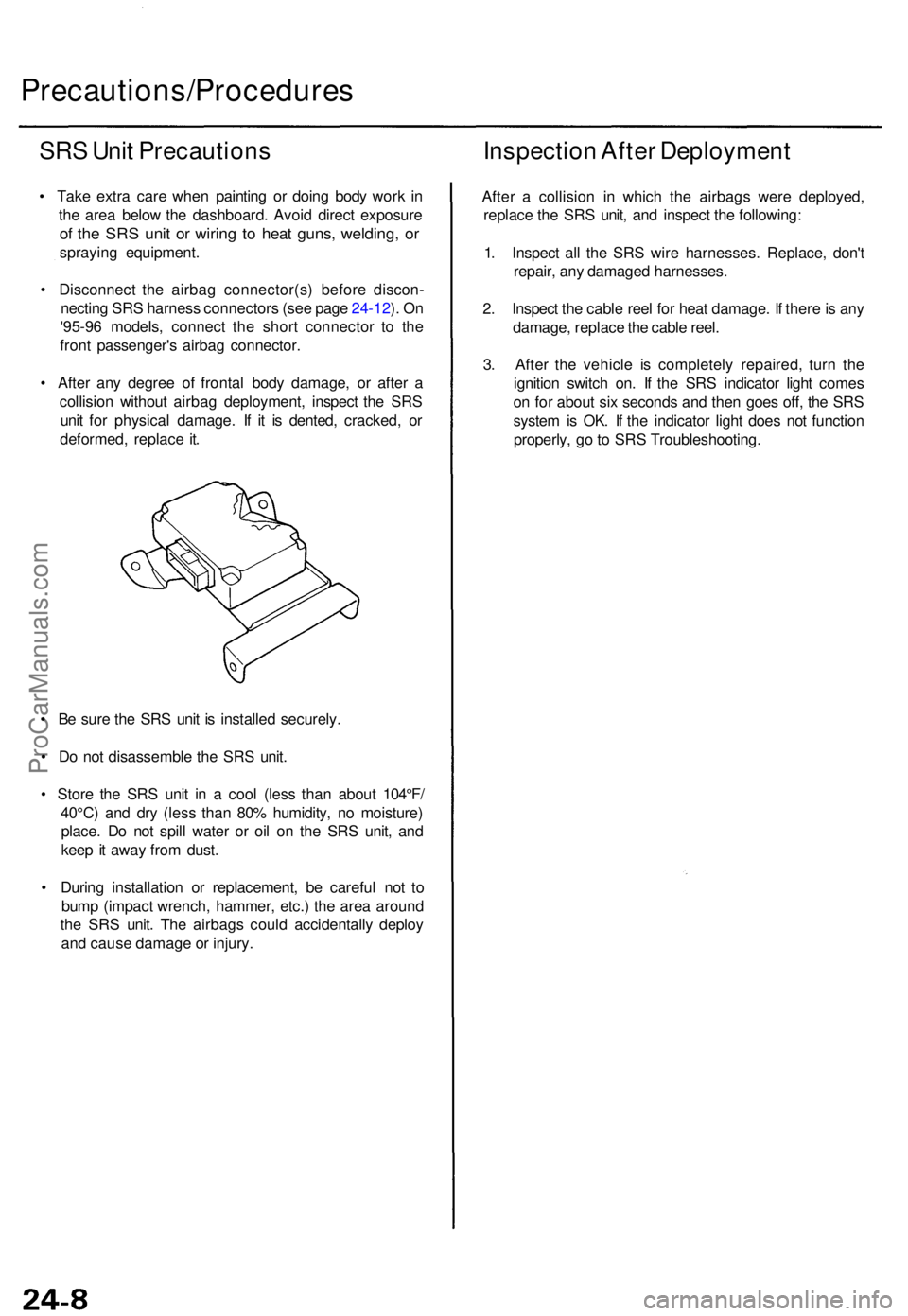

Page 1741 of 1771
Precautions/Procedures
SRS Uni t Precaution s
• Tak e extr a car e whe n paintin g o r doin g bod y wor k i n
th e are a belo w th e dashboard . Avoi d direc t exposur e
of th e SR S uni t o r wirin g t o hea t guns , welding , o r
sprayin g equipment .
• Disconnec t th e airba g connector(s ) befor e discon -
nectin g SR S harnes s connector s (se e pag e 24-12 ). O n
'95-9 6 models , connec t th e shor t connecto r t o th e
fron t passenger' s airba g connector .
• Afte r an y degre e o f fronta l bod y damage , o r afte r a
collisio n withou t airba g deployment , inspec t th e SR S
uni t fo r physica l damage . I f i t i s dented , cracked , o r
deformed , replac e it .
Inspectio n Afte r Deploymen t
After a collisio n i n whic h th e airbag s wer e deployed ,
replac e th e SR S unit , an d inspec t th e following :
1 . Inspec t al l th e SR S wir e harnesses . Replace , don' t
repair , an y damage d harnesses .
2 . Inspec t th e cabl e ree l fo r hea t damage . I f ther e is an y
damage , replac e th e cabl e reel .
3 . Afte r th e vehicl e i s completel y repaired , tur n th e
ignitio n switc h on . I f th e SR S indicato r ligh t come s
o n fo r abou t si x second s an d the n goe s off , th e SR S
syste m is OK . I f th e indicato r ligh t doe s no t functio n
properly , g o t o SR S Troubleshooting .
• B e sur e th e SR S uni t i s installe d securely .
• D o no t disassembl e th e SR S unit .
• Stor e th e SR S uni t i n a coo l (les s tha n abou t 104°F /
40°C ) an d dr y (les s tha n 80 % humidity , n o moisture )
place . D o no t spil l wate r o r oi l o n th e SR S unit , an d
kee p it awa y fro m dust .
• Durin g installatio n o r replacement , b e carefu l no t t o
bum p (impac t wrench , hammer , etc. ) th e are a aroun d
th e SR S unit . Th e airbag s coul d accidentall y deplo y
an d caus e damag e o r injury .
ProCarManuals.com

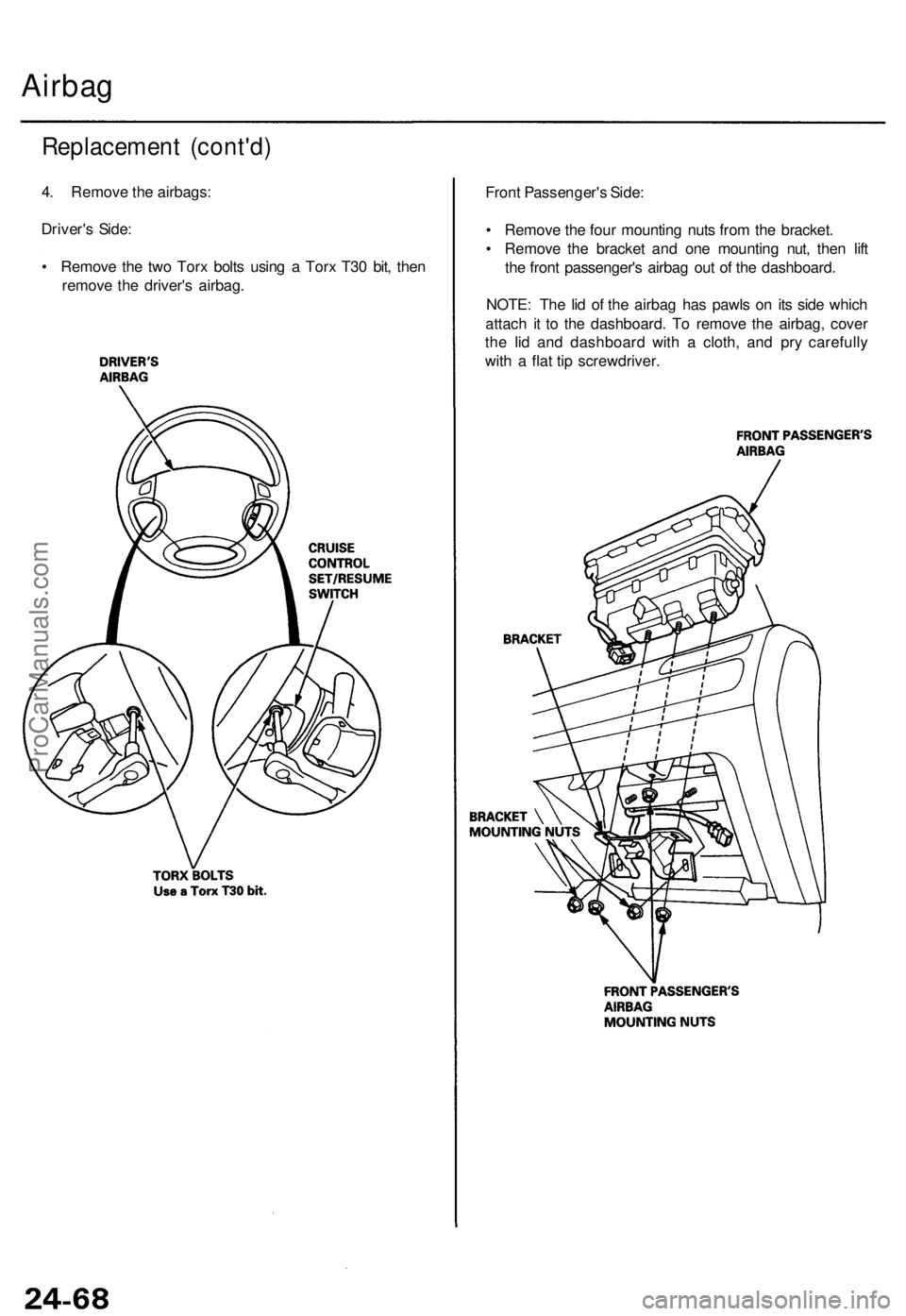

Page 1760 of 1771
