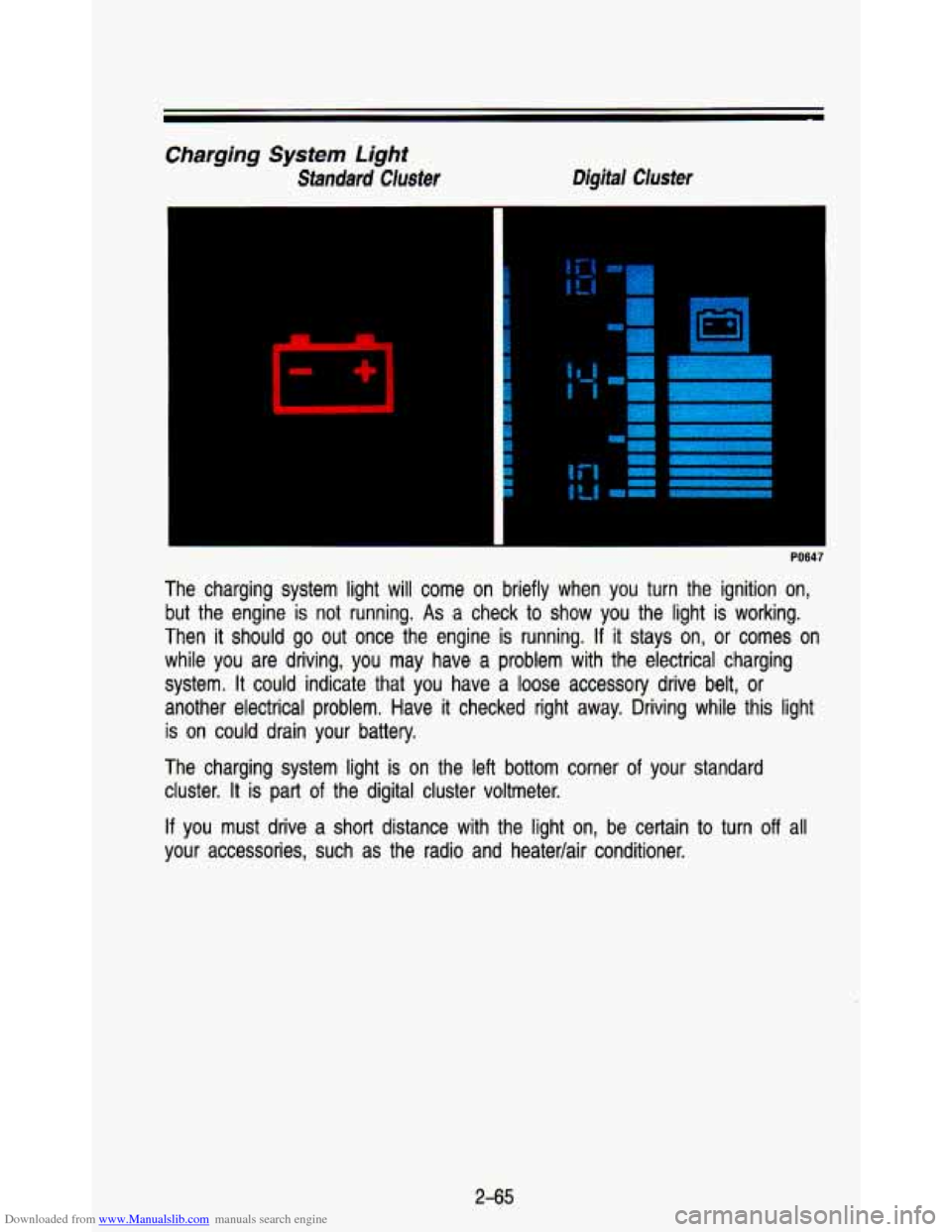

The charging system light will come on briefly when you turn \
the ignition on,
but the engine is not running. As a check to show you the light is working.
Then it should go out once the engine is running.
If it stays on, or comes on
while you are driving,
you may have a problem with the electrical charging
system.
It could indicate that you have a loose accessory drive belt, or
another electrical problem. Have
it checked right away. Driving while this light
is on could drain your battery.
The charging system light is
on the left bottom corner of your standard
cluster. It is part
of the digital cluster voltmeter.
If you must drive a short distance with the light on, be certain to turn off all
your accessories, such as the radio and heater/air conditioner. \
2-65

Downloaded from www.Manualslib.com manuals search engine Features & Cantmls

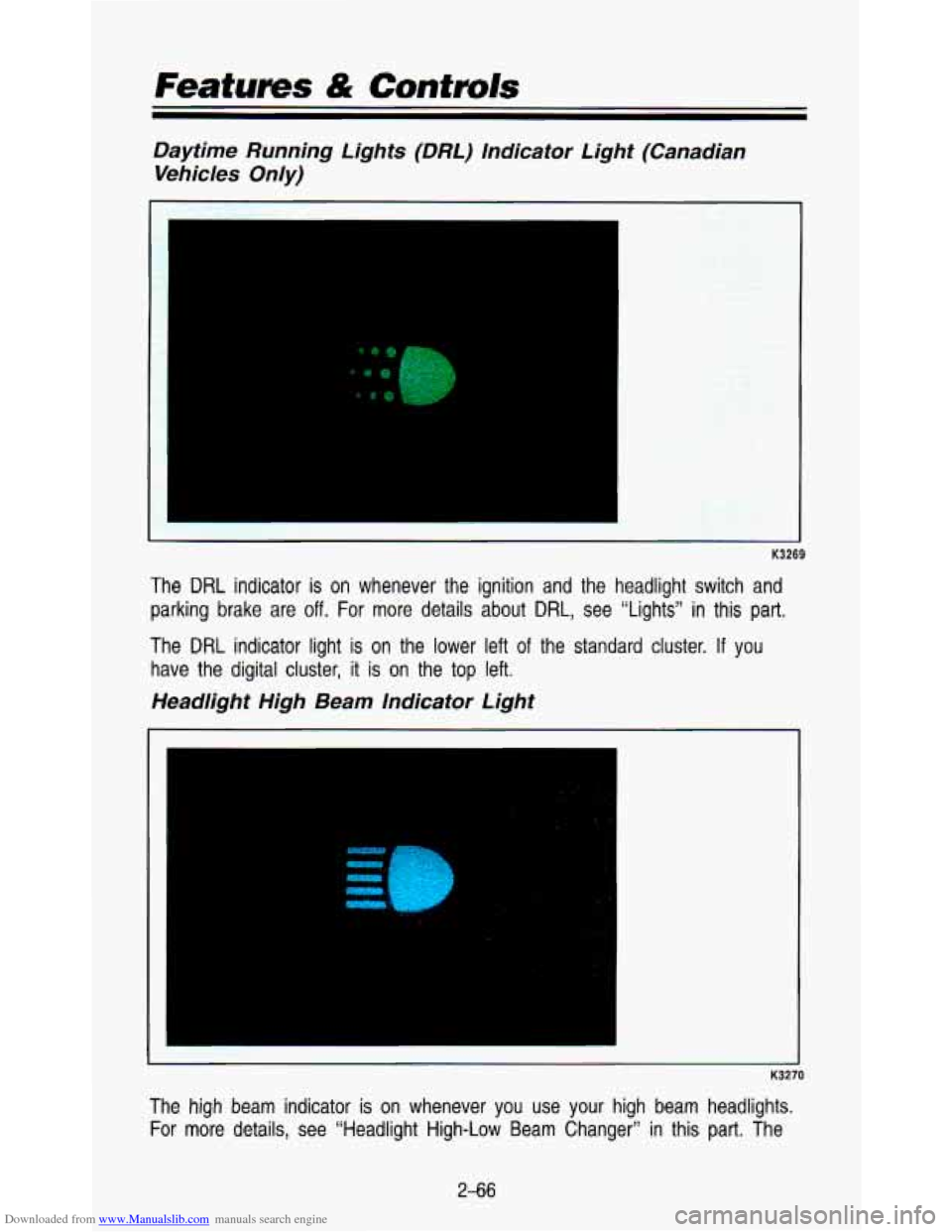

Daytime Running Lights (DRL) Indicator Light (Canadian Vehicles Only)
The DRL indicator is on whenever the ignition and the headlight switch and
parking brake are
off. For more details about DRL, see "Lights" in this part.
The DRL indicator light is on the lower left of the standard cluster. If you
have the digital cluster, it is on the top left.
Headlight High Beam Indicator Light
. -.
w
- K3270
The high beam indicator is on whenever you use your high beam headlights.
For more details, see "Headlight High-Low Beam Changer" in this part. The
2-66

Downloaded from www.Manualslib.com manuals search engine light is on the left hand side of the standard cluster. If you have the digital
cluster, it
is on the top of the cluster.
Turn Signal and Lane Change Indicator
K3271
The turn signal indicator is a light with two green arrows. I\
t comes on
whenever you signal a turn or lane change. Turn signal arrows are at the top
of the standard and digital clusters. For more details, see “Tu\
rn and Lane
Change Signal” in this part.

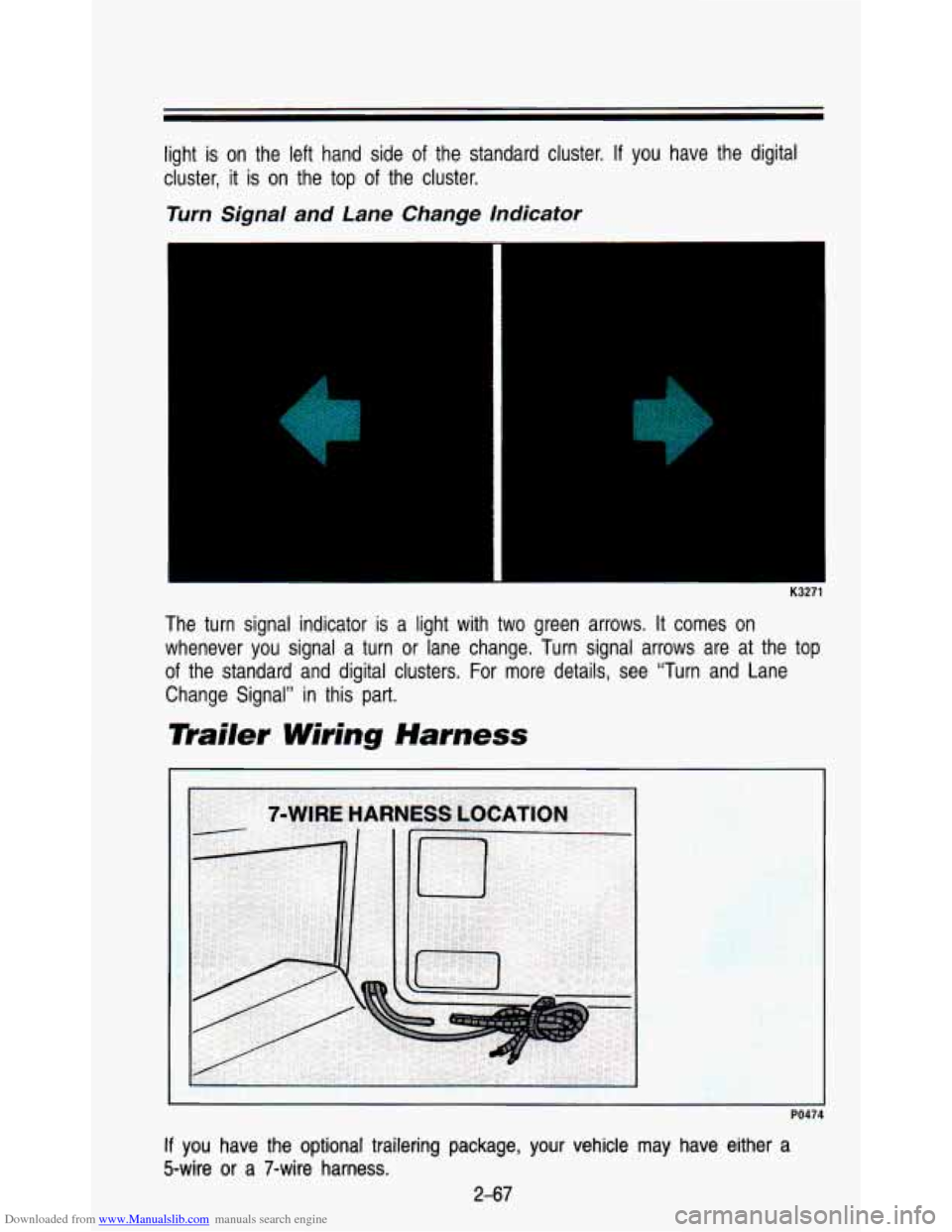

mailer Wiring Harness
PO47
If you have the optional trailering package, your vehicle may have either a
5-wire or
a 7-wire harness.
2-67

Downloaded from www.Manualslib.com manuals search engine Features & Contmls
The 5-wire harness is stored on the right side of the van near the rear wheel
well. The harness has no connector, and you should have a qua\
lified service
person wire your harness for you.
The harness must be routed out
of your vehicle between the rear door and the
floor, with enough of the harness
so that the trailer or the body won't pull it.
The 7-wire harness is stored on the right side of the van near the rear wheel
well. This harness has a
30 amp battery feed wire and no connector, and
should be wired by a qualified service person. Attach the harn\
ess
to the
trailer, then tape or strap
it to your vehicle's frame rail. Be sure you leave it
loose enough
so the wiring doesn't bend or break, but not so loose that it
drags on the ground.
The harness must be routed out
of your vehicle between the rear door and
the floor, with enough of the harness left on both sides
so that the trailer or
the body won't pull it.
Store the harness in its original place. Wrap the harness together and tie it
neatly
so it won't be damaged.

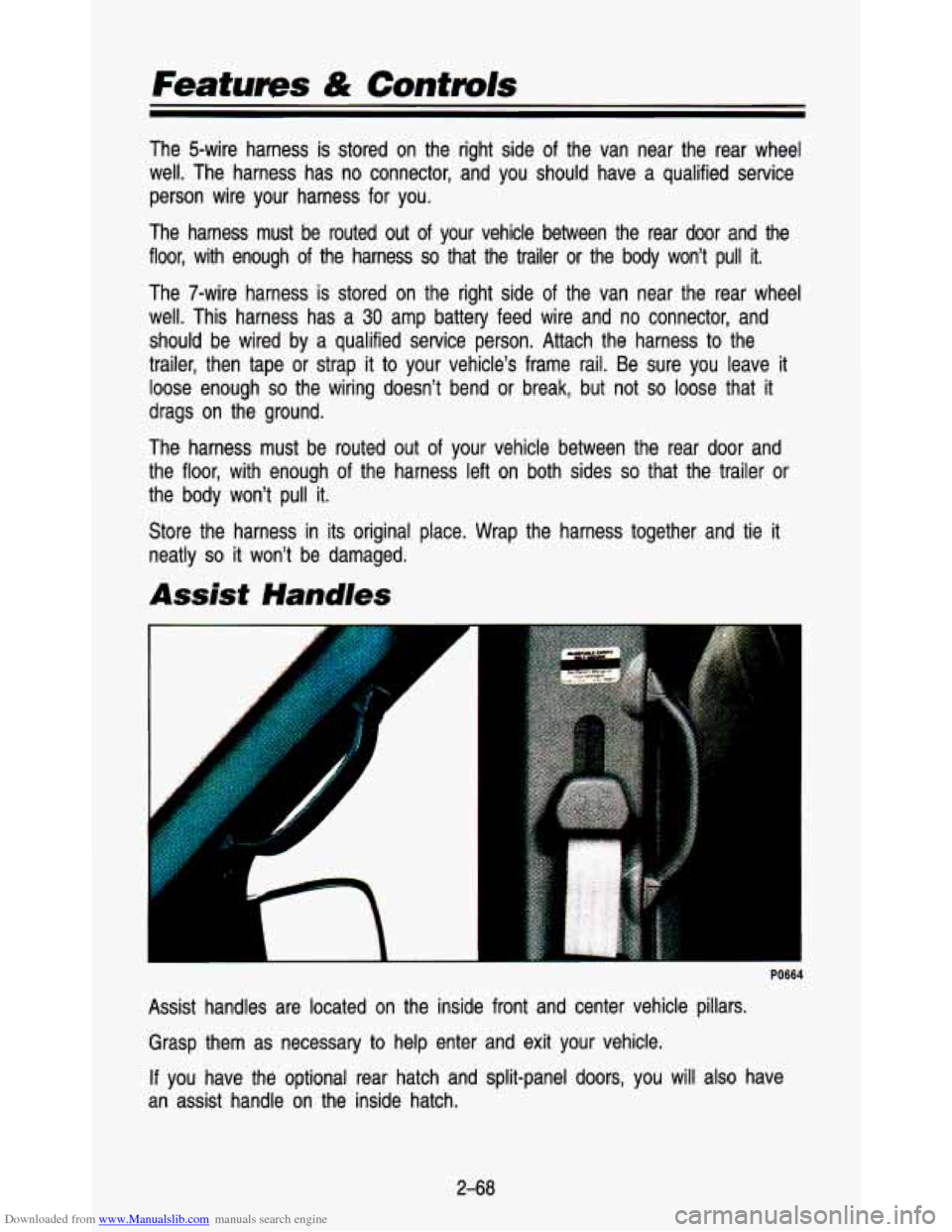

Assist Handles
If you have the optional rear hatch and split-panel doors, you will also
an assist handle on the inside hatch.
PO664
have
Assist handles are located on the inside front and center vehi\
cle pillars
Grasp them as necessary to help enter and exit your vehicle.
2-68

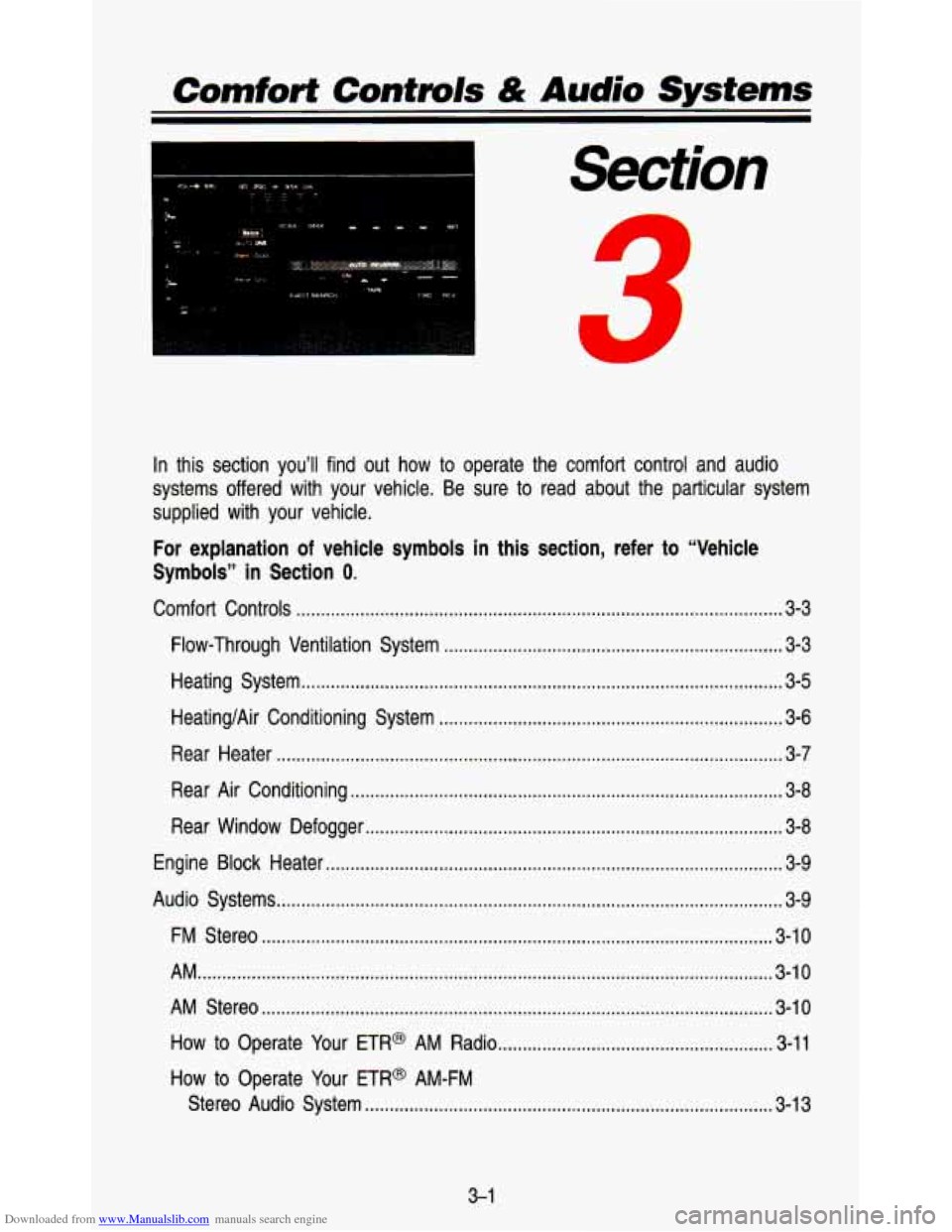

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems
In this section you’ll find out how to operate the comfort control and audio
systems offered with your vehicle. Be sure to read about the \
particular system
supplied with your vehicle.
For explanation of vehicle symbols in this section, refer to “Vehicle
Symbols” in Section 0.
Comfort Controls ........................................................................\
........................... 3-3
Flow-Through Ventilation System
..................................................................... 3-3
Heating System
........................................................................\
.......................... 3-5
Heating/Air Conditioning System
...................................................................... 3-6
Rear Heater
........................................................................\
............................... 3-7
Rear Air Conditioning
........................................................................\
................ 3-8
Rear Window Defogger
........................................................................\
............. 3-8
Engine Block Heater
........................................................................\
..................... 3-9
Audio Systems
........................................................................\
............................... 3-9
FM Stereo ........................................................................\
................................ 3-1 0
AM.. ........................................................................\
........................................... 3-1 0
AM Stereo ........................................................................\
................................ 3-1 0
How to Operate Your ETR@ AM Radio ........................................................ 3-11
How to Operate Your ETR@ AM-FM
Stereo Audio System
........................................................................\
........... 3-1 3
3-1

Downloaded from www.Manualslib.com manuals search engine Comfort Contmls & Audio Systems
How to Operate Your ETR@ AM-FM
How to Operate Your ETR@ AM-FM
Stereo Audio Cassette System
................................................................... 3-15
Stereo Audio Cassette System with Equalizer .......................................... 3-18
Care
of Your Cassette Tape Player .............................................................. 3-22
How to Operate Your ETR@ AM-FM
Stereo Audio Compact
Disc (CD) System ................................................ 3-23
Care
of Your Compact Discs ........................................................................\
. 3-28
Fixed Mast Antenna
........................................................................\
................ 3-29
3-2

Downloaded from www.Manualslib.com manuals search engine Comfort Controls

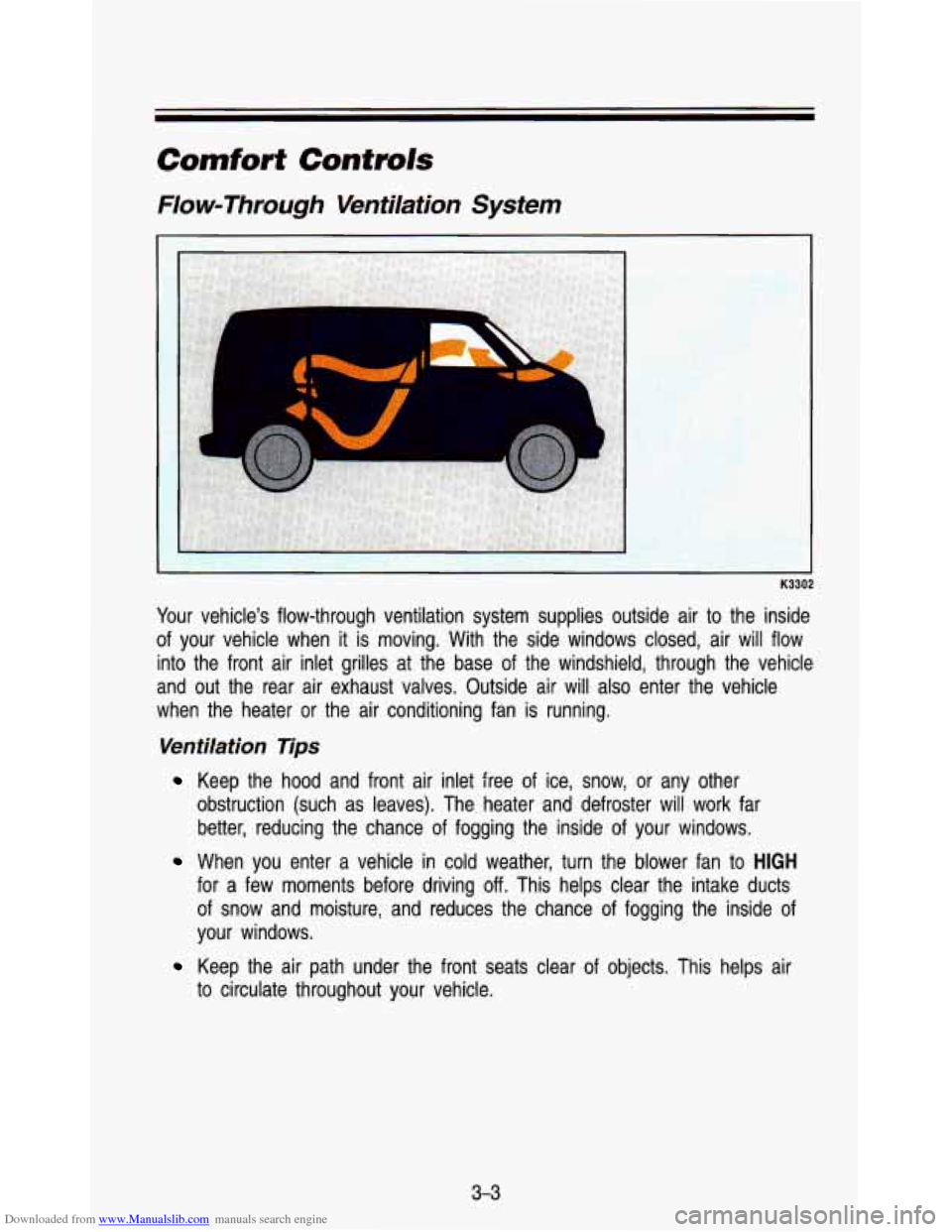

Flow-Through Ventilation System
K3302
Your vehicle's flow-through ventilation system supplies outside air to\
the inside
of your vehicle when it is moving. With the side windows closed, air will flow
into the front air inlet grilles at the base
of the windshield, through the vehicle
and out the rear air exhaust valves. Outside air will also en\
ter the vehicle
when the heater or the air conditioning fan is running.
Venfilation Tips
Keep the hood and front air inlet free of ice, snow, or any \
other
obstruction (such as leaves). The heater and defroster will w\
ork far better, reducing the chance of fogging the inside
of your windows.
When you enter a vehicle in cold weather, turn the blower fan\
to HIGH
for a few moments before driving
off. This helps clear the intake ducts
of snow and moisture, and reduces the chance of fogging the i\
nside of
your windows.
Keep the air path under the front seats clear of objects. Thi\
s helps air
to circulate throughout your vehicle.
3-3

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems

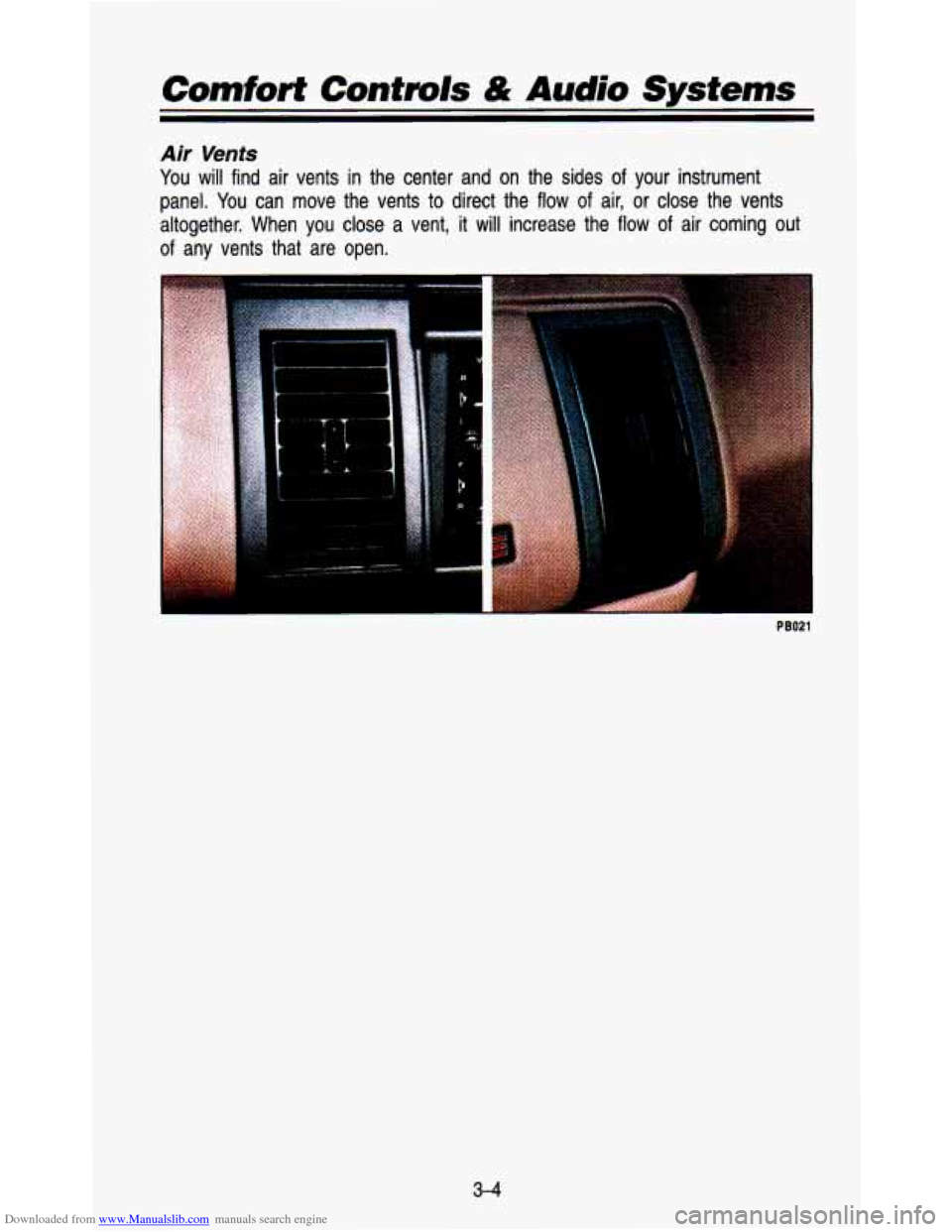

Air Vents
You will find air vents in the center and on the sides of your instrument
panel. You can move the vents to direct the
flow of air, or close the vents
altogether. When you close a vent, it will increase the flow of air coming out
of any vents that are open.
PB021
3-4
