Downloaded from www.Manualslib.com manuals search engine Your light switches are on the left side of the instrument panel above the
vent.
Press the top light switch
to the left to turn on:
Parking Lights
Taillights
License Plate Lights
Instrument Panel Lights
Press the bottom light switch to the left to turn on the headlights, together
with:
Parking Lights
Taillights
License Plate Lights
Instrument Panel Lights
Press both switches to the right to turn
off your lights.
Turn the dial above the light switches to the left
to dim your instrument panel
lights.
Turn the dial to the right to brighten your instrument panel lights.
If you turn
the dial all the way
to the right until it clicks, your interior lights will come on.
You can switch your headlights from high to
low beam by pulling on the
multifunction lever on the left of the steering column.
A circuit breaker protects your headlights. If you have an electrical overload,
your headlights will flicker on and
off. Have your headlight wiring checked
right away
if this happens.
2-41

Downloaded from www.Manualslib.com manuals search engine Features & Contmls
PO396
Use your optional fog lamps for better vision in foggy or misty conditions.
Your parking lights and/or low beam headlights must be on or your fog lamps
won't work.
Your fog lamp switch
is in the center of the instrument panel above the radio.
Slide the right side
of the switch to turn the fog lamps on, and the left side
of the switch to turn them
off. A warning light in the switch will remind you
that your fog lights are
on.
Remember, fog lamps alone will not give off as much light as your headlights.
Never use your fog lamps in the dark without turning on your headlights.
Fog lamps will go
off whenever your high beam lights come on. When the
high beams go
off, the fog lamps will come on again.
2-42

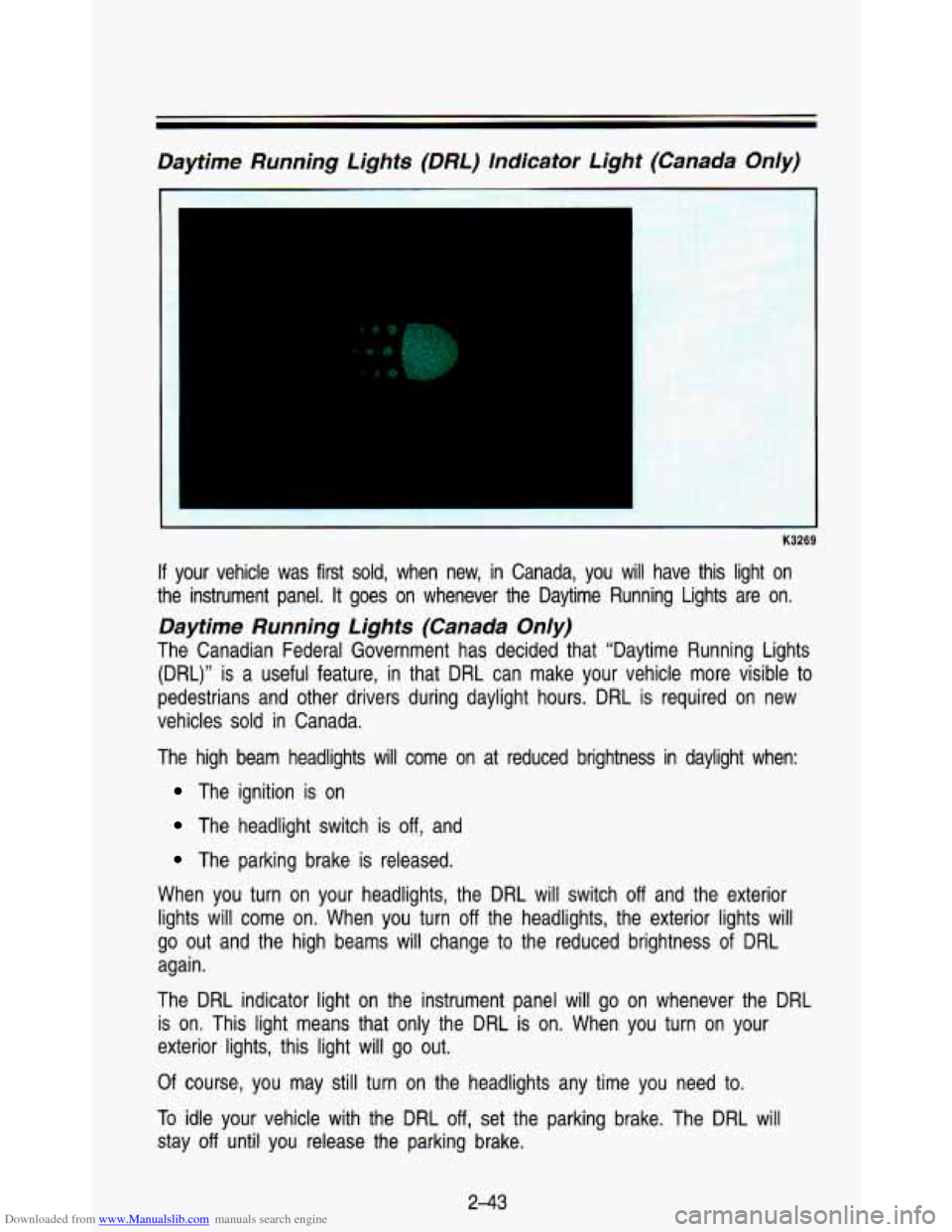

Downloaded from www.Manualslib.com manuals search engine Daytime Running Lights (DM) lndicator Light (Canada Only)
K3269
If your vehicle was first sold, when new, in Canada, you will ha\
ve this light on
the instrument panel. It goes on whenever the Daytime Running Lights are on.
Daytime Running Lights (Canada Only)
The Canadian Federal Government has decided that “Daytime Run\
ning Lights
(DRL)” is a useful feature, in that DRL can make your vehicle more visible to
pedestrians and other drivers during daylight hours. DRL is required on new
vehicles
sold in Canada.
The high beam headlights will come on at reduced brightness in\
daylight when:
The ignition is on
The headlight switch is off, and
The parking brake is released.
When you turn on your headlights, the DRL will switch
off and the exterior
lights will come on. When you turn off the headlights, the exterior lights will
go out and the high beams will change to the reduced brightness of
DRL
again .
The DRL indicator light on the instrument panel will go on wh\
enever the DRL
is on. This light means that only the DRL is on. When you turn on your
exterior lights, this light will go out.
Of course, you may still turn on the headlights any time you need to.
To idle your vehicle with the DRL off, set the parking brake. The DRL will
stay
off until you release the parking brake.
2-43

Downloaded from www.Manualslib.com manuals search engine Featums & Contmls

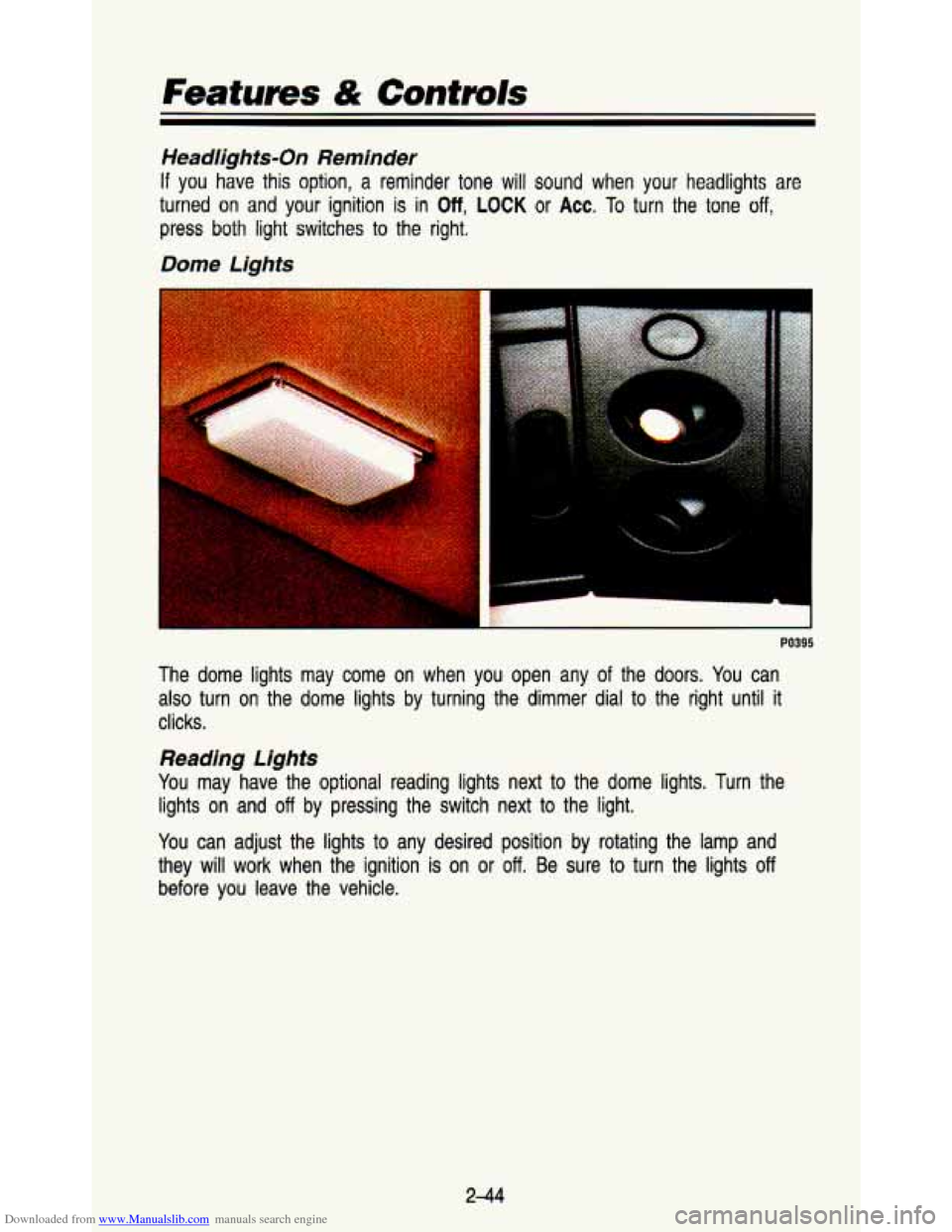

Headlights-On Reminder
If you have this option, a reminder tone will sound when your headlights are
turned on and your ignition is
in Off, LOCK or Acc. To turn the tone off,
press both light switches to the right.
Dome Lights
I
. . ...
PO395
The dome lights may come on when you open any of the doors. You can
also turn on the dome lights by turning the dimmer dial
to the right until it
clicks.
Reading Lights
You may have the optional reading lights next to the dome lig\
hts. Turn the lights
on and off by pressing the switch next to the light.
You can adjust the lights
to any desired position by rotating the lamp and
they will work when the ignition is on or
off. Be sure to turn the lights off
before you leave the vehicle.
244

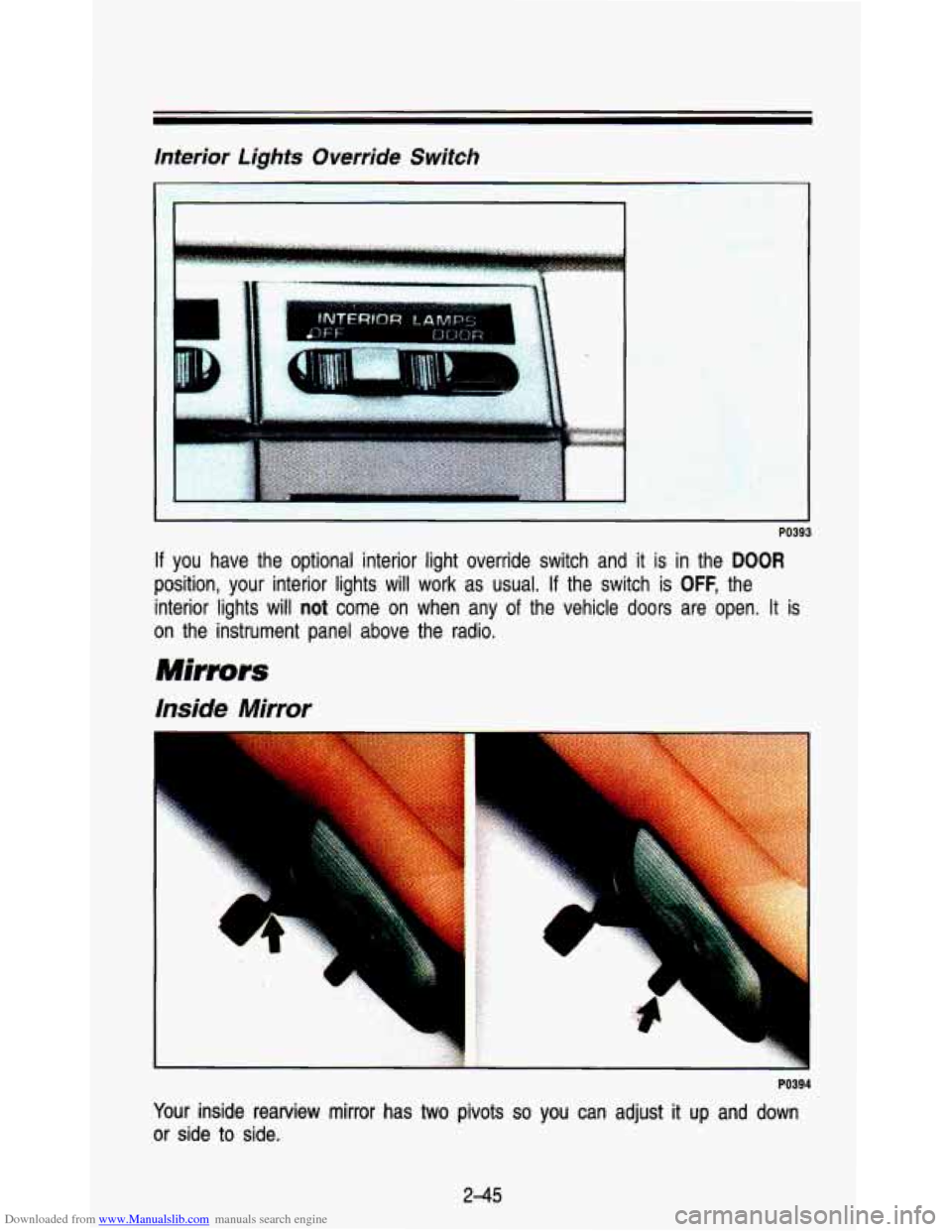

Downloaded from www.Manualslib.com manuals search engine Interior Lights Override Switch
PO393
If you have the optional interior light override switch and it is\
in the DOOR
position, your interior lights will work as usual. If the switch is OFF, the
interior lights will
not come on when any of the vehicle doors are open. It is
on the instrument panel above the radio.
Mirrors
Inside Mirror
PO394
tour inside reanriew mirror has two pivots so you can adjust it up and down
)r side to side.
2-45

Downloaded from www.Manualslib.com manuals search engine Featurres & CTontmIs

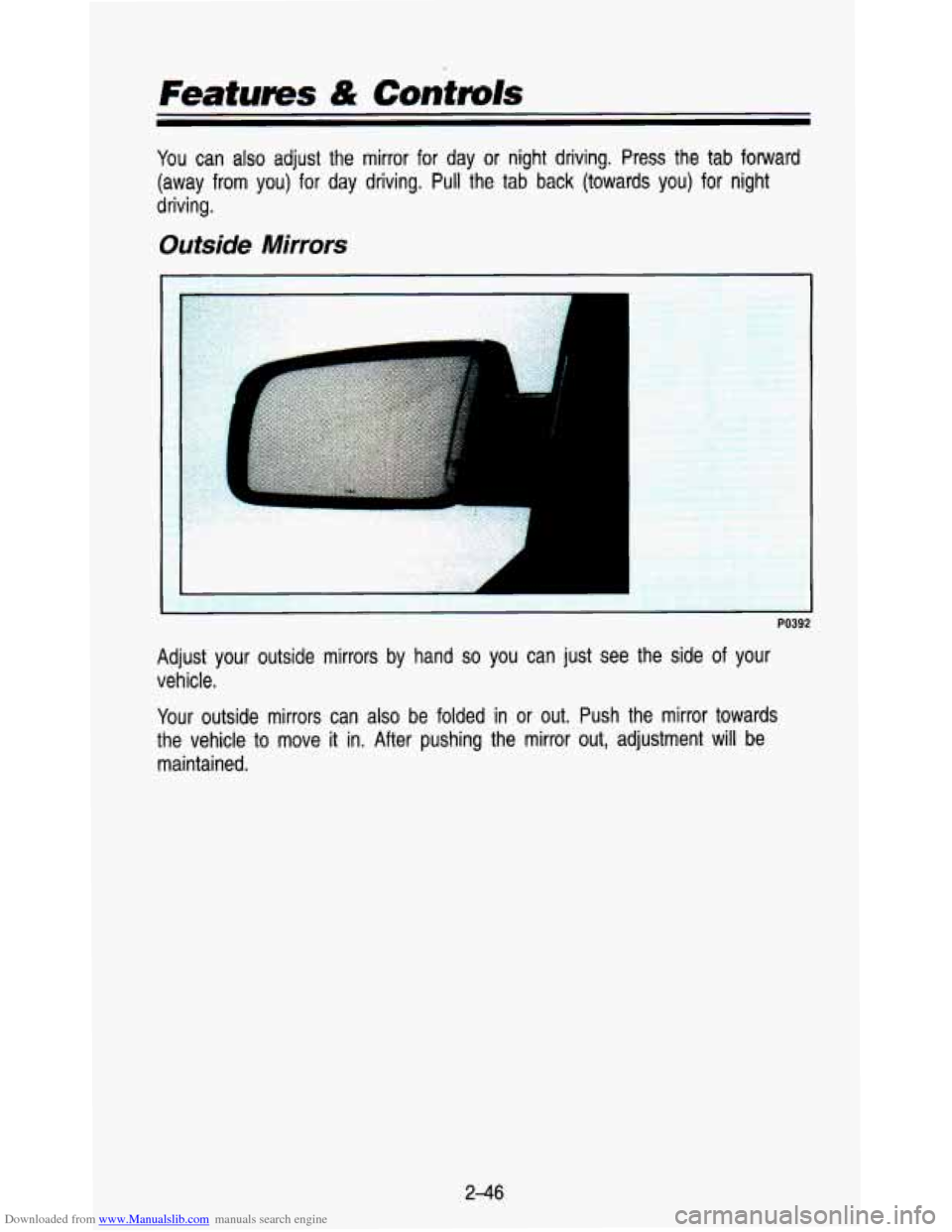

You can also adjust the mirror for day or night driving. Press the tab forward
(away from you)
for day driving. Pull the tab back (towards you) for night
driving.
Outside Mirrors
Ir
.-
'I
PO392
Adjust your outside mirrors by hand so you can just see the side of your
vehicle.
Your outside mirrors can also be folded in or out. Push the mirror towards
the vehicle
to move it in. After pushing the mirror out, adjustment will be
maintained.
2-46

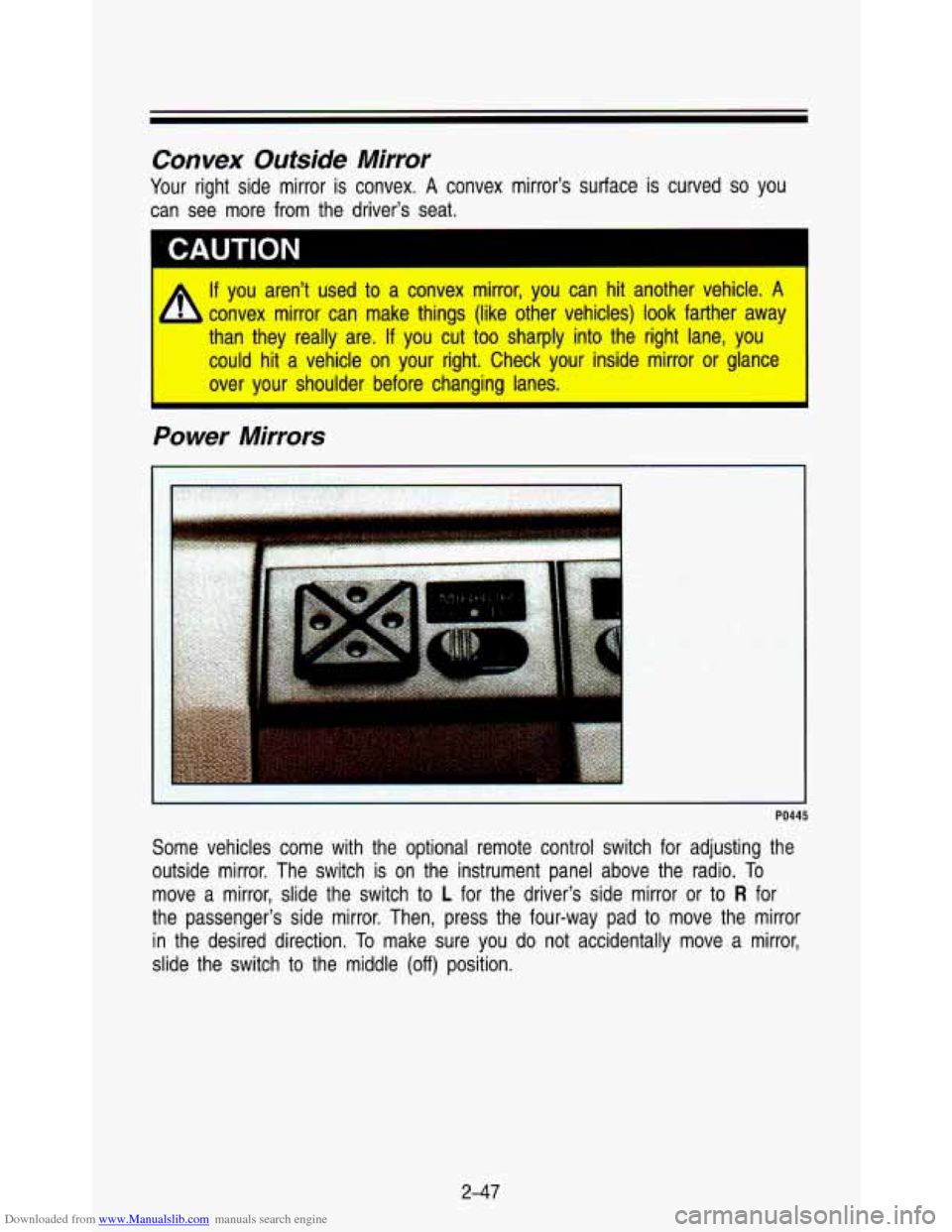

Downloaded from www.Manualslib.com manuals search engine Convex Outside Mirror
Your right side mirror is convex. A convex mirror's surface is curved so you
can see more from the driver's seat.
I
If you aren't used to a convex mirror, you can hit another vehicle. A
convex mirror can make things (like other vehicles) look fart\
her away
than they really are. If you cut too sharply into the right \
lane, you could hit a vehicle on your right. Check your inside mirror or glance
over your shoulder before changing lanes.
I
Power Mirrors
PO445
Some vehicles come with the optional remote control switch for \
adjusting the
outside mirror. The switch is on the instrument panel above the radio. To
move a mirror, slide the switch
to L for the driver's side mirror or to R for
the passenger's side mirror. Then, press the four-way pad to move the mirror
in the desired direction. To make sure you
do not accidentally move a mirror,
slide the switch to the middle
(off) position.
2-47

Downloaded from www.Manualslib.com manuals search engine Features & Contmls

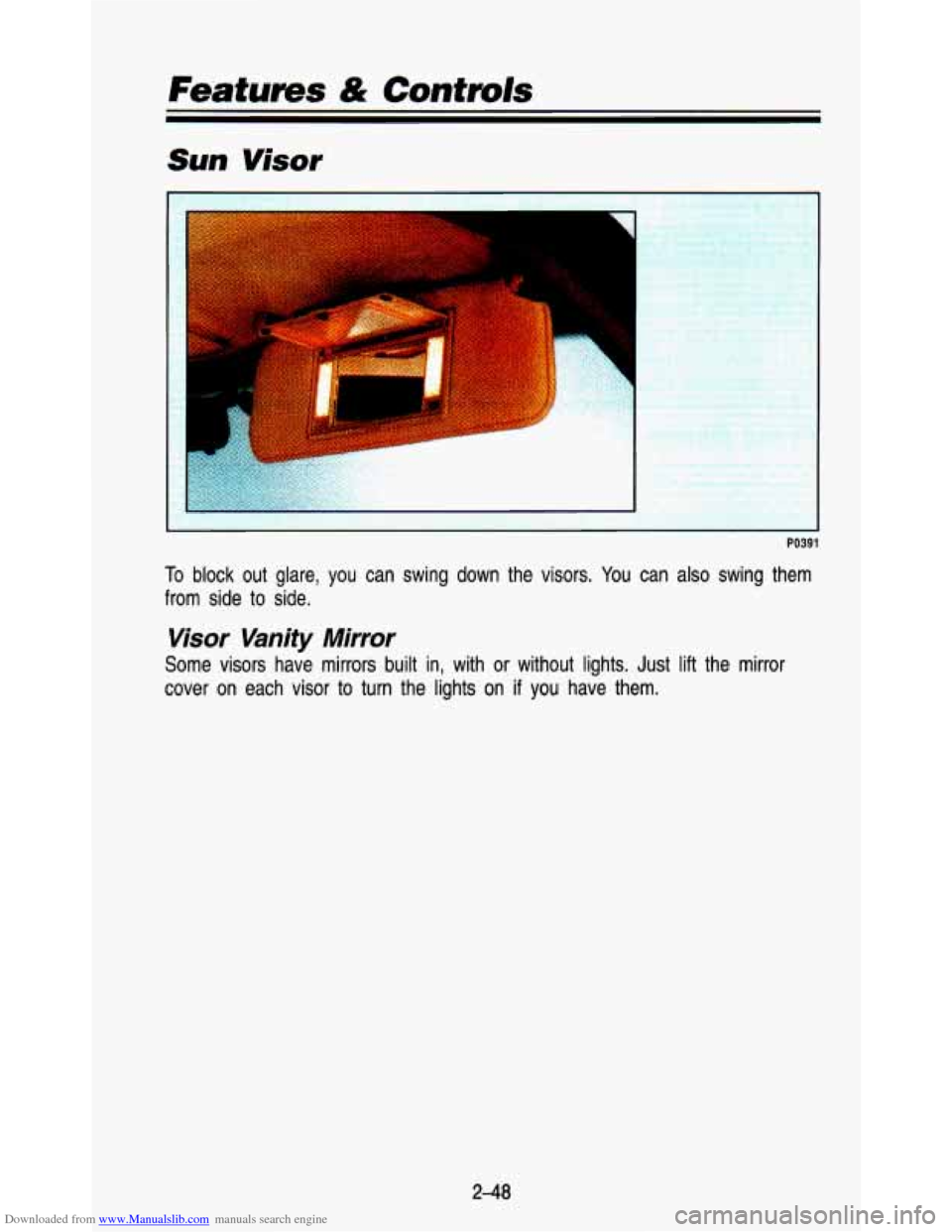

Sun Visor
PO391
To block out glare, you can swing down the visors. You can also swing them
from side to side.
Visor Vanity Mirror
Some visors have mirrors built in, with or without lights. Just lift the mirror
cover on each visor to turn the lights on
if you have them.
248
