1993 CHEVROLET ASTRO PASSENGER Owners Manual

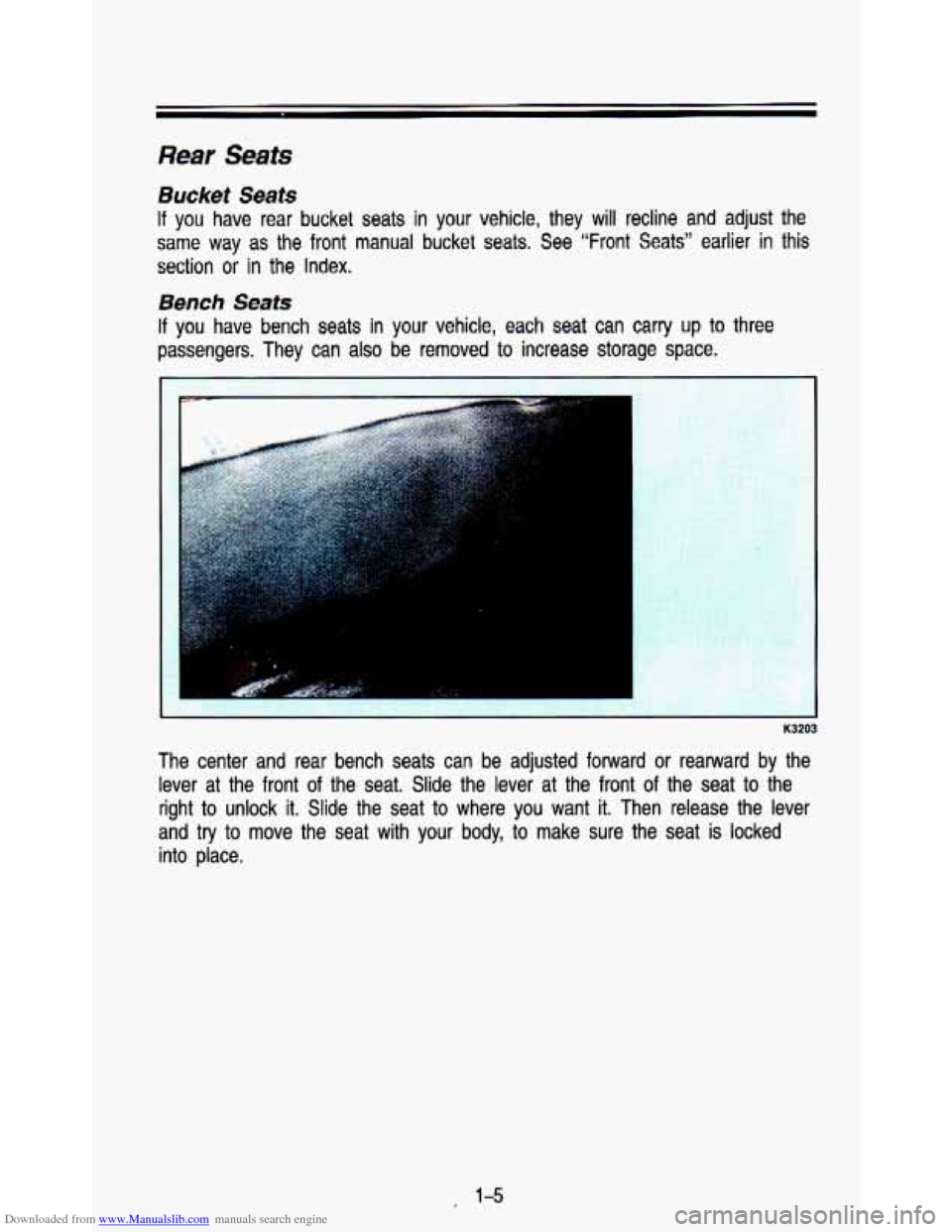

Downloaded from www.Manualslib.com manuals search engine Rear Seats
Bucket Seats
If you have rear bucket seats in your vehicle, they will recline and adjust the
same way
as the front manual bucket seats. See "Front Seats" earlier in this
section or
in the Index.
Bench Seats
If you have bench seats in your vehicle, each seat can carry up to three
passengers. They can also be removed to increase storage space.
:..,:.;..*i -.
K3203
The center and rear bench seats can be adjusted forward or rearward by the
lever at the front
of the seat. Slide the lever at the front of the seat to the
right to unlock it. Slide the seat
to where you want it. Then release the lever
and try to move the seat with your body, to make sure the seat is locked
into place.
. 1-5

Downloaded from www.Manualslib.com manuals search engine Seatls and Safe#y Belts

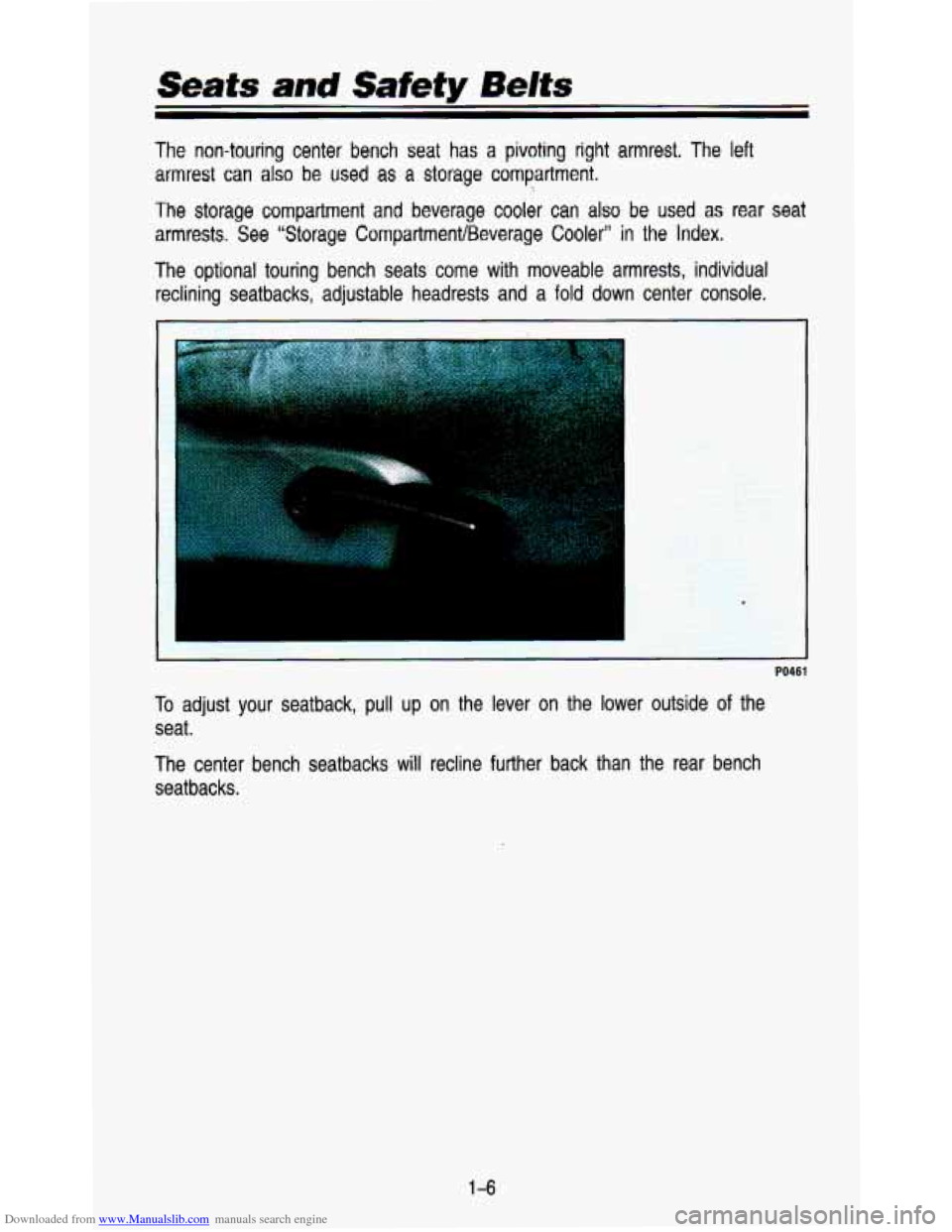

The non-touring center bench seat has a pivoting right armrest.\
The left armrest can also be
used as a storage compartment,
The storage compartment and beverage cooler can also be used as rear seat
armrests. See "Storage CornpartmenVBeverage Cooler" in the Index.
The optional touring bench seats come with moveable armrests, i\
ndividual reclining seatbacks, adjustable headrests and a fold down center console.
.:
PO461
To adjust your seatback, pull up on the lever on the lower outsi\
de of the
seat.
The center bench seatbacks will recline further back than the \
rear bench
seatbacks.
1-6

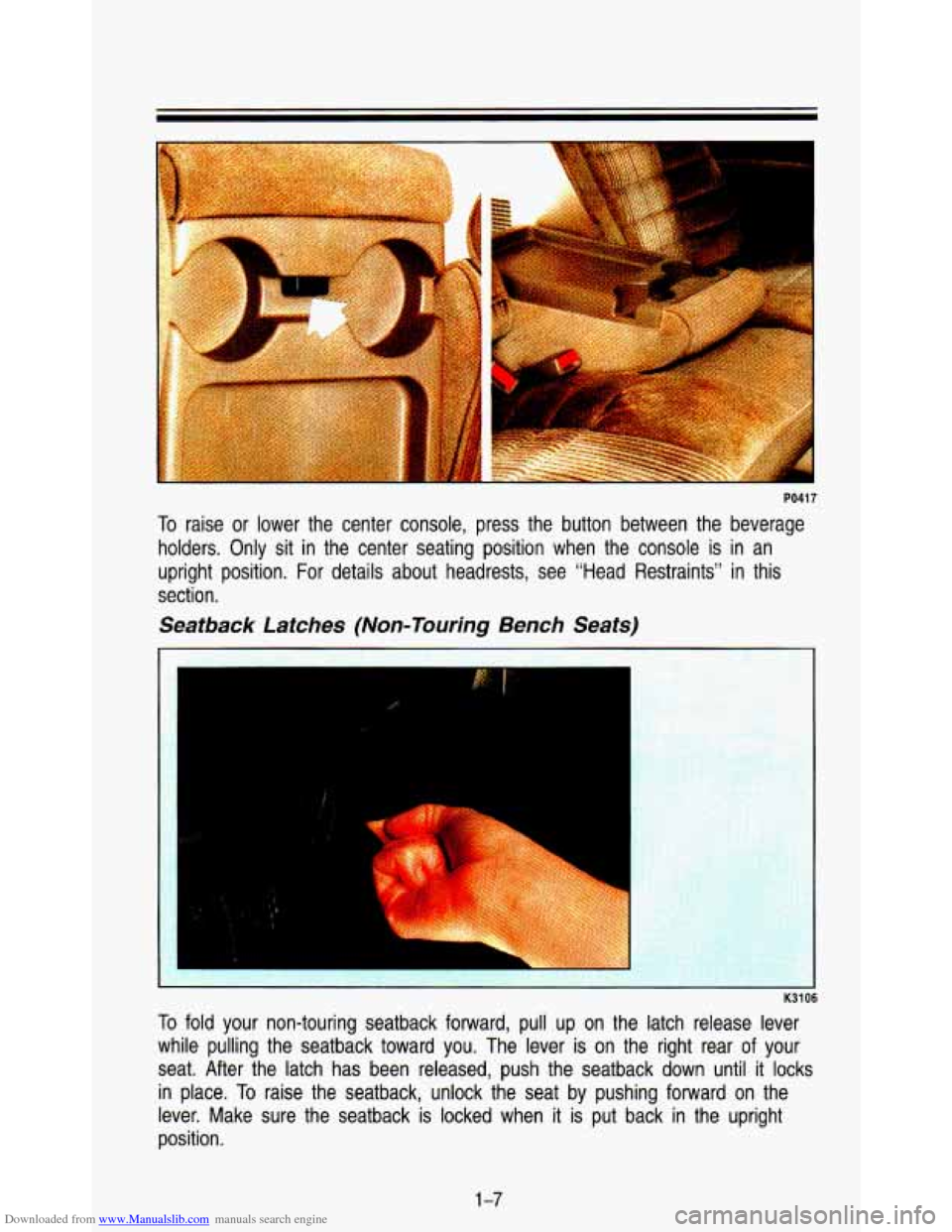

Downloaded from www.Manualslib.com manuals search engine K3106
To fold your non-touring seatback forward, pull up on the latch release lever
while pulling the seatback toward you. The lever is
on the right rear of your
seat. After the latch has been released, push the seatback dow\
n until it locks
in place.
To raise the seatback, unlock the seat by pushing forward on the \
lever. Make sure the seatback is locked when it is put back in the upright
position.
1 -7

Downloaded from www.Manualslib.com manuals search engine Seats and Safety Belts

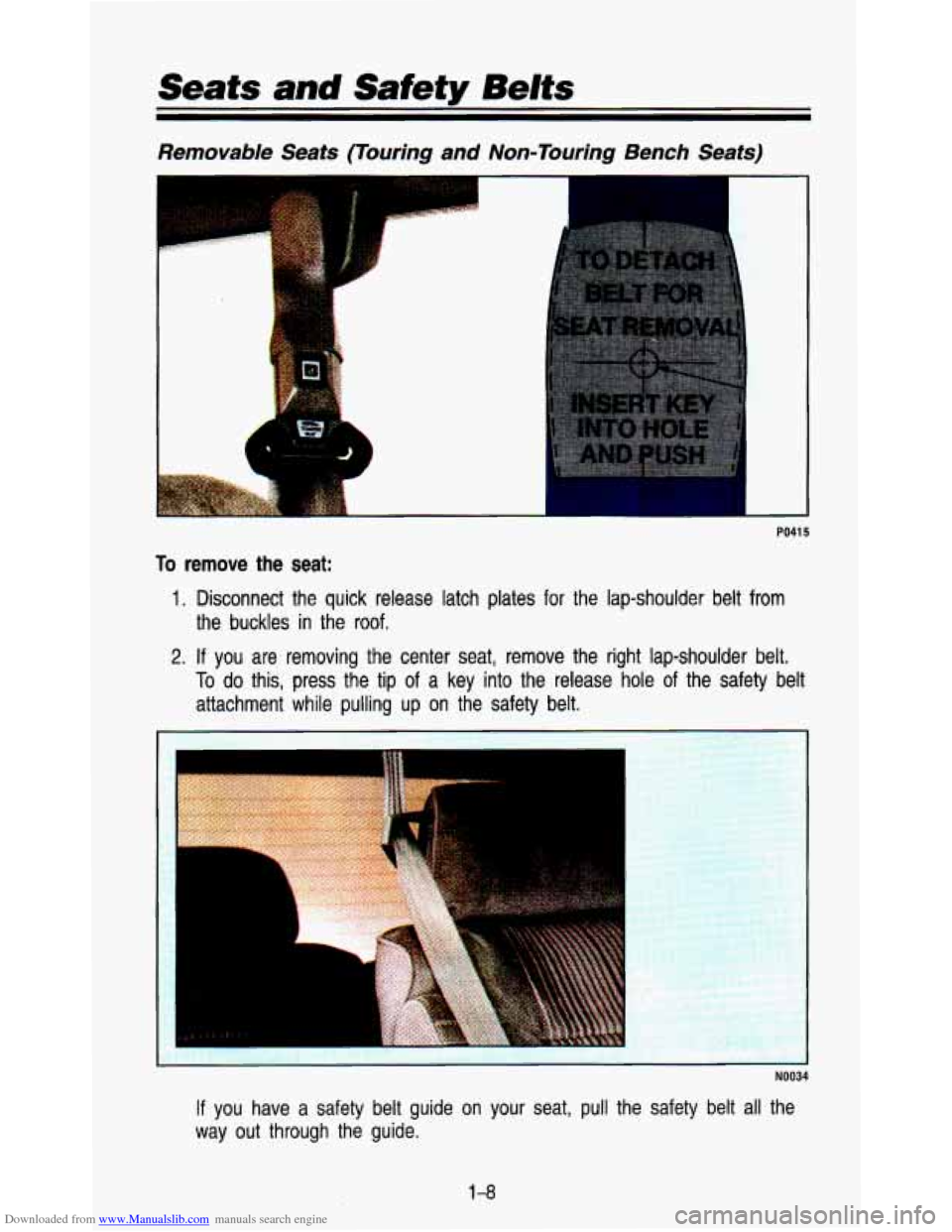

Removable Seats (Touring and Non-Touring Bench Seats)
PO41 5
To remove the seat:
1. Disconnect the quick release latch plates for the lap-shoulder \
belt from
the buckles in the roof.
2. If you are removing the center seat, remove the right lap-shoulder\
belt.
To do this, press the tip of a key into the release hole of the safety belt
attachment while pulling up on the safety belt.
1
I
NO034
If you have a safety belt guide on your seat, pull the safety belt all the
way out through the guide.
1-8

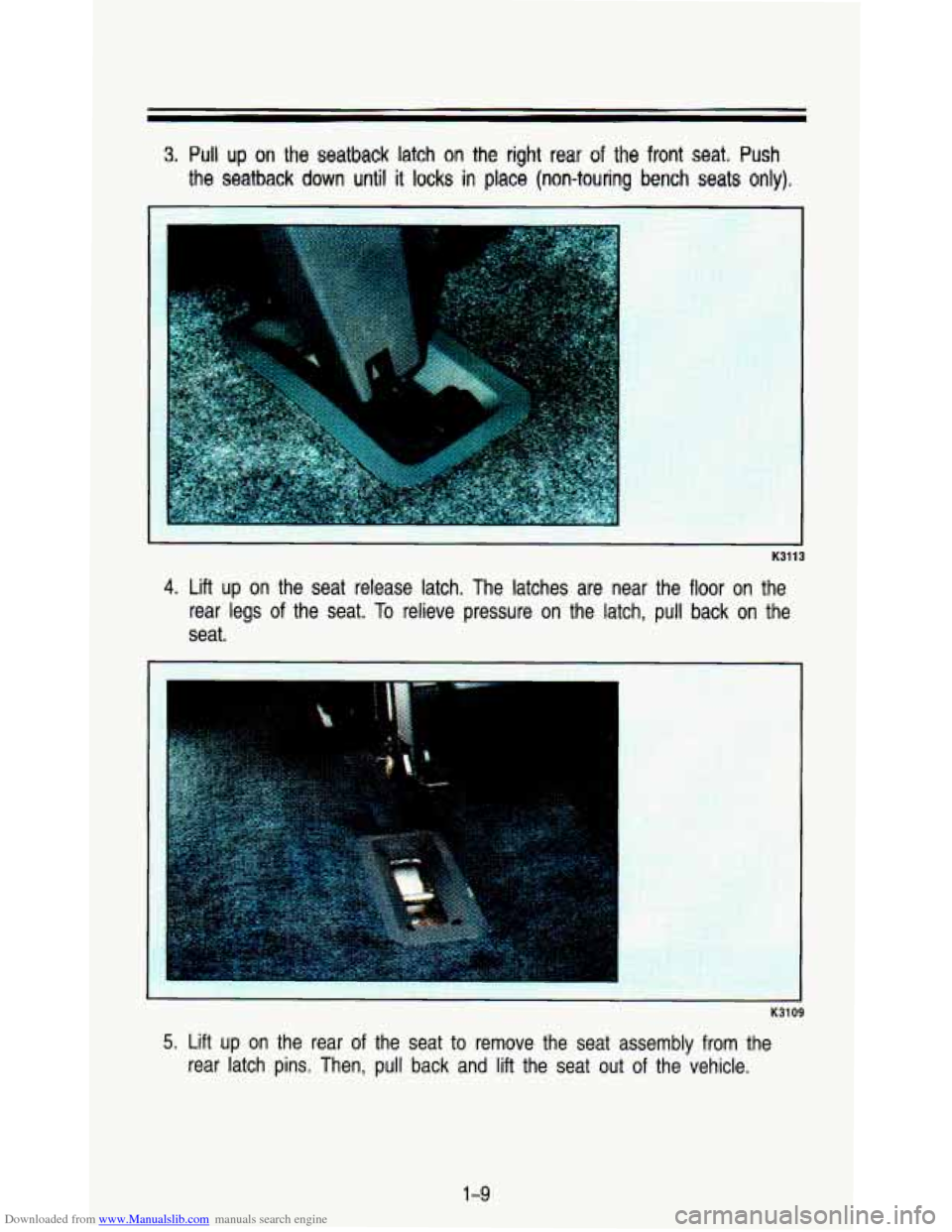

Downloaded from www.Manualslib.com manuals search engine 3. Pull up on the seatback latch on the right rear of the front seat. Push
the seatback down until it locks in place (non-touring bench seats only).
4. Lift up on the seat release latch. The latches are near the floor on the
rear legs
of the seat. To relieve pressure on the latch, pull back on the
seat.
1
K3109
5. Lift up on the rear of the seat to remove the seat assembly from the
rear latch pins. Then, pull back and
lift the seat out of the vehicle.
1-9

Downloaded from www.Manualslib.com manuals search engine Seats and Safety Belts

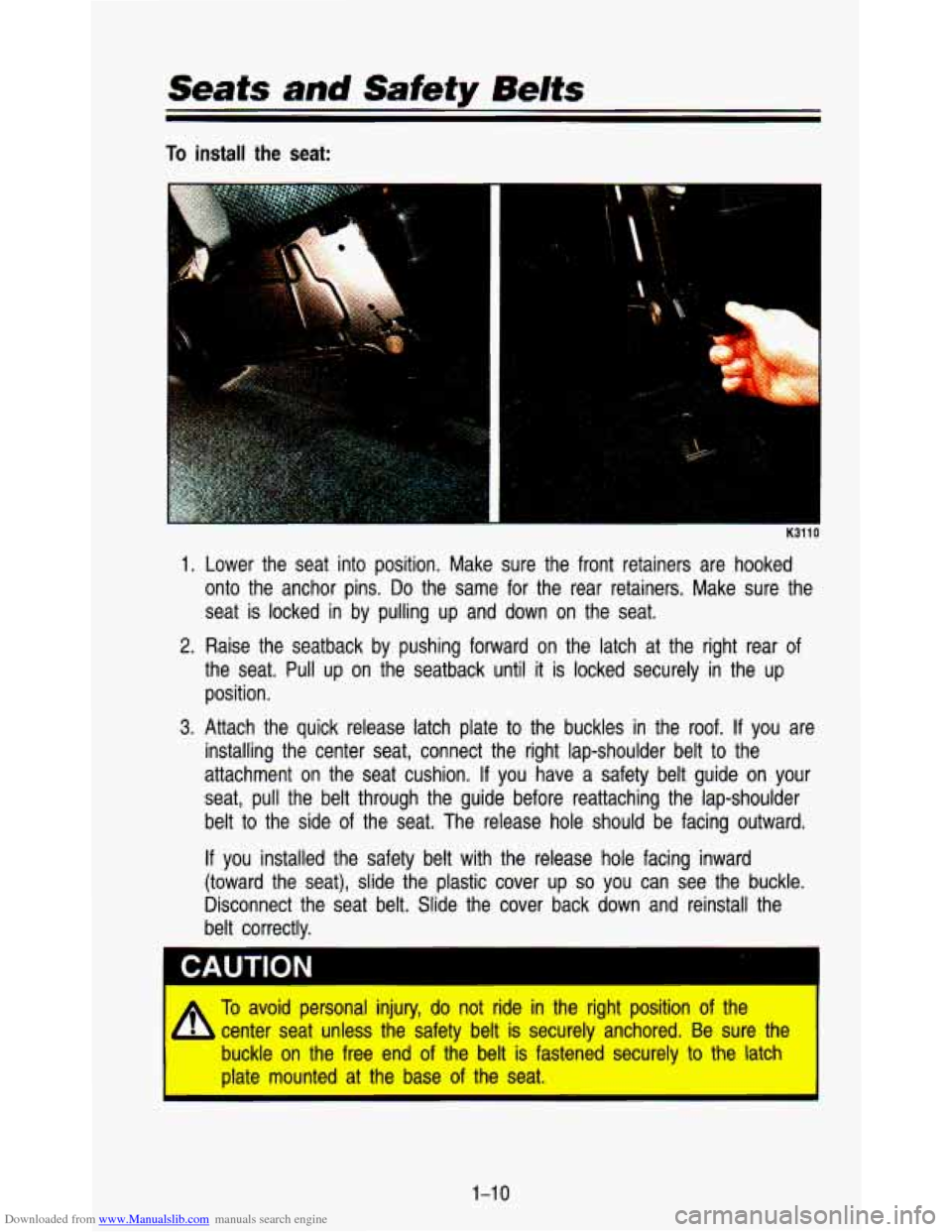

To install the seat:
a
1.
2.
3.
Lower the seat into position. Make sure the front retainers ar\
e hooked
onto the anchor pins.
Do the same for the rear retainers. Make sure the
seat is locked in by pulling up and down on the seat.
Raise the seatback by pushing forward on the latch at the rig\
ht rear of
the seat. Pull up on the seatback until it is locked securely in the up
position.
Attach the quick release latch plate
to the buckles in the roof. If you are
installing the center seat, connect the right lap-shoulder belt \
to the
attachment on the seat cushion. If you have a safety belt gui\
de on your
seat, pull the belt through the guide before reattaching the l\
ap-shoulder
belt
to the side of the seat. The release hole should be facing outward.
If you installed the safety belt with the release hole facing inw\
ard
(toward the seat), slide the plastic cover
up so you can see the buckle.
Disconnect the seat belt. Slide the cover back down and reinst\
all the
belt correctly.
A
To avoid personal injury, do not ride in the right position of the
center seat unless the safety belt is securely anchored. Be sure the
buckle on the free end of the belt is fastened securely to the latch
plate mounted at the base of the seat.
1-1 0

Downloaded from www.Manualslib.com manuals search engine I

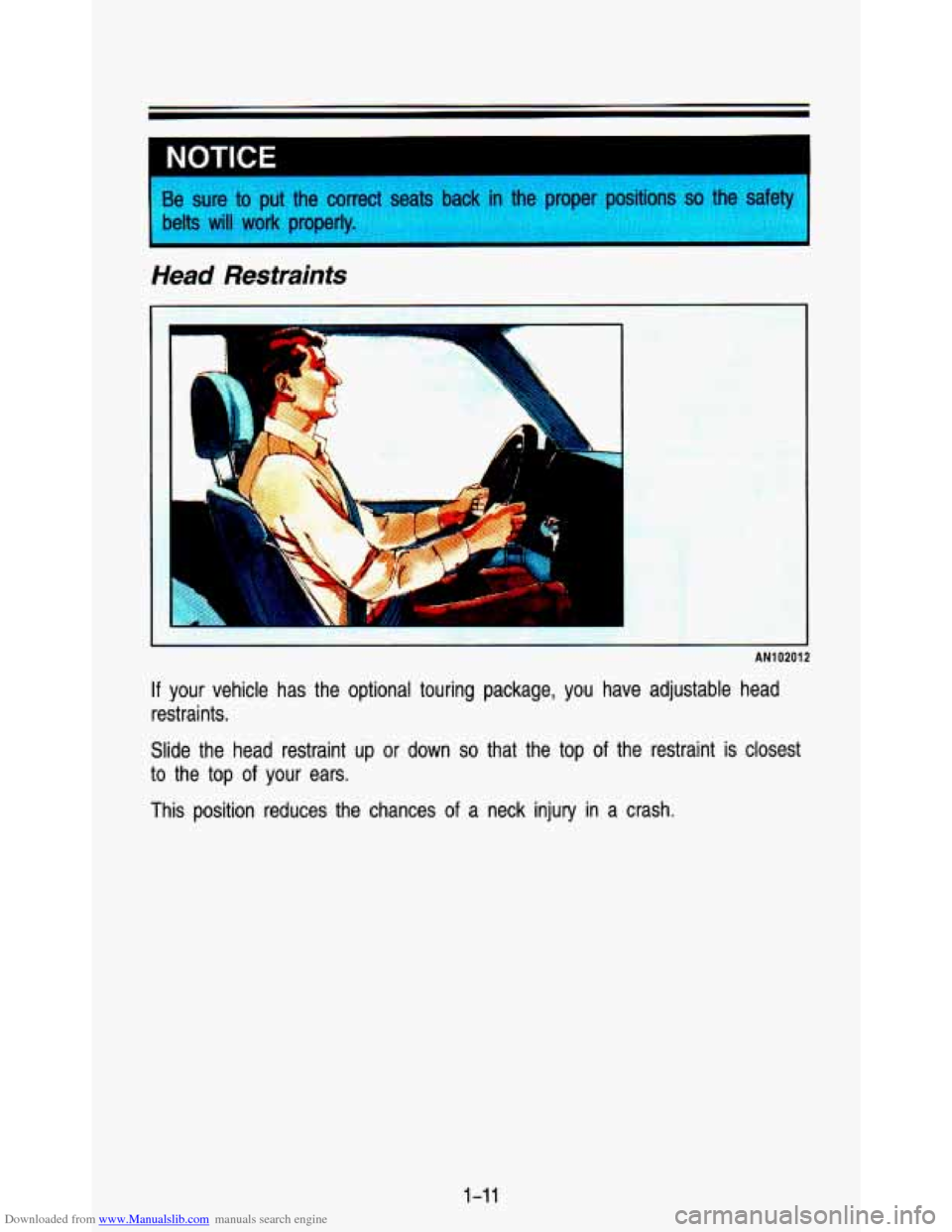

NOTICE
- -
Be sure to put the correct seats back in the proper positions so the safety
belts will work properly.
Head Restrahts
ANI 0201 2
If your vehicle has the optional touring package, you have adjusta\
ble head
restraints.
Slide the head restraint up or down
so that the top of the restraint is closest
to the top of your ears.
This position reduces the chances
of a neck injury in a crash.
1-11

Downloaded from www.Manualslib.com manuals search engine Seats and Safety Belts

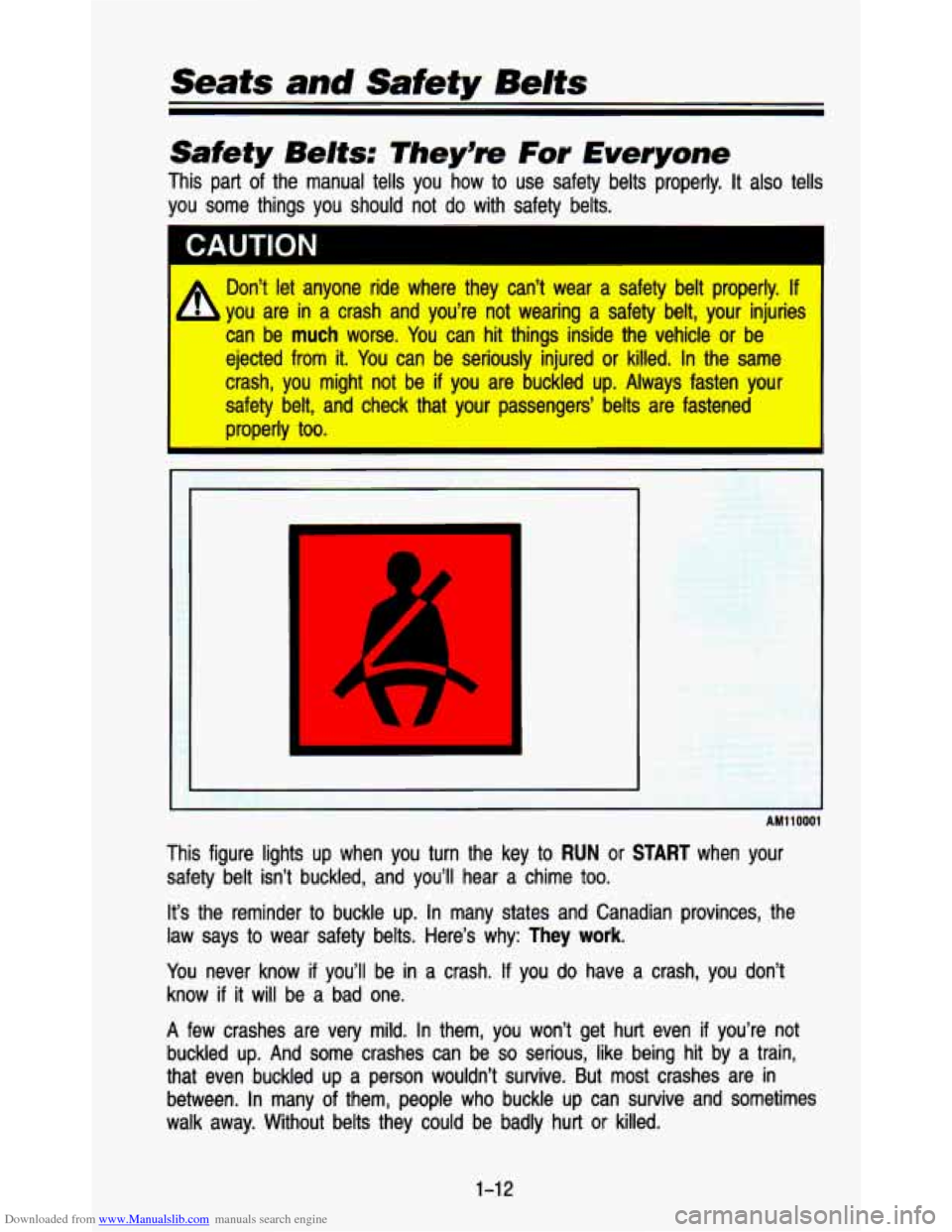

Safety Belts: They’= For Everyone
This part of the manual tells you how to use safety belts pr\
operly. It also tells
you some things
you should not do with safety belts.
I
A Don’t let anyone ride where they can’t wear a safety bel\
t properly. If
- b you are in a crash and you’re not wearing a safety belt, your injuries\

can be
much worse. You can hit things inside the vehicle or be
ejected from it. You can be seriously injured or killed. In the same
crash, you might not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts are faste\
ned
I properly too. I
I
I
AM110001
This figure lights up when you turn the key to RUN or START when your
safety belt isn’t buckled, and you’ll hear a chime too.
It’s the reminder
to buckle up. In many states and Canadian provinces, the
law says to wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a crash, you don’t
know
if it will be a bad one.
A few crashes are very mild. In them, you won’t get hurt eve\
n if you’re not
buckled up. And some crashes can be
so serious, like being hit by a train,
that even buckled up a person wouldn’t survive. But most cr\
ashes are in
between. In many
of them, people who buckle up can survive and sometimes
walk away. Without belts they could be badly hurt
or killed.
1-12
