1991 LEXUS SC400 sensor

(b) Apply seal packing to the sealing groove of the waterpump as shown in the illustration.
Seal packing: Part No.08826±00100 or equivalent
wInstall a nozzle that has been cut to a 2±3 mm
(0.08±0.12 in.) opening.
w Parts must be assembled within 5 minutes of
application. Otherwise the material must be removed
and reapplied.
w Immediately remove nozzle from the tube and reinstall
cap.
(c) Install the water pump with the five bolts, two stud bolts and nut.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
HINT: Use bolts 30 mm (1.18 in.) in length.
6. INSTALL ENGINE WIRE (a) Install the engine wire to the LH side of the cylinder block
with the two bolts.
(b) Install the wire cover with the three bolts.
(c) Connect the following connectors: (1) Oil level sensor connector
(2) Oil pressure switch connector
7. INSTALL WATER BY±PASS PIPE (a) Install a new O±ring to the by±pass pipe.
(b) Apply soapy water to the O±ring.
(c) Pull in the by±pass pipe end into the pipe hole of thewater pump.
(d) Install the water by±pass pipe with the two bolts.
Torque: 18 N Vm (185 kgf Vcm, 13 ft Vlbf)
±
ENGINE MECHANICAL Cylinder BlockEM±163
WhereEverybodyKnowsYourName

8. INSTALL KNOCK SENSORS(a) Using SST, install the two knock sensors.
SST 09816±30010
Torque: 44 N Vm (450 kgf Vcm, 33 ft Vlbf)
(b) Connect the two knock sensor connectors.
9. INSTALL STARTER (a) Install the wire clamp to the bracket on the starter.
(b) Connect the wire to the starter with the nut.
(c) Connect the connector to the starter.
(d) Install the starter with the two bolts.
Torque: 39 N Vm (400 kgf Vcm, 29 ft Vlbf)
10. INSTALL RH ENGINE MOUNTING BRACKET
Install the mounting bracket with the four bolts.
Torque: 37 N Vm (380 kgf Vcm, 27 ft Vlbf)
HINT: The RH mounting bracket is marked with ºRº.
11. INSTALL LH ENGINE MOUNTING BRACKET (a) Install the mounting bracket with the four bolts.
Torque: 37 N Vm (380 kgf Vcm, 27 ft Vlbf)
HINT: The LH mounting bracket is marked with ºLº.
(b) Install the engine wire to the mounting bracket with the
bolt.
EM±164
±
ENGINE MECHANICAL Cylinder Block
WhereEverybodyKnowsYourName

3. INSTALL DIPSTICK GUIDE FOR TRANSMISSION(a) Install a new O±ring to the dipstick guide.
(b) Apply soapy water to the O±ring.
(c) Connect the dipstick guide end to the tube of the oil pan,
and install the dipstick guide with the bolt.
(d) Install the dipstick.
4. CONNECT ENGINE WIRE TO TRANSMISSION (a) Connect the following connectors:(1) O/D direct clutch speed sensor connector
(2) No.1 speed sensor connector
(3) No.2 speed sensor connector
(4) Neutral start switch connector
(b) Install the five wire clamps to the brackets on the transmission.
EM±166±
ENGINE MECHANICAL Cylinder Block
WhereEverybodyKnowsYourName

9. INSTALL CATALYTIC CONVERTERS (MAIN)Install a new gasket and the catalytic converter with three
new nuts. Install the two catalytic converters.
Torque: 62 N Vm (630 kgf Vcm, 46 ft Vlbf)
10. INSTALL FRONT EXHAUST PIPE
(a) Temporarily install the pipe support stay with the fourbolts.
(b) Install three new gaskets, the exhaust pipe and pipe support stay with the six bolts and nuts.
Torque: 43 N Vm (440 kgf Vcm, 32 ft Vlbf)
(c) Tighten the four bolts holding the pipe support bracket
to the transmission.
Torque: 43 N Vm (440 kgf Vcm, 32 ft Vlbf)
(d) Install the two sub±oxygen sensors to the exhaust pipe.
Torque: 44 N Vm (450 kgf Vcm, 33 ft Vlbf)
HINT:
w Before installing the s ub±oxygen sensor, twist the
sensor wire counterclockwise 3 1/2 turns.
w After installing the sub±oxygen sensor, check that the
sensor wire is not twisted. If it is twisted, remove the
sub±oxygen sensor and reinstall it.
(e) Install the wire grommets to the floor.
11. CONNECT ENGINE WIRE TO CABIN (a) Push in the engine wire through the cowl panel.
(b) Install the engine wire clamp with the three bolts.
±
ENGINE MECHANICAL Cylinder BlockEM±169
WhereEverybodyKnowsYourName

(3) Two oil cooler hoses (for A/T) to radiator
(4) Two radiator hoses
(5) Two oil cooler hoses (for cooling fan) to pipes
(f) Connect the water temperature sensor connector.
(g) Install the wire clamp (for water temperature sensor) to the radiator fan shrould.
26. INSTALL RADIATOR RESERVOIR TANK (a) Install the reservoir tank to the reservoir tank bracket.
(b) Install the reservoir tank bracket with the two bolts.
±
ENGINE MECHANICAL Cylinder BlockEM±175
WhereEverybodyKnowsYourName

(c) Connect the following hoses:(1) Reservoir hose to water inlet housing
(2) Reservoir hose to radiator
(d) Connect the coolant level sensor connector.
27. INSTALL INTAKE AIR CONNECTOR (a) Connect the intake air connector to the throttle body.
(b) Install the hose clamp and mounting bolt.
(c) Connect the following hoses:(1) Air hose to ISC valve
(2) Air hose (from PS air control valve) to air intake chamber
28. CONNECT VACUUM HOSE (A) (FROM PS AIR CONTROL VALVE) TO AIR INTAKE CHAMBER
29. INSTALL AIR CLEANER AND AIR FLOW METER (a) Connect the air cleaner case to the air duct.
(b) Connect the air cleaner hose to the intake air connector.
(c) Install the four mounting bolts and hose clamp.
(d) Connect the air flow meter connector.
30. CONNECT CONTROL CABLES TO THROTTLE BODY Connect the following cables:(1) Accelerator cable
(2) A/T throttle cable
(3) (w/ Cruise Control System)
Cruise control actuator cable
EM±176
±
ENGINE MECHANICAL Cylinder Block
WhereEverybodyKnowsYourName

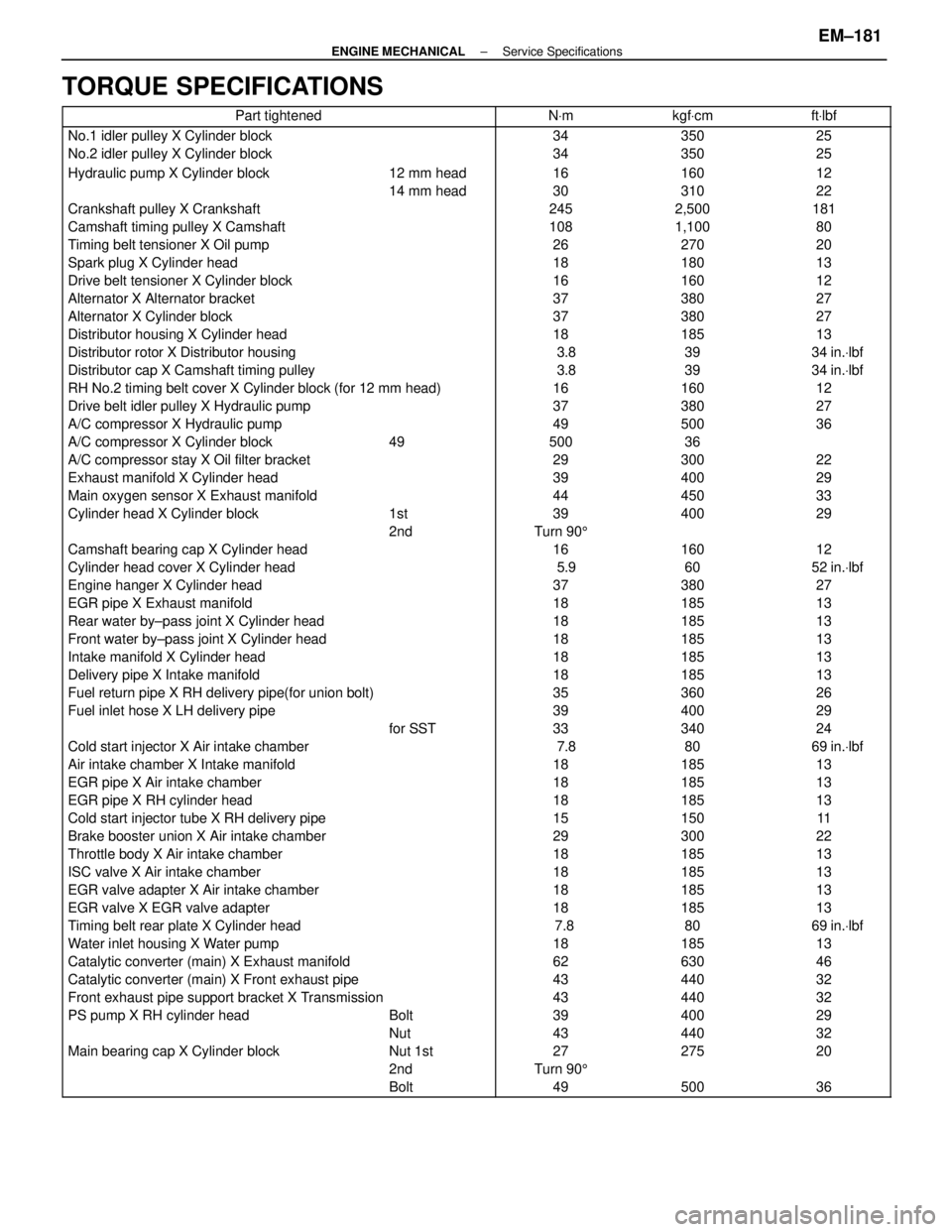

TORQUE SPECIFICATIONS
\
 \
Part tightened NVm kgf Vcm ft Vlbf
 No.1 idler pulley X Cylinder block  34 350 25
No.2 idler pulley X Cylinder block3435025 Hydraulic pump X Cylinder block 12 mm head 16 160 12  14 mm head 30 310 22
 Crankshaft pulley X Crankshaft  245 2,500 181
Camshaft timing pulley X Camshaft1081,10080 Timing belt tensioner X Oil pump  26 270 20 Spark plug X Cylinder head  18 180 13
 Drive belt tensioner X Cylinder block  16 160 12
Alternator X Alternator bracket3738027 Alternator X Cylinder block  37 380 27 Distributor housing X Cylinder head  18 185 13
 Distributor rotor X Distributor housing   3.8 39  34 in. Vlbf
Distributor cap X Camshaft timing pulley 3.839 34 in. Vlbf\
 \
RH No.2 timing belt cover X Cylinder block (for 12 mm head) 16 160 12 Drive belt idler pulley X Hydraulic pump  37 380 27
 A/C compressor X Hydraulic pump  49 500 36
A/C compressor X Cylinder block4950036 A/C compressor stay X Oil filter bracket  29 300 22 Exhaust manifold X Cylinder head  39 400 29
 Main oxygen sensor X Exhaust manifold  44 450 33
Cylinder head X Cylinder block1st3940029  2nd Turn 90 5
 Camshaft bearing cap X Cylinder head  16 160 12
 Cylinder head cover X Cylinder head   5.9 60  52 in. Vlbf
Engine hanger X Cylinder head3738027 EGR pipe X Exhaust manifold  18 185 13 Rear water by±pass joint X Cylinder head  18 185 13
 Front water by±pass joint X Cylinder head  18 185 13
Intake manifold X Cylinder head1818513 Delivery pipe X Intake manifold  18 185 13\
 \
Fuel return pipe X RH delivery pipe(for union bolt) 35 360 26
 Fuel inlet hose X LH delivery pipe  39 400 29
for SST3334024 Cold start injector X Air intake chamber   7.8 80  69 in. Vlbf Air intake chamber X Intake manifold  18 185 13
 EGR pipe X Air intake chamber  18 185 13
EGR pipe X RH cylinder head1818513 Cold start injector tube X RH delivery pipe  15 150 11 Brake booster union X Air intake chamber  29 300 22
 Throttle body X Air intake chamber  18 185 13
ISC valve X Air intake chamber1818513 EGR valve adapter X Air intake chamber  18 185 13 EGR valve X EGR valve adapter  18 185 13
 Timing belt rear plate X Cylinder head   7.8 80  69 in. Vlbf
Water inlet housing X Water pump1818513\
 \
Catalytic converter (main) X Exhaust manifold 62 630 46\
 \
Catalytic converter (main) X Front exhaust pipe 43 440 32
\
 \
Front exhaust pipe support bracket X Transmission 43 440 32
PS pump X RH cylinder headBolt3940029  Nut 43 440 32 Main bearing cap X Cylinder block Nut 1st 27 275 20
  2nd Turn 90 5
Bolt4950036
±
ENGINE MECHANICAL Service SpecificationsEM±181
WhereEverybodyKnowsYourName

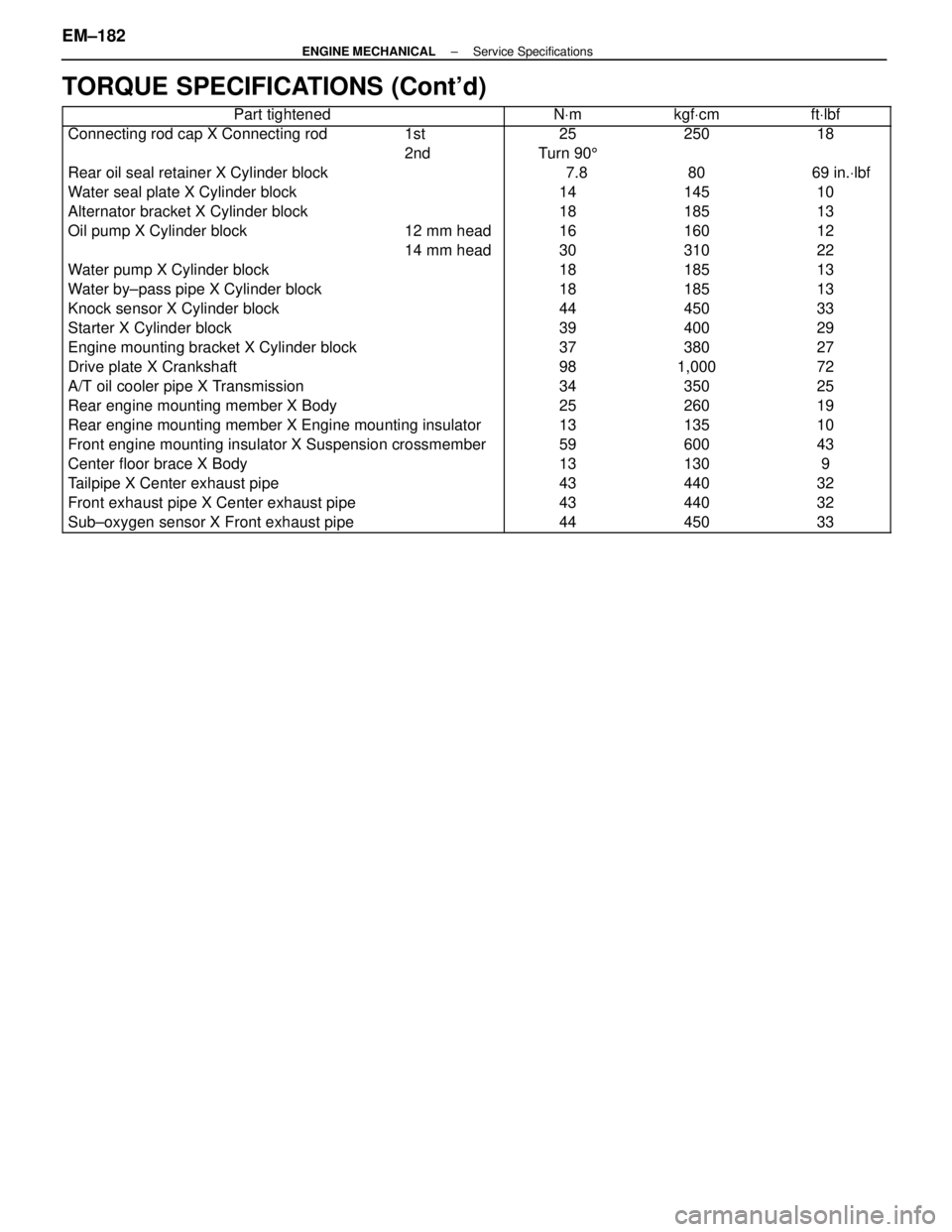

TORQUE SPECIFICATIONS (Cont'd)
\
 \
Part tightened NVm kgf Vcm ft Vlbf
 Connecting rod cap X Connecting rod 1st 25 250 18
2ndTurn 90 5 Rear oil seal retainer X Cylinder block   7.8 80  69 in. Vlbf Water seal plate X Cylinder block  14 145 10
 Alternator bracket X Cylinder block  18 185 13
 Oil pump X Cylinder block 12 mm head 16 160 12
14 mm head3031022 Water pump X Cylinder block  18 185 13 Water by±pass pipe X Cylinder block  18 185 13
 Knock sensor X Cylinder block  44 450 33
 Starter X Cylinder block  39 400 29
Engine mounting bracket X Cylinder block3738027 Drive plate X Crankshaft  98 1,000 72 A/T oil cooler pipe X Transmission  34 350 25 Rear engine mounting member X Body  25 260 19
\
 \
Rear engine mounting member X Engine mounting insulator 13 135 10
\
 \
Front engine mounting insulator X Suspension crossmember 59 600 43
Center floor brace X Body131309 Tailpipe X Center exhaust pipe  43 440 32 Front exhaust pipe X Center exhaust pipe  43 440 32
 Sub±oxygen sensor X Front exhaust pipe  44 450 33
