1987 MAZDA 626 warning

ALTERNATOR 5
TROUBLESHOOTING

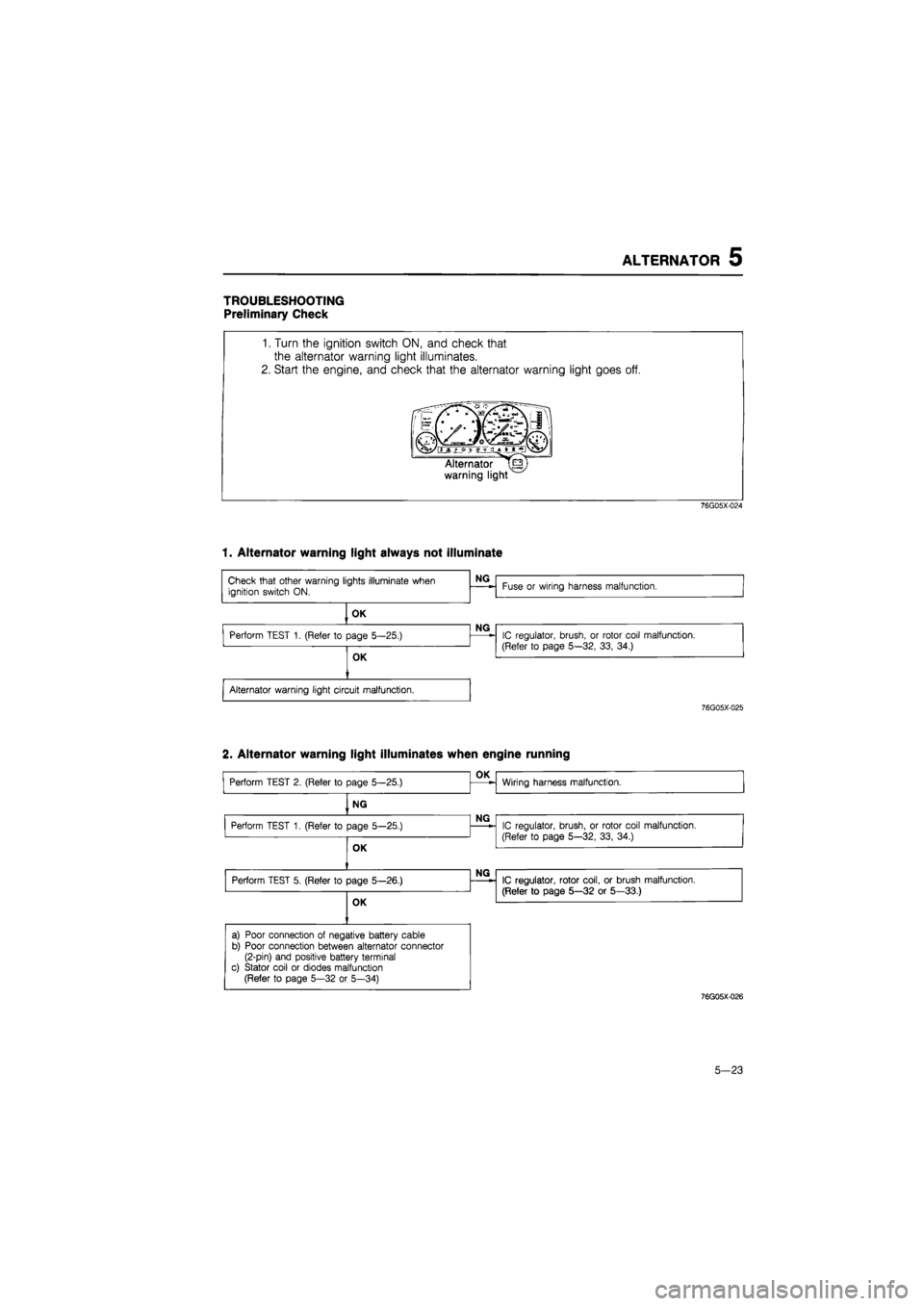

Preliminary Check
1. Turn the ignition switch ON, and check that
the alternator warning light illuminates.
2. Start the engine, and check that the alternator warning light goes off.
76G05X-024
1. Alternator warning light always not illuminate
76G05X-025
2. Alternator warning light illuminates when engine running
76G05X-026
5-23

5 ALTERNATOR
3. Alternator warning light operates properly, but battery discharged
OK
NG OK
1
a) Poor connection between B terminal and positive battery cable
b) Poor connection of negative battery cable c) Poor connection between alternator connector (2-pin) and positive battery terminal d) Stator coil or diodes malfunction (Refer to page 5—32 or 5—34.)
Perform TEST 2. (Refer to page 5--25.)
NG
Perform TEST 3. (Refer to Dage 5--26.)
I OK
Perfrom TEST 4. (Refer to page 5--26.)
NG
Perform TEST 5 (F Refer to page 5—26)
OK
Alternator normal.
Check other electrical components.
NG
Alternator normal.
Check other electrical components.
Perform TEST 5. (Refer to page 5—26.)
OK
Stator coil, diode, main fuse, or wiring har-ness between B ternimal and battery mal-function.
(Refer to page 5—32 or 5—34.)
IC regulator, bush, or rotor coil malfunction. (Refer to page 5—32 or 5—33)
NG
76G05X-027
4. Battery overcharged
Less than 14.1V
(At 20°C, 68°F)
More than 14.7V
(At 20oC,68°F)
IC regulator malfunction,
Perform TES T 6. (Refer to page 5—27.)
NG OK
Wiring harness malfunction.
76G05X-028
5—24

ALTERNATOR 5
Warning
Disconnect the nagative battery terminal when disconnect or reconnect B terminal.
TEST 1
1. Disconnect the alternator connector (2-pin).
2. Connect the SST.
4. Connect the red clip of the adapter harness to the battery
(
+
),
and check that the red
lamp and green lamp illuminate.
5. Start the engine and check that both lamps go off.
86U05X-010
TEST 2
1. Connect an ammeter (75A min.) between the wire and the B terminal.
2. Turn all headlights and accessories on, and depress the brake pedal.
3. Start the engine and check that output current is 70A (RF-CX: 75A) or more at
2,500—3,000 rpm of the engine speed.
Caution
Do not ground the B terminal.
76G05X-029
B terminal
5-25

7B
AUTOMATIC TRANSAXLE
(Electronically Controlled and 4-Speed)
OUTLINE 7B— 2
SPECIFICATIONS 7B— 2
COMPONENT LOCATION 7B— 3
STRUCTURAL VIEW 7B— 5
OPERATION OF COMPONENTS 7B— 6
FLUID PASSAGE LOCATION 7B— 9
TROUBLESHOOTING (G4A-EL) 7B— 12
GENERAL NOTE 7B— 12
STEP 1
(WARNING CODE RETRIEVAL) 7B— 15
STEP 2
(PRELIMINARY INSPECTION) 7B— 22
STEP 3 (SIGNAL INSPECTION) 7B— 24
STEP 4 (STALL TEST) 7B— 27
STEP 5 (TIME LAG TEST) 7B— 30
STEP 6 (OIL PRESSURE TEST) 7B— 31
STEP 7 (ROAD TEST) 7B— 34
TROUBLESHOOTING (G4A-HL) 7B— 41
GENERAL NOTE 7B— 41
STEP 1
(PRELIMINARY INSPECTION) 7B— 44
STEP 2 (ELECTRICAL
SYSTEM INSPECTION) 7B— 47
STEP 3 (STALL TEST) 7B— 49
STEP 4 (TIME LAG TEST) 7B- 52
STEP 5 (ROAD TEST) 7B— 53
STEP 6 (OIL PRESSURE TEST) 7B— 58
ELECTRICAL SYSTEM
COMPONENTS 7B— 63
MODE SWITCH (G4A-EL) 7B— 63
HOLD SWITCH (G4A-EL) 7B— 63
OD OFF SWITCH (G4A-HL) 7B— 64
INHIBITOR SWITCH 7B- 65
WATER TEMPERATURE SWITCH 7B— 66
FLUID TEMPERATURE SWITCH
(G4A-EL) 7B— 66
BRAKE LIGHT SWITCH
(G4A-EL) 7B— 66
KICK-DOWN SWITCH (G4A-HL) 7B— 67
PULSE GENERATOR (G4A-EL) 7B- 68
VEHICLE SPEED SENSOR
(G4A-EL) 7B— 68
CRUISE CONTROL SWITCH
(CRUISE CONTROL UNIT) 7B— 68
IDLE SWITCH AND THROTTLE
SENSOR (G4A-EL) 7B— 68
OD RELEASE SOLENOID
VALVE (G4A-HL) 7B— 68
SOLENOID VALVES (G4A-EL) 7B— 69
NO LOAD SIGNAL (G4A-EL) 7B— 69
MODE, AND HOLD INDICATOR
LIGHT (G4A-EL) 7B— 69
OD OFF INDICATOR LIGHT
(G4A-HL) 7B— 69
EC-AT CONTROL UNIT
(G4A-EL) 7B— 69
ON-VEHICLE MAINTENANCE 7B— 71
AUTOMATIC TRANSAXLE
FLUID (ATF) 7B— 71
SELECTOR LEVER 7B— 72
THROTTLE CABLE 7B— 73
CONTROL VALVE BODY 7B— 77
OIL STRAINER 7B— 79
ADJUSTMENT OF 2-4 BRAKE
BAND 78— 80
REPLACEMENT OF
DRIVESHAFT OIL SEAL 7B— 80
OIL COOLER 7B— 81
GOVERNOR (G4A-HL) 7B— 82
REMOVAL 7B— 83
PRECAUTION 7B— 83
DISASSEMBLY 7B— 88
DISASSEMBLY-STEP 1 7B— 88
DISASSEMBLY-STEP 2 7B— 94
DISASSEMBLY-STEP 3 7B— 99
DISASSEMBLY-STEP 4 7B—103
INSPECTION AND REPAIR 7B—107
PRECAUTION 7B—107
TORQUE CONVERTER 7B—107
OIL PUMP 7B—108
CLUTCH ASSEMBLY 7B—113
SMALL SUN GEAR AND
ONE-WAY CLUTCH 7B—122
ONE-WAY CLUTCH AND
CARRIER HUB ASSEMBLY 7B-126
3-4 CLUTCH 7B—128
2-3 ACCUMULATOR 7B—132
GOVERNOR ASSEMBLY
(G4A-HL) 7B-133
LOW AND REVERSE BRAKE 7B—134
2-4 BRAKE BAND 7B—135
BAND SERVO 7B—135
OTHER INSPECTION 7B—135
CONTROL VALVE BODY
(G4A-EL) 7B-136
CONTROL VALVE BODY
(G4A-HL) 7B-155
DIFFERENTIAL 7B—177
OUTPUT GEAR 7B—181
IDLE GEAR 7B—182
BEARING COVER ASSEMBLY 7B—185
BEARING HOUSING 7B—186
ASSEMBLY 7B-187
PRECATION 7B—187
ASSEMBLY-STEP 1 7B—187
ASSEMBLY-STEP 2 7B—197
ASSEMBLY-STEP 3 7B—202
ASSEMBLY-STEP 4 7B—208
INSTALLATION 7B—215
TORQUE SPECIFICATIONS 7B—215
HYDRAULIC CIRCUIT (G4A-EL) 7B—221
HYDRAULIC CIRCUIT (G4A-HL) 7B—239
