2024 FORD F650/750 Owners Manual

Battery and Charging System
ActionMessage
The charging system requires service. If thewarning stays on or continues to come on,have the system checked as soon aspossible.
Check Charging System
The battery management system detectsan extended low-voltage condition. Yourvehicle will disable various features to helppreserve the battery. Turn off as many ofthe electrical loads as soon as possible tohelp improve system voltage. If the systemvoltage has recovered, the disabledfeatures will operate again as normal.
Low Battery Features Temporarily TurnedOff
The battery management system determ-ines that the battery is at a low state ofcharge. Turn your ignition off as soon aspossible to protect the battery. Thismessage will clear once you restart yourvehicle and the battery state of charge hasrecovered. Turning off unnecessary elec-trical loads will allow faster battery state-of-charge recovery.
Turn Power Off To Save Battery
Diesel Messages
WARNING: When the ExhaustFilter Cleaning message appears in theinformation display, do not park nearflammable materials, vapors orstructures until filter cleaning iscomplete.
77
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

ActionMessage
Your vehicle has entered the cleaningmode. Various engine actions raises theexhaust temperature in the diesel particu-late filter system to burn off the particles,exhaust soot. After the vehicle burns theparticles off, the exhaust temperaturereturns to normal levels.
Exhaust Filter Cleaning
The diesel particulate filter is full ofparticles, exhaust soot, and you are notoperating the vehicle in a manner thatallows normal cleaning. Drive the vehicleabove 30 mph (48 km/h) until the messageclears.
Exhaust Filter Overloaded Drive to Clean
Exhaust Filter Overloaded Clean Now
Exhaust Filter at Limit Clean Now
Exhaust Filter at Limit Drive to Clean Now
The exhaust system temperature exceededthe intended operating range. If this warningoccurs, a tone sounds, followed by reducedengine power. The engine shuts down whenyour vehicle speed is below 3 mph(5 km/h). Stop the vehicle as soon as safelypossible. Have the system checked as soonas possible.
Exhaust System Overheated Stop SafelyNOW
In extremely cold weather, typically below-15°F (-26°C) and if the engine block heateris not utilized, your engine will not respondto accelerator pedal movement for a shortperiod of time. This restriction allows yourengine to properly circulate the oil to avoidengine damage.
Engine Warming Please Wait {seconds:00}sec
The diesel particulate filter is clean.Exhaust Filter Drive Complete
The diesel filter is clean, operatorcommanded regeneration only.Exhaust Filter Cleaned
The manual regeneration process hasstopped, operator commanded regenera-tion only.
Exhaust Filter Cleaning Stopped
The distance you can travel beforedepleting the remaining diesel exhaust fluid.DEF Level Low Range: distanceimperial:###0 mi Refill Now
DEF Level Low Range: distancemetric:###0 km Refill Now
78
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

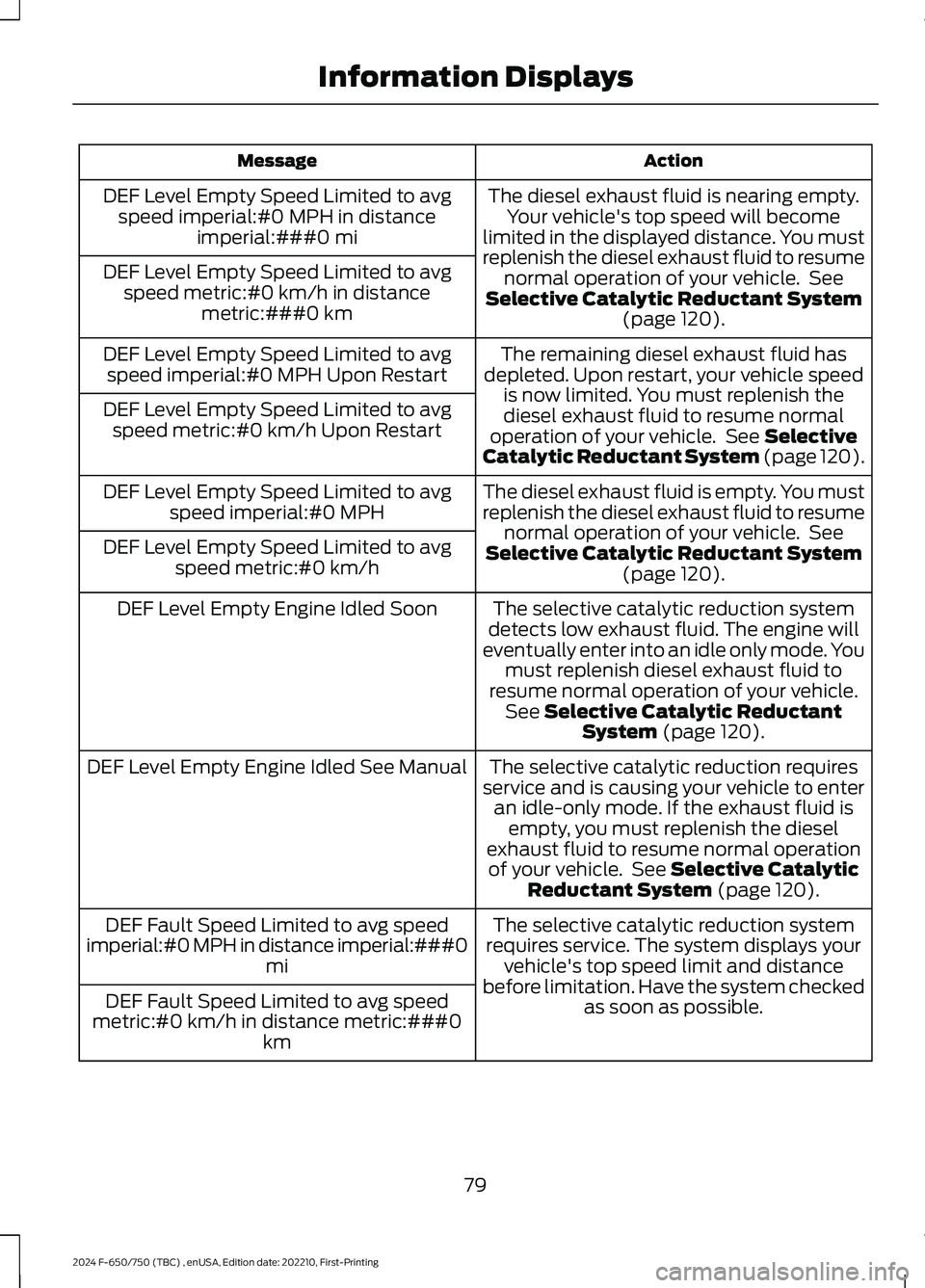

ActionMessage
The diesel exhaust fluid is nearing empty.Your vehicle's top speed will becomelimited in the displayed distance. You mustreplenish the diesel exhaust fluid to resumenormal operation of your vehicle. SeeSelective Catalytic Reductant System(page 120).
DEF Level Empty Speed Limited to avgspeed imperial:#0 MPH in distanceimperial:###0 mi
DEF Level Empty Speed Limited to avgspeed metric:#0 km/h in distancemetric:###0 km
The remaining diesel exhaust fluid hasdepleted. Upon restart, your vehicle speedis now limited. You must replenish thediesel exhaust fluid to resume normaloperation of your vehicle. See SelectiveCatalytic Reductant System (page 120).
DEF Level Empty Speed Limited to avgspeed imperial:#0 MPH Upon Restart
DEF Level Empty Speed Limited to avgspeed metric:#0 km/h Upon Restart
The diesel exhaust fluid is empty. You mustreplenish the diesel exhaust fluid to resumenormal operation of your vehicle. SeeSelective Catalytic Reductant System(page 120).
DEF Level Empty Speed Limited to avgspeed imperial:#0 MPH
DEF Level Empty Speed Limited to avgspeed metric:#0 km/h
The selective catalytic reduction systemdetects low exhaust fluid. The engine willeventually enter into an idle only mode. Youmust replenish diesel exhaust fluid toresume normal operation of your vehicle.See Selective Catalytic ReductantSystem (page 120).
DEF Level Empty Engine Idled Soon
The selective catalytic reduction requiresservice and is causing your vehicle to enteran idle-only mode. If the exhaust fluid isempty, you must replenish the dieselexhaust fluid to resume normal operationof your vehicle. See Selective CatalyticReductant System (page 120).
DEF Level Empty Engine Idled See Manual
The selective catalytic reduction systemrequires service. The system displays yourvehicle's top speed limit and distancebefore limitation. Have the system checkedas soon as possible.
DEF Fault Speed Limited to avg speedimperial:#0 MPH in distance imperial:###0mi
DEF Fault Speed Limited to avg speedmetric:#0 km/h in distance metric:###0km
79
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

ActionMessage
The selective catalytic reduction systemrequires service. Upon restart, your vehiclespeed is now limited. Have the systemchecked as soon as possible.
DEF Fault Speed Limited to avg speedimperial:#0 MPH Upon Restart
DEF Fault Speed Limited to avg speedmetric:#0 km/h Upon Restart
The selective catalytic reduction systemrequires service. The system displays yourvehicle's top speed limit. Have the systemchecked as soon as possible.
DEF Fault Speed Limited to avg speedimperial:#0 MPH
DEF Fault Speed Limited to avg speedmetric:#0 km/h
Have your vehicle checked as soon aspossible. Ignoring this warning messagecould lead to reduced drivability andcustomer expense, including damage tothe diesel particulate filter. Your newvehicle warranty may not cover thisdamage.
Exhaust Filter Over Limit Service Now
The water separator has reached a prede-termined capacity and needs draining. SeeDraining the Fuel Filter Water Trap(page 234).
Water in Fuel Drain Filter
A low fuel pressure condition has occurreddue to cold, low fuel level or fuel filters needto be changed. See Fuel Quality (page108).
Fuel Pressure Low
Doors and Locks
ActionMessage
The driver door is not completely closed.Close the driver door. If the messagecontinues to display, have the systemchecked as soon as possible.
Driver Door Ajar
The passenger door is not completelyclosed. Close the passenger door. If themessage continues to display, have thesystem checked as soon as possible.
Passenger Door Ajar
80
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

Driver Alert
ActionMessage
Stop and rest as soon as it is safe to do so.Driver Alert Warning Rest Now
Take a rest soon.Driver Alert Warning Rest Suggested
Drivetrain
ActionMessage
The electronic locking differential requiresservice. Have the system checked as soonas possible.
Check Locking Differential
Engine
ActionMessage
The engine has reduced power to helpreduce high engine temperature. Have thesystem checked as soon as possible.
Power Reduced to Lower Engine Temp
Fuel
ActionMessage
An early reminder of a low fuel condition.Refuel your vehicle.Fuel Level Low
A fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
81
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

Lane Departure Warning System
ActionMessage
The system has detected a condition thathas caused the system to be temporarilyunavailable. If the message continues todisplay, have the system checked as soonas possible.
Front Camera Temporarily Not Available
The system has detected a condition thatrequires you to clean the windshield in orderfor it to operate properly.
Front Camera Low Visibility Clean Screen
The system requires service, have thesystem checked as soon as possible.Front Camera Malfunction Service Required
The system requests you to keep yourhands on the steering wheel.Keep Hands on Steering Wheel
Maintenance
ActionMessage
Stop your vehicle as soon as safely possibleand turn off the engine. Check the oil level,if the warning stays on or continues to comeon with your engine running, have yourvehicle checked as soon as possible.
Low Engine Oil Pressure
The engine oil life is low and needs to bechanged soon.Change Engine Oil Soon
The engine oil life is low and needs to bechanged immediately.Oil Change Required
The brake fluid level is low, have the systemchecked as soon as possible.Brake Fluid Level Low
The brake system requires service. Stopyour vehicle in a safe place. Have thesystem checked as soon as possible.
Check Brake System
Your vehicle is still in transport or factorymode. This may not allow some featuresto operate properly. Have your vehiclechecked as soon as possible.
Factory Mode Contact Dealer
Transport Mode Contact Dealer
The powertrain requires service.See Manual
82
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

Power Steering
ActionMessage
The power steering system requires service.Have the system checked as soon aspossible.
Steering Fault Service Now
The power steering system is not working.Stop your vehicle in a safe place. Have thesystem checked as soon as possible.
Steering Loss Stop Safely
The power steering system, passive entryor passive entry start system requiresservice. Have the system checked as soonas possible.
Steering Assist Fault Service Required
The steering lock system requires service.Have the system checked as soon aspossible.
Steering Lock Malfunction Service Now
Pre-Collision Assist
ActionMessage
The system requires service. Have thesystem checked as soon as possible.Pre-Collision Assist Not Available
You have a blocked sensor due toinclement weather, ice, mud or water infront of the radar sensor. You can typicallyclean the sensor to resolve. If the messagecontinues to appear, have the systemchecked as soon as possible.
Pre-Collision Assist Not Available SensorBlocked
Traction Control
ActionMessage
The status of the traction control systemafter you switched it on. See Using Trac-tion Control (page 151).
Traction Control On
The status of the traction control systemafter you switched it off. See Using Trac-tion Control (page 151).
Traction Control Off
83
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

Transmission
ActionMessage
You switched the engine off and the shiftselector is in any position other than park(P).
Shift to Park
Displays when the brake pedal needs to bepressed.Press Brake Pedal
The transmission is overheating and needsto cool. Stop in a safe place as soon aspossible.
Transmission Over Temperature StopSafely
Have the system checked as soon aspossible.Transmission Service Required
The transmission is overheating and needsto cool. Stop in a safe place as soon aspossible.
Transmission Too Hot Press Brake
The transmission has limited functionality.Have the system checked as soon aspossible.
Transmission Limited Function See Manual
A reminder to shift into park (P). In addi-tion, this message is typical after recon-necting or recharging the battery until youcycle the ignition to the on mode. SeeChanging the 12V Battery (page 246).
Transmission Not in Park
Have the system checked as soon aspossible.Transmission Fault Service Now
Displays when the transmission hasadjusted the shift strategy.Transmission Adjusted
Displays when the transmission is adjustingthe shift strategy.Transmission AdaptMode
Transmission is too cold. Wait for it to warmup before you drive.Transmission Warming Up Please Wait
84
